Summary of Contents for Jenn-Air JS42PPDUDB01

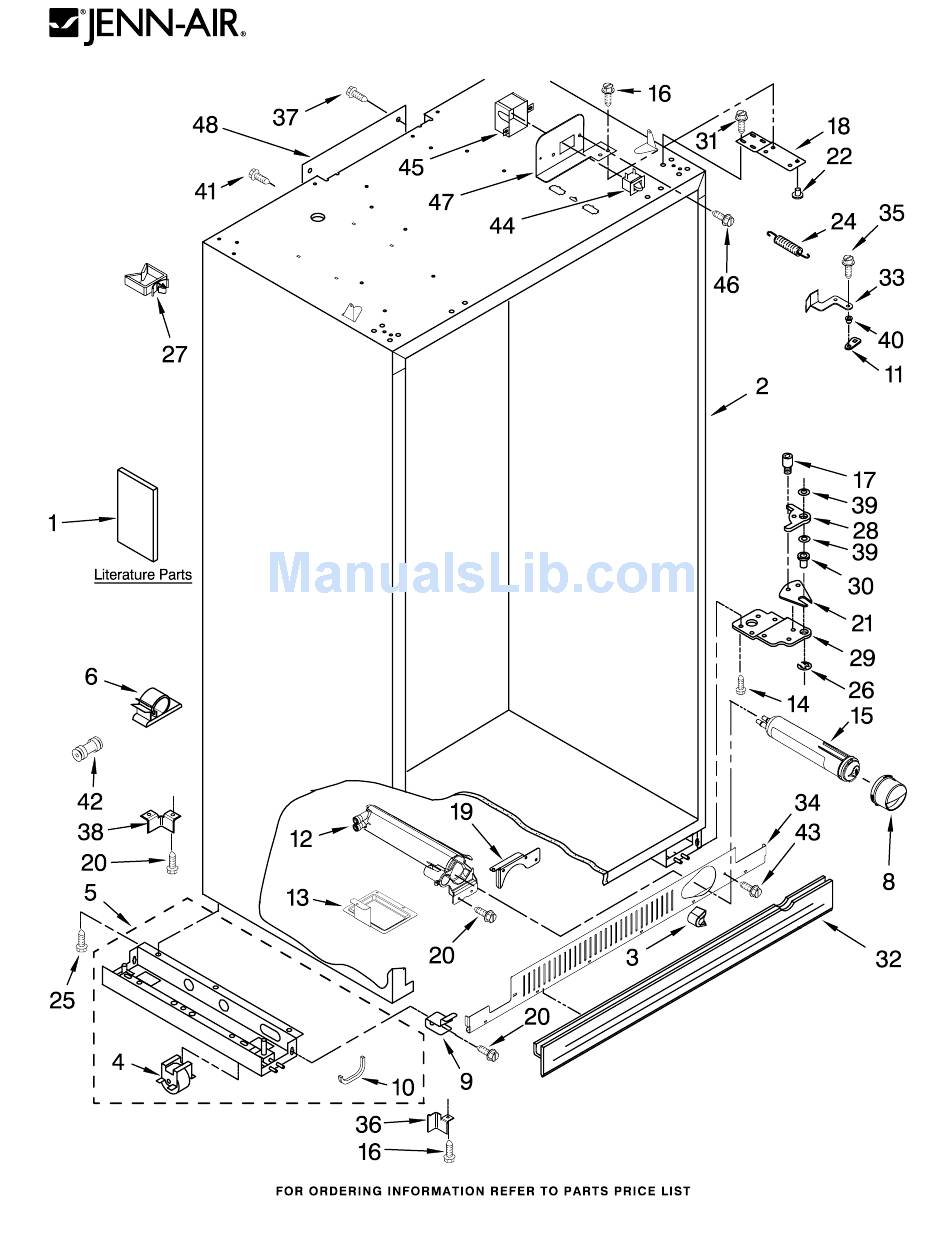

- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: JS42PPDUDB01 (Stainless Steel) 10−08 Litho In U.S.A. (mjb)(bay) Part No. W10231838 Rev. A...
-
Page 2: Cabinet Parts
CABINET PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2318189 Tray, Drip Filter Grille Bottom, W10151251 Use & Care Guide 3400525 Screw Front W10164077 Energy Guide 4396841 Filter, Water 2325185B Black W10159832 Service &... - Page 3 CABINET TRIM PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132472 Stainless Steel Screw 1163283 Stainless Steel 2316687 Cabinet, Trim (Bottom) 486194 Screw 2314017 Cabinet, Trim Top 7 W10132541 Cabinet Trim (Left Side) 8 W10121451 Nutsert (4) 2005925 Seal−Trim, Side 489464 Screw W10231838...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part DESCRIPTION 1 W10175905 Wire, Shelf 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10231838... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: JS42PPDUDB01 (Stainless Steel) W10231838... - Page 6 REFRIGERATOR LINER PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 4 W10159487 Diverter, Crisper Cover 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan Baffle 11 W10169528 Baffle Control...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part DESCRIPTION 1 W10151196 Control Box Assy 2317000 Clip, Box 2310390 Wire, Jumper 2307592 Bracket, Control Box 2307595 Shield, Control Box 487539 Screw (2) 8 W10151210 Display, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb (2) 8281185 Screw W10231838... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part DESCRIPTION Panel, Decorative Assembly W10150056 Stainless Steel 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10185625 Cover, Unit Front 487415 Screw 7 W10167456 Wire Assembly RC/FC Light Switch 8 W10159578 Badge, Jenn−Air 489348 Clamp...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: JS42PPDUDB01 (Stainless Steel) W10231838... - Page 10 REFRIGERATOR SHELF PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part DESCRIPTION 1 W10141494 Shelf Assembly 3 W10151215 Assembly, Meat Pan Cover 4 W10151213 Assembly, Crisper Cover 2257582 Trim, Glass Rear 2252412 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side 2302831 Trim, Glass Front 2256254 Trim, Glass Rear...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: JS42PPDUDB01 (Stainless Steel) W10231838...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 20 W10151205 Cover, Emitter 2220904 Gasket (2) 2259385 Fan Motor Liner (Not A Evaporator Cover 2198665 Tube, P.C. Board Serviceable Part) 36 W10151208 Cover, Receiver 2169142 Fan Blade 2259025 Cover, Air Outlet...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: JS42PPDUDB01 (Stainless Steel) W10231838... - Page 14 MOTOR AND ICE CONTAINER PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part DESCRIPTION 2222965 Ice Bin 2 W10151247 Crusher Bin 3 W10140642 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2317239 Block, Blade...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: JS42PPDUDB01 (Stainless Steel) W10231838... - Page 16 REFRIGERATOR DOOR PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part DESCRIPTION 1 W10193490 Door Assy, RC (Includes Item #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gaasket, Utility 2222811 Door Gasket, Magnetic...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Model: JS42PPDUDB01 (Stainless Steel) W10231838... - Page 18 FREEZER DOOR PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part DESCRIPTION Door Assy, FC (Includes #14) W10193494 Black 2 W10127710 Plate, Door Handle 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222814 Door Gasket, Magnetic Handle, Door 12859107 Stainless Steel Spacer, Door−Skin...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: JS42PPDUDB01 (Stainless Steel) W10231838... - Page 20 DISPENSER FRONT PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2) 2305235 Spigot 2318017 Separator Assembly Housing, Middle...
- Page 21 UPPER UNIT PARTS For Model: JS42PPDUDB01 (Stainless Steel) W10231838...
- Page 22 UPPER UNIT PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 489399 Screw 1 W10133449 Inverter Box 4389107 Wire Tie Following Parts Not Illustrated 489373 Screw, Compressor 21 W10175593 Drier Mounting (4) and Optional Parts Not Included 22 W10136614 Bracket, Fan Motor 2223393 Compressor (Condenser Fan)
- Page 23 LOWER UNIT AND TUBE PARTS For Model: JS42PPDUDB01 (Stainless Steel) W10231838...
- Page 24 LOWER UNIT AND TUBE PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part DESCRIPTION 1 W10160981 Bracket Assembly, Air Return 486194 Screw 3 W10157752 Bracket, Heater Mounting 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 6 W10196999 Drain Pan Assy. 7 W10151288 Cover, Wiring 8 W10153595 Cover, Box 9 W10121371 Tube, Discharge 2188820 Thermistor...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Model: JS42PPDUDB01 (Stainless Steel) W10231838... - Page 26 ICEMAKER PARTS For Model: JS42PPDUDB01 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Motor, (Not 32 W10223929 Module Assembly 304392 Screw 8−18 x 1/2 Serviceable Order (Includes Items 2320601 Shield, Valve Item 35) 21 & 33) 628379 Clip, Fuse 628356 Cup−Water Fill 489136 Screw (2) 6 W10174395 Tube, Filter Inlet...
