Jenn-Air JS42SEDUDB00 Parts List

Jenn-Air JS42SEDUDB00 Parts List

42" built in refrigerator
Hide thumbs Also See for JS42SEDUDB00:
Table of Contents

Advertisement

Quick Links

See also: Use and Care Manual , Installation Manual
CABINET PARTS
42" BUILT IN
REFRIGERATOR
For Model: JS42SEDUDB00
(Stainless Steel)
01−08 Litho In U.S.A. (mat)
1
Part No. W10180976 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JS42SEDUDB00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jenn-Air JS42SEDUDB00

Summary of Contents for Jenn-Air JS42SEDUDB00

  • Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: JS42SEDUDB00 (Stainless Steel) 01−08 Litho In U.S.A. (mat) Part No. W10180976 Rev. A...

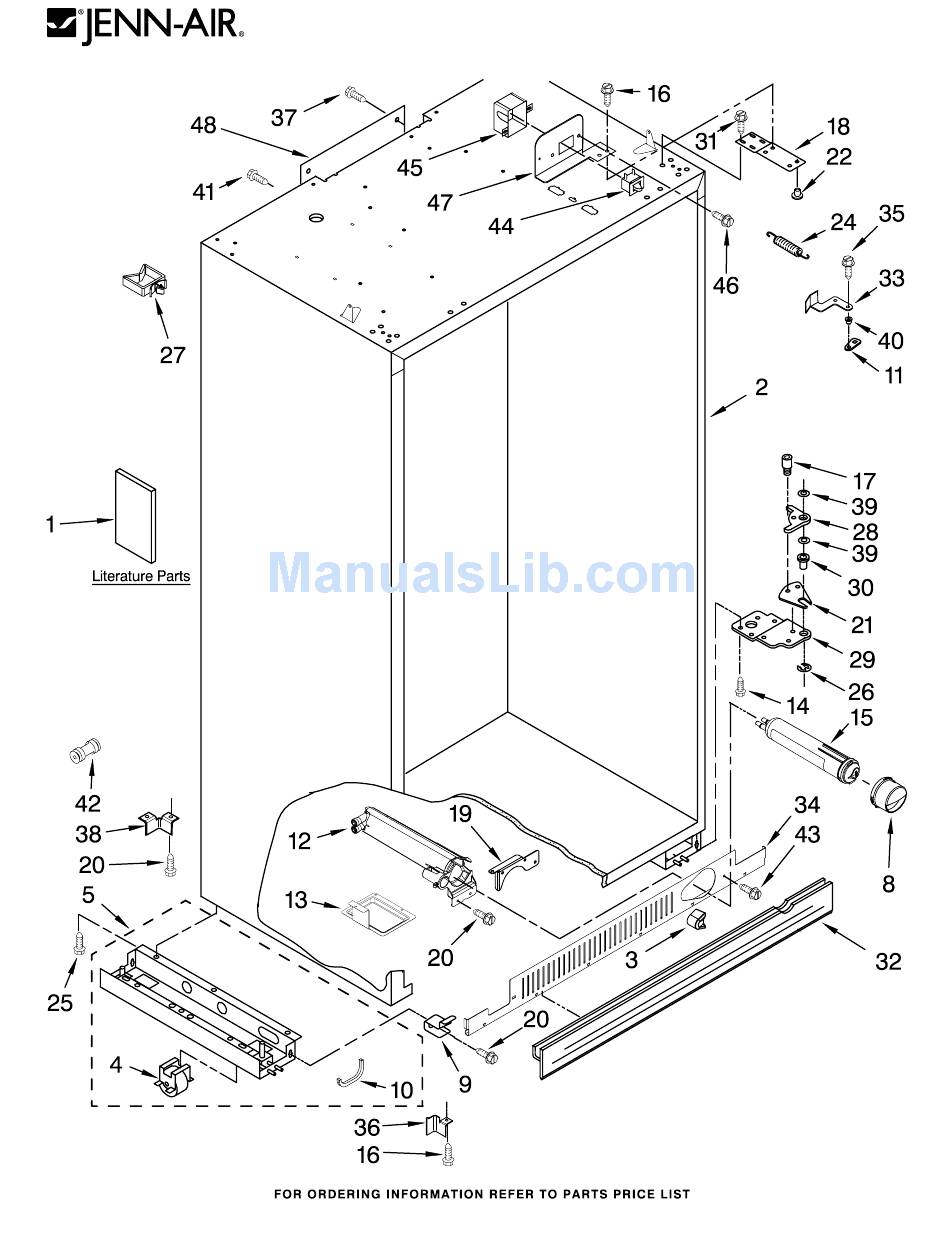

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts Extension Arm, 2318189 Tray, Drip Filter Door Closer W10151251 Use & Care Guide 3400525 Screw 2266882 Right W10164077 Energy Guide 4396841 Filter, Water 2266881 Left W10159832 Service &...
  • Page 3 CABINET TRIM PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132472 Stainless Steel Screw 1163283 Stainless Steel 2316687 Cabinet, Trim (Bottom) 486194 Screw 2314017 Cabinet, Trim Top 7 W10132541 Cabinet Trim (Left Side) 8 W10121451 Nutsert (4) 2005925 Seal−Trim, Side 489464 Screw W10180976...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part DESCRIPTION 2302868 Wire, Shelf 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10180976...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: JS42SEDUDB00 (Stainless Steel) W10180976...
  • Page 6 REFRIGERATOR LINER PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 4 W10159487 Diverter, Crisper Cover 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan Baffle 11 W10169528 Baffle Control...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part DESCRIPTION 1 W10151196 Control Box Assy 2317000 Clip, Box 2310390 Wire, Jumper 2307592 Bracket, Control Box 2307595 Shield, Control Box 487539 Screw (2) 8 W10151210 Display, Ingredient Care Center 2223857 Socket, Light 2326255 Light Bulb (2) 8281185 Screw W10180976...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part DESCRIPTION Panel, Decorative Assembly W10150056 Stainless Steel 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 2310194 Wire Assembly RC/FC Light Switch 8 W10159578 Badge, Jenn−Air 489348 Clamp W10180976...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: JS42SEDUDB00 (Stainless Steel) W10180976...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part DESCRIPTION 1 W10141494 Shelf Assembly 2179404 Rack, Wine 3 W10151215 Assembly, Meat Pan Cover 4 W10151213 Assembly, Crisper Cover 2257582 Trim, Glass Rear 2252412 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side 2302955 Right Side 2302831 Trim, Glass Front...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: JS42SEDUDB00 (Stainless Steel) W10180976...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Block, Fan Scroll 2220904 Gasket (2) 2259385 Fan Motor 2209480 Right Evaporator Cover 2198665 Tube, P.C. Board 36 W10151208 Cover, Receiver 2209066 Left 2169142 Fan Blade 37 W10139189 Harness, Evap Fan...

  • Page 13: Motor And Ice Container Parts

    MOTOR AND ICE CONTAINER PARTS For Model: JS42SEDUDB00 (Stainless Steel) W10180976...
  • Page 14 MOTOR AND ICE CONTAINER PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part DESCRIPTION 2222965 Ice Bin 2 W10151247 Crusher Bin 3 W10140642 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed 2257023 Blade, Rotary 2317239 Block, Blade...

  • Page 15: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: JS42SEDUDB00 (Stainless Steel) W10180976...
  • Page 16 REFRIGERATOR DOOR PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part DESCRIPTION 2252330 Refrigerator Door Panel (Includes Item #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gaasket, Utility 2222811 Door Gasket, Magnetic Skin, Door...

  • Page 17: Freezer Door Parts

    FREEZER DOOR PARTS For Model: JS42SEDUDB00 (Stainless Steel) W10180976...
  • Page 18 FREEZER DOOR PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door Panel (Includes Item #14) W10157903 Black 2 W10127710 Plate, Door Handle 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222814 Door Gasket, Magnetic Handle, Door 12850907 Stainless Steel...

  • Page 19: Dispenser Front Parts

    DISPENSER FRONT PARTS For Model: JS42SEDUDB00 (Stainless Steel) W10180976...
  • Page 20 DISPENSER FRONT PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2) 2305235 Spigot 2318017 Separator Assembly Housing, Middle...
  • Page 21 UPPER UNIT PARTS For Model: JS42SEDUDB00 (Stainless Steel) W10180976...
  • Page 22 UPPER UNIT PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 W10133449 Inverter Box 2317982 Drier 489373 Screw, Compressor Following Parts Not Illustrated 22 W10136614 Bracket, Fan Motor Mounting (4) and Optional Parts Not Included (Condenser Fan) 2223393 Compressor 2188875 Motor, Fan...
  • Page 23 LOWER UNIT AND TUBE PARTS For Model: JS42SEDUDB00 (Stainless Steel) W10180976...
  • Page 24 LOWER UNIT AND TUBE PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part DESCRIPTION 1 W10160981 Bracket Assembly, Air Return 486194 Screw 3 W10157752 Bracket, Heater Mounting 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 7 W10151288 Cover, Wiring 8 W10153595 Cover, Box 9 W10121371 Tube, Discharge 2188820 Thermistor...

  • Page 25: Icemaker Parts

    ICEMAKER PARTS For Model: JS42SEDUDB00 (Stainless Steel) W10180976...
  • Page 26 ICEMAKER PARTS For Model: JS42SEDUDB00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2320601 Shield, Valve 489276 Screw 20 W10122527 Mold & Heater 2310191 Wire Assembly, 31 W10151255 Cover, Icemaker (Also Order Icemaker 626680 Module Assembly 542638 Silicone 628379 Clip, Fuse (Includes Items Grease)
