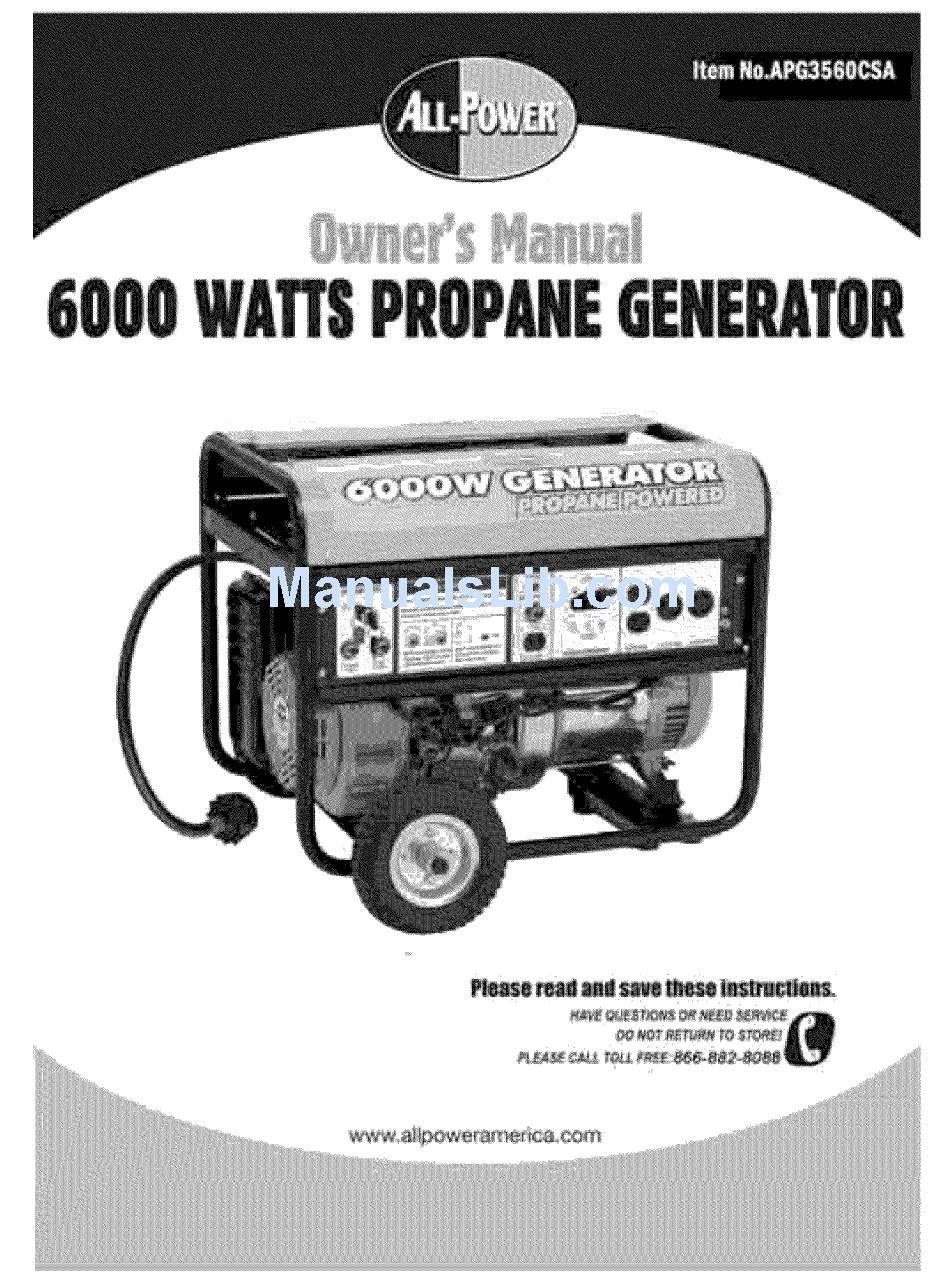

6000 watts propane generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APG3560CSA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for All-Power APG3560CSA

Summary of Contents for All-Power APG3560CSA

  • Page 2: Table Of Contents

    6000W Pro ane Generator Table of Contents Topic Page Limited Warranty Safety Guidelines General Precautions Assembly Batte ry Propane Connection Operation/Starting Generator Inspection, Cleaning and Maintenance Installation Compliance Specifications WARNING! READ AND UNDERSTAND ALL SAFETY PRECAUTIONS IN THIS MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL INJURY, PROPERTY DAMAGE, AND/OR VOIDING OF YOUR WARRANTY.

  • Page 3: Limited Warranty

    Owner's Manual Limited Warranty All-Power warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage) that all products covered under this warranty are free from defects in material and workmanship for one year from the date of purchase.
  • Page 4 6000W Propane Generator Limited Warranty {cont'd} THIS WARRANTY DOES NOT COVER: Merchandise sold as reconditioned, used as rental equipment or floor display models. Expendable parts or accessories supplied with the product which are expected to become inoperative or unusable after a reasonable period of use.

  • Page 5: Safety Guidelines

    Owner's Manual Safety Guidelines - Definitions This manual contains important information that you need to know and understand in order to protect YOUR SAFETY and to PREVENT EQUIPMENT PROBLEMS. The following symbols help you recognize this information. Please read the manual and pay attention to these sections.

  • Page 6: General Precautions

    6000W Propane Generator General Precautions ARNING! FAILURE TO FOLLOW THESE iNSTRUCTiONS CAN RESULT iN SEVERE iNJURY OR DEATH. RESULT iN DAMAGE TO TH E TOOL AND/OR AUTION: FAILURE TO FOLLOW THESE iNSTRUCTiONS TH E iTEM YOU ARE WORKING CAN ALSO Carbon Monoxide When this tool is running, ensure that the area is well ventilated.
  • Page 7 CAUTION: ATTEMPTING TO POWER SENSITIVE ELECTRONIC EQUIPMENT WITHOUT THE USE OF AN APPROVED LINE CONDITIONER MAY CAUSE DAMAGE TO TH E EQUIPMENT. ALL POWER AMERICA IS NOT RESPONSIBLE FOR ANY DIRECT OR INDIRECT DAMAGE CAUSED BY FAILURE TO USE AN...
  • Page 8 6000W Propane Generator General Precautions (cont'd) Work Area • Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flam mable liquids, gases, or dust.
  • Page 9 Owner's Manual General Precautions (cont'd) Electrica| Safety (cont'd) • All connections and conduits from the generator to the load must only be installed by trained licensed electricians, and in compliance with all relevant local, state, and federal electrical codes and standards, and other regulations where applicable.
  • Page 10 6000W Pro ane Generator General Precautions (cont'd) Persona| Safety (cont'd) • Avoid accidental starting. Make sure the power switch is in its "OFF" position, and disconnect the spark plug wire when not in use. • Remove adjusting keys or wrenches before turning the generator on.
  • Page 11 Owner's Manual General Precautions (cont'd) Servicing Maintain labels and name plates on the generator and engine. These carry important information. if unreadable or missing, contact All-Power immediately for a replacement. Generator service must be performed only qualified repair personnel. Service or maintenance performed by unqualified personnel...
  • Page 12 6000W Propane Generator General Precautions (cont'd) Installation (cont'd) • if the generator is installed outdoors, it must be weatherproofed and should be soundproofed, should not be run outdoors without protection to the generator and wiring conduit. • The generator weighs 194 Ibs (approx). Two or more people should assist when moving or lifting this product.
  • Page 13 Owner's Manual General Precautions (cont'd) Mechanica| (cont'd) • Do not operate the generator with safety guards removed. While the generator is running, do not attempt to reach around the safety guard for maintenance or any other reason. • Keep hands, arms, long hair, loose clothing, and jewelry away from moving parts.
  • Page 14 General Precautions {cont'd) Extension Cord If an extension cord (not included) is used, make sure to use only UL approved cords having the correct gauge and length according to the following table: Namepmate Amps (@ Cord Lengths full load} Oft.- 50ft. 50 ft.ol00 100 ft.o150 ft.
  • Page 15 £ Tw®ad :r_£ _hu sia_@ ant.._r@s_e e_ ihe ge_ era_®n :2 w_e S_and 4 b@ts 4 su_s_ an@ P_e _!s®, 4} _isal _i_x÷ and p_Sh 8Ot_÷_ pn l::h_w 5 _r@taI_t whee1 a_"_d washen...

  • Page 16: Assembly

    Pro ane Generator Assembly Wheel and handle assembly: 7) Handles should be already installed. 8) Twist and pull out to use handles. Battery To start this generator sith the electric start you will need a battery (not included). You can use a 12V Lawn Tractor Battery with the following specifications: demensions are Wx7.5"...
  • Page 17 Owner's Manual Battery To start this generator with th electric start you will need a battery (not included). You can use a 12v Lawn Tractor Battery with the following specifications: The dimensions Wx7.5" DxS" Hx7"(including terminals). A rated cranking amperage of 200.

  • Page 18: Propane Connection

    6000W Pro ane Generator Propane Connection Propane hose connection: Propane Cylinder (NOTE: This is your common propane Propane BBQ cylinder) Intake Valve insert other end of hose to Generator Propane Hose. (Included) the propane cylinder & tighten.
  • Page 19 Owner's Manual Operation Fuel intakeValve Pull Start NOTE: THE PARTS LISTED ABOVE ARE HELPFUL CONTROLS MENTIONED BELOW. FOR LOCATING CAUTION: PRIOR TO FIRST USING THE GENERATOR, THE ENGINE MUST BE FILLED WITH OiL OF A HIGH QUALITY SAE 10W=30 GRADE ENGINE OIL. TO DO SO, UNSCREW AND REMOVE THE ENGINE'S OiL DiPSTiCK...
  • Page 20 6000W Propane Generator Operation (cont'd) Starting Instructions Move the choke lever to the "START" Connect the propane hose from the bottle to the machine position Turn the valve on the propane Press the "PURGE" button for cylinder all the open. 3 seconds CONTINUE ON NEXT PAGE...
  • Page 21 Operation {co _t d) Starting tnstruct ions B_!:t÷ry S_ar_:: _f ba_c_y is inst key _o the START po_ & a:_w _he e_ _0 cr_ W;_n engine st,_rl& _eiea_e the key bac_ to _:_ ON _s_tio_ e tt_ c_Ae e_®r t:o_he "RUN"...
  • Page 22 6000W Propane Generator Operation (cont'd) Powering 120 Volt AC Tools And Equipment: 1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity (120VAC @ 41 AMPs) is adequate to supply all electrical loads that the unit will power.
  • Page 23 OwneP s Manual Operation (cont'd) Powering 12 Volt DC tools Equipment: 1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity (12VDC) is adequate to supply all electrical loads that the unit will power, if powering exceeds the generator's capacity, it may be necessary...
  • Page 24 6000W Propane Generator Operation (cont'd) Spark Plug Service In order to service the spark plug, you will need a spark plug wrench (commercially available). Recommended spark plugs: NHSP LD F7 RTC. To ensure proper engine operation, the spark plug must be properly gapped and free of deposits.

  • Page 25: Inspection, Cleaning And Maintenance

    Owner's Manual inspection, Cleaning, and Maintenance WARNING! ALWAYS MAKE SURE THE ENGINE POWER SWITCH iS iN iTS AND ALLOW SUFFiCiENT TIME FOR TH E ENGINE AND GENERATOR OFF" POSiTiON. DISCONNECT TH E SPARK PLUG WiRE FROM TH E ENGINE. COMPLETELY COOL BEFORE PERFORMING ANY iNSPECTIONS, MAINTENANCE,...

  • Page 26: Installation

    6000W Propane Generator Installation SURE THE GENERATOR'S RATED VOLTAGE, WATTAGE AND AMPERAGE CAPACITY iS ADEQUATE TO SUPPLY ALL ELECTRICAL LOADS __.__.__IL NOTE: PRIOR TO POWERING TOOLSAND EQUIPMENT MAKE THAT THE UNITWILL POWER, iF POWERING EXCEEDS THE GENERATOR'S CAPACITY, IT MAY BE NECCESSARY TO GROUP ONE OR MORE OF THE TOOLS AND/OR EQUIPMENT FOR CONNECTION TO A SEPERATE GENERATOR.

  • Page 27: Specifications

    Owner's Manual Installation (cont'd) Supporting and Mounting Mount the generator on a concrete slab capable of supporting the weight of the generator. slab must extend on all sides beyond the frame by at least one foot. Contact a cement contractor for slab specifications if necessary.
  • Page 28 1_it f_ity, 1,25191_tI tliii!
  • Page 29 1;,5...
