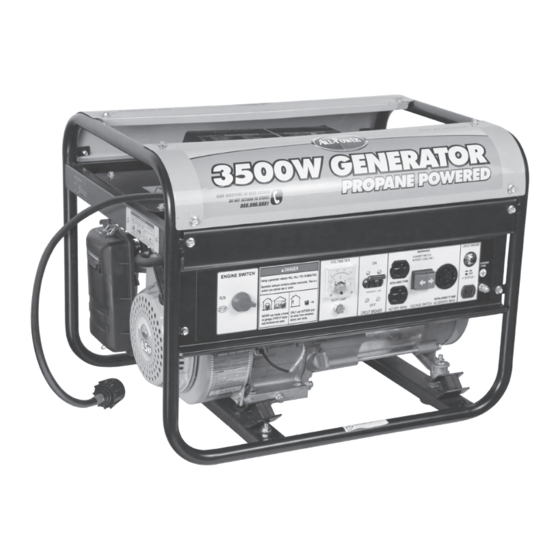

All-Power APG3535CN Owner's Manual

3500 watt propane generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

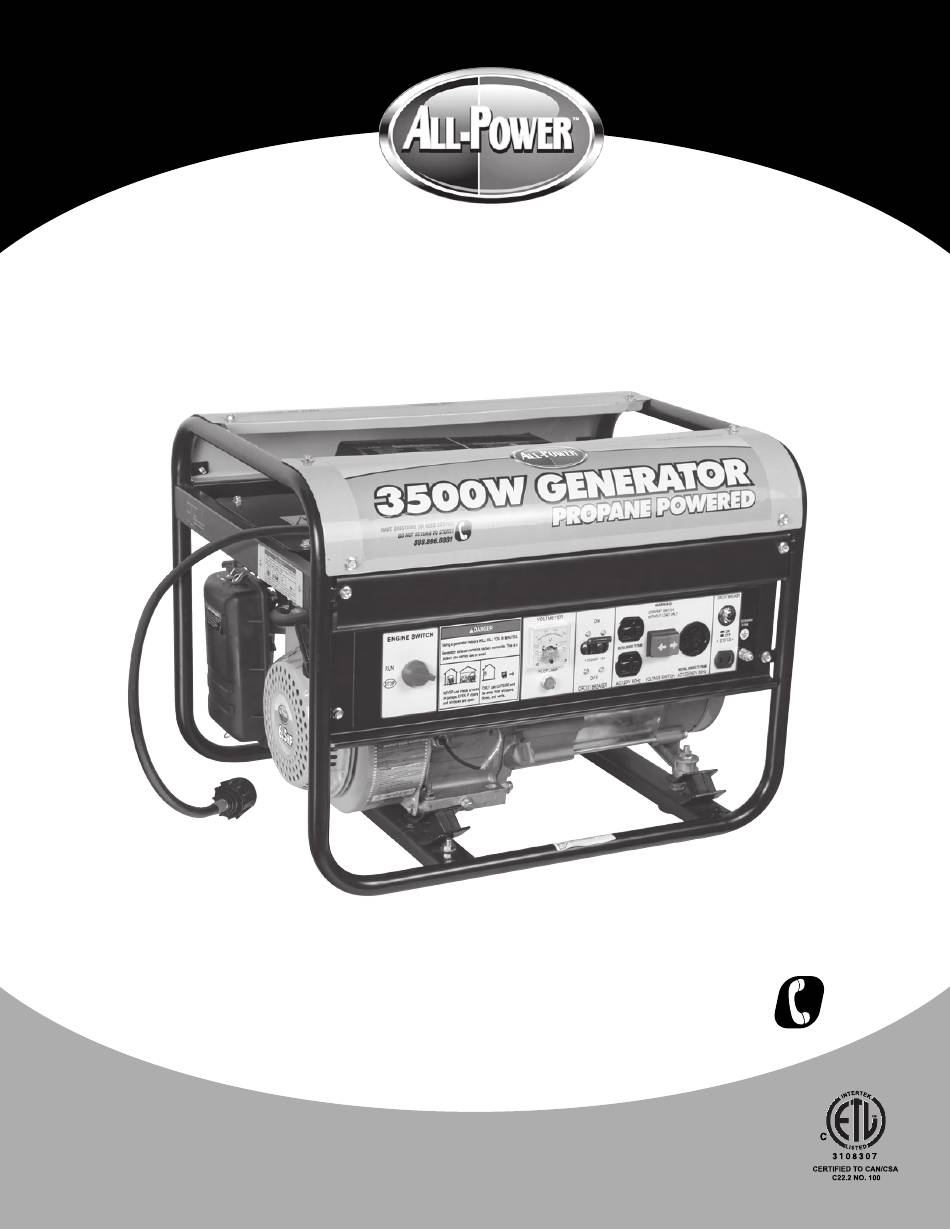

Item No. APG3535CN
Owner's Manual
3500 WATT PROPANE GENERATOR
Please read and save these instructions.
HAVE QUESTIONS OR NEED SERVICE
DO NOT RETURN TO STORE!
866-882-8088
PLEASE CALL TOLL FREE:
www.allpoweramerica.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APG3535CN and is the answer not in the manual?

Questions and answers

Related Manuals for All-Power APG3535CN

Summary of Contents for All-Power APG3535CN

  • Page 1 Item No. APG3535CN Owner’s Manual 3500 WATT PROPANE GENERATOR Please read and save these instructions. HAVE QUESTIONS OR NEED SERVICE DO NOT RETURN TO STORE! 866-882-8088 PLEASE CALL TOLL FREE: www.allpoweramerica.com...

  • Page 2: Table Of Contents

    IN THIS MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL INJURY, PROPERTY DAMAGE, AND/ OR VOIDING OF YOUR WARRANTY. ALL-POWER AMERICA WILL NOT BE LIABLE FOR ANY DAMAGE BECAUSE OF FAILURE TO FOLLOW THESE INSTRUCTIONS.

  • Page 3: Limited Warranty

    Service will be schelduled according to the normal work flow and business hours at the service center location, and the availibility of replacement parts. All decisions of All-Power with regard to this limited warranty shall be final.
  • Page 4 • Costs assoiciated with assembly, required oil, adjustments or other installation and start-up costs. • Merchandise sold by All-Power which has been manufactured by and identified as the product of another company, such as gasoline engines. The product manufacturer’s warranty, if any, will apply.

  • Page 5: Safety Guidelines

    Owner’s Manual Safety Guidelines - Definitions This manual contains important information that you need to know and understand in order to protect YOUR SAFETY and to PREVENT EQUIPMENT PROBLEMS. The following symbols help you recognize this information. Please read the manual and pay attention to these sections. Save These Important Safety Instructions! Read and understand all of these safety instructions.

  • Page 6: General Precautions

    3500W Propane Generator General Precautions WARNING! FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN SEVERE INJURY OR DEATH. CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN ALSO RESULT IN DAMAGE TO THE TOOL AND/OR THE ITEM YOU ARE WORKING Carbon Monoxide When this tool is running, ensure that the area is well ventilated.
  • Page 7 Owner’s Manual General Precautions (cont’d) Fuel and Oil (cont’d) • Do not smoke, or allow sparks, flames or other sources of ignition around the engine and fuel tank. Fuel vapors are explosive. • Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections to avoid sparking or arcing.
  • Page 8 3500W Propane Generator General Precautions (cont’d) Work Area • Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
  • Page 9 Owner’s Manual General Precautions (cont’d) Electrical Safety (cont’d) • All connections and conduits from the generator to the load must only be installed by trained and licensed electricians, and in compliance with all relevant local, state, and federal electrical codes and standards, and other regulations where applicable. •...
  • Page 10 3500W Propane Generator General Precautions (cont’d) Personal Safety (cont’d) • Avoid accidental starting. Make sure the power switch is in its “OFF” position, and disconnect the spark plug wire when not in use. • Remove adjusting keys or wrenches before turning the generator on. A wrench or a key that is left attached to a rotating part of the generator may result in personal injury.
  • Page 11 Servicing Maintain labels and name plates on the generator and engine. These carry important information. If unreadable or missing, contact All-Power immediately for a replacement. Generator service must be performed only qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury.
  • Page 12 3500W Propane Generator General Precautions (cont’d) Installation (cont’d) • If the generator is installed outdoors, it must be weatherproofed and should be soundproofed. It should not be run outdoors without protection to the generator and wiring conduit. • The generator weighs 105 lbs (approx). Two or more people should assist when moving or lifting this product.
  • Page 13 Owner’s Manual General Precautions (cont’d) Mechanical (cont’d) • Do not operate the generator with safety guards removed. While the generator is running, do not attempt to reach around the safety guard for maintenance or any other reason. • Keep hands, arms, long hair, loose clothing, and jewelry away from moving parts. Be aware that when engine parts are moving fast they cannot be seen clearly.
  • Page 14 3500W Propane Generator General Precautions (cont’d) Extension Cord If an extension cord (not included) is used, make sure to use only UL approved cords having the correct gauge and length according to the following table: Nameplate Amps (@ Cord Lengths full load) 0 ft.- 50 ft.

  • Page 15: Battery

    Owner’s Manual Battery This product does not need a battery.

  • Page 16: Assembly

    3500W Propane Generator Assembly Propane hose connection: Propane Tank (NOTE: This is your Propane common propane BBQ Tank Intake Valve Generators Connect the propane hose to the propane tank and tighten. Generator Propane Hose. (Included)

  • Page 17: Operation

    Owner’s Manual Operation Purge button Control Panel Oil Fill Intake Valve Pull Start NOTE: THE PARTS LISTED ABOVE ARE HELPFUL FOR LOCATING THE CONTROLS MENTIONED BELOW. CAUTION: PRIOR TO FIRST USING THE GENERATOR, THE ENGINE MUST BE FILLED WITH OIL OF A HIGH QUALITY SAE 10W-30 GRADE ENGINE OIL. TO DO SO, UNSCREW AND REMOVE THE ENGINE’S OIL DIPSTICK LOCATED AT THE BOTTOM OF THE ENGINE CRANKCASE.
  • Page 18 3500W Propane Generator Operation (cont’d) Starting Instructions Connect the propane hose from the Move the choke lever to the "START" generator to the tank. position Turn the valve on the propane tank Press the "PURGE" button for all the way open. 3 seconds...
  • Page 19 Owner’s Manual Operation (cont’d) Starting Instructions Recoil Start:Turn the engine switch to the “RUN” position.Pull the recoil starter to grip lightly until feel resistance,then pull briskly.Retrrn the starter grip gently. Move the choke lever to the "RUN" position...
  • Page 20 CAUTION: ATTEMPTING TO POWER SENSITIVE ELECTRONIC EQUIPMENT WITHOUT THE USE OF AN APPROVED LINE CONDITIONER MAY CAUSE DAMAGE TO THE EQUIPMENT. ALL-POWER AMERICA IS NOT RESPONSIBLE FOR ANY DIRECT OR INDIRECT DAMAGE CAUSED BY FAILURE TO USE AN APPROVED LINE CONDITIONER.
  • Page 21 Owner’s Manual Operation (cont’d) Powering 12 Volt DC tools and Equipment: 1. Prior to powering tools and equipment, make sure the generator’s rated voltage, and amperage capacity (12VDC) is adequate to supply all electrical loads that the unit will power. If powering exceeds the generator’s capacity, it may be necessary to group one or more of the tools and/or equipment for connection to a separate generator.
  • Page 22 3500W Propane Generator Operation (cont’d) Spark Plug Service In order to service the spark plug, you will need a spark plug wrench (commercially available). Recommended spark plugs: NHSP LD F7TC. To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. 1.

  • Page 23: Inspection, Cleaning And Maintenance

    Owner’s Manual Inspection, Cleaning, and Maintenance WARNING! ALWAYS MAKE SURE THE ENGINE POWER SWITCH IS IN ITS “OFF” POSITION. DISCONNECT THE SPARK PLUG WIRE FROM THE ENGINE. AND ALLOW SUFFICIENT TIME FOR THE ENGINE AND GENERATOR TO COMPLETELY COOL BEFORE PERFORMING ANY INSPECTIONS, MAINTENANCE, OR CLEANING.

  • Page 24: Installation

    3500W Propane Generator Installation NOTE: PRIOR TO POWERING TOOLS AND EQUIPMENT MAKE SURE THE GENERATOR’S RATED VOLTAGE, WATTAGE AND AMPERAGE CAPACITY IS ADEQUATE TO SUPPLY ALL ELECTRICAL LOADS THAT THE UNIT WILL POWER. IF POWERING EXCEEDS THE GENERATOR’S CAPACITY, IT MAY BE NECCESSARY TO GROUP ONE OR MORE OF THE TOOLS AND/OR EQUIPMENT FOR CONNECTION TO A SEPERATE GENERATOR.
  • Page 25 Owner’s Manual Installation (cont’d) Supporting and Mounting Mount the generator on a concrete slab capable of supporting the weight of the generator. The slab must extend on all sides beyond the frame by at least one foot. Contact a cement contractor for slab specifications if necessary.

  • Page 26: Compliance

    3500W Propane Generator Compliance UNITED STATES ENVIRONMENTAL PROTECTION AGENCY, WASHINGTON, DC 20460 2009 Model Year Certifcate of Conformity • Manufacturer: Jiangsu Jiandong Group Co. Ltd. • Certificate Number: JDG-NRSI-09-07 • Effective Date: 1/6/2009 • Date Issued: 1/6/2009 Merrylin Zaw-Mon, Director, Compliance and Innovation Strategies Division, Office of Transportation and Air Quality.

  • Page 27: Specifications

    Owner’s Manual Specifications Type:JD3000LPG/CETL Approved AC electrical Current Output 120V/240V AC @ 23/11.5A 60Hz Continuous/rated Wattage 2,800 Peak Wattage 3,500 Outlet 2 120V AC, 2 spring grounded One 120/240V AC twist-lock outlet DC electrical 8.3 A Gasoline engine Horsepower Type 4-cycle OHV air-cooled recoil start Displacement 196cc...
  • Page 41 3500W Propane Generator 1 11 9 10 APA Part No. Part. No Description APG3535CN-N-01-JD PILOT LAMP JD3500LPGCSA-B-01 APG3535CN-N-02-JD ENGINE SWITCH ASSY. JD3500LPG-B-01 APG3535CN-N-03-JD CIRCUIT BREAKER JD3500LPGCSA-B-02 APG3535CN-N-04-JD 120V RECEPTACLE(Ru-22) JD3500LPGCSA-B-03 APG3535CN-N-05-JD VOLTAGE SWITCH JD3500LPGCSA-B-04 APG3535CN-N-06-JD 120V/240V RECEPTACLE(L14-30) JD3500LPGCSA-B-05 APG3535CN-N-07-JD CONTROL PANEL CASE...
  • Page 43 Automatic Voltage Regulator Assy...
