All-Power APG3535 Owner's Manual

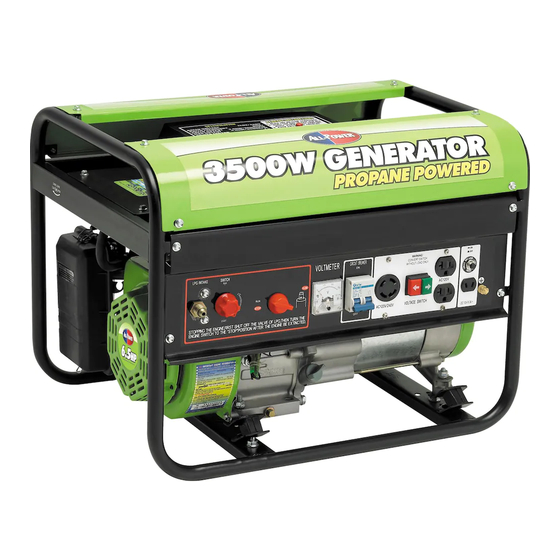

3500 watts propane generator
Hide thumbs Also See for APG3535:
Table of Contents

Advertisement

Quick Links

P|easeread andsavethese |flstmct|eflso
HAVE QUESTIONSOR NEED SERVICE
DO NOT RETURN TO STORE!
PLEASE CALL TOLL FREE: 888.
896.6881
www.all
)m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APG3535 and is the answer not in the manual?

Questions and answers

RON
April 13, 2025

WONT START

0
1 comments:
Mr. Anderson
April 13, 2025

The All-Power APG3535 may not start due to the following reasons based on the provided information:

1. The engine switch is not turned to "ON".
2. The choke lever is not in the correct position ("START" for starting, "RUN" after engine starts).
3. The fuel valve is not in the correct position ("START" for starting, "RUN" after engine starts).
4. The valve on the propane bottle is not fully open.
5. The "PURGE" button was not pressed for 3 seconds before starting.
6. The recoil starter was not pulled.
7. The spark plug may be dirty, damaged, or not properly gapped.
8. The spark plug wire is not connected.
9. The engine and generator may not have cooled down before maintenance.

Each of these can prevent the engine from starting properly.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for All-Power APG3535

Summary of Contents for All-Power APG3535

  • Page 1 P|easeread andsavethese |flstmct|eflso HAVE QUESTIONSOR NEED SERVICE DO NOT RETURN TO STORE! 896.6881 PLEASE CALL TOLL FREE: 888. www.all...

  • Page 2: Table Of Contents

    IN THIS MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH INSTRUCTIONS INTHIS MANUAL COULD RESULT IN PERSONAL INJURY, PROPERTY DAMAGE, AND/OR VOIDING OF YOUR WARRANTY. ALL-POWER AMERICA WILL NOT BE LIABLE FOR ANY DAMAGE BECAUSE OF FAILURE TO FOLLOW THESE INSTRUCTIONS.

  • Page 3: Limited Warranty

    Owner's anuaJ Limited Warranty All=Power warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage ) that all products covered under this warranty are free from defects in material and workmanship for one year from the date of purchase.
  • Page 4 3500W Propane Gener; Limited Warranty (cont'd) THIS WARRANTY DOES NOT COVER: • Merchandise sold as reconditioned, used as rental equipment or floor display models. • Expendable parts or accessories supplied with the product which are expected to become inoperative or unusable after a reasonable period of use.

  • Page 5: Safety Guidelines

    Owi3er s anual Safety Guidelines - Definitions This manual contains important information that you need to know and understand in order to protect YOUR SAFETY and to PREVENT EQUIPMENT PROBLEMS. The followin9 symbols help you recognize this information. Please read the manual and pay attention to these sections.

  • Page 6: General Precautions

    Propane Gener; General Precautions WARNING! FAILURE TO FOLLOW THESE iNSTRUCTiONS CAN RESULT SEVERE iNJURY OR DEATH. RESULT iN DAMAGE TO TH E TOOL AND/OR TH E iTEM YOU ARE WORKING AUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN ALSO Carbon Monoxide When this tool is running, ensure that the area is well ventilated.
  • Page 7 OwI3eF s 13Ll General Precautions (cont'd) Fuel and Oi| (cont'd) • Do not smoke, or allow sparks, flames or other sources of ignition around the engine and fuel tank. Fuel vapors are explosive. • Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and...
  • Page 8 3500W Propane Generator General Precautions (cont'd) Work Area • Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
  • Page 9 OwneF s al3ual General Precautions (cont'd) Electrical Safety (cont'd) • All connections and conduits from the generator to the load must only be installed by trained licensed electricians, and in compliance with all relevant local, state, and federal electrical codes and standards, and other regulations where...
  • Page 10 3500W Pro ane Gener; General Precautions (cont'd) Persona| Safety (cont'd) ,, Avoid accidental starting. Make sure the power switch is in its "OFF" position, and disconnect the spark plug wire when not in use. • Remove adjusting keys or wrenches before turning the generator on.
  • Page 11 Owner's anual General Precautions (cont'd) Servicing Maintain labels and name plates on the generator and engine. These carry important information. If unreadable or missing, contact All=Power immediately for a replacement. Generator service must be perform ed on ly q ualified repair personnel.
  • Page 12 3500W Propane Gener; General Precautions (cont'd) Installation (cont'd) • if the generator is installed outdoors, it must be weatherproofed and should be soundproofed. should not be run outdoors without protection to the generator and wiring conduit. ,, The generator weighs 1051bs (approx).
  • Page 13 OwRer s aRual General Precautions (cont'd) Mechanical (cont'd) • Do not operate the generator with safety guards removed. While the generator is running, do not attempt to reach around the safety guard for maintenance or any other reason. • Keep hands, arms, long hair, loose clothing, and jewelry...
  • Page 14 General Precautions _cont'd) Extension Cord If an extension cord (not included) is used, make sure to use only UL approved cords having correct gauge and length according to the following table: Nameplate Amps Oord Lengths full load} 0 ft.- 50 ft. 50 ft.-100 ft.

  • Page 15: Battery

    Owner's al3ual Battery This product does not need a battery.

  • Page 16: Assembly

    Pro ane Generator Assembly Propane hose connection: Propane Cylinder (NOTE: This is your Propane common propane BBQ cylinder) Intake Valve Step Step 2 Insert hose connection Insert other end of hose to generator and tighten. the propane cylinder & tighten. Generator Propane Hose.

  • Page 17: Operation

    OwRer' s anual Operation -_ button Control Panel Fill FuellntakeValve Pull Start NOTE: THE PARTS LISTED ABOVE ARE HELPFUL FOR LOCATING CONTROLS MENTIONED BELOW. CAUTION: PRIOR TO FIRST USING THE GENERATOR, THE ENGINE MUST FILLED WiTH OiL OF A HiGH QUALITY SAE 10W=30 GRADE ENGINE...
  • Page 18 3500W Propane Gener; Operation (cont'd) Starting Instructions Connect the propane hose from the Turn the engine switch to the "ON" bottle to the machine position Move the choke lever to the "START" Turn the fuel valve to the "START" position position Press the "PURGE"...
  • Page 19 Owner's anual Operation (cont'd) Starting Instructions Pull the recoil starter to start the Move the choke lever to the "RUN" engine position Turn the fuel valve to the "RUN" position...
  • Page 20 3500W Propane Gener; Operation (cont'd) Powering 120 Volt AC Tools And Equipment: 1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity (120VAC @ 23 AMPs) is adequate to supply all electrical loads that the unit will power.
  • Page 21 Owi3er s al3u Operation (cont'd) Powering 12 Volt DC tools and Equipment: 1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity (12VDC) is adequate to supply all electrical loads that the unit will power. If powerin exceeds the generator's...
  • Page 22 3500W Propane Generator Operation (cont'd) Spark Plug Service In order to service the spark plug, you will need a spark plug wrench (commercially available). Recommended spark plugs: NHSP LD F7RTC.To ensure proper engine operation, the spark plug must be properly gapped and free of deposits.
  • Page 23 OwnerYs ai3ual inspection, Cleaning, and Maintenance WARNING! ALWAYS MAKE SURE THE ENGINE POWER SWITCH iS iN iTS '=OFF" POSiTiON. DISCONNECT THE SPARK PLUG WiRE FROM THE ENGINE. AND ALLOW SUFFiCiENT TiME FOR THE ENGINE AND GENERATOR COMPLETELY COOL BEFORE PERFORMING ANY iNSPECTiONS, MAINTENANCE, OR CLEANING.

  • Page 24: Installation

    3500W Propane Gener Installation NOTE: PRIOR TO POWERING TOOLS AND EQUIPMENT MAKE SURE THE GENERATOR'S RATED VOLTAGE, WATTAGE AND AMPERAGE CAPACITY iS ADEQUATE TO SUPPLY ALL ELECTRICAL LOADS THAT THE UNITWILL POWER. iF POWERING EXCEEDS THE GENERATOR'S CAPACITY, iT MAY BE NECCESSARY TO GROUP ONE OR MORE OF THE...
  • Page 25 Owner's anual Installation (cont'd) Supporting and Mounting Mount the generator on a concrete slab capable of supporting the weight of the generator. slab must extend on all sides beyond the frame by at least one foot. Contact a cement contractor for slab specifications if necessary.

  • Page 26: Compliance

    3500W Propane Generator Compliance UNITED STATES ENVIRONMENTAL PROTECTION AGENCY WASHINGTON, DC 20460 2006 Model Year Certificate of Conformity Manufacturer: JIANGSU JIANGDONG GROUP CO. LTD. Small Sl Engine Family: 6JDGS.1961LA Certificate Number: JDG-NRSl-06-04 HC+NOx EL: gkW-hr Date Issued: SEP 08 2005 Merrylin Zaw-Mon, Director Certification and Compliance Division Office of Transportation and Air Quality...
  • Page 27 AC electrical Current Output 120V/240V AC @ 23/11,5A 60Hz Continuous/rated Wattage 2,800 Peak Wattage 3,500 Outl:et Two 120VAC, 2 spring grounded One 120/240V AC twistqock outlet DC electrica_ 8.3 A engine Horsepower Type 4-cycle OHV air-cooled recoil start 196c c Displacement Oil capacity 0.63 quart...
  • Page 28 Propane Generator :S _¸¸¸¸ _ , Parts Part Description APG3535-A-01-JD JF168-A-01 CYLINDER HEAD COME APG3535-A-02-JD JF168-A-02 IN. VALVE GUIDE APG3535-A-03-JD JF168-A-03 EX. VALVE GUIDE APG3535-A-04-JD JF168-A-04 VALVE GUIDE CLIP APG3535-A-05-JD JF168-A-05 CYLINDER HEAD GASKET APG3535-A-06-JD JF168-A-06 HEAD COVER COMP. APG3535-A-07-JD JF168-A-07 HEAD COVER PACKING...
  • Page 29 APA Parts Parts Description APG3535-B-01-JD JF200-B-01 CRANK CASE APG3535-B-02-JD JF168-B-02 OIL LEVEL SWITCH ASSY. APG3535-B-03-JD JF168-B-03 GOVERNOR GEAR ASSY. APG3535-B-04-JD JF168-B-04 GOVERNOR SLIDER APG3535-B-05-JD JF168-B-05 ROCKER APG3535-B-06-JD JF168-B-06 LOCK PIN (8mm) APG3535-B-07-JD JF168-B-07 FLANGE BOLT (M6x20) APG3535-B-08-JD JF168-B-08 DRAIN PLUG BOLT APG3535-B-09-JD JF168-B-09 SLIDER...
  • Page 30 Propane Generator Parts Parts Description APG3535-C-01-JD JF168-C-01B CRANKCASE COVER APG3535-C-02-JD JF168-C-02 CASE COVER APG3535-C-03-JD JF168-C-03 OIL SCALE APG3535-C-04-JD JF168-C-04 OIL SCALE SEAL APG3535-C-05-JD JF168-B-13 OIL SEAL ((p25x(p41.25x6) APG3535-C-06-JD JF168-C-05 DOWEL PIN (8x14) APG3535-C-07-JD JF168-C-06 FLANGE BOLT (M8x28) APG3535-C-08-JD JF168-B-12 BALL BEARING (6205)
  • Page 31 APA Parts Parts Description APG3535-D-01-JD JF200-D-02 CRANKSHAFT COMR APG3535-D-02-JD JF168-D-03 SEMICIRCLE...
  • Page 32 Propane Generator APA Parts Parts Description APG3535-E-01-JD JF168-E-01 PISTON RING SET APG3535-E-02-JD JF2OO-E-02 PISTON APG3535-E-03-JD JF168-E-03 PISTON APG3535-E-04-JD JF168-E-04 CONNECTING ROD ASSY. APG3535-E-05-JD JF168-E-05 CONNECTION ROD BOLT APG3535-E-06-JD JF168-E-06 PISTON PIN CLIP (18mm)
  • Page 33 Parts Parts Description JF200-F-01 APG3535-F-01-JD CAM S HAFT ASSY. JF200-F-02 APG3535-F-02-JD PUSH ROD JF168-F-03 APG3535-F-03-JD ROCKER JF200-F-04 APG3535-F-04-JD VALVE LIFTER JF168-F-05 APG3535-F-05-JD ADJUSTING JF168-F-06 APG3535-F-06-JD WEIGHT RETURN SPRING JF168-F-07 IN. VALVE APG3535-F-07-JD JF168-F-08 APG3535-F-08-JD EX. VALVE JF168-F-09 VALVE SPRING APG3535-F-09-JD JF168-F-10 IN.
  • Page 34 Propane Generator Parts Parts Description APG3535-G-01-JD JF168-G-01 RECOIL STARTER ASSY. APG3535-G-02-JD JF168-G-02 SETTING SCREW APG3535-G-03-JD JF168-G-03 RATCHET GUIDE APG3535-G-04-JD JF168-G-04 FRICTION SPRING APG3535-G-05-JD JF168-G-05 STARTER RATCHET APG3535-G-06-JD JF168-G-06 RATCHET SPRING APG3535-G-07-JD JF168-G-07 RECOIL STARTER REEL APG3535-G-08-JD JF168-G-08 RECOIL STARTER SPRING APG3535-G-09-JD JF168-G-09 RECOIL...
  • Page 35 APA Parts Parts Description APG3535-H-01-JD JF200-H-01 FAN COVER COMR APG3535-H-02-JD JF168-H-02 FLYWHEEL SIDE PLATE APG3535-H-03-JD JF168-H-03 CORD CLAMPER APG3535-H-04-JD JF168-H-04 SHROUD APG3535-H-05-JD JF168-H-08 FLANGE BOLT (M6x12) APG3535-H-06-JD JF168-H-09 FLANGE BOLT (M6x16)
  • Page 36 Propane Generator Parts Parts Description APG3535-1-01-JD JF168-1-01 INTAKE PIPE GASKET APG3535-1-02-JD JF200-1-02B CARBURETOR INSULATING PLATE APG3535-1-03-JD JF168-1-03 CARBURETOR PAPER GASKET MIXER APG3535-1-04-JD JF200LPG-I-01 APG3535-1-05-JD JF168-1-05 CARBURETOR SPACER COMP APG3535-1-06-JD JF200LPG-I-02 CHOKE LEVER COMP APG3535-1-07-JD JF200LPG-I-03 INTAKE TIE-IN APG3535-1-08-JD JF200LPG-I-04 MAGNETIC VALVE APG3535-1-09-JD JF200LPG-I-05...
  • Page 37 Parts Parts Description APG3535-J-01-JD JF168-L-01 OUTER FILTER APG3535-J-02-JD JF168-L-02 AIR CLEANER PRINCIPAL PART APG3535-J-03-JD JF168-L-03 AIR CLEANER CASE COMP. APG3535-J-04-JD JF168-L-04 AIR CLEANER COVER APG3535-J-05-JD JF168-L-05 AIR CLEANER SUPPORT APG3535-J-06-JD JF168-L-06 AIR CLEANER SEAL APG3535-J-07-JD JF168-L-07 WINKER SETTING BOLT APG3535-J-08-JD JF168-L-08 FLANGE NUT (M6)
  • Page 38 Propane Generator Parts Parts Description APG3535-K-01-JD JD2000-A-01 FLANGE BOLT (M6x12) APG3535-K-02-JD JD2000-A-02 MUFFLER PROTECTOR APG3535-K-03-JD JD2000-A-03 FLANGE BOLT (M8x25) APG3535-K-04-JD JD2000-A-04 EXHAUST PIPE APG3535-K-05-JD JD2000-A-05 EXHAUST PIPE NUT (M8) APG3535-K-06-JD JD2000-A-06 EXHAUST PIPE GASKET APG3535-K-07-JD JD3500LPG-A-01 MUFFLER COME APG3535-K-08-JD JD2000-A-08 FLANGE BOLT (M8x16) APG3535-K-09-JD...
  • Page 39 APA Parts Parts Description APG3535-L-01-JD JF168-O-01A FLYWHEEL COMP. APG3535-L-02-JD JF168-O-02 COOLING APG3535-L-03-JD JF200-O-03 STARTER PULLEY APG3535-L-04-JD JF168-O-04 FLYWHEEL APG3535-L-05-JD JF168-O-05 IGNITION COIL ASSY. APG3535-L-06-JD JF168-O-06 FLANGE BOLT (M6...
  • Page 40 3500W Propane Generator Parts Parts Description APG3535-M-01-JD JF168-P-18 FLANGE BOLT (M6x12) APG3535-M-02-JD JF168-P-06 GOVERNOR SPRING APG3535-M-03-JD JF168-P-19 FLANGE BOLT (M6) APG3535-M-04-JD CONTROLARM JF168-P-04 APG3535-M-05-JD JF168-P-25 FLANGE NUT (M6) APG3535-M-06-JD JF168-P-07 THROTTLE RETURN SPRING APG3535-M-07-JD JF168-P-05 GOVERNOR APG3535-M-08-JD JF168-P-08 CONTROLASSY.
  • Page 41 APA Parts Parts Description APG3535-N-01-JD JF200 LPG-I-04 MAGNETIC VALVE APG3535-N-02-JD JD3500LPG-B-01 ENGINE SWITCH ASSY. APG3535-N-03-JD JD6500BST-E-04 VOLTMETER ASSY. APG3535-N-04-JD JD3500LPG-B-02 CIRCUIT BREAKER APG3535-N-05-JD JD6500BST-E-08 120V/240V RECEPTACLE(L14-30) APG3535-N-06-JD JD3500LPG-B-03 RELAY APG3535-N-07-JD JD6500BST-E-05 120V RECEPTACLE(Ru-22) APG3535-N-08-JD JD6500BST-E-06 CIRCUIT BREAKER APG3535-N-09-JD JD3500LPG-B-04 DIRECTCURRENTRECEPTACLE APG3535-N-10-JD JD6500BST-E-09 EARTH TERMINAL...
  • Page 42 Propane Generator °° _" "3 Parts Parts Description APG3535-O-01-JD JD3500LPG-C-01 FRAME COME APG3535-O-02-JD JD3000-B-02 BOTTOM RUBBER APG3535-O-03-JD JD3000-B-03 FLANGE NUT (M8) APG3535-O-04-JD JD3500LPG-C-02 ARC COVER APG3535-O-05-JD JD3500LPG-C-03 FLANGE BOLT (M6X12) APG3535-O-06-JD JD3500LPG-C-04 FLANGE NUT (M6) APG3535-O-07-JD JD3500LPG-C-05 COPING APG3535-O-08-JD JD3500LPG-C-06 FIX FRAME...
  • Page 43 t!16 Parts Parts Description APG3535-P-01-JD JD3500LPG-D-01 STATOR COVER APG3535-P-02-JD JD3500LPG-D-02 STATOR ASSY. APG3535-P-03-JD JD3000-C-03 COOLING APG3535-P-04-JD JD3000-C-04 BRUSH ASSY. APG3535-P-05-JD JD3000-C-05 TAPPING SCREW APG3535-P-06-JD JD3000-C-06 HOUSING, APG3535-P-07-JD JD3000-C-07 PAN SCREW APG3535-P-08-JD JD3500LPG-D-03 FLANGE BOLT AUTOMATIC APG3535-P-09-JD JD3000-C-09 VOI REGULATOR ASSY. APG3535-P-10-JD JD3000-C-10 GENERATOR...
