Model D4031
Mortising Kit
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
Introduction
The Model D4031 (Figure 1) Mortising Kit provides every-
thing needed to produce mortises with your drill press.
Inventory
(Figure 2)
A. Cone .........................................................1
B. Fence Assembly ............................................1
C. Alignment Tool .............................................1
D. Mortising Chisels ...........................................4
E. T-Nuts .......................................................4
F. Mounting Sleeves:
2.945" OD x 2.600" ID ..................................1
2.600" OD x 2.366" ID ..................................1
2.366" OD x 2.170" ID ..................................1
G. Mounting Bushings:
2.600" OD x 2.000" ID ..................................1
2.600" OD x 1.880" ID ..................................1
2.600" OD x 1.570" ID ..................................1
H. Hold-Down Rods............................................2
I.
Hold-Down ..................................................1
J.
Adjustable Handle .........................................2
K. Rod ...........................................................1
Unplug your drill press before installing this mortising
attachment. Failure to do so may result in serious
personal injury.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#13055JB
COPYRIGHT © JULY, 2010 BY WOODSTOCK INTERNATIONAL, INC.
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

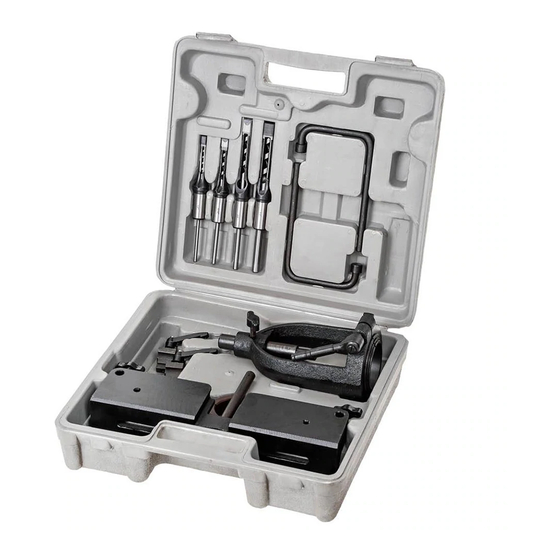

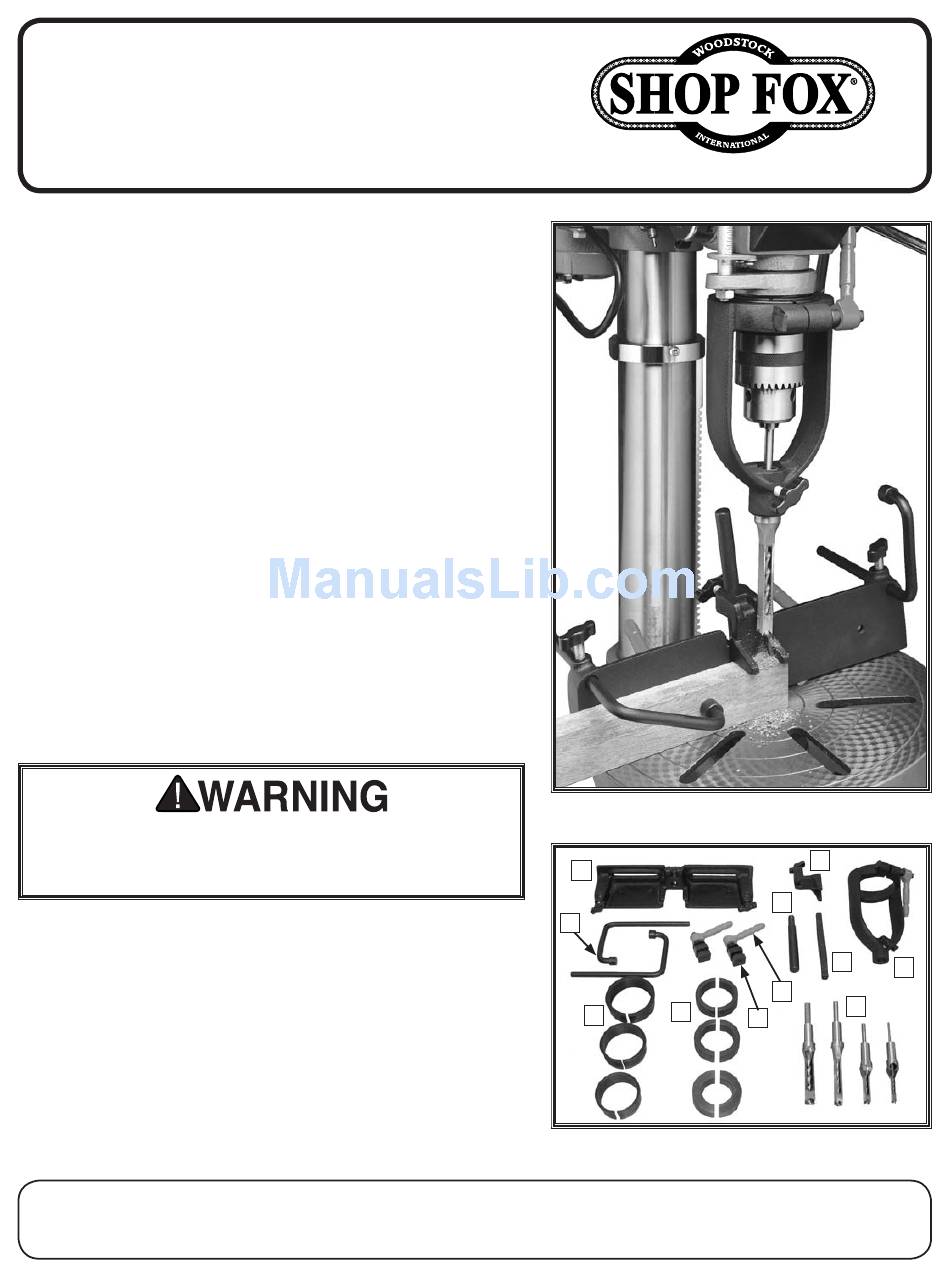

Figure 1. Model D4031.
B
H
G
F
Figure 2. Inventory.
I
C
K
A
J
D
E
Printed in China
Advertisement
Table of Contents
Related Manuals for Shop fox SHOP FOX D4031
Summary of Contents for Shop fox SHOP FOX D4031
- Page 1 Failure to do so may result in serious personal injury. Figure 2. Inventory. COPYRIGHT © JULY, 2010 BY WOODSTOCK INTERNATIONAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
- Page 2 D4031 Mortising Kit Instructions Mounting the Cone 1. If the cone will not fit over the drill chuck, remove the chuck. Otherwise, secure the alignment tool in the drill chuck on your drill press. 2. Carefully measure the flange on the bottom of the quill on your drill press.
- Page 3 D4031 Mortising Kit Instructions Making a Mortise Proper alignment of the workpiece and chisel is essential to making good mortise and tenon joints. The instructions below describe one method of creating square joints with an evenly-spaced mortise. Place a scrap board on top of the drill press table if a through-mortise is to be made.
- Page 4 D4031 Mortising Kit Instructions 8. Watch the chips coming out of the slot on the shank of the chisel. If you don't see chips or there is a lot of smoke, raise the chisel, turn off the drill press and adjust the drill lower in the chisel. If burning still occurs, lower the speed the drill press.
