Attaching the Label to the I/O Shield
1. Remove the backing from the label included with your server board.
2. Press the label onto the outside face of the I/O shield.
Installing the I/O Shield
The shield fits the rectangular opening in the back of a chassis. The shield has cutouts that match
the I/O ports on the server board. Install the shield from inside the chassis before installing the
server board.
1. Position one edge so that the dotted groove is outside the chassis wall, and the lip of the shield
rests on the inner chassis wall.
2. Hold the shield in place, and push it into the opening until it is seated. Make sure the I/O shield
snaps into place all the way around.
Shield installs
from inside
of chassis.
Server Board Installation and Upgrades
Outside face
of I/O shield

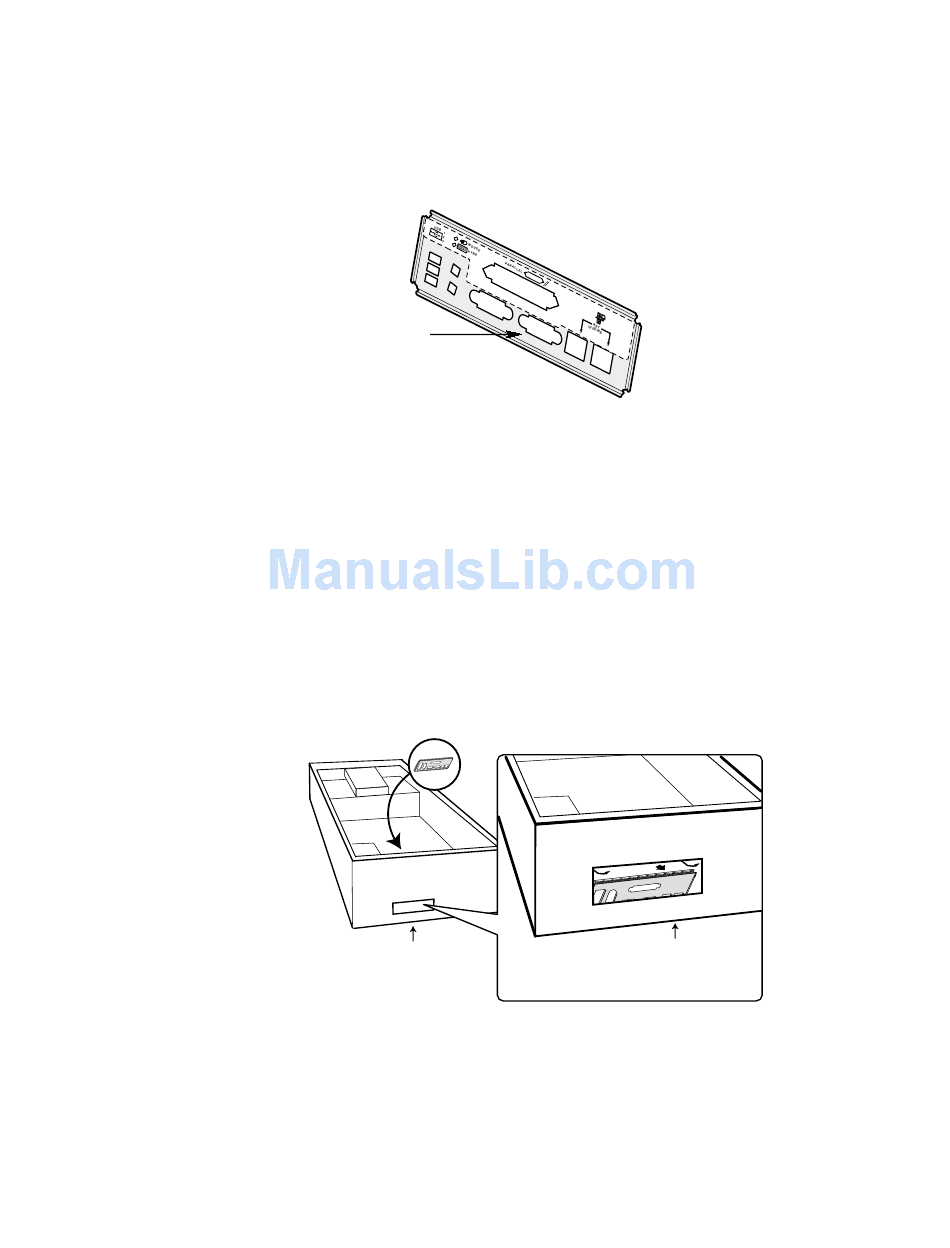

Figure 4. Attaching the Label to the I/O Shield

Chassis back

Figure 5. Installing the I/O Shield

OM14360
Insert top edge
as shown.
Chassis back
Rotate into chassis opening
until shield clicks into place.
OM14625
