Summary of Contents for Intel SE7501CW2

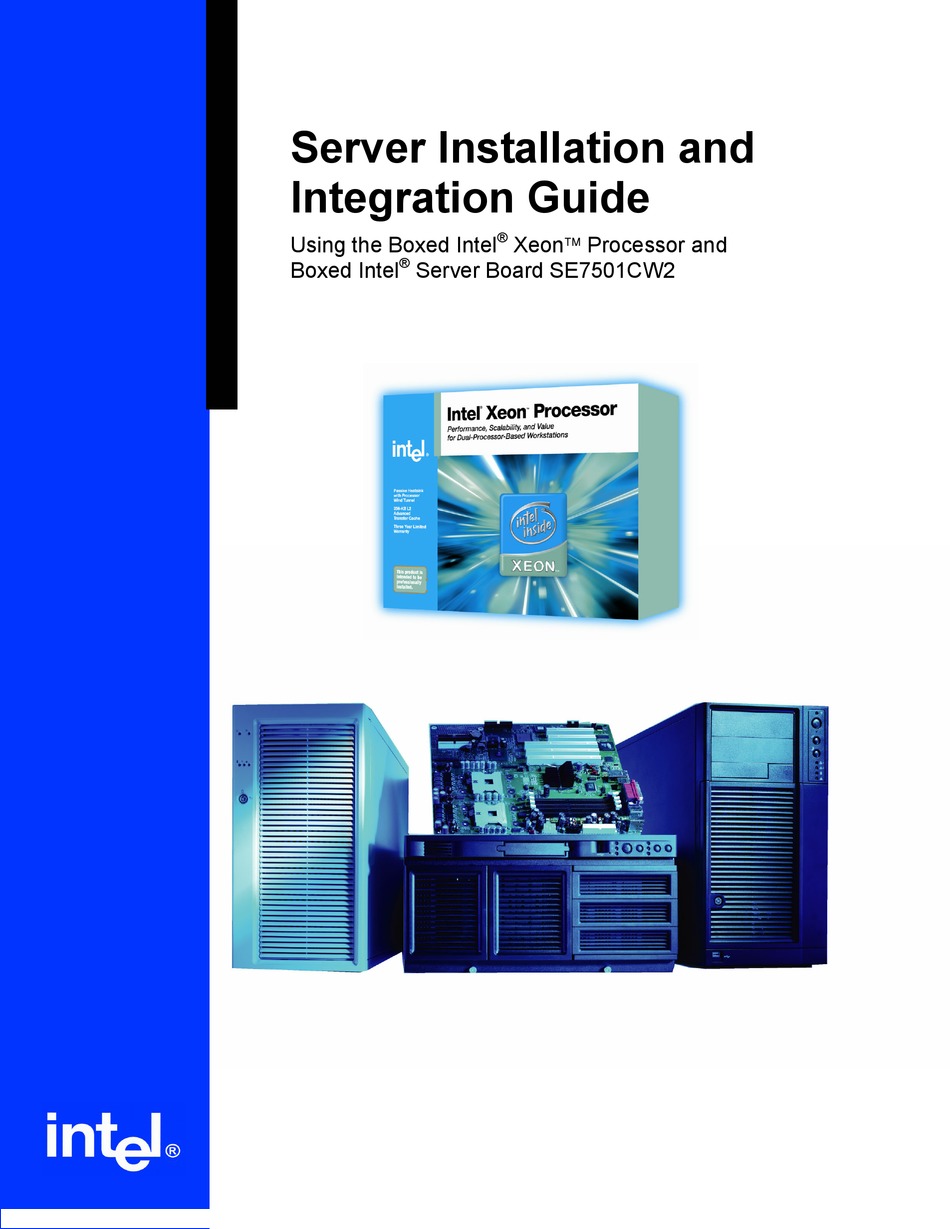

- Page 1 Server Installation and Integration Guide ® Using the Boxed Intel Xeon Processor and ® Boxed Intel Server Board SE7501CW2...
- Page 2 Intel and others where appropriate. Limited License Grant. Intel hereby grants you a limited copyright license to copy this document for your use and internal distribution only. You may not distribute this document externally, in whole or in part, to any other person or entity.
-
Page 3: Table Of Contents
Intel Server Board SE7501CW2 Installation and Integration Guide Table of Contents Introduction ..................5 Document Overview ................5 Target Audience ..................5 Thank you ....................5 Troubleshooting Guide ................6 Minimum Hardware Requirements ............6 Hardware Integration................7 Prepare for Assembly ................7 Important Safety Information .............. - Page 4 LANDesk* Client Manager ..............23 Installing LANDesk Client Manager ............23 LANDesk System Requirements ............23 Administrator computers ..................23 Client computers ....................23 Intel Server Maintenance and Reference Training Tool CD (Intel SMaRT Tool)...................... 24 Installing the Intel SMaRT Tool ............. 24...
-
Page 5: Introduction
By following the steps outlined in this document, you will be able to integrate an Intel Server Board SE7501CW2 with an Intel Server Chassis SC5200 in a timely and effective manner. -
Page 6: Troubleshooting Guide
Intel Server Board SE7501CW2. It will also assist you in collecting the data needed to help you work through any concerns or issues that may arise The troubleshooting guide includes suggestions that may help you and a list of information that we will need to assist you should you need to call. -
Page 7: Hardware Integration
(hard drives, floppy disk drive, CD/DVD). 4. Verify that the components chosen for installation are listed as validated for use with the Intel Server Board SE7501CW2. This information is available from the Intel Support Web site: http://support.intel.com/support/motherboards/server/SE7501CW2/compat.htm... -
Page 8: Important Safety Information
Intel Server Board SE7501CW2 Installation and Integration Guide Important Safety Information Safety Instructions and Information To avoid personal injury or property damage, the following safety instructions apply whenever working inside the chassis: 1. Turn off all peripheral devices connected to this product. -
Page 9: Chassis Preparation And Server Board Installation
Intel Server Board SE7501CW2 Installation and Integration Guide Chassis Preparation and Server Board Installation About the I/O Shield An ATX 2.03-compliant I/O shield is provided with your server board. The shield is required by Electromagnetic Interference (EMI) regulations. It minimizes EMI and helps obtain proper cooling of the server. -
Page 10: Installing Chassis Standoffs
When using an Intel Server Chassis SC5200, positions 1, 4, 6, 20, 23, and 26 come preinstalled. You must install standoffs in positions 7, 18, and 19. Install standoffs in the eight positions marked P regardless of whether one or two processors will be installed. -
Page 11: Installing Memory
Intel Server Board SE7501CW2 Installation and Integration Guide Installing Memory The server board supports only DDR266- compliant DIMMs. The minimum supported memory configuration is 128 MB, using one 128-MB DIMM. The maximum configurable memory size is 8 GB using 4 2-GB DIMMs. -
Page 12: Installing The Boxed Intel Xeon Processor
If only ONE processor is to be used, it must be installed in the processor socket labeled CPU1, located closest to the corner of the server board. No processor terminator is required on a single processor system. Do not install a terminator in the Intel Server Board SE7501CW2. -
Page 13: Installing The Retention Mechanism
Intel Server Board SE7501CW2 Installation and Integration Guide Installing the Retention Mechanism 1. Insert the retention brackets. 2. Tighten the four retention screws. Applying Thermal Grease Apply thermal grease to the processor as shown. Attaching the Heat Sink and Retention Clips 1. -
Page 14: Installing The Processor Wind Tunnel
Intel Server Board SE7501CW2 Installation and Integration Guide Installing the Processor Wind Tunnel The following instructions apply to the base Intel Server Chassis SC5200 and reference chassis installations. Direct the airflow from the processor wind tunnel toward the rear of the chassis as shown. -
Page 15: Attaching The Wind Tunnel
Intel Server Board SE7501CW2 Installation and Integration Guide Attaching the Wind Tunnel 1. Spread the tabs outward slightly (1a). Lower the wind tunnel assembly onto the retention mechanism (1b). 2. The tabs on the fan assembly (2a) slide into slots (2b) on the inner side of t he retention mechanism. -
Page 16: Making Required Connections To The Server Board
Intel Server Board SE7501CW2 Installation and Integration Guide Making Required Connections to the Server Board Make these connections regardless of the chassis used. Refer to your chassis documentation for additional connection requirements. For the Intel Serve r Chassis SC5200 Base or... -
Page 17: Making Optional Connections To The Server Board
Intel Server Board SE7501CW2 Installation and Integration Guide Making Optional Connections to the Server Board These connections are required only when the corresponding component is installed. Hot Swap Back Plane (HSBP) Front Universal Serial Bus System Fan 5 Serial B... -
Page 18: Installing The Serial B Cable
Intel Server Board SE7501CW2 Installation and Integration Guide Installing the Serial B Cable For the Intel Server Chassis SC5200, you can connect the Serial Port B cable to either the back of the chassis or, on a rack-mount system, to the front of the chassis. -
Page 19: Cable Routing - Intel Server Chassis Sc5200
Intel Server Board SE7501CW2 Installation and Integration Guide Cable Routing – Intel Server Chassis SC5200 To ensure proper airflow within the chassis, follow the cable routing guidelines below. IDE or SCSI Cables Cables that connect to devices in the lower device bays should be routed around the EPAC tem fan carrier as shown. -
Page 20: Installing The Chassis Feet (Pedestal Mode)
Intel Server Board SE7501CW2 Installation and Integration Guide Installing the Chassis Feet (Pedestal Mode) 1. If you are installing this server into a rack system, skip these steps and go to “Installing into a Rack (Rack Mode)” below. 2. Move the chassis to the edge of your wor kbench. -
Page 21: Finishing Up
Intel Server Board SE7501CW2 Installation and Integration Guide Finishing Up WARNING tall the chassis access cover before finishing up (see ”Installing the Access ver” on page 19). An electrical shock hazard exists if the chassis access cover is not replaced before connecting the chassis AC po wer. -
Page 22: Software Installation
Software Installation Updating the BIOS Intel highly recommends that you go to the Intel Server Board SE7501CW2 support Web ite and download and install the latest system BIOS update for your operating system. The Intel Server Board SE7501CW2 support Web site is: http://suppo rt.intel.com/support/motherboards/server/S... -
Page 23: Landesk* Client Manager
Internet Explorer* 5.5 from various computers on your network. Installation instructions and further information on LANDesk Client Manager are available in the documentation included on the Server Board SE7501CW2 Resource CD. ANDesk System Requirements To run Client Manager on your network, the administrator and client computers must comply with these system requirements. -
Page 24: Intel Server Maintenance And Reference Training Tool Cd (Intel Smart Tool)
Agreement, and click Accept. When installation is complete, launch Intel SM aRT Tool. 8. On the Welcome page, click Systems. 9. Select System > Servers > Xeon > SE7501CW2 SC5200, and then follow the on screen instructions to download the SE 7501CW2 SC5200 server system module. You must have Internet access to download the server system module. - Page 25 Intel Server Board SE7501CW2 Installation and Integration Guide Thank you for purchasing Intel products! For additional integration resources, please visit www.support.intel.com.
