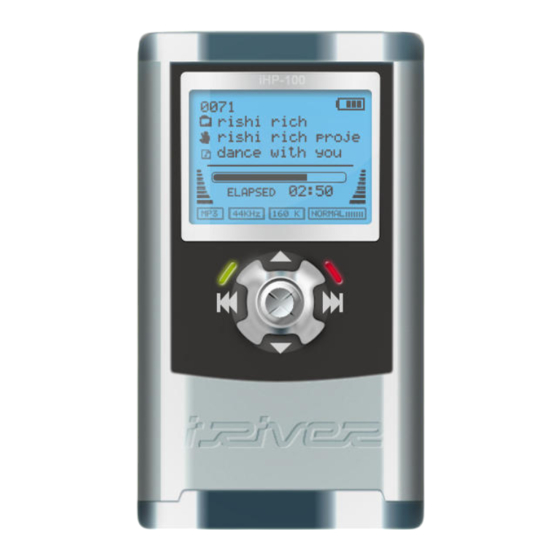

IRiver iHP-100 Series Instruction Manual

Portable storage device & multi- codec juke box
Hide thumbs Also See for iHP-100 Series:
Table of Contents

Advertisement

Quick Links

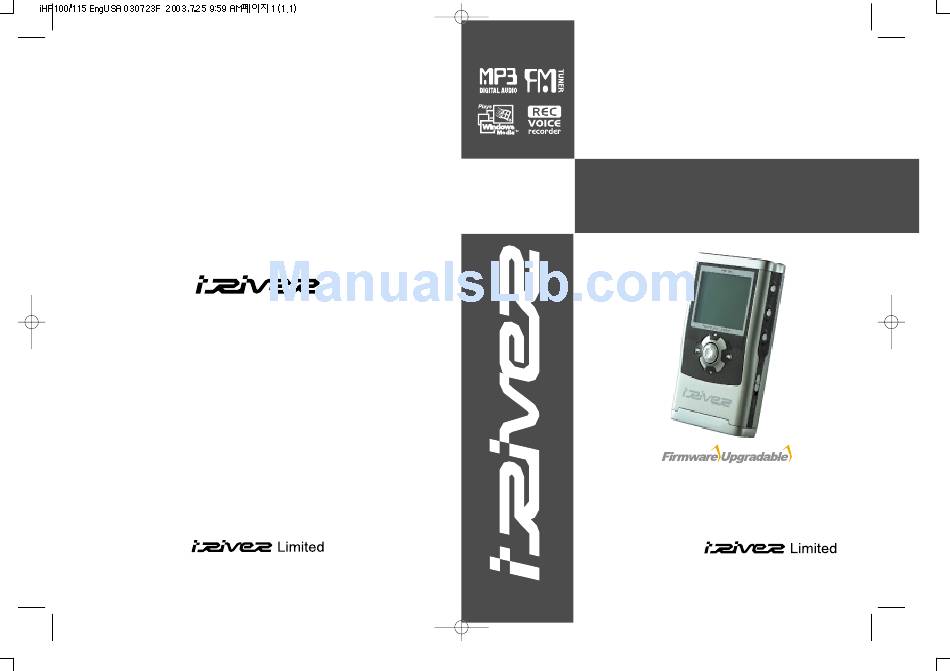

Instruction Manual

PORTABLE STORAGE DEVICE
& MULTI - CODEC JUKE BOX
Model iHP-100 Series
Model iHP-100 Series
Thank you for your purchase.
Please read this manual carefully
before using your new player.
http://www.iRiverAmerica.com
http://www.iRiverAmerica.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iHP-100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for IRiver iHP-100 Series

Summary of Contents for IRiver iHP-100 Series

  • Page 1: Instruction Manual

    Instruction Manual PORTABLE STORAGE DEVICE & MULTI - CODEC JUKE BOX Model iHP-100 Series Model iHP-100 Series Thank you for your purchase. Please read this manual carefully before using your new player. http://www.iRiverAmerica.com http://www.iRiverAmerica.com...
  • Page 2 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
  • Page 3 Easy Navigation this document or make any commitment to update the information contained herein. iRiver is a registered trademark of iRiver Limited in the Republic of The simple navigation with tree configuration makes it easy to find Korea and/or other countries and is used under license.

  • Page 4: Table Of Contents

    FRONT VIEW 1. Locating the Controls Front View, Side View............Up/ Down Side, LCD Window........... Remote Control..............LCD Window 2. Getting started Using AC POWER ADAPTER.......... Software Installation............Charging Indicator HDD Operating Indicator Connecting the iHP-100 Series to the Host PC....Jog Handle for Multi Installing the iHP-100 Series Device Driver......

  • Page 5: Remote Control

    Remote Control UP/ DOWN SIDE LINE INPUT (Optical / Analog) RESET (STOP) / Power OFF Power ON / (PLAY / PAUSE) REMOTE LINE OUTPUT USB Connection DC IN 5.0 V CONTROL/ (Optical / Analog) Port EARPHONES LCD Window Main unit and Remote control both THE ORDER OF LCD Window (Remote Control) locked.

  • Page 6: Using Ac Power Adapter

    2.0 Storage Device, and you can use this player without any program installation. Use only the AC Power Adapter supplied with the player. Install the iRiver iHP Manager to use the Database Function. Windows 98 SE The AC operating voltage of this player is 100~240V, 50~60Hz.
  • Page 7 Host PC is operated. Place a checkmark next to Locate the following path on your To PC computer. C:\Program Files\ "Specify a location" and click iRiver\iHP 100\drivers, click “OK”. Browse. Type “A” Type “A” Type “B” To iHP...
  • Page 8 Windows Explorer. Click “Stop iRiver iHP-100-Driver(X)” or “Safely Remove TOSHIBA MK1 3GAL USB Disk Drive(X:)”. (Where X is the drive letter assigned to the iHP-100 Series) To delete files or folders from the iHP-100 Series, select the files Click OK after confirming the “Safe To Remove Hardware”...
  • Page 9 Connect the headphones and remote Put the HOLD switch to “OFF”. control as shown below. Power ON File playback receiving To fast forward To play / Pause To stop To fast reverse To select music Press the PLAY/STOP button to : To select previous track turn on the player.

  • Page 10: Basic Operation

    Basic Operation To adjust the volume Press + on volume button to increase volume and press – on button to decrease volume. File playback Selecting FM Mode when listening FM receiving Stereo Mono To Record (Refer to page 26) [Record standby] [To start recording] [To select source to record] To activate Navigation...

  • Page 11: Playback Mode

    The remote control operates every function by using 5 buttons. Basic Operation Function Changing Mode Volume Control STOP FM Changing Slide jog lever to the right to increase volume or to the left to decrease volume. PLAY / PAUSE NAVIGATION Main unit and Remote control both locked.
  • Page 12 Navigation mode is useful for quickly searching your files by using ID3 tag Interval Repeat information and file name. Play selected interval repeatedly while playing. In case the database file is damaged or deleted or DB SCAN OPTION is set to “OFF”, the Navigation function will use the normal "File Tree"...
  • Page 13 2. Navigation using Music Information Press the NAVI/MENU button to display the detail of the selected search condition. If DB SCAN OPTION is set to “OFF”, the Navigation function using the music information can not be operated because the player does not analyze the DB file when power on.
  • Page 14 To update DB To add DB This allows you to reconstitute DB for MP3 files based on ID3 Tag You can add DB file for MP3 files based on ID3 Tag information by using information. Artist, Album, Genre, etc. the host PC. If the iRivNavi.iDB file is damaged or deleted, files can no longer be searched by ID3 Tag information.

  • Page 15: Operating The Fm Tuner

    Memory Function (Save stations manually) OPERATING THE FM TUNER While playing an Audio File, Press and hold the PLAY/PAUSE button. Select a station by pushing the switch to the left or the right. The FM function picture displays on the LCD. Push the button to select FM frequency.

  • Page 16: Recording

    Memory delete function (Delete saved channels) Recording Press the REC button to activate recording standby mode. Select the channel to be deleted at preset mode. Press and hold the memory button. - The next channel will appear when channel deletion is completed. Press A-B/MODE button or push the REC switch toward SOURCE/TYPE to Push the MEMORY button if you want to delete the next channel also.
  • Page 17 To pause recording Push the MENU/NAVI handle toward or push the REC button on the remote control toward BITRATE to select BITRATE TYPE to set recording quality. This is only for MP3 file. Press REC button to pause recording, press REC button again to start recording.

  • Page 18: Playback Mode

    The iHP-100 Series has various playback modes. Please refer to the function controls (see page 40 for details) for user-defined configurations. You can change the EQ to match your music style. When the A-B/MODE - Normal / Rock / Jazz / Classic / Ultra Bass / User EQ button is pushed, the playback mode You can set the EQ function by using Function Menu.

  • Page 19: Menu

    Configuration Scroll between Menu Press and hold the NAVI/MENU button to display the main menus. Push volume Function Control is subject to change with different firmware versions. to scroll between main menus, press the Users can configure their own settings. NAVI/MENU button to select sub menu.

  • Page 20: Firmware Upgrade

    GENERAL LOAD DEFAULT VALUE Initialize all settings to original factory setting. BEEP VOLUME Set beep volume level to 0 / 1 / 2 / 3 step. FIRMWARE UPGRADE You can upgrade the player’s Firmware. Refer to page 43 for details. RESUME When ON, player resumes to previous place in song after STOP or Power OFF.
  • Page 21 TIMER (Set Auto Power Off) LCD CONTRAST (Main) Adjust LCD contrast of the player. SLEEP POWER OFF Automatically power off after fixed time (Time range can be set from 1 to 99 minutes). When the power is off, the sleep power off setting goes LCD CONTRAST (Remote) back to 0.
  • Page 22 MODE (PLAYBACK MODE) SOUND REPEAT MODE / SHUFFLE MODE SOUND BALANCE You can select a file or directory to listen to Balance your sound to the right or left or keep it in the repeatedly. center according to your preference. When Sound Balance bar is moved to L (Left, 20),the sound outputs at the left earphone.

  • Page 23: Rec Mode

    It is the operating system that works in the iHP-100 Series. You can select one of MP3 or WAV. iRiver provides you with the latest and best features through Firmware Upgrade. Visit www.iriveramerica.com to upgrade your Firmware. You can also set it by using button at recording standby mode.
  • Page 24 SAFETY Avoid dropping or impacting the player. Supported file types will have the extension MP3, WMA, ASF and The player is designed to operate while walking or running, but dropping or WAV. excessively impacting the player may cause damage. Folders and files are sorted in alphabetical order. Avoid contacting the player with water.

  • Page 25: Accessories

    Should any problem persist after you have checked these symptoms, Headphones and foam covers Remote Control consult your iRiver dealer or contact support at iRiver.com. Check whether the battery is discharged. Check the operation after connecting AC No Power Adapter.
  • Page 26 Federal Communications Commission (FCC) Capacity 10GB 15GB Model No iHP-100 iHP-115 The device manufactured and found to comply with limits for a Class B computing device according to the specifications in FCC rules Part 15. The upgrade of HDD’s capacity is not supported. Operation is subject to the following two conditions;...
