Intergraph ImageStation ZII Installation And Use Manual page 11

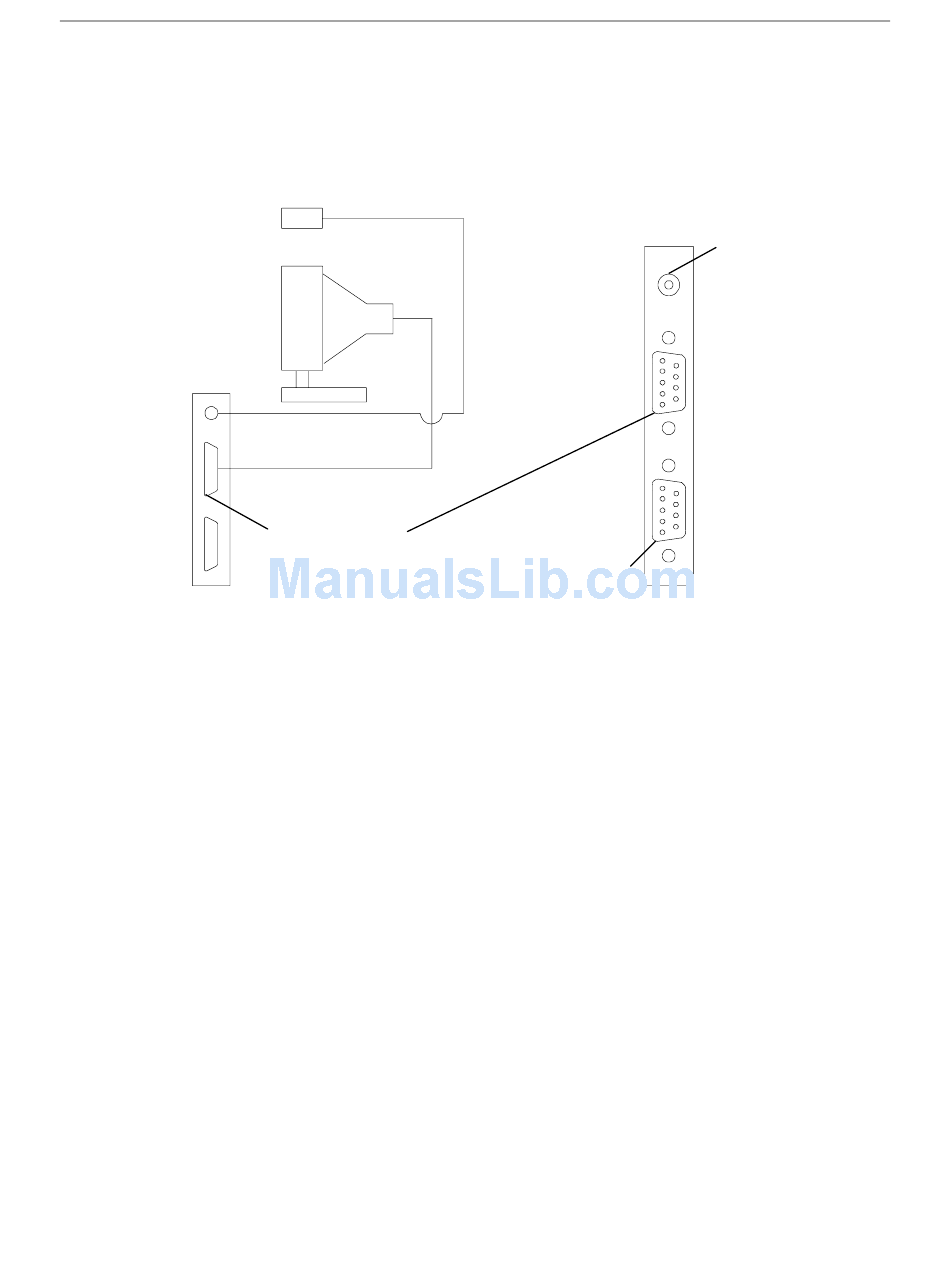

3. Connect one end of the stereo sync interface cable to the 9-pin port on the infrared transmitter.
Connect the other end (round mini-DIN) to the stereo port of the graphics board in the TDZ
workstation base unit. Refer to the following figure.
4. Connect one end of the video cable to the monitor, and connect the other end to the Video Out
port on the graphics board. Refer to the following figure.
Infrared Transmitter
Monitor
Video Out Port
of Workstation
Graphics Board
Stereo Sync
Interface Cable
Video Cable
Video In Port
(not used)
7
Stereo
Port
