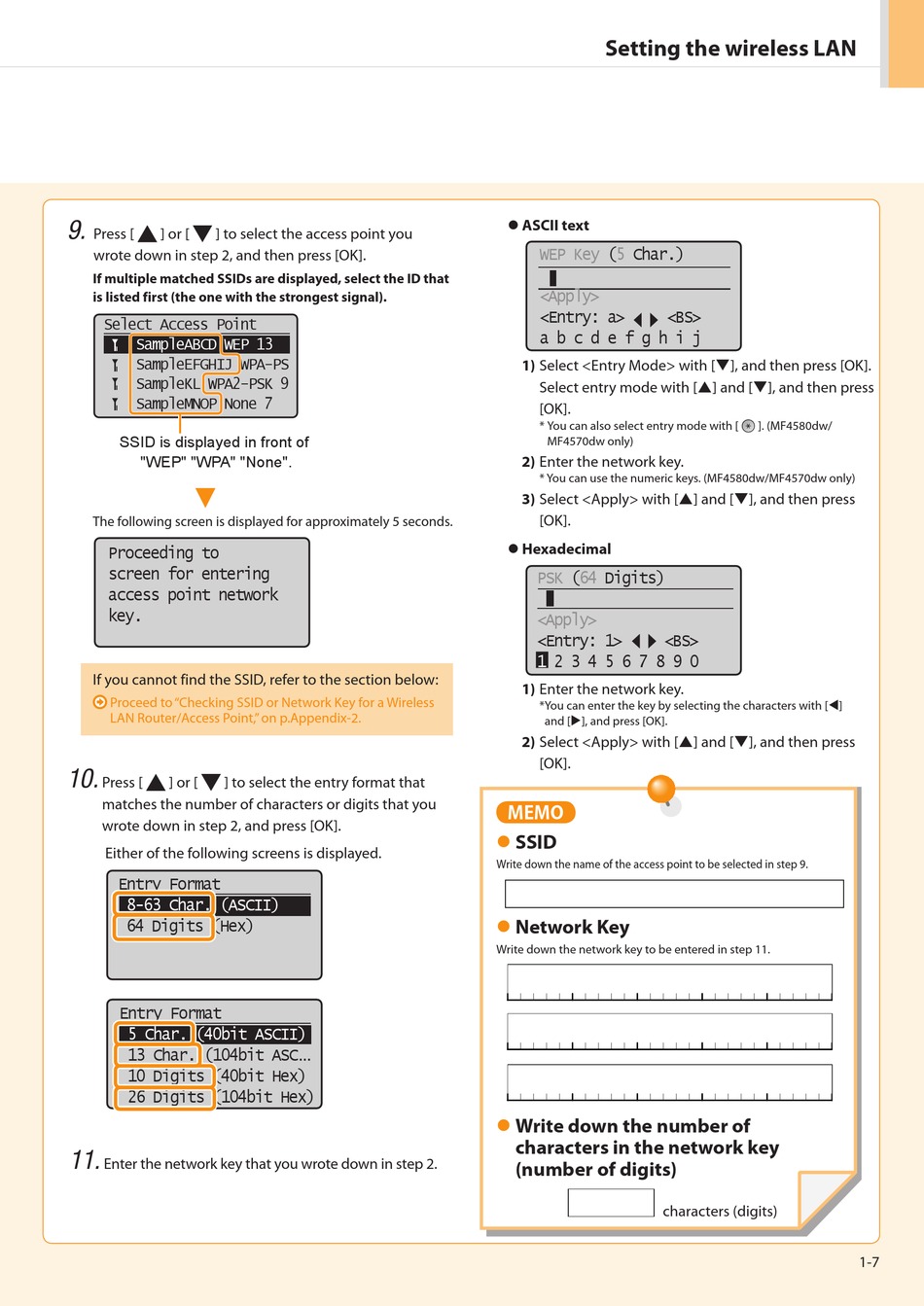

9.
Press [ ] or [ ] to select the access point you
wrote down in step 2, and then press [OK].
If multiple matched SSIDs are displayed, select the ID that
is listed first (the one with the strongest signal).
Select Access Point
SampleABCD WEP 13
SampleEFGHIJ WPA-PS
SampleKL WPA2-PSK 9
SampleMNOP None 7
SSID is displayed in front of
"WEP" "WPA" "None".
The following screen is displayed for approximately 5 seconds.
Proceeding to
screen for entering
access point network
key.
If you cannot find the SSID, refer to the section below:
Proceed to "Checking SSID or Network Key for a Wireless
LAN Router/Access Point, " on p.Appendix-2.
10.
Press [ ] or [ ] to select the entry format that
matches the number of characters or digits that you
wrote down in step 2, and press [OK].
Either of the following screens is displayed.
Entry Format
8-63 Char. (ASCII)
64 Digits (Hex)
Entry Format
5 Char. (40bit ASCII)
13 Char. (104bit ASC
10 Digits (40bit Hex)
26 Digits (104bit Hex)
11.
Enter the network key that you wrote down in step 2.
. . .
Setting the wireless LAN
 ASCII text
WEP Key (5 Char.)
<Apply>
<Entry: a> <BS>
a b c d e f g h i j
1) Select <Entry Mode> with [], and then press [OK].
Select entry mode with [] and [], and then press
[OK].
* You can also select entry mode with [
MF4570dw only)
2) Enter the network key.
* You can use the numeric keys. (MF4580dw/MF4570dw only)
3) Select <Apply> with [] and [], and then press
[OK].
 Hexadecimal
PSK (64 Digits)
<Apply>
<Entry: 1> <BS>
1 2 3 4 5 6 7 8 9 0
1) Enter the network key.
* You can enter the key by selecting the characters with []
and [], and press [OK].
2) Select <Apply> with [] and [], and then press
[OK].

SSID
Write down the name of the access point to be selected in step 9.

Network Key
Write down the network key to be entered in step 11.

Write down the number of
characters in the network key
(number of digits)
characters (digits)
