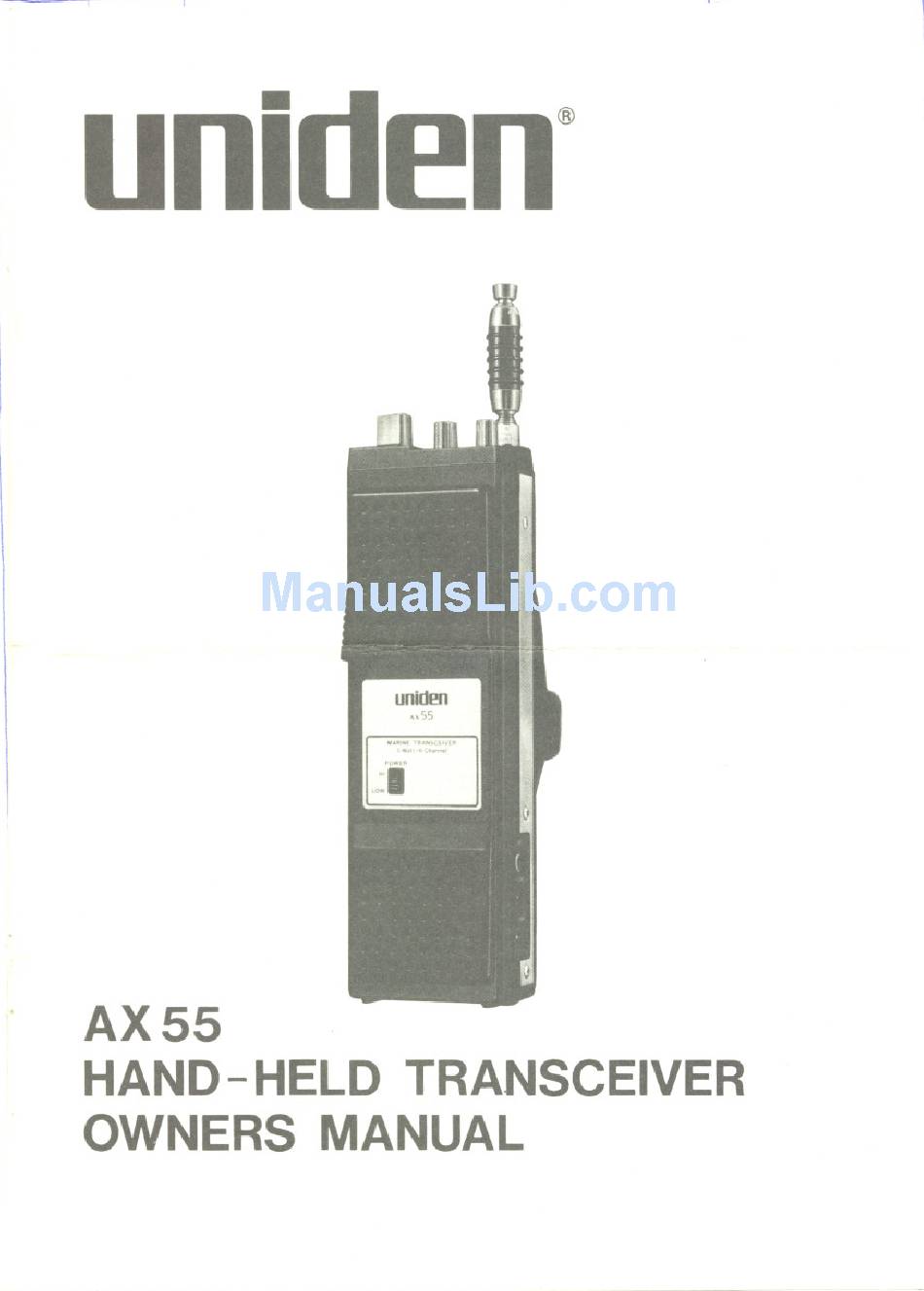

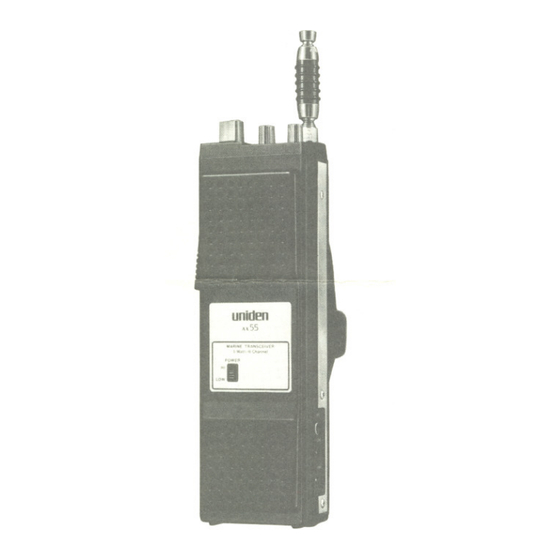

- Page 1 AX55 HAND HELD TRANSCEIVER OWNERS MANUAL...
- Page 2 DESCRIPTION Your UNIDEN AX 55 represents the most advanced 5-watt hand-held type radio ever designed for use in the Citizens Band Radio Service. It will operate on any three of the 40 frequencies designated as citizens band channels by the Federal Communications Commission.
- Page 3 These forms are packaged as part of the documents provided with each radio. Every CB operator must read and understand the FCC part 95 prior to operation of a radio. SPECIFICA TIONS: TRANSMITTER Power Input : 5 Watts (HI) 1.5 Watts (LOW) Power Output : 3.5 Watt (HI)
- Page 4 CHANNEL INFORMATION Channel Channel Channel Frequency Channel Frequency inMHz in MHz 27.215 26.965 27.225 26.975 26.985 27.255 27.005 27.235 27.015 27.245 27.265 27.025 27.275 27.035 27.285 27.055 27.065 27.295 27.075 27.305 27.315 27.085 27.325 27.105 27.115 27.335 27.125 27.345 27.135 27.355 27.365 27.155...
- Page 5 CONTROLS AND FUNCTIONS BATTERY LOW INDICATOR EXTERNAL SPEAKER JACK connect an optional external if LED comes on, recharge on speaker. replace batteries. CHANNEL SELECTOR Position 1 is for Channel 14 (crystals Applied with unit). Use 2 and 6 for other POWER ON-OFFNOLUME channels as desired.
- Page 6 OPERATING PROCEDURE TO RECEIVE Extend Antenna to its full length and keep in a vertical position. 2. Turn the unit lion" by rotating Volume Control clockwise. 3. Set the Channel Selector to the desired channel. 4. Set the Volume Control to a comfortable listening level. 5.
- Page 7 NOTE: The crystals installed in channel 1/1" position are also of plug-in type and may be replaced with those of any other channels. Make sure the transmit and receive crystals are installed in their correct socket. If the crystals are reversed, the unit will transmit on one frequency and recieve on another, both of which will be outside the citizens band, resulting in illegal operation.
- Page 8 UNIDEN AUSTRALIA PTY. LTD. 345 Princes Highway. Rockdale. N.S.W. 2216 ("UNIDEN"). ELEMENTS OF WARRANTY. UNIDEN warrants, for the duration of this warranty. its UNIDEN CB Product to be free from defects in materials and craftsmanship with only the limitation or exclusions set out below.
