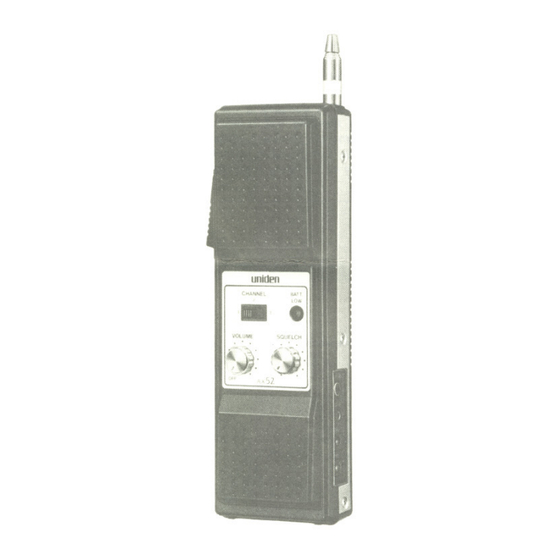

Uniden HAND- HELD TRANSCEIVER AX52 Owner's Manual

Hand-held transceiver
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

uni en@
M
AX52
HAND
-
HELD TRANSCEIVER
OWNERS MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAND- HELD TRANSCEIVER AX52 and is the answer not in the manual?

Questions and answers

Related Manuals for Uniden HAND- HELD TRANSCEIVER AX52

Summary of Contents for Uniden HAND- HELD TRANSCEIVER AX52

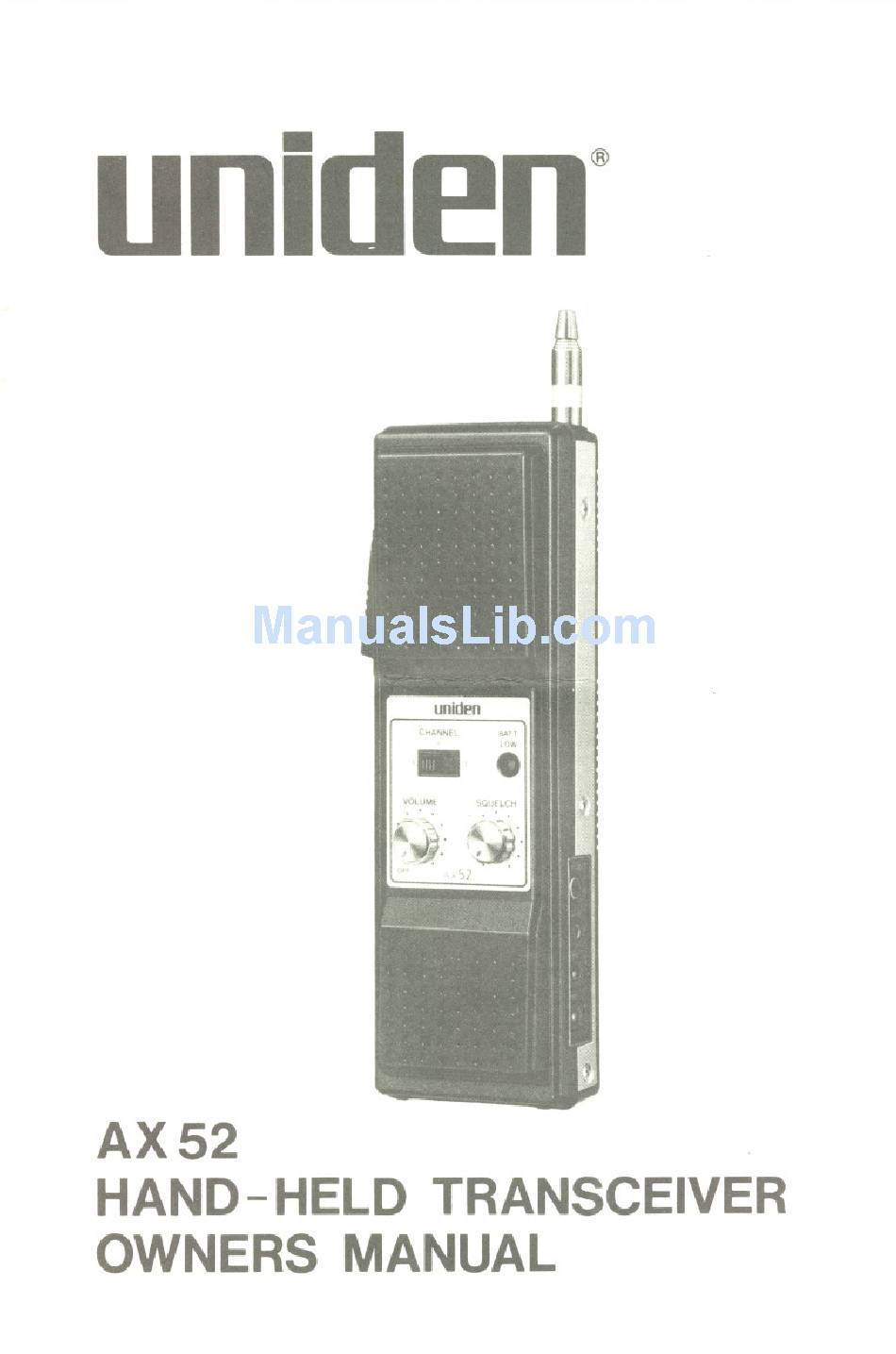

  • Page 1 uni en@ AX52 HAND HELD TRANSCEIVER OWNERS MANUAL...

  • Page 2: Specifications

    DESCRIPTION Your UNIDEN AX 52 represents the most advanced 2-watt hand-held type radio ever designed for use in the Citizens Band Radio Service. It will operate on any three of the 40 frequencies designated as citizens band channels by the Department of Com- munications.

  • Page 3: Preparing For Use

    CHANNEL Channel Frequency Channel inMHz 26.965 26.975 26.985 27.005 27.015 27.025 27.035 27.055 27.065 27.075 27.085 27.105 27.115 27.125 27.135 27.155 27.165 27.175 27.185 27.205 PREPARING FOR USE 1. Slide off the Battery Compartment cover to install the batteries. 2. You can use the following types of batteries (size "AA"). Description Rechargeable Nickel Cadmium Alkaline type...

  • Page 4: Controls And Functions

    CONTROLS AND FUNCTIONS PUSH-TO-TALK BUTTON Press to talk. Release to listen CHANNEL SELECTOR Position 1 is for Channel 14 (crystals supplied with the unit). Use 2 and 3 for other channels as desired. POWER ON-OFFNOLUME CONTROL Turn clockwise past click to apply power. Adjust for desired listening level.
  • Page 5 OPERATING PROCEDURE TO TRANSMIT 1. Extend Antenna to its full length and keep in a vertical position. IMPORTANT: IF THE ANTENNA IS NOT FULLY EXTENDED, THE EFFI- CIENCY OF THE TRANSMITTER IS REDUCED AND THE POWERAMPLIFIERTRANSISTORCOULD BE DAMAGED. 2. Turn the power "on" by rotating the Volume Control clockwise. 3.

  • Page 6: Servicing Your Transceiver

    The crystals installed in channel 1/1"position are also of plug-intype and may NOTE: be replaced with those of any other channels. Make sure the transmit and receive crystals are installed in their correct sockets. If the crystals are reversed, the unit will transmit on one frequency and receive or another, resulting in illegal operation.
  • Page 7 MEMO...
  • Page 8 Kingsgrove MSW 2208 ("SANTRONIC"). ELEMENTS OF WARRANTY. SANTRONIC warrants, for the duration of this warranty, its UNIDEN CB Product to be free from defects in materials and crafts- manship with only the limitation or exclusions set out below. WARRANTY DURATION. This Warranty shall terminate and be of no further effect...
