Citizen iDP3410 User Manual

Citizen iDP3410 User Manual

Dot matrix printer user's manual
Hide thumbs Also See for iDP3410:
Table of Contents

Advertisement

Quick Links

Download this manual
DOT MATRIX PRINTER
iDP3410
MODEL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iDP3410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Citizen iDP3410

Summary of Contents for Citizen iDP3410

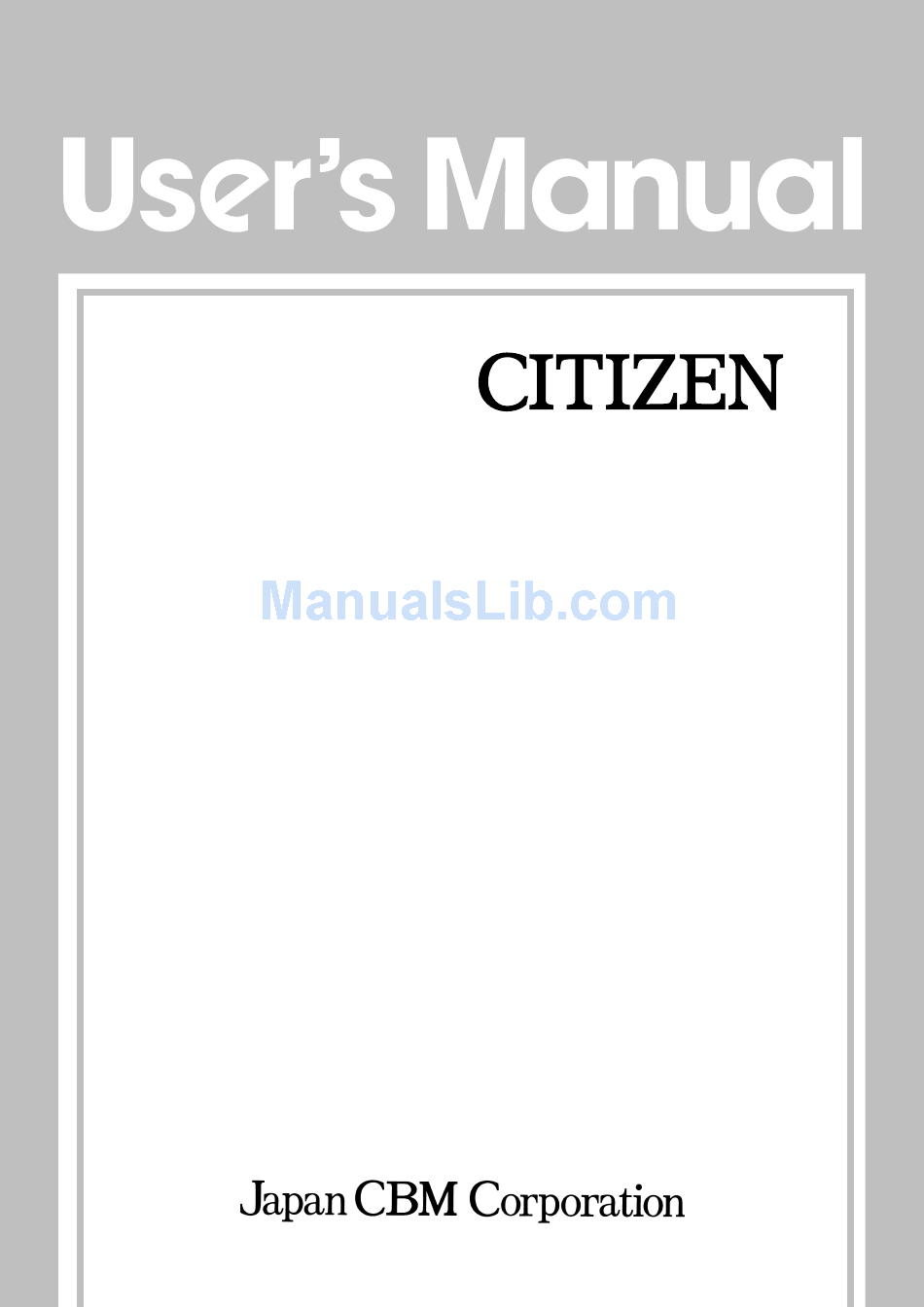

  • Page 1 DOT MATRIX PRINTER iDP3410 MODEL...

  • Page 2: Declaration Of Conformity

    : 1991 4KV CD, 8KV AD IEC801-3 : 1984 3V/m, 26MHz-1000MHz AM1KHz 80% IEC801-4 : 1988 0.5KV Signal Line Signature: Full Name : Mikio Moriya Position : General Manager iDP3410 User's Manual 1KV AC mains R & D Department CITIZEN...

  • Page 3: Important Safety Instructions

    F. If the product exhibits a distinct change in performance, indicating a need for service. Please keep the poly bag which this equipment is packed in away from children or throw it away to prevent children from putting it on. Putting it on may cause suffocation. iDP3410 User's Manual CITIZEN...

  • Page 4: Wichtige Sicherheitsanweisungen

    Bitte halten Sie den Kunststoffbeutel, in den die Ware verpackt ist, von Kindern entfernt, oder werfen Sie ihn weg, damit er nicht in die Hande von Kindern gerät. Das Überstülpen des Beutels kann zum Ersticken führen. Lärmemission kleiner 70dBA iDP3410 User's Manual Der Drucker könnte Drucker nicht in der Nähe eines Ein Verstellen anderer...
  • Page 5 User's Manual IMPORTANT: This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 off FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.
  • Page 6 If you have any questions or notice any clerical errors or omissions regarding the information in this manual, please contact our office. Please note that, notwithstanding Item 8 above, we will not be responsible for any effects resulting from operation of the equipment. <CAUTIONS> iDP3410 User's Manual CITIZEN...
  • Page 7 This is an illustration mark used to indicate such information as an instruction or the like. Negligence of this precaution may result in death or serious injury. Negligence of this precaution may result in injury or damage to property. iDP3410 User's Manual CITIZEN...
  • Page 8 Do not overload a single electrical outlet, using a table tap or a current tap socket. It may result in fire or electric shock.  An equipment packing bag must be discarded or kept away from children. A child can suffocate if the bag is placed over the head. WARNING ! iDP3410 User's Manual CITIZEN...

  • Page 9: Precautions For Installation

    There is a danger of fire or electric shock. Do not put any object on the printer. It may cause trouble. Do not use the equipment near a radio or TV receiver. Do not share the power from a plug socket a radio or TV receiver is connected to.

  • Page 10: Precautions For Handling

    Never use a pointed object, such as a pen, to operate the operation panel. Do not use Scotch tape to fasten paper together for continuous use. Never pull the set paper forcibly. When opening/closing the printer cover, take care that the paper will not be caught.

  • Page 11: Daily Maintenance

    User's Manual DAILY MAINTENANCE Prior to starting maintenance work, be sure to turn off the main body. Use a dry soft cloth to wipe off stains and dust from the surfaces of the main body case. For severe soiling, dip the cloth in water and wring it, for wiping off the soil.

  • Page 12: Table Of Contents

    10.3 Input and Output Signals... 26 10.3.1 Input and Output Signals... 26 10.3.2 Data Configuration ... 28 10.3.3 Error Detection ... 29 10.3.4 Data Receiving Control ... 29 10.3.5 Buffering ... 29 10.3.6 Electrical Characteristics... 30 CONTENTS iDP3410 User's Manual CITIZEN...
  • Page 13 14.11 Code Page 852... 114 14.12 Code Page 866... 115 14.13 Code Page 857... 116 14.14 Windows Code ... 117 14.15 International Character Codes Table ... 118 APPENDIX 1. BLOCK DIAGRAM ... 119 APPENDIX 2. OUTLINE DRAWING... 120 iDP3410 User's Manual CITIZEN...
  • Page 14 Note: CITIZEN, CITIZEN logo are registered trademark of CITIZEN WATCH CO., LTD. ESC/POS and EPSON are a trademark and registered trademark of SEIKO EPSON Corporation. STAR is a registered trademark of Star Micronics Corporation. Windows is a registered trademark of Microsoft Corporation.

  • Page 15: Outline

    This is a small-size dot impact printer developed for various data communication terminals, POS terminals, kitchen-use printers, bank card, terminals, and so on. Its abundant built-in features allow you to widely use this printer for different applications. Prior to using it, read and understand this manual thoroughly.

  • Page 16: Basic Specifications

    2. BASIC SPECIFICATIONS 2.1 Model Classification The printer model is classified by the following designation method. iDP3410 Model Name Exclusive AC Adapter Types and Power Cords 34AD-U (120 V 2-core cord) 34AD-E (230 V 2-core cord) AC adapter 120: For 120 V AC...

  • Page 17: Basic Specifications

    FEED switch Input buffer 6 KB or 256 bytes (Selectable with the DIP switch) Buffer backup Within 24 hours (After 10 minutes or more of printer operation) Drawer 2-drawer or 1-drawer switch Auto loading Equipped (Automatically feeds the paper by several lines when it is inserted.) Paper end detection Equipped (Stops printing when the paper runs out.)

  • Page 18: Paper Specification

    83 mm or less Core 12 mm (Inner Diameter), 18 mm (Outer Diameter) 2.3.2 Printing Position 2.3.2 Cutter Layout Non-carbon paper, 1 original + 1 copy, Total thickness 0.2 mm or less Cutting Position iDP3410 User's Manual Approx. 20 mm CITIZEN...

  • Page 19: Outer Appearance And Component Parts

    User's Manual 3. OUTER APPEARANCE AND COMPONENT PARTS CITIZEN...

  • Page 20: Operation

    (1) Turn off the Power switch. (2) Connect the cable connector of the AC adapter to the power connector located on the back of the printer. (3) In order to prevent disconnection of the cable connector, put it through a wire saddle, as shown in the figure below.

  • Page 21: Connecting Interface Cable

    (2) Check the top and bottom of the drawer kick-out cable connector, and connect it to the drawer kick-out connector located on the back of the printer. (3) Screw the grounding cable of the drawer to the grounding terminal of the printer. CAUTION Connect only the prescribed drawer (Solenoid) to the drawer kick-out connector.

  • Page 22: Setting The Cassette Ribbon

    (4) Turn the knob of the cassette ribbon in the arrow-indicated direction to eliminate slackness of the ribbon. (5) To remove the cassette ribbon, lift it while tilting the locking claws on both sides toward the inside. iDP3410 User's Manual CITIZEN...

  • Page 23: Inserting The Paper

    4.5 Inserting the Paper (1) Put your hands in the concave parts on both sides of the printer cover, and open it until it comes to a stop. (2) Cut the end of the paper roll at close to a right angle.
  • Page 24 User's Manual CAUTION If the paper is slack, rewind it, to remove the slack. If the paper is set slantwise, operate the paper-free lever, to correct the paper position. While printing, do not hold the paper. This can cause a paper jam.

  • Page 25: How To Remove Remaining Paper Roll

    (3) Push the paper-free lever in the arrow direction. The paper feed roller is disengaged, to free the paper, allowing you to eliminate the jammed paper. (4) Eliminate completely the paper remaining in the paper route. CAUTION When pulling out the paper (Forward/Reverse direction), be sure to operate the paper- free lever. iDP3410 User's Manual CITIZEN...

  • Page 26: Operation Panel And Display Of Error

    (1) POWER lamp(Green) Illuminated when the power is turned on. (2) ERROR lamp(Red) Illuminated when the printer is out of paper or has a printer mechanical error or communication error. <Details of Errors> Paper end ----- If the paper runs out, the paper sensor located in the paper course near the print head detects a paper end, turning on the ERROR LED, thus stopping the printer.

  • Page 27: Operation Flow At Power-On

    "Clear Data in Buffer" Yes(FEED SW) and Enlarged Red Print Test Print Buffer Data Prints "Power Down(Data in Buffer)" in Red, Followed by Buffer Contents. Waits for Data Input iDP3410 User's Manual 1 Sec. Passed FEED SW ? (AGAIN) Input Buffer Clear CITIZEN...

  • Page 28: Dip Switch Setting

    5. DIP SWITCH SETTING 5.1 Location of DIP Switch (1) Turn off the power. (2) Remove a cassette ribbon. The DIP switches are located as shown in the figure below. (Only DS1 provided for the parallel interface) iDP3410 User's Manual CITIZEN...

  • Page 29: Dip Switches Setting

    256 bytes See the table below Character Code Selection DS1-3 DS1-4 Operation Mode DS1-9 ESC/POS Ignored STAR STAR iDP3410 User's Manual Upon Shipment from Factory ON *2 ON *2 ON *2 OFF *3 OFF *3 ESC/POS CBM mode Star mode...
  • Page 30 2 ply paper is not available for the 1 ply setting. The same applies to when 1 ply paper is used for the 2 ply setting. 8 bits 7 bits Even DTR/DSR XON/XOFF See the table below DS2-6 DS2-7 iDP3410 User's Manual Factory Setting CITIZEN...

  • Page 31: Preset Jumper Setting

    1-C * = 1-C or open 2-C * = 2-C or open Parallel Interface STAR ESC/POS 1-C * 1-C * 1-C * 1-C * 2-C * 2-C * STAR ESC/POS 2-C * 1-C * 2-C * iDP3410 User's Manual CITIZEN...

  • Page 32: Mode Setting Method

    7. MODE SETTING METHOD This printer has the CBM, STAR, and ESC/POS mode. Any desired mode can be selected and set according to your need. (1) Setting method See 5. DIP SWITCH SETTING. Seeing the settings of the DIP switch 1-9 and 1-10 and those of the preset jumper, set each mode.

  • Page 33: Input Buffer Backup Function

    Even if the power is turned off or fails during the printing process, the data in the input buffer will be saved. If the power is turned on again, the printer will print a power failure mark, "==POWER DOWN==," in red and reprints the data from the beginning of the line where it left off.

  • Page 34: Parallel Interface

    : 8-bit parallel system (DATA1 to DATA8) : ACK, BUSY, STB, FAULT, SELECT, RESET, COMPULSION : Printer side --- 57LE-40360 (Equivalent to anphenol), Cable side --- 57-30360 (Ditto) Mode STAR ESC/POS iDP3410 User's Manual STAR TWISTED PAIR GND RESET FAULT COMPULSION ESC/POS CITIZEN...

  • Page 35: Input And Output Signals

    : A signal to indicate the BUSY status of the printer. Input new data when at "LOW". (Positive logic) FAULT : A signal turned to "LOW" when the printer has an alarm. At this time, all the control circuits in the printer stop. (Negative logic) SELECT : A signal to show whether the printer is selected(on-line) or deselected.(Positive...

  • Page 36: Electrical Characteristics

    : 0.4 V at maximum (3) Input and output conditions All the input signals are pulled up at 3.3 k . [Printer Side] All the output signals are pulled up at 3.3k . [Printer Side] [Host Side] [Host Side] iDP3410 User's Manual CITIZEN...

  • Page 37: Timing Chart

    9.3.3 Timing Chart (1) Data input and printing timing 9.3.4 Data Receiving Control When the BUSY signal is at "LOW," the printer can receive the data from the host, but when at "HIGH," it cannot. T1, T2, T3 : 0.5 s MIN : 270 ns MAX : 2.3 s TYP...

  • Page 38: Serial Interface

    = Logic "1" (-3 V -12 V) Space = Logic "0" (+3 V +12 V) (5) Received data (RXD signal) RS-232C Mark Space (6) Reception control (DTR signal) RS-232C Mark : Data transfer disabled Space : Data transfer enabled iDP3410 User's Manual CITIZEN...

  • Page 39: Connector's Pin Configuration

    Cautions: 1. An RS-232C signal is based on the EIA RS-232C. 2. When the data is not being transferred, the received data should be always maintained as a mark. STAR FAULT FAULT mTXD mRXD RESET iDP3410 User's Manual ECS/POS CITIZEN...

  • Page 40: Input And Output Signals

    (4) DSR When this signal is a space, the data is sent from the printer side. Note that if this signal is a mark when a request to send command is executed, the printer will wait until the signal becomes a space.
  • Page 41 (8) RCH When the printer is ready to receive, this signal is turned to Space. This signal line is the same as DTR. (9) mTXD TXD signal for the diode gate. (10) mRXD RXD signal for the diode gate. (11) FG This is a Frame Ground signal.

  • Page 42: Data Configuration

    The stop bit is a mark level of 1 bit or more. If a space is detected in detecting the stop bit, a framing error results. , ... (1) Start Bit (2) Data Bit (+ Parity Bit) (3) Stop Bit (1 or More) iDP3410 User's Manual CITIZEN...

  • Page 43: Error Detection

    When the DTR signal is a space, the data from the host side can be received. When it is a mark, however, the data cannot be received. 10.3.5 Buffering The DTR signal and the TXD signal are available as a control signal for data transfer to the input buffer. iDP3410 User's Manual CITIZEN...

  • Page 44: Electrical Characteristics

    A signal to show that the paper has run out. Normal at the "LOW" level, but turned to the "HIGH" level when the paper has run out. GND : Signal ground FG : Frame ground [Host Side] Mark=(-8V): Stop bit Space=(+8V): Start bit Mark=(-8V): 1 Space=(+8V): 0 iDP3410 User's Manual CITIZEN...

  • Page 45: Drawer Kick-Out Connector And Power Connector

    "L" = 0 0.5 V "H" = 3 Function Frame Ground Drawer 1 drive signal Drawer switch input Drawer drive power Drawer 2 drive signal Common ground on the circuit : TM5RJ3-66 (HIROSE) : TM3P-66P (HIROSE) or equivalent iDP3410 User's Manual CITIZEN...

  • Page 46: Specifications Of Power Supply Connector

    Applicable plug : JXP series Type-A (I.D. 2.45 mm, O.D. 5.5 mm) (HOSHIDEN) or equivalent CAUTION: Be sure to use the specified power supply. Use of unspecified one may lead to a trouble or breakage. Do not connect the power supply with different polarities. Function +24V iDP3410 User's Manual CITIZEN...

  • Page 47: Maintenance And Service

    Service Center 363 Van Ness Way Suite 404 Torrance, CA 90501, U.S.A TEL +1-310-781-1460 FAX +1-310-781-9157 Other Areas Japan CBM Corporation Information Systems Division CBM Bldg., 5-68-10, Nakano Nakano-ku, Tokyo 164-0001 Japan TEL +81-3-5345-7540 FAX +81-3-5345-7541 iDP3410 User's Manual CITIZEN...

  • Page 48: Print Control Functions

    1BH 74H n 1BH 07H n1 n2 1BH 52Hn 1BH 26H 00H n1 n2 1BH 25H n 1BH 2FH n 1BH 13H n 1BH 12H n1 n2 1DH 2AH n1 n2 1DH 2FH m iDP3410 User's Manual Code Page CITIZEN...

  • Page 49: Description Of Items

    Describes an argument value (Setting range) for the command. [Outline] Describes a command function. [Caution] Describes a caution as required. [Default] Describes an initial value for the command when accompanied by an argument. Shows a command. iDP3410 User's Manual CITIZEN...
  • Page 50 Note that the double width characters take up two ordinary characters worth of width. iDP3410 User's Manual CITIZEN...
  • Page 51 This command prints the data. If the DIP switch segments 1 to 6 are set to OFF, the printer will print the data in the print buffer and feed the paper by one line. If they are set to ON, the printer will print the data in the print buffer and will not feed the paper.
  • Page 52 This command specifies red-color characters. All the characters in one line are printed in red by prefixing the print data with this command and sending it to the printer. When you want to use red characters, use this command for each line.
  • Page 53 This command selects/deselects an underline. The underline is selected at n = 1 and deselected at n = 0. [Default] n = 0 ESC "1" [Function] Setting the 1/9-inch line feed width [Code] <1B>H <31>H [Outline] This command sets the line feed width to 1/9 inch. iDP3410 User's Manual CITIZEN...
  • Page 54 <1B>H <33>H [Outline] This command sets the line feed width to 1/6 inch(Default). ESC "C" n [Function] Setting the page length [Code] <1B>H <43>H n [Range] 1 n 127 [Outline] Sets the 1-page length to n-lines. iDP3410 User's Manual CITIZEN...
  • Page 55 This command cancels perforation skipping operation. ESC "f" 1 [Function] Form feed (Changing the page) [Code] <1B>H <66>H <01>H [Outline] This command searches for the beginning of the next page after printing the data in the print buffer. iDP3410 User's Manual CITIZEN...
  • Page 56 Code Page 850 (Multilingual) Code Page 860 (Portugal) Code Page 863 (Canada-French) Code Page 865 (Norway) Character Code Table Code Page 852 (Eastern Europe) Code Page 866 (Russia) Code Page 857 (Turkey) Windows Code Space Page (For user setting) iDP3410 User's Manual CITIZEN...
  • Page 57 <07>H [Outline] This command drives the drawer connector no. 2 pin under the condition set with the <ESC><BEL> n1 n2 command. This command is executed in order of entry into the input buffer. 1 n2 127 iDP3410 User's Manual CITIZEN...
  • Page 58 As soon as this command is received, the drawer connector no. 5 pin is driven. The power-on time is 200 ms ON and 200 ms OFF stationary. The drawers 1 and 2 cannot be driven simultaneously. [Function] Buzzer-on [Code] <1E>H [Outline] This command emits a short warning sound from the printer. iDP3410 User's Manual CITIZEN...
  • Page 59 [Outline] This command selects the international characters according to the value of n. [Default] Depends upon DIP switch setting. Character Set U.S.A. France Germany U.K. Denmark I Sweden iDP3410 User's Manual Character Set Italy Spain Japan Norway Denmark II CITIZEN...
  • Page 60 When defining only one character, set n1 = n2. You can define the ASCII codes ranging from 32 to 255. Once the download characters are defined, they remain valid until they are redefined or the download deletion command (ESC DC2 n1 n2) is executed. iDP3410 User's Manual CITIZEN...
  • Page 61 This command selects/deselects the download character set. The download characters cannot be printed by simply defining them with the above-mentioned ESC & 0 command. To print them, send this command to the printer. ESC "/" n "data" CR or LF...
  • Page 62 ESC DC3 n [Function] Printing the message [Code] <1B>H <13>H n [Range] 1 n 10 [Function] This command prints a message. If the value of n is specified beyond the range, the message will not be printed. iDP3410 User's Manual CITIZEN...
  • Page 63 Deletes all the data saved with the download function specified with n1. Deletes the data downloaded at the value specified with n2 (Value specified when saving with each download command), of the download function specified with n1. iDP3410 User's Manual CITIZEN...
  • Page 64 (ESC DC2 n1 n2) is executed. n2 8 0 n2 24 8, respectively. m denotes the number to be registered. (See a download bit iDP3410 User's Manual 8 and that of vertical dots is represented CITIZEN...
  • Page 65 If the print buffer contains the data, this command will be ignored. If the bit image has not been saved in the specified number, this command will be ignored. Nothing is printed when m is other than 0,1,2 or 3. iDP3410 User's Manual CITIZEN...

  • Page 66: Star Mode

    1BH 51H n 1BH 44H n1 n2 1BH 31H 1BH 41H n 1BH 32H 1BH 4AH n 1BH 4CH n1 n2 1BH 68H n 1BH 26H 00H n1 n2 1BH 25H n iDP3410 User's Manual Code Page 1BH 4BH n1 00H CITIZEN...
  • Page 67 Printing the download, bit image GS m Code 1BH 07H n1 n2 1BH 55H n 1BH 40H 1BH 74H n 1BH 2FH n 1BH 13H n 1BH 12H n1 n2 1DH 2AH n1 n2 1DH 2FH m iDP3410 User's Manual Page CITIZEN...
  • Page 68 Note that the double width characters take up two ordinary characters worth of width. Character Set U.S.A. France Germany U.K. Denmark I Sweden iDP3410 User's Manual Character Set Italy Spain Japan Norway Denmark II CITIZEN...
  • Page 69 ESC "F" [Function] Canceling the highlight character [Code] <1B>H <46>H [Outline] This command deselects the highlight characters set with ESC "E". The data following this command will be printed in ordinary characters. iDP3410 User's Manual CITIZEN...
  • Page 70 This command prints its subsequent data in red. This command remains valid until the red print deselection command is entered. Red and black characters cannot be mixed in one line. ESC "5" [Function] Canceling the red print [Code] <1B>H <35>H [Outline] This command deselects red print. iDP3410 User's Manual CITIZEN...
  • Page 71 Otherwise, it will be invalid. Erect and inverted characters cannot be mixed in one line. [Function] Canceling the Inverted character [Code] <12>H [Outline] This command deselects the inverted characters. Enter this command at the beginning of one line. iDP3410 User's Manual CITIZEN...
  • Page 72 This command prints the data. If the DIP switch segments 1 to 6 are set to OFF, the printer will print the data in the print buffer and feed the paper by one line. If they are set to ON, the printer will print the data in the print buffer and will not feed the paper.
  • Page 73 This command searches for the head of the next page after printing the data in the print buffer. ESC "C" n [Function] Setting the n-line page length [Code] <IB>H <43>H n [Range] 1 n 255 [Outline] Sets the 1-page length to n-lines. [Default] n = 42 iDP3410 User's Manual CITIZEN...
  • Page 74 This command feeds the paper to the next vertical tab position. It cannot be fed unless the vertical tab position has been set. If the current position is equal to or greater than the maximum set vertical tab position, it will be fed to the head of the next page. iDP3410 User's Manual CITIZEN...
  • Page 75 <nk-1>, it is assumed that setting of the vertical tabs has been completed. ESC "N" n [Function] Setting the lower margin [Code] <1B>H <4E>H n [Range] 0 n 255 [Outline] This command sets the n-line lower margin. [Default] n = 0 iDP3410 User's Manual CITIZEN...
  • Page 76 This command sets the left margin and printing starts from the column next to the set margin. ESC "Q" n [Function] Setting the right margin [Code] <1B>H <51>Hn [Range] 2 n (Max. print columns) [Outline] This command sets the right margin and printing is performed up to n-columns. iDP3410 User's Manual CITIZEN...
  • Page 77 [Function] Horizontal tab [Code] <09>H [Outline] This command moves a printing position to the preset next horizontal tab position. This command will be ignored unless there is the next horizontal tab position. iDP3410 User's Manual CITIZEN...
  • Page 78 If the data <n>k exceeds the one-line print range, the set column position will equal the maximum print columns + 1. If the character width is changed after setting the horizontal tab positions, they will not change. n from the head of the line. The character iDP3410 User's Manual CITIZEN...
  • Page 79 <1B>H <31>H [Outline] This command sets the line feed width to 1/9 inch. ESC "2" [Function] Setting the 2/9-inch line feed width [Code] <1B>H <32>H [Outline] This command sets the line feed width to 2/9 inch. iDP3410 User's Manual CITIZEN...
  • Page 80 This command prints the bit image by the number of data specified with n1. Printing will be unidirectional. The surplus data exceeding the printable quantity in one line will be ignored. The printer will automatically return to the character mode after printing the bit image.
  • Page 81 This command prints the 8-dot double density (Half-dot print) bit image. Printing will be unidirectional. The surplus data exceeding the printable quantity in one line will be ignored. The printer will automatically return to the character mode after printing the bit image.
  • Page 82 <ESC> "K" and <ESC> "L". In combination with the <SO> command, this command can print double height, double width characters. It cannot be combined with the inverted character command, <SI>. The double height characters and ordinary characters shall be bottom-justified. Double height character command Deselects Selects iDP3410 User's Manual CITIZEN...
  • Page 83 The horizontally adjacent dots cannot be printed. Once the download bit image is defined, it remains valid until it is redefined or the download deletion command(ESC DC2 n1 n2) is executed. Horizontal adjacent dots cannot be printed. iDP3410 User's Manual CITIZEN...
  • Page 84 <1B>H <25>H n [Outline] This command selects/deselects the download character set. The download characters cannot be printed by simply defining them with the above-mentioned ESC & 0 command. To print them, send this command to the printer. Download Character Set Deselects Selects...
  • Page 85 Driving command A for drawing-1 [Code] <07>H [Outline] This command drives the drawer connector no. 2 pin under the condition set with the <ESC><BEL> n1 n2 command. This command is executed in order of entry into the input buffer. iDP3410 User's Manual CITIZEN...
  • Page 86 As soon as this command is received, the drawer connector no. 5 pin is driven. The power-on time is 200 ms ON and 200 ms OFF stationary. The drawers 1 and 2 cannot be driven simultaneously. [Function] Buzzer-on [Code] <1E>H [Outline] This command emits a short warning sound from the printer. iDP3410 User's Manual CITIZEN...
  • Page 87 If the printer receives <DC3>, it will ignore the subsequent data. The Deselect mode is cancelled by <DC1>. [Function] Setting the select mode [Code] <11H> [Outline] If the printer receives this command, it will save the subsequent data in the input buffer. iDP3410 User's Manual CITIZEN...
  • Page 88 Initializing the printer [Code] <1B>H <40>H [Outline] This command cancels various conditions set after power-on to initializes the printer to the conditions having existed at power-on. However, the input buffer is not initialized. Bidirectional print Unidirectional print iDP3410 User's Manual...
  • Page 89 This command is valid only for the serial interface. information. If this command is entered after receiving the text information in the STX- ETX mode, the printer will send the status information and check byte. The printer sends the status...
  • Page 90 This command is valid only for the serial interface. It effectuates the STX-ETX mode. [Function] Text end [Code] <03>H [Outline] This command is valid only for the serial interface. It ends the STX-ETX mode and prints the data. iDP3410 User's Manual CITIZEN...
  • Page 91 Sends ENQ Receives Status Receives Check Byte Status Error ? Check Byte = Test Byte ? Sends ETX Sets Test Byte To STX-ETX Mode End STX-ETX Mode Data Block Ready to Send ? iDP3410 User's Manual Sends CAN (Print) CITIZEN...
  • Page 92 Code Page 850 (Multilingual) Code Page 860 (Portugal) Code Page 863 (Canada-French) Code Page 865 (Norway) Character Code Table Code Page 852 (Eastern Europe) Code Page 866 (Russia) Code Page 857 (Turkey) Windows Code Space Page (For user setting) iDP3410 User's Manual CITIZEN...
  • Page 93 ESC "DC3" n [Function] Printing the message [Code] <1B>H <13>H n [Range] 1 n 10 [Function] This command prints a message. If the value of n is specified beyond the range, the message will not be printed. iDP3410 User's Manual CITIZEN...
  • Page 94 Download bit image Deletes all the download function specified with n1. Deletes the data downloaded at the value specified with n2 (Value specified when saving with each download command), of the download function specified with n1. iDP3410 User's Manual CITIZEN...
  • Page 95 DC2 n1 n2) is executed. n2 8 8, respectively. m denotes the number to be registered. (See a download bit iDP3410 User's Manual 8 and that of vertical dots is represented CITIZEN...
  • Page 96 If the print buffer contains the data, this command will be ignored. If the bit image has not been saved in the specified number, this command will be ignored. Nothing is printed when m is other than 0,1,2 or 3. iDP3410 User's Manual CITIZEN...

  • Page 97: Esc/Pos Commands

    1BH 72H n 1BH 74H n 1BH 75H n 1BH 76H 1BH 7BH n 1DH 45H n 1BH 2FH n 1BH 13H n 1BH 12H n1 n2 1DH 2AH n1 n2 1DH 2FH m iDP3410 User's Manual Code Page CITIZEN...
  • Page 98 This command prints one line worth of the data saved in the print buffer and feeds the line based on the set line feed value. The head of the line is assumed to be the next print start position. iDP3410 User's Manual CITIZEN...
  • Page 99 This command prints the data. If the DIP switch segments 1 to 6 are set to OFF, the printer will print the data in the print buffer and feed the paper by one line. If they are set to ON, the printer will print the data in the print buffer and will not feed the paper.
  • Page 100 When printing the double height characters, there will be less shear in unidirectional printing. [Default] n = 0 Function Undefined Undefined Undefined High-lighting Canceled Double height Canceled Double width Canceled Undefined Underline Canceled iDP3410 User's Manual Values Specified Specified Specified Specified CITIZEN...
  • Page 101 This command selects/deselects the download character set. n is valid only for the least significant bit. Setting n0 = 1 selects the download character set. Setting n0 = 0 deselects the download character set. [Default] n = 0 iDP3410 User's Manual CITIZEN...
  • Page 102 Same as the internal character set. [Caution] The horizontally adjacent dots cannot be printed. The 2nd-byte data in the vertical direction is valid only for the most significant bit. a]m - n + 1 a>] m - n + 1 iDP3410 User's Manual CITIZEN...
  • Page 103 If the value of m is beyond the conditions, the data subsequent to n1 will be processed as normal data. Normal data processing will be restored after completing bit image print. Horizontal Direction Vertical Dot Density Dots Single density Double density iDP3410 User's Manual Adjacent Dot Total Dots Setting Allowed Disallowed CITIZEN...
  • Page 104 <1B>H <40>H [Outline] This command cancels various conditions set after power-on to initializes the printer to the conditions having existed at power-on. However, the print buffer, input buffer, and external device drive pulse width are not initialized. The settings of the DIP switch segments are not re-read.
  • Page 105 + 1." Even if the character width is changed after setting the horizontal tab position, the latter will not change. [Default] 7 9 font, every 8 characters (9th, 17th, 25th column, and so on) iDP3410 User's Manual CITIZEN...
  • Page 106 [Outline] This command selects the international characters according to the value of n. [Default] Depends upon DIP switch setting. Character Set U.S.A. France Germany U.K. Denmark I Sweden iDP3410 User's Manual Character Set Italy Spain Japan Norway Denmark II CITIZEN...
  • Page 107 [Caution] If unidirectional print is selected, the printer will print from the left to the right. When you want to prevent horizontal shear in printing at high accuracy, specify unidirectional print with this command. (Double height print, etc.)
  • Page 108 ESC "d" n [Function] Printing and n-line paper feed [Code] <1B>H <64>H n [Range] 0 n 255 [Outline] This command feeds the paper by n-lines after printing the one line worth of data saved in the print buffer. iDP3410 User's Manual CITIZEN...
  • Page 109 For the drawer power, be sure to use the printer power (Drawer kick-out connector No. 4 pin). Connector Pin Drawer kick connector No. 2 pin Drawer kick connector No. 5 pin iDP3410 User's Manual CITIZEN...
  • Page 110 Code Page 850 (Multilingual) Code Page 860 (Portugal) Code Page 863 (Canada-French) Code Page 865 (Norway) Character Code Table Code Page 852 (Eastern Europe) Code Page 866 (Russia) Code Page 857 (Turkey) Windows Code Space Page (For user setting) iDP3410 User's Manual CITIZEN...
  • Page 111 0 will be always "1". In case of DTR/DSR control, if the host cannot receive (DSR signal has the Mark status), the printer will wait until it will be ready to receive. In case of XON/XOFF control, only one byte will be sent without confirming the status of the DSR signal.
  • Page 112 Therefore, it may take time to send the status after receiving the command. Function Paper near end With paper Undefined Paper near end With paper Undefined Undefined 0 stationary Undefined Undefined iDP3410 User's Manual Value Near end CITIZEN...
  • Page 113 Once the message is defined, it remains valid until it is redefined or the download deletion command (ESC DC2 n1 n2) is executed. Type Deselects the inverted characters. Selects the inverted characters. <Example> When Inverted Print Is Deselected Print Direction iDP3410 User's Manual When Inverted Print Is CITIZEN...
  • Page 114 ESC DC3 n [Function] Printing the message [Code] <1B>H <13>H n [Range] 1 n 10 [Function] This command prints a message. If the value of n is specified beyond the range, the message will not be printed. iDP3410 User's Manual CITIZEN...
  • Page 115 Download bit image Deletes all the download function specified with n1. Deletes the data downloaded at the value specified with n2 (Value specified when saving with each download command), of the download function specified with n1. iDP3410 User's Manual CITIZEN...
  • Page 116 8, respectively. m denotes the number to be registered. (See a download bit image printout.) d denotes the bit image data. Once the download bit image is defined, it remains valid until it is redefined or the download deletion command (ESC DC2 n1 n2) is executed. n2 8 iDP3410 User's Manual CITIZEN...
  • Page 117 If the print buffer contains the data, this command will be ignored. If the bit image has not been saved in the specified number, this command will be ignored. Nothing is printed when m is other than 0, 1, 2 or 3. iDP3410 User's Manual CITIZEN...

  • Page 118: Character Codes Table

    User's Manual 14. CHARACTER CODES TABLE 14.1 CBM (Domestic) CITIZEN...

  • Page 119: Cbm (International)

    User's Manual 14.2 CBM (International) CITIZEN...

  • Page 120: Star (Domestic)

    User's Manual 14.3 STAR (Domestic) CITIZEN...

  • Page 121: Star (International)

    User's Manual 14.4 STAR (International) CITIZEN...

  • Page 122: Code

    User's Manual 14.5 Code Page 437 CITIZEN...

  • Page 123: Katakana

    User's Manual 14.6 Katakana CITIZEN...

  • Page 124: Code

    User's Manual 14.7 Code Page 850 CITIZEN...

  • Page 125: Code

    User's Manual 14.8 Code Page 860 CITIZEN...

  • Page 126: Code

    User's Manual 14.9 Code Page 863 CITIZEN...

  • Page 127: Code

    User's Manual 14.10 Code Page 865 CITIZEN...

  • Page 128: Code

    User's Manual 14.11 Code Page 852 CITIZEN...

  • Page 129: Code

    User's Manual 14.12 Code Page 866 CITIZEN...

  • Page 130: Code

    User's Manual 14.13 Code Page 857 CITIZEN...

  • Page 131: Windows Code

    User's Manual 14.14 Windows Code CITIZEN...

  • Page 132: International Character Codes Table

    User's Manual 14.15 International Character Codes Table CITIZEN...

  • Page 133: Appendix 1. Block Diagram

    (RS-232C Based) AC Adapter 34 AD Series (26V DC, 1.15A) OSC16MHz Driver Driver Reset Vp Vcc Filter Power Supply iDP3410 User's Manual Print Head Paper Moter Driver Printer Mechanism Vp : For mechanism drive, For drawer kick VCC:For circuit drive CITIZEN...

  • Page 134: Appendix 2. Outline Drawing

    User's Manual APPENDIX 2. OUTLINE DRAWING CITIZEN...
  • Page 135 User's Manual <<<German>>> CITIZEN...
  • Page 136 8. Bitte wenden Sie sich mit Fragen oder Hinweisen auf Fehler oder Auslassungen im Text dieser Anleitung an unsere Geschäftsstelle. 9. Beachten Sie jedoch, daß wir, ungeachtet des obigen Punkts 8, keinerlei Haftung für negative Folgeerscheinungen im Zusammenhang mit dem Betrieb dieses Geräts übernehmen. <VORSICHT> iDP3410 User's Manual CITIZEN...
  • Page 137 Die Mißachtung dieser Vorsichtsmaßregel kann zu Körperverletzungen mit möglicher Todesfolge führen. VORSICHT Die Mißachtung dieser Vorsichtsmaßregel kann zu Körperverletzungen oder Sachschäden führen. Dieses Symbol ruft den Bediener zu erhöhter Wachsamkeit auf. Dieses Symbol weist auf wichtige Informationen, wie z.B. Bedienungsschritte oder dergleichen, hin. iDP3410 User's Manual CITIZEN...
  • Page 138 Das Netzteil niemals mit nassen Händen anschließen oder trennen. Hierdurch können Brände, elektrische Schläge und sonstige Probleme entstehen.  Verpackungsbeutel sind vorschriftsgemäß zu entsorgen oder ansonsten von Kindern fernzuhalten. Kleinkinder können durch Überstreifen eines Plastikbeutels ersticken. WARNUNG iDP3410 User's Manual CITIZEN...
  • Page 139 User's Manual VORSICHTSMASSREGELN FÜR DIE AUFSTELLUNG Das Gerät nicht an Plätzen abstellen oder betreiben, an denen es Feuer, Feuchtigkeit oder direkter Sonnenbestrahlung ausgesetzt ist. Ebenso sind Plätze in der Nähe von Heizkörpern und sonstigen Wärmenquellen zu vermeiden, an denen Umgebungstemperatur und Luftfeuchtigkeit nicht den vorgeschriebenen Betriebsbedingungen entsprechen, sowie Plätze, an denen das Gerät Öl, Metallspänen...
  • Page 140 Bei Auftreten jeglicher Störungen während des Betriebs den Drucker sofort ausschalten, und das Netzkabel aus der Steckdose ziehen. Die Beseitigung von Betriebsstörungen ist qualifiziertem Fachpersonal zu überlassen. Niemals versuchen, das Gerät eigenhändig zu zerlegen. Beim Öffnen/Schließen der Druckerabdeckung darauf achten, nicht die Hand oder Finger am Drucker einzuklemmen. iDP3410 User's Manual CITIZEN...

  • Page 141: Tägliche Wartung

    User's Manual TÄGLICHE WARTUNG Vor der Wartung zuerst den Drucker ausschalten. Schmutz und Staub mit einem trockenen, weichen Tuch vom Druckergehäuse abwischen. Bei starker Verschmutzung einen Lappen in Wasser anfeuchten, auswringen und damit abwischen. Hierzu niemals flüchtige organische Lösungsmittel, wie z.B. Alkohol, Terpentin, Trichlorethan, Benzol, Keton oder chemische Staubentfernungsmittel, verwenden.

  • Page 142: Betrieb

    Schläge auslösen. Das Netzteil-Anschlußkabel von Wärmequellen fernhalten. Die Kabelisolierung kann schmelzen und Brände und elektrische Schläge verursachen. Wenn der Drucker längere Zeit lang nicht benutzt wird, sollte das Netzteil aus Sicherheitsgründen von der Steckdose getrennt werden. iDP3410 User's Manual CITIZEN...

  • Page 143: Anschluß Des Schnittstellenkabels

    2. Den Ausschubmechanismusstecker korrekt ausgerichtet (Ober- und Unterseite prüfen) an die Geldschubladen-Ausschubmechanismusbuchse an der Rückwand des Druckers anschließen. 3. Das Erdungskabel der Geldschublade an das Erdungsterminal am Drucker anschließen. VORSICHT: Ausschließlich Ausschubmechanismusstecker anschließen. vorgeschriebene Geldschublade iDP3410 User's Manual (Solenoid) CITIZEN...

  • Page 144: Einsetzen Der Farbbandkassette

    3. Die Farbbandkassette zwischen Druckkopfabdeckung und Walze einsetzen und gleichzeitig die Halteklauen in den Halter des Druckers drücken. 4. Das Farbband durch Drehen des Farbband-Kassettenknopfes in Pfeilrichtung straff wickeln. 5. Zum Herausnehmen der Farbbandkassette die Halteklauen an beiden Seiten zur Seite kippen und die Kassette anheben. iDP3410 User's Manual CITIZEN...

  • Page 145: Einlegen Der Papierrolle

    6. Das Papierende gerade in die Papiereinzugöffnung einführen (durch einen Pfeil an der Gehäusevorderseite angezeigt). 7. Das Druckpapier wird automatisch in den Drucker eingezogen, bis das Papierende aus der Papierauslauföffnung herauskommt. 8. Die Druckerabdeckung schließen und überschüssiges Papier an der Schneidklinge abreißen. iDP3410 User's Manual CITIZEN...
  • Page 146 User's Manual VORSICHT Schlaffes Druckpapier durch Zurückdrehen der Papierrolle straffen. Bei schräg eingesetztem Druckpapier den Papier-Freigabehebels drücken und das Papier gerade richten. Die Druckerabdeckung niemals während des Druckens öffnen, da hierdurch Papierstaus entstehen können. CITIZEN...

  • Page 147: Entfernen Des Restlichen Druckpapiers

    3. Den Papier-Freigabehebel in Pfeilrichtung drücken. Hierdurch wird die Papiervorschubwalze zurückgesetzt und das Papier freigegeben, so daß angestautes Papier beseitigt werden kann. 4. Sämtliche Papierreste aus dem Papierweg entfernen. VORSICHT Beim Herausziehen des Druckpapiers (in Vorwärts- oder Rückwärtsrichtung) darauf achten, den Papier-Freigabehebel zu betätigen. iDP3410 User's Manual CITIZEN...

  • Page 148: Bedienfeld Und Fehleranzeigelämpchen

    Durch Drücken der FEED-Taste wird das Papier kurzzeitig um jeweils eine Zeile vorgeschoben; bei anhaltendem Drücken der Taste wird das Papier fortlaufend vorgeschoben. 4. FEED-Taste und Netzschalter Zum Einschalten der Selbstdruckfunktion die FEED-Taste gedrückt halten und dabei gleichzeitig den Drucker einschalten. iDP3410 User's Manual CITIZEN...

  • Page 149: Betriebsfluß Beim Einschalten

    Datenausgabe-Modus "Pufferdaten löschen" Ja (FEED SW) und vergrößerter Rot-Druck NEIN Testdruck Pufferdaten Druckt "Power Down (Data in Buffer)" in rot, gefolgt von Pufferinhalten. Wartet auf Dateneingabe. iDP3410 User's Manual 1 Sek. vergangen FEED SW ? (ERNEUT) Eingabepuffer leer NEIN CITIZEN...

  • Page 150: Dip-Schalter-Einstellung

    5. DIP-SCHALTER-EINSTELLUNG 5.1 Lage der DIP-Schalter (1) Betriebsstrom ausschalten. (2) Ein Kassettenband entfernen. Die DIP-Schalter liegen, wie in der Abbildung gezeigt. (Nur DS1 für Parallel-Schnittstelle vorhanden.) iDP3410 User's Manual CITIZEN...

  • Page 151: Dip-Schalter-Einstellungen

    Zeichencode-Wahl ESC/POS- DS1-3 DS1-4 Modus Code 437 Code 850 Katakana Betriebsmodus DS1-9 ESC/POS Ignoriert STAR STAR iDP3410 User's Manual Bei Auslieferung ab Werk AUS *2 AUS *2 AUS *2 AUS *3 AUS *3 CBM-Modus Star-Modus Star (international) (international) Code 850...
  • Page 152 Druckkopf; sie bedeutet nicht, daß 2-Seiten-Papier nicht für die Einstellung 1P verfügbar ist. Das gleiche gilt, wenn 1-Seiten-Papier für die Einstellung 2P verwendet wird. 8 Bit 7 Bit Nein Ungerade Gerade DTR/DSR XON/XOFF Siehe Tabelle unten DS2-6 DS2-7 iDP3410 User's Manual Werksseitige Einstellung CITIZEN...

  • Page 153: Einstellung Der Vorwahl-Jumperstecker

    * = Offen 1-C* = 1-C oder offen 2-C* = 2-C oder offen Parallele Schnittstelle STAR ESC/POS 1-C * 1-C * 1-C * 1-C * 2-C * 2-C * STAR ESC/POS 2-C * 1-C * 2-C * iDP3410 User's Manual CITIZEN...

  • Page 154: Methode Für Moduseinstellung

    Dieser Drucker hat die Modi CBM, STAR und ESC/POS. Jeder gewünschte Modus kann gewählt und nach Bedarf eingestellt werden. (1) Einstellmethode Siehe 5. DIP-SCHALTER-EINSTELLUNG Unter bezug auf die Einstellungen der DIP-Schalter-Segmente 1-9 und 1-10 und die der Vorwahl- Jumperstecker jeden Modus einstellen. iDP3410 User's Manual CITIZEN...

  • Page 155: Wartung Und Dienst

    Service Center 363 Van Ness Way Suite 404 Torrance, CA 90501, USA TEL +1-310-781-1460 FAX +1-310-781-9157 Andere Gebiete Japan CBM Corporation Information Systems Division CBM Bldg., 5-68-10, Nakano Nakano-ku, Tokyo 164-0001 Japan TEL +81-3-5345-7540 FAX +81-3-5345-7541 iDP3410 User's Manual CITIZEN...
  • Page 156 Information Systems Division Head Office CBM Bldg., 5-68-10, Nakano, Nakano-ku, Tokyo 164-0001, Japan Tel: (+81-3) 5345-7540 Fax: (+81-3) 5345-7541 02-981210-0500-0472-0160-1500 Printed in Japan...

This manual is also suitable for:

Idp3410r/pIdp3410s/cIdp3410t/i

Table of Contents

Save PDF
