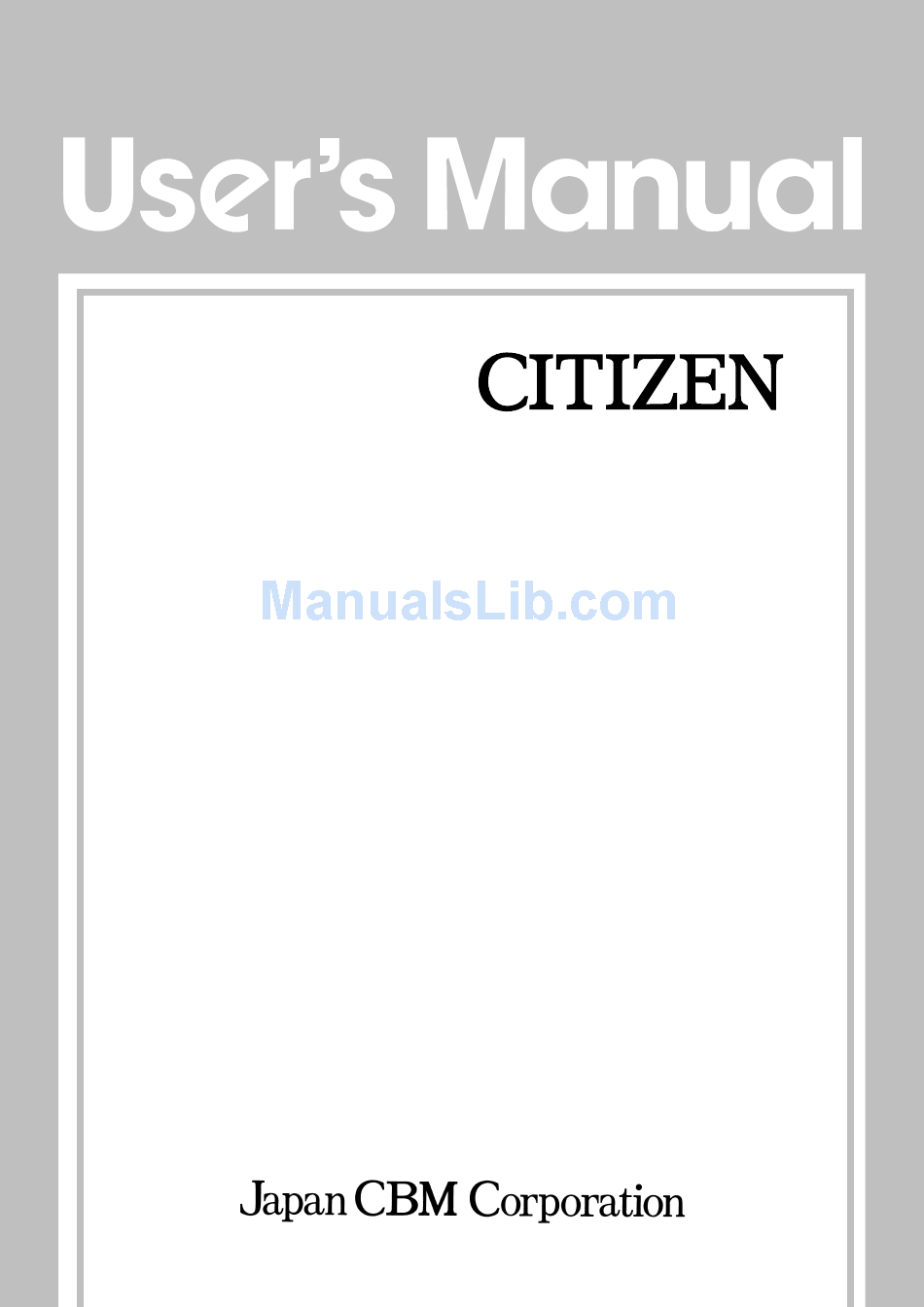

  • Page 1 DOT MATRIX PRINTER iDP3110 MODEL...
  • Page 2 : 1996 3V, 0.15MHz-80MHz AM 1KHz 80% : EN61000-4-8 : 1993 50Hz, 3A/m : EN61000-4-11 : 1994 0%, 5000ms/ 70%, 500ms/ 0%, 10ms Signature Full Name Position iDP3110 User's Manual : Mikio Moriya : General Manager R & D Department...

  • Page 3: Important Safety Instructions

    E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinct change in performance, indicating a need for service. CITIZEN iDP3110 User's Manual...
  • Page 4 User's Manual IMPORTANT: This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.

  • Page 5: Table Of Contents

    7.1 Serial Interface Type... 18 7.2 Parallel Interface Type... 18 8. PRINT CONTROL FUNCTION ... 19 8.1 Control Command ... 19 9. CHARACTER SET ... 26 9.1 Character code... 26 10. EXTERNAL DIMENSIONS ... 29 CITIZEN CONTENTS iDP3110 User's Manual...

  • Page 6: Introduction

    1. INTRODUCTION The iDP3110 is a dot-impact printer suitable for use with various data communication terminals, and measurement terminals. This product is extremely compact and features extensive functions suited for a wide range of applications. Please read this manual thoroughly to understand the printer before use.

  • Page 7: Type Classifications

    Please use the exclusive adapter indicated below. 90AD-U (AC 120V) 90AD-E (AC 220-240V) CITIZEN Power source 120 : AC 120V 230 : AC 220-240V Character J : Japanese F : International iDP3110 User's Manual Printer cover A : 60mm(Dia.) Paper roll B : 80mm(Dia.) Paper roll...

  • Page 8: Specifications

    Stand-by : approx. 0.5VA Approx. 400g 106(W) × 180(D) × 88(H) mm (60 Dia. Paper Roll) 106(W) × 180(D) × 106(H) mm (80 Dia. Paper Roll) 0 C to 40 C -20 C to 60 C iDP3110 User's Manual iDP3110-40*...

  • Page 9: External Appearance And Part Description

    User's Manual 3. EXTERNAL APPEARANCE AND PART DESCRIPTION 3.1 External Appearance CITIZEN...

  • Page 10: Part Descriptions

    Printer is de-selected (OFF-LINE) by pressing the switch again. 7. Interface Connector Printer is connected to various hosts via cables. Please ensure that both the printer and the host are turned off before connecting. 8. Printer Cover Opened to exchange ribbon cassette and paper roll.

  • Page 11: Operations

    (1) Ensure that the power switch is OFF. (2) Insert the output plug of the AC adapter into the DC jack of the printer. (3) Insert the power plug of the AC adapter into a power concent supplying the designated voltage.

  • Page 12: Setting Of The Printer Cover

    4.2 Setting of the Printer Cover (1) Hold the protruding section at the rear of the printer cover and lift in the direction indicated. (2) Attach the cover by pressing downward after hooking the cover to the acceptor located in the front part.

  • Page 13: Setting Of Ribbon Cassettes

    User's Manual 4.3 Setting of Ribbon Cassettes (1) Remove the printer cover after turning OFF the printer. (2) Press down on the Ribbon cassette while inserting the ribbon between the printing head and the platen. (3) Wind up the ribbon slack by turning the knob in the direction of the arrow.

  • Page 14: Setting Paper

    (3) Insert the end of the paper into the slot of the printer mechanism. (4) After turning ON the printer, press the LF switch until 5 to 6 cm of paper is fed out of the printer mechanism. (5) Insert paper after moving aside the paper holder in the direction of the arrow. Then, secure the center of the roll with the holder.

  • Page 15: Self Test Printing

    (2) Replace ribbon cassette before it is worn with rents. (3) Be careful not to drop any foreign matters, such as paper clips and pin and the like into your printer. Those can cause mechanical trouble.

  • Page 16: Parallel Interface

    Compatible Connector : Printer side : 57LE-40360 : Cable side : 57-30360 5.2 Connector Pin Assignment SIGNAL NAME DATA 1 BUSY SELECT FRAME GND CITIZEN (AMPHENOL or equivalent) (AMPHENOL or equivalent) SIGNAL NAME TWISTED PAIR GND RESET iDP3110 User's Manual...

  • Page 17: Description Of Input / Output Signals

    - ACK Signal for requesting data. ACK is issued at the end of the BUSY signal (negative logic) - BUSY Signal indicating the printer is busy. Input new data when the signal is in “LOW” condition.(positive logic) - SELECT Signal indicating the printer is set to a selected condition (on-line). “HIGH” state signifies the printer is selected.
  • Page 18 1 s MIN 2 s TYPE (5) Data receiving Printer is capable of accepting data from the host while the BUSY signal is in the “LOW” state. Printer cannot accept data when the signal is “HIGH”. CITIZEN [ Host side ]...

  • Page 19: Serial Interface

    * H level = Logic “1” (refer to (3), section 6.3) * L level = Logic “0” 5) Input control (DTR signal) * Mark : Data transmission not possible * Space : Data transmission possible CITIZEN 1 bit 8 bit More than 1 bit iDP3110 User's Manual...

  • Page 20: Connector Pin Assignment

    Input command or data while this signal is in ready state. Data input while the signal is BUSY will cause an overrun error to occur and the data will be ignored. Data can be provided to the input buffer even if the printer is printing.
  • Page 21 Signal resets the entire printer. (More than 4ms.) 4) FG Frame ground 5) GND Common ground for the circuit. (2) Data configuration CITIZEN (1) Start bit (1 bit) (2) Data bit (8 bit) (3) Stop bit (more than 1) iDP3110 User's Manual...
  • Page 22 Output (DTR) MAX 232 equivalent 2) TTL circuit Input (RESET) 7HC14 equivalent CITIZEN [HOST] Mark = (-8V) : Stop bit Space = (+8V) : Start bit DTR (-8V) when BUSY (+8V) when READY Set to LOW when reset iDP3110 User's Manual...

  • Page 23: Dip Switch Setting

    Print command selection 3, 4 Not used Dip switch position The Arrow mark in the figure below indicates the location of the dip switch with the printer cover removed. Power switch OFF the printer before altering the settings. CITIZEN Normal Inverted...

  • Page 24: Print Control Function

    The function is cleared by entering the print code (CR or LF) or DC4 (14H). The number of printable columns per line for an entire line of enlarged characters are indicated in the table below. Model iDP3110-24* iDP3110-40* CITIZEN Number of columns 12 columns 20 columns iDP3110 User's Manual...
  • Page 25 (4) Power down function In order to reduce power consumption when printer is waiting for the operation, 2 power down modes triggered by the codes DC2 and DC3 are incorporated into this product. When the printer receives power down commands (DC2 or DC3), it switches to the power down mode after all entered data is printed out.
  • Page 26 In case a number is beyond the specificable range is specified, and if n2 = n3 = 0 is specified, the bit image mode is canceled and the printer returns to text mode. CITIZEN 1 to 18 0 to 255...
  • Page 27 As this printer prints out 4 dot lines as one unit, the lacking data is output as space once the data for 4 dot lines are read in or the output of data specified in n1, n2 and n3 has finished.
  • Page 28 (Character “A” cannot be accessed.) CITIZEN 8 dot matrix full dot pattern is to be registered in address 41H (code for the fixed Pattern data (6 bytes) 8 dot matrix full dot is output whenever the character code 41H is iDP3110 User's Manual...
  • Page 29 A1<A2, A2-A1 7 [Pattern data configuration] d-3) In case of iDP3110-24* (24 columns) specification Pattern data to be registered must consist of 6 bytes per character. That is, pattern data configured by 8 dot matrix is broken up into 6 vertically positioned units each of which is represented by 1 byte of data.
  • Page 30 “n-1”. The command is canceled if a number exceeding this range is specified. If printout data is stored within the input buffer when the command is entered, the printer commences with the printout. However, the print line (10 dot line) will be included in the line feed value “n”. Therefore, if 4 n 9 is specified, line space shall be set as “0”.

  • Page 31: Character Set

    User's Manual 9. CHARACTER SET 9.1 Character code (In the following Table *1-*12 are the characters of the next page by a command, ECS + R + n.) CITIZEN...
  • Page 32 User's Manual CITIZEN...
  • Page 33 User's Manual Individual Country Character Codes CITIZEN...

  • Page 34: External Dimensions

    User's Manual 10. EXTERNAL DIMENSIONS CITIZEN...
  • Page 35 User's Manual CITIZEN...
  • Page 36 Information Systems Division Head Office CBM Bldg., 5-68-10, Nakano, Nakano-ku, Tokyo 164-0001, Japan Tel: (+81-3) 5345-7540 Fax: (+81-3) 5345-7541 20-990914-5000-0036-005.25 Printed in Japan...
