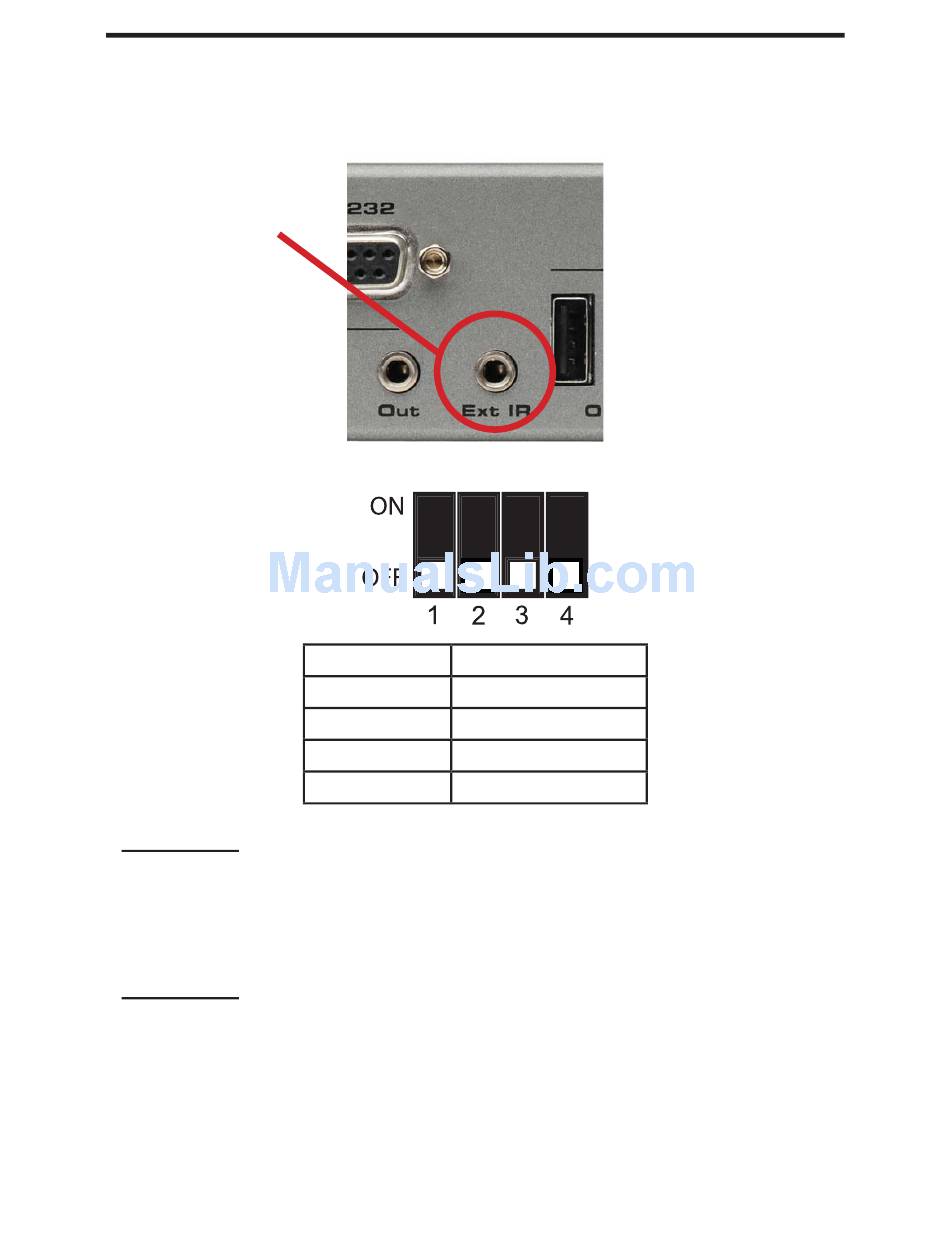

ADDITIONAL SWITCHING OPTIONS
The underside of the 2x1 DisplayPort KVM features a DIP swich bank that is
used to confi gure additional features. Specifi cally, DIP switches 3 & 4 will control
the function of the IR Extender port on the rear panel.
This port can be
confi gured to accept
additional switching
devices
DIP Switch 3
Enabling DIP switch 3 will allow the user to utilize a contact closure type of
remote control such as Gefen product # EXT-RMT-2 to initiate input switching. By
default, this switch is in the OFF position and will rely on the standard switching
methods outlined previously in this manual.
DIP Switch 4
DIP switch 4 is the master switch that will enable/disable the ability to use an
IR remote extender (Part# EXT-RMT-EXTIR) for relocation of the IR receiver.
By default, this switch is in the OFF position and will disable the use of an IR
Extender.
DIP SWITCH
1
2
3
Remote/Closure
4
IR Extender
12
Function
IR Channel
IR Channel
