Summary of Contents for Gefen EXT-DPKVM-422

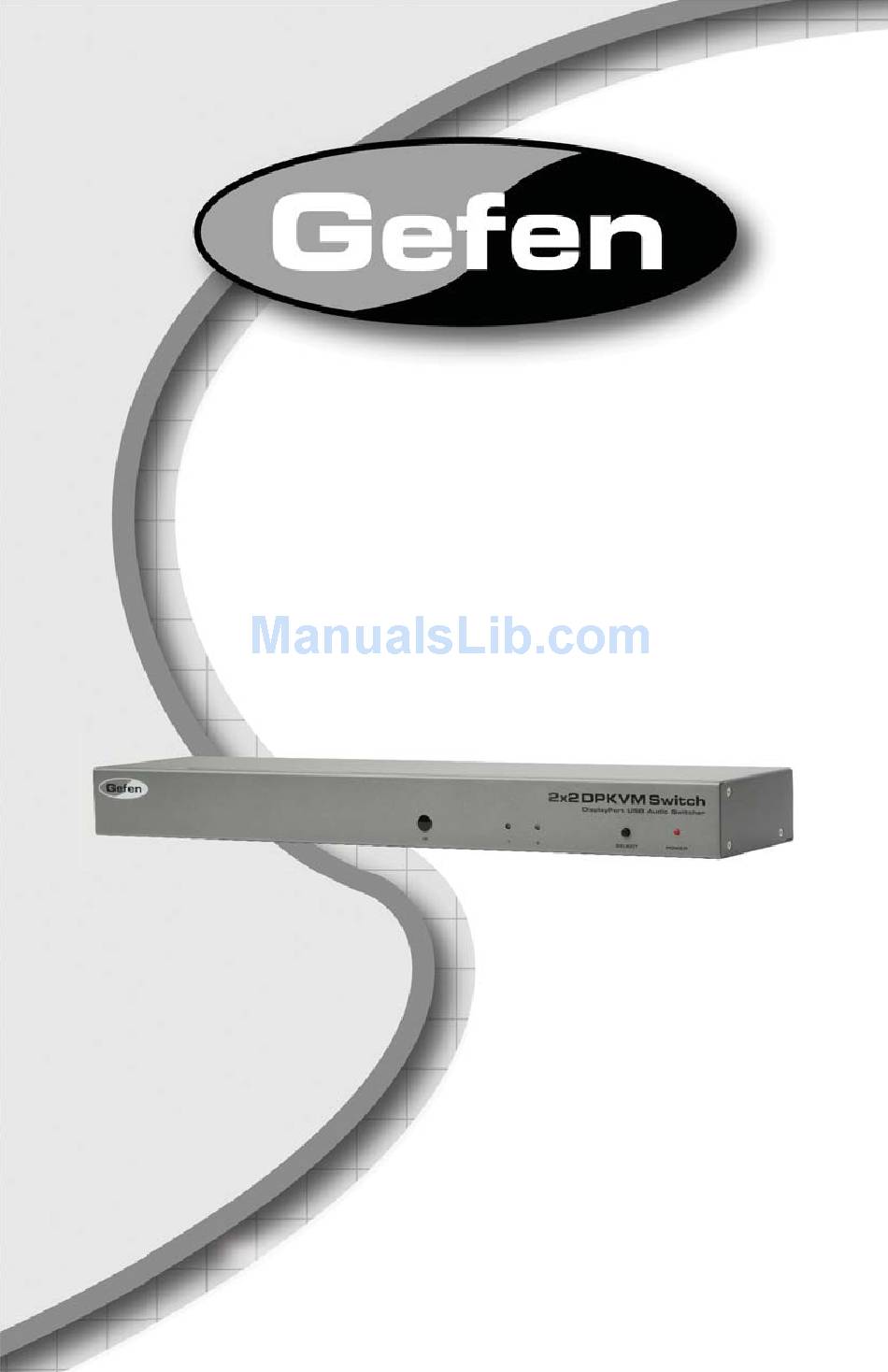

- Page 1 2x2 DPKVM Switch EXT-DPKVM-422 User Manual www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. 2x2 DPKVM Switch is a trademark of Gefen, LLC © 2011 Gefen, LLC. All rights reserved.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting the 2x2 DPKVM Switch Operating the 2x2 DPKVM Switch RMT-2IR Remote Control Description RMT-21IR Remote Installation 10 Infared (IR) Code Channel Confi guration 11 RS-232 Serial Control Interface 12 Additional Switching Options 13 Specifi... -
Page 4: Introduction
The Gefen 2x2 DPKVM Switch Switch between two computers (each using two graphic DisplayPort outputs) effortlessly, using the Gefen 2x2 DPKVM Switch. With the output utilizing two displays and two USB 2.0 ports, users can switch audio, video and USB for each computer. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 2X2 DPKVM SWITCH • The 2x2 DPKVM Switch supports Pass-through EDID. The Switch will use the EDID from the currently active input. • Dual Link resolutions up to 2560 x 1600 are supported. -
Page 6: Features
FEATURES Features • Switches two high-defi nition displays between two DisplayPort-equipped computers with audio/video and USB peripherals • Switches up to 2560 x 1600 resolution • Supports RGB and YCbCr color spaces • Rack mountable • Save space on your desktop Supports Package Includes (1) 2x2 DPKVM Switch (4) 6 ft. -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel 9 10 11 12... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS I/R Receiver Receives I/R signal from the handheld Infrared remote control unit included with the 2x2 DVI KVM Switch. LED Input Status Indicator 1 & 2 This currently selected source input will be indicated with an active LED. Input Selector Button Pressing this button will cycle the input, 1 or 2, which will be selected for output. -
Page 9: Connecting The 2X2 Dpkvm Switch
CONNECTING THE 2X2 DPKVM SWITCH Connecting Source Devices to the 2x2 DPKVM Switch Connect up to two DisplayPort source devices to the DisplayPort inputs on the 2x2 DPKVM Switch using the included DisplayPort cables. Connect up to two audio sources to the 3.5mm analog audio mini-jack inputs using the included audio cables. -
Page 10: Operating The 2X2 Dpkvm Switch
OPERATING THE 2X2 DPKVM SWITCH How to Operate the 2x2 DPKVM Switch Switching can be accomplished via the front panel selector button, infrared (IR) remote control, or the RS-232 communications port. Additional switching options can be found on page 12 For information on switching via the front panel selector button, please see this page. -
Page 11: Rmt-2Ir Remote Control Description
RMT-2IR REMOTE CONTROL DESCRIPTION Pressing this button will select Input 1 as the source. All devices connected to the input ports labeled 1 will be selected and output. Pressing this button will select Input 2 as the source. All devices connected to the input ports labeled 2 will be selected and output. - Page 12 RMT-2IR REMOTE INSTALLATION To use the RMT-2IR remote, remove the battery cover on the back of the remote to reveal the battery compartment. Insert the included battery into the open battery slot. The positive (+) side should be facing up. Ensure that both DIP (Dual Inline Package) switches are in the OFF position.
- Page 13 INFRARED (IR) CODE CHANNEL CONFIGURATION How to Resolve IR Code Confl icts In the event that IR commands from other remote controls confl ict with the supplied RMT-2IR remote control, changing the remote channel will alleviate this issue. The RMT-2IR remote control and the 2x2 DPKVM Switch both have banks of DIP (Dual Inline Package) switches for confi...
-
Page 14: Rs-232 Serial Control Interface
RS-232 SERIAL CONTROL INTERFACE What features are available via the RS-232 serial communications port? The 2x2 DPKVM Switch can accept commands through the RS-232 serial communications port located on the rear panel. The current RS-232 control features are: • Switching of inputs. How do I use these features? These features were initially intended for utilization by custom installers in automated setups. -
Page 15: Additional Switching Options
Enabling DIP switch 3 will allow the user to utilize a contact closure type of remote control such as Gefen product # EXT-RMT-2x2 to initiate input switching. By default, this switch is in the OFF position and will rely on the standard switching methods outlined previously in this manual. -
Page 16: Specifi Cations
SPECIFICATIONS Input Connector............(4) DisplayPort (from computers) Output Connector............(2) DisplayPort (to display) Input Connector..........(2) USB 2.0 Type “B” (from computers) Output Connector........(2) USB 2.0 Type “A” (to keyboard/mouse) Input Connector.......(2) 3.5mm analog L/R audio (from computers) Output Connector....(1) 3.5mm analog L/R audio (to speakers or amplifi er) Color Spaces.................RGB and YCbCr Dimensions.............. -
Page 17: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 19 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL or CE listed power supplies.
