QUICKSTART GUIDE

7.2 Single and Multi-mode cable

24

7.2.1 Fiber Cable Cross Section and Physical Specifications

Multi Mode
125µm
• 62.5/125 µm
• 50/125 µm*
Single Mode
125 µm
• 9/125 µm
* Will become more popular as baud rate goes up

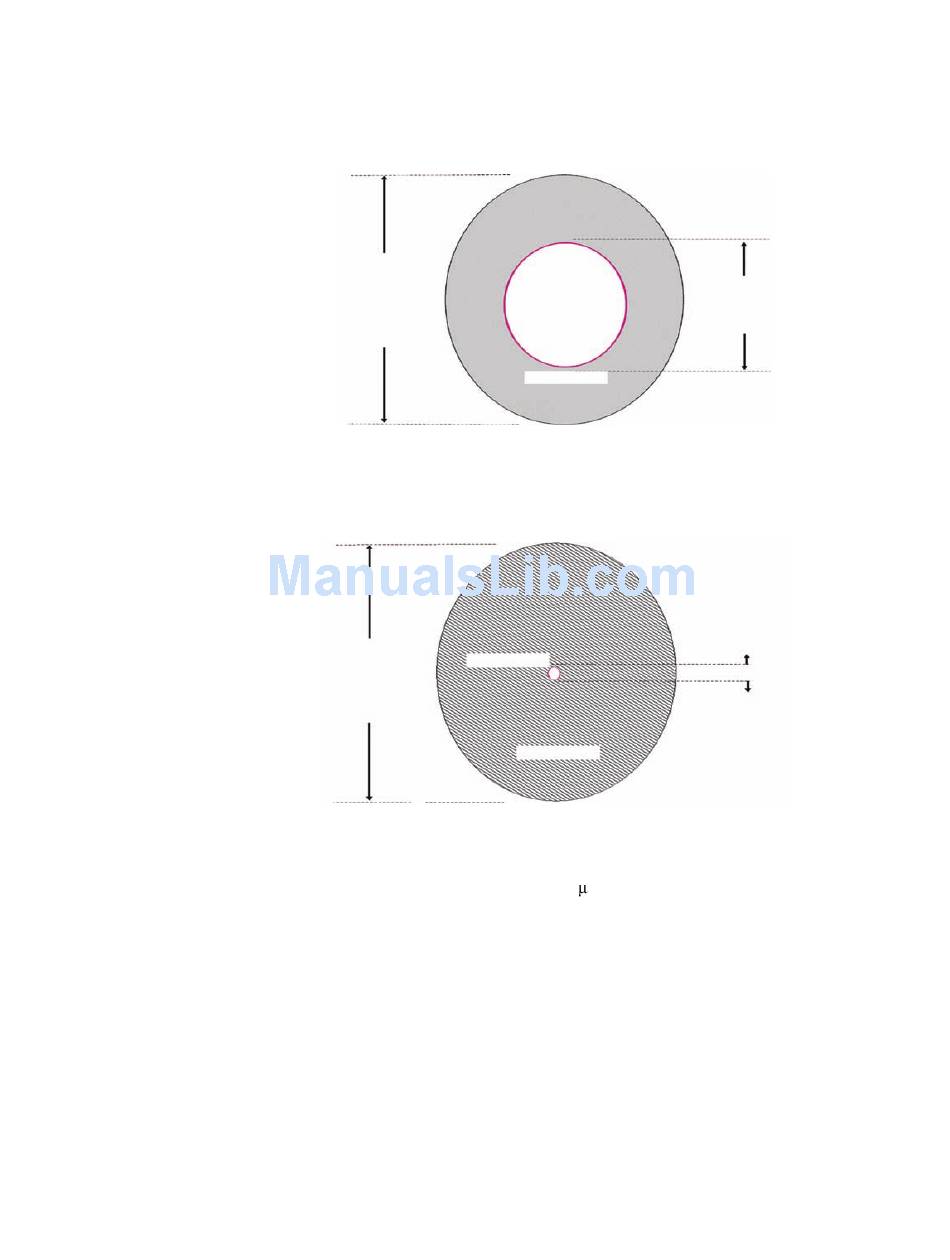

This is a scaled drawing of both a 62.5/ 125 m multi mode fiber and 9/125 µm single
mode fiber. The outer clad of both is 125 micrometers in diameter. The multi-mode core, at
62.5 micrometers, is a little bit thinner than the average human hair. The core of the 9/125
CORE
CLAD
CORE
CLAD
MULTILINK ETHERNET COMMUNICATIONS SWITCH – QUICKSTART GUIDE
62.5µm
8 µm
