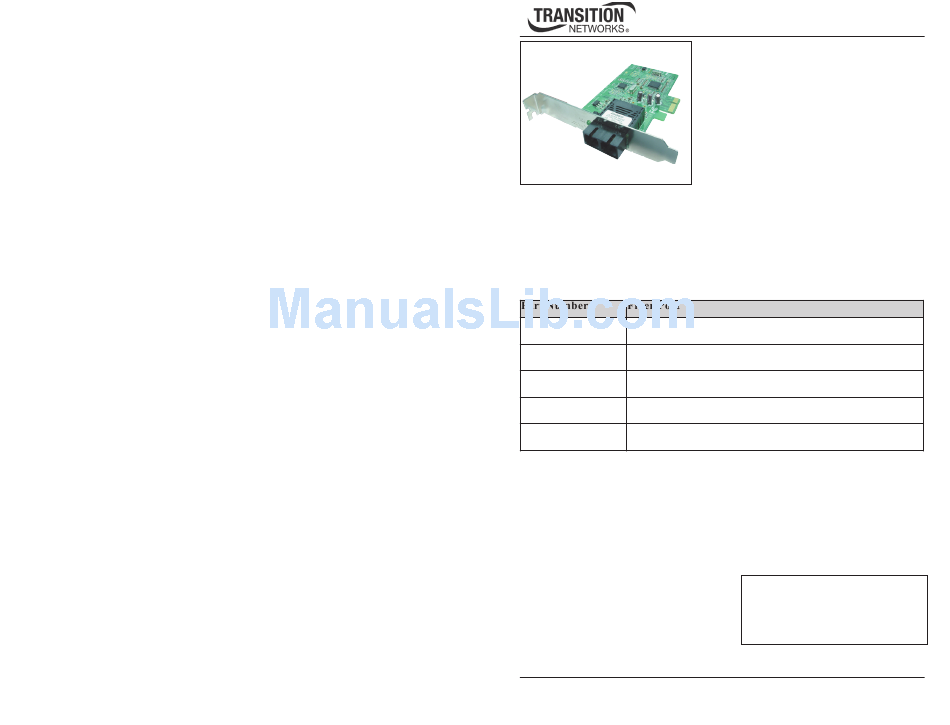

USER'S GUIDE
N-FXE-xxx-01, 100Base-FX Fiber
Adaptor NIC Cards
•
•Available with SC, ST, LC multimode and
single mode fiber connections
•Wake-on-LAN (WoL)
•Supports 802.1q VLAN tagging
100Base-FX Fiber Adapter NIC is a Fast Ethernet NIC that fully complies with all IEEE
802.3u and 100Base-FX standards. Two LED indicators (LINK/ACT and FDX) on the
bracket will help to oversee board link activities and full-duplex status.
Fast Ethernet PCI-E 100Base-FX Fiber adapters support Preboot Execution Environment
(PXE), Remote Program Load (RPL), and Bootstrap Protocol (BOOTP). Multi-Boot
Agent (MBA) is a software module that allows your networked system to boot with the
images provided by remote systems across the network.
N-FXE-ST-01
S
T 1310 nm multimode, 2km (1.2 miles) std/low profile bkt
PXE boot included*
N-FXE-SC-01
SC, 1310 nm multimode, 2km (1.2 miles) std/low profile bkt
PXE boot included*
N-FXE-LC-01
LC, 1310 nm multimode, 2km (1.2 miles) std/low profile bkt
PXE boot included*
N-FXE-SC5-01
SC, 1310 nm single mode, 5km (3.1 miles) std/low profile bkt
PXE boot included*
N-FXE-LC5-01
SC, 1310 nm silngle mode, 5km (3.1 miles) std/low profile bkt
PXE boot included*
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
PCI-Express x1 Interface
Installation . . . . . . . . . . . . . . . . . . .2
Cable Specifications . . . . . . . . . . .4
Technical Specifications . . . . . . . .5
Troubleshooting . . . . . . . . . . . . . . .6
Contact Us . . . . . . . . . . . . . . . . . . .7
