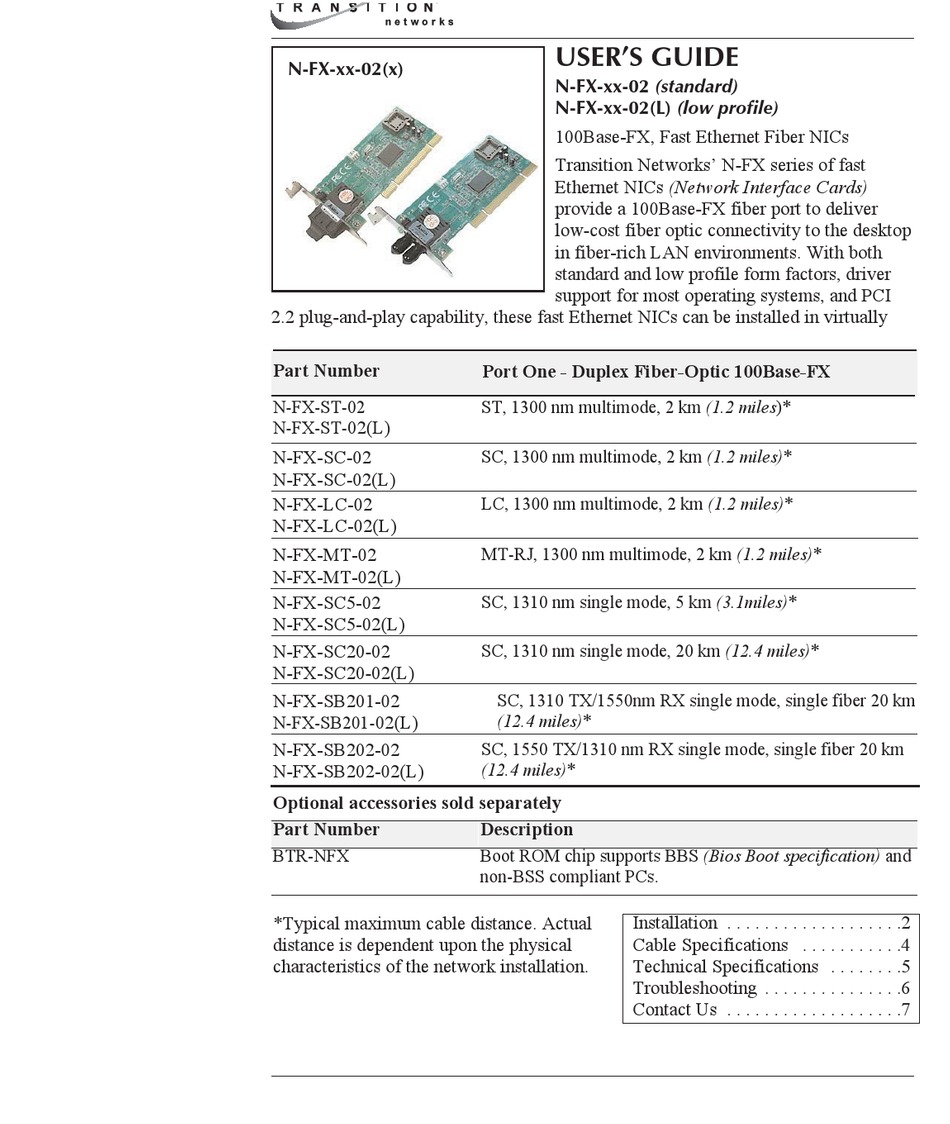

USER'S GUIDE
N-FX-xx-02(x)
N-FX-xx-02 (standard)
N-FX-xx-02(L) (low profile)
100Base-FX, Fast Ethernet Fiber NICs
Transition Networks' N-FX series of fast
Ethernet NICs (Network Interface Cards)
provide a 100Base-FX fiber port to deliver
low-cost fiber optic connectivity to the desktop
in fiber-rich LAN environments. With both
standard and low profile form factors, driver
support for most operating systems, and PCI
2.2 plug-and-play capability, these fast Ethernet NICs can be installed in virtually
Part Number
Port One - Duplex Fiber-Optic 100Base-FX
N-FX-ST-02
ST, 1300 nm multimode, 2 km (1.2 miles)*
N-FX-ST-
02(L)
N-FX-SC-02
SC, 1300 nm multimode, 2 km (1.2 miles)*
N-FX-SC-02(L)
N-FX-LC-02
LC, 1300 nm multimode, 2 km (1.2 miles)*
N-FX-LC-02(L)
any PC on the network.
N-FX-MT-02
MT-RJ, 1300 nm multimode, 2 km (1.2 miles)*
N-FX-MT-02(L)
N-FX-SC5-02
SC, 1310 nm single mode, 5 km (3.1miles)*
N-FX-SC5-02(L)
N-FX-SC20-02
SC, 1310 nm single mode, 20 km (12.4 miles)*
N-FX-SC20-02(L)
N-FX-SB201-02
SC, 1310 TX/1550nm RX single mode, single fiber 20 km
02(L)
(12.4 miles)*
N-FX-SB201-
N-FX-SB202-02
SC, 1550 TX/1310 nm RX single mode, single fiber 20 km
(12.4 miles)*
N-FX-SB202-02(L)
Optional accessories sold separately
Part Number
Description
BTR-NFX
Boot ROM chip supports BBS (Bios Boot specification) and
non-BSS compliant PCs.
*Typical maximum cable distance. Actual
distance is dependent upon the physical
characteristics of the network installation.
Installation . . . . . . . . . . . . . . . . . . .2
Cable Specifications . . . . . . . . . . .4
Technical Specifications . . . . . . . .5
Troubleshooting . . . . . . . . . . . . . . .6
Contact Us . . . . . . . . . . . . . . . . . . .7
Advertisement
Table of Contents
Related Manuals for Transition Networks N-FX-XX-02
Summary of Contents for Transition Networks N-FX-XX-02
- Page 1 N-FX-xx-02(x) N-FX-xx-02 (standard) N-FX-xx-02(L) (low profile) 100Base-FX, Fast Ethernet Fiber NICs Transition Networks’ N-FX series of fast Ethernet NICs (Network Interface Cards) provide a 100Base-FX fiber port to deliver low-cost fiber optic connectivity to the desktop in fiber-rich LAN environments. With both...
- Page 2 N-FX Series Fast Ethernet NICs Installation Checklist Before installing the N-FX module, verify that the package contains the following items: • N-FX module • LAN driver CD Please notify your sales representative if any item is missing or damaged. Description The N-FX module has a bootable ROM socket (ROM chip sold separately).
-
Page 3: Cable Specifications
The fiber optic transmitters on the device meet Class I Laser safety requirements per IEC-825/CDRH standard and comply with 21CRF1040.10 and 21CRF1040.11. Tech Support: 1-800-260-1312 International: 00-1-952-941-7600, 24 hours Technical Specifications For models N-FX-xx-02 and N-FX-xx-02(L) Standards: Expansion bus standard: Data rate LED:... -
Page 4: Troubleshooting
1-800-260-1312 (24 hours) • International: 00-1-952-941-7600 (24 hours) Transition now Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link. Web-based seminar Transition networks provides seminars via live, web-based training. Log onto www.transition.com and click the Learning Center link. -
Page 5: Compliance Information
All registered trademarks and trademarks are the property of their respective owners. Copyright restrictions © 2004-2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means—graphic, electronic or mechanical—without written permission from Transition Networks Printed in the U.S.A.
