User Guide

100-Base-FX
Network Interface Cards (NICs)

Introduction

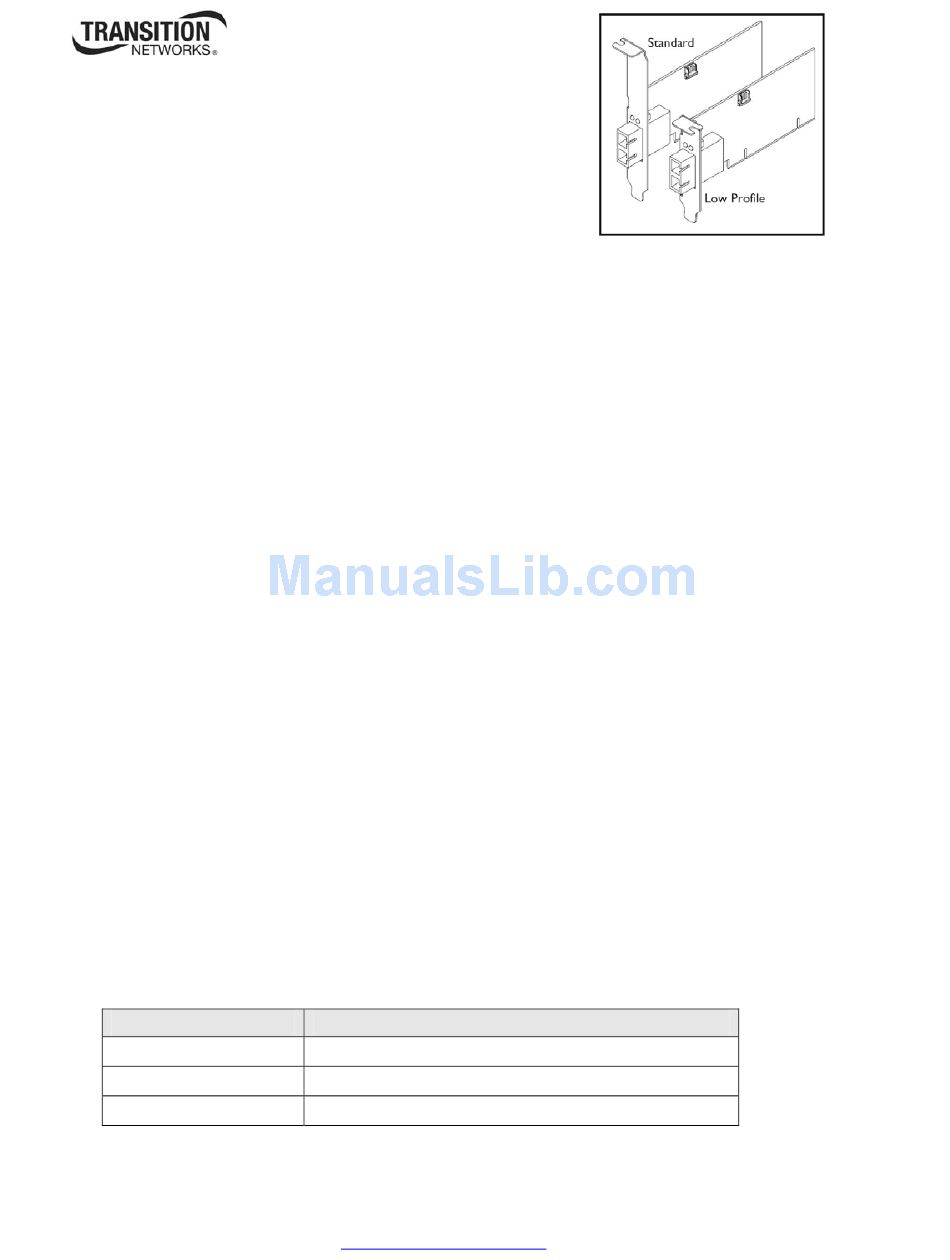

Transition Networks' N-FX-xx-03 PCI 100FX NICs provide a 100Base-FX fiber port and delivers low cost,
fiber optic connectivity to the desktop in fiber-rich LAN environments.
With standard- and low-profile form factors, these NICs have driver support for most popular operating
systems, and PCI 2.2 / 2.1 plug-and-play capabilities. These fast Ethernet NICs can be installed in
virtually any PC on the network. The N-FX-xx-03 modules include both Standard and Low Profile
brackets.

Contents

Introduction ................................................................................................................................................... 1
Contents ........................................................................................................................................................ 1
Models / Part Numbers ................................................................................................................................. 1
Installation ..................................................................................................................................................... 2
Description ................................................................................................................................................ 2
Installation Procedure ............................................................................................................................... 2
Configuration................................................................................................................................................. 3
PCI Bus System and Configuration .............................................................................................................. 3
Wake-on-LAN (WoL)..................................................................................................................................... 3
LED Functions............................................................................................................................................... 4
Cable Specifications...................................................................................................................................... 4
Technical Specifications................................................................................................................................ 5
Drivers Supported..................................................................................................................................... 5
Troubleshooting ............................................................................................................................................ 6
Diagnostics LEDs ..................................................................................................................................... 6
Contact Us..................................................................................................................................................... 6
Compliance Information ................................................................................................................................ 7
Declaration of Conformity ......................................................................................................................... 7
FCC Regulations ...................................................................................................................................... 7
Canadian regulations................................................................................................................................ 8
European regulations................................................................................................................................ 8
Record of Revisions ...................................................................................................................................... 8

Models / Part Numbers

The available part numbers are described below.
Part Number
N-FX-ST-03
N-FX-SC-03
N-FX-LC-03
Typical maximum cable distance. Actual distance depends on the physical characteristics of the
*
network installation.
33498 Rev. B
Duplex Fiber-Optic Port
ST, 1310 nm multimode, 2 km (1.2 miles)
SC, 1310 nm multimode, 2 km (1.2 miles)
LC, 1310 nm multimode, 2 km (1.2 miles)
http://www.transition.com/
*
*
*
Page 1 of 8
