Tesla TI4100 GPU-24 User Instructions

Tesla TI4100 GPU-24 User Instructions

Ground power unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

(#)*"*&'-.
TI4100
GPU-24
!"#$%&'(#)*"'$%+,
!"#$%& '()*#+,-"#& '(./
012&3"(+",45-(+&6$7)/
8"9&3%#+$":&;<&02=>1
?@1>A@>BCD201&4E5("
?@1>A&@>BCD20>&F%G
www.TESLAind.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TI4100 GPU-24 and is the answer not in the manual?

Questions and answers

Related Manuals for Tesla TI4100 GPU-24

Summary of Contents for Tesla TI4100 GPU-24

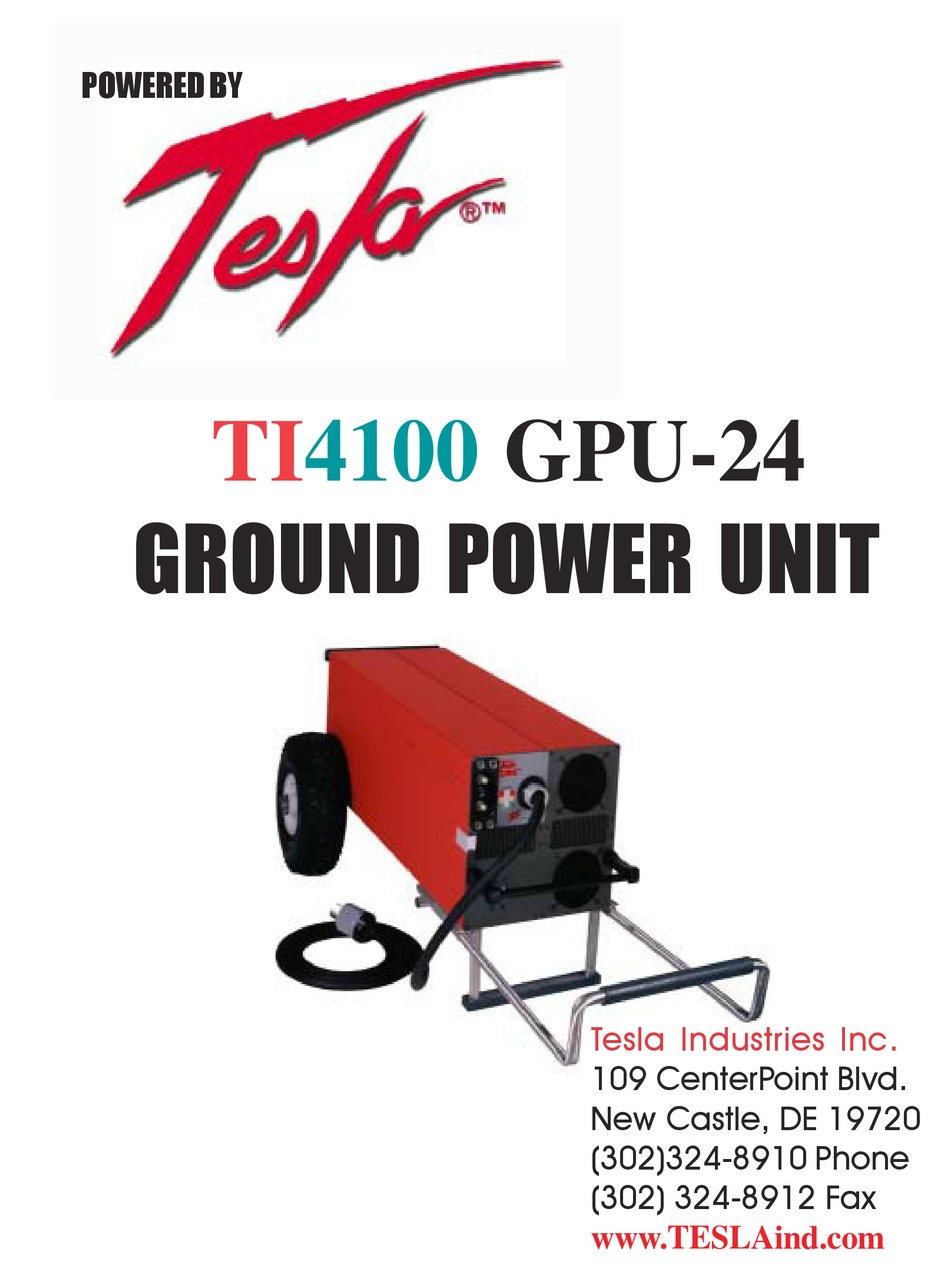

  • Page 1 (#)*"*&'-. TI4100 GPU-24 !"#$%&'(#)*"'$%+, !"#$%& '()*#+,-"#& '(./ 012&3"(+",45-(+&6$7)/ 8"9&3%#+$":&;<&02=>1 ?@1>A@>BCD201&4E5(" ?@1>A&@>BCD20>&F%G www.TESLAind.com...
  • Page 2 FREE AND SHALL NOT BE OPENED OR DISASSEMBLED FOR ANY REASON. ***SHIPPING HAZARDS*** “NONE” “DRY” Non-spillable, POWER CELL (battery), No Free liquids, to leak or toxic gases. Always protect unit from short circuit. Return Power cells to Tesla for Recycling.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS TITLE Page CHAPTER 1 INTRODUCTION CHAPTER 2 UNIT DESCRIPTION AND OPERATION Section I Unit Section II Description CHAPTER 3 OPERATING LIMITS AND RESTRICTIONS Section I General Section II Operational Restrictions and Safety Limits CHAPTER 4 OPERATING PROCEDURES Section I Unit Operation Section II...

  • Page 4: Introduction

    CHAPTER 1 INTRODUCTION 1-1. GENERAL These instructions are for use by the owner/operator. They apply to handling and operation of the TI4100GPU-24 (Turbo Start 4100) ground power unit. 1-2. WARNING, CAUTION, AND NOTE DEFINED A warning, caution, or note is used to emphasize important and criti- cal instructions as defined for the following conditions: WARNING An operating procedure, practice, etc., which,...
  • Page 5 1-4. INDEX The index lists, in alphabetical order, every titled paragraph and figure contained in this manual. 1-5. ABBREVIATIONS AND SYMBOLS Abbreviations and symbols are used within text, headings and titles. Unless otherwise indicated, the following list of abbreviations and symbols are used in this manual: LIST OF ABBREVIATIONS AND SYMBOLS Abbreviation...
  • Page 6 1-6. FORMS AND RECORDS NONE REQUIRED. 1-7. USE OF WORDS SHALL, SHOULD, AND MAY. Within this technical manual the word “shall” is used to indicate a mandatory requirement for proper operation and warranty purposes. The word “should” is used to indicate a non-mandatory but preferred method of accomplishment.

  • Page 7: Unit Description And Operation

    CHAPTER 2 UNIT DESCRIPTION AND OPERATION SECTION I. UNIT 2-1. GENERAL The TI4100GPU-24 (Turbo Start 4100) (Figure 2-1 and 2-2) is a compact, por- table and highly versatile 24/28.5 VDC electrical ground power unit. unit incorporates a 208-240 single phase VAC to 28.5 VDC converter, a 24 volt unique (dry) power cell and an internal intelligent 208 to 240 volt AC charger to recharge the power cells.

  • Page 8: Description

    SECTION II DESCRIPTION 2.2. GENERAL SPECIFICATIONS WEIGHT UNIT: 100 lbs (50.39 Kg) DC POWER CABLE: 8.5 lbs (3.86 Kg) AC POWER CORD: 0.4 lbs (0.18 Kg) INPUT POWER AC TI4100GPU-24: 208-240 Single Phase VAC 50/60 Hz 30.0 amps max. OUTPUT POWER DC CONVERTER: 28.5 VDC TO 100 AMPS, 24 VDC 121 AMPS AND ABOVE.
  • Page 9 UNIT DISCRIPTION AND DEMENTIONS...

  • Page 10: Operating Limits And Restrictions

    CHAPTER 3 OPERATING LIMITS AND RESTRICTIONS SECTION I. GENERAL 3-1. PURPOSE Chapter 3 includes all important operating limits and restrictions that must be observed for proper and safe operation of the TI4100GPU- 24 (Turbo Start 4100) ground power unit. 3-2. GENERAL The operating limitations set forth in this chapter are the direct result of design analysis, testing, and operating experience.
  • Page 11 3-4. 208-240 VAC CHARGER AND AC TO DC CONVERTER LIMITS The unit is designed with a single point AC receptacle for external power to operate both the internal charger and converter. The units AC voltage range can be factory set from 208 to 240 VAC SINGLE PHASE 30 AMPS MAX at 50/60 Hz depending upon customer requirements.
  • Page 12 WARNING ********SHOCK HAZARD POTENTIAL********* Failure to use proper grounding can cause a potential shock hazard! In different countries, the 240 VAC 50/60 Hz power cord may require the use of a plug adapter to achieve plug style compatibility for 240 VAC 50/60 Hz operation. Use only adapters with proper ground- ing mechanism.
  • Page 13 3-8. CONTINUOUS OUTPUT RATE, 28.5 VDC CONSTANT OUTPUT 100 amp hours (with AC power connected) NOTE If current demand exceeds 100 amps, converter output voltage will drop below 28.5 VDC and two or more LED status indicator bars will illuminate. If all LED status indicator bars illuminate, both the converter and power cells are supplying 24 VDC power output (see paragraph 3-4 and 4-7.4.).
  • Page 14 CAUTION Unit may be damaged if operated when unit’s cold or heat soaked tem- perature exceed the specified limit. If unit is operated when cold or heat soaked temperature limit is exceeded, a full functional check should be accomplished prior to continued use. NOTE If unit should overheat, an over-temperature sensor will shut down 208-240 VAC functions (charger and converter) until unit cools to...
  • Page 15 WARNING ********SHOCK HAZARD POTENTIAL********* Severe injury, or Death, from electrical shock is possible when per- sonnel and/or Turbo Start 4100 are wet during use and when 208-240 VAC power is being supplied to unit. CAUTION Damage may occur if unit is operated after exposure to moisture (rain, drizzle, fog, sleet or snow) or moisture contamination is sus- pected.
  • Page 16 CAUTION Unit damage may occur if inlet and outlet vent ports are obstructed and/or cooling air flow is restricted. Side Vents Front Vent/Cooling Fan Back Vent/Cooling Fan 3-13. UNIT OPERATION DURING AIRCRAFT FUELING/DEFUELING Power output is restricted to 24 VDC power cell output only. NOT CONNECT 208-240 VAC POWER SUPPLY.

  • Page 17: Operating Procedures

    CHAPTER 4 OPERATING PROCEDURES SECTION I. UNIT OPERATION 4-1. GENERAL Correct operation of the TI4100GPU-24 (Turbo Start 4100) includes both pre-use and operational checks of the unit. Knowledge of the operating limits, restrictions, performance, unit capabilities and functions is fundamental to correct and safe operation. The operator shall ensure compliance with the instructions in this manual that affect operational safety and the warranty of the unit.

  • Page 18: Operating Procedures

    SECTION II. OPERATING PROCEDURES 4-4. OPERATING PROCEDURES This section deals with normal procedures, and includes all steps necessary to ensure safe and efficient operation of the TI4100GPU-24 (Turbo Start 4100). As experience is gained with the Turbo Start 4100, the user will be able to maximize the unit’s unique capabili- ties to enhance the flexibility of aircraft maintenance and support operations.
  • Page 19 CAUTION REMEMBER, when the AC line cord is plugged in, the unit must be placed in the horizontal position to allow the cooling fan to operate properly! Unit may overheat if cooling fan fails. Do not operate if cooling fan fails. (More than one green bar present on bar graph) Front Vent/Cooling Fan Back Vent/Cooling Fan CHECK DC POWER CABLE/CONNECTORS FOR DAMAGE - Check cable for...

  • Page 20: On/Off Switch

    4-7. 24 VDC GROUND POWER (WITH 208/240 VAC POWER) SYSTEM HIGH POWER DE- MAND (101 amps and above) OR ENGINE STARTING. TRANSPORT UNIT - The Turbo Start 4100 is easily transported us- ing the wheels that are incorporate into the unit. The unit is engi- neered to be pushed rather than pulled.
  • Page 21 28.5 VDC GROUND POWER (WITH 208/240 VAC POWER) SYSTEM LOW POWER DEMAND (100 amps or less). TRANSPORT UNIT - The Turbo Start 4100 is easily transported us- ing the wheels that are incorporated into the unit. The unit is en- gineered to be pushed rather than pulled.
  • Page 22 CAUTION Unit may overheat if cooling fan fails. Do not operate if cooling fan fails. Front Vent/Cooling Fan Back Vent/Cooling Fan CHECK FOR FULL CHARGE INDICATION - After 30 minutes, LED charge indicator should show a single steady or flashing green LED bar when fully charged, the last LED bar.

  • Page 23: Functional Check Procedures

    SECTION III. FUNCTIONAL CHECK PROCEDURES 4-10. FUNCTIONAL CHECK PROCEDURES This section deals with normal functional check procedures, and in- cludes all steps necessary to ensure the Turbo Start 4100 is func- tioning within specific operational parameters prior to operational use. As users gain experience with the Turbo Start 4100, they will incorporate these functional checks as a routine practice.
  • Page 24 NOTE Under a full charge, the last green LED bar may blink. This does not indicate a malfunction. A non-blinking lighted green bar or a blink- ing green bar at the bottom of the LED column, both indicate a full charge.

  • Page 25: Performance Data

    CHAPTER 5 PERFORMANCE DATA SECTION 1. INTRODUCTION 5-1. PURPOSE This chapter provides performance data for the TI4100GPU-24 (Turbo Start 4100). Continual reference to this information will enable the user to obtain maximum performance, utilization and service life from the Turbo Start. Although maximum performance is not always required, regular referral to this chapter is recommended for the following rea- sons:...

  • Page 26: Data Criteria

    SECTION II DATA CRITERIA DATA BASIS The type of data used is indicated at the bottom of each performance chart under DATA BASIS. The applicable report and date of the data are also given. The data provided generally are based on one of three categories: Derived From Actual Controlled Testing.
  • Page 27 FIGURE 5-1...
  • Page 28 TI41000GPU-24 OUTPUT VOLTAGE MINUTES 23 AMP CONSTANT CURRENT LOAD FIGURE 5-2...
  • Page 29 MAXIMUM OUTPUT CURRENT 1500 * * * * * * * * 1350 * * * * * * * * (+25 C Temp) 1200 * * * * * * * * * * * * * 1050 * * * * * * * * * * * * * * * * * * * * * * * * * * * (-29 C Temp)

  • Page 30: Care And Maintenance

    CHAPTER 6 CARE AND MAINTENANCE SECTION I. UNIT CARE 6-1. GENERAL Although the TI4100GPU-24 (Turbo Start 4100) has been ruggedized and made weather resistant within the scope of unit’s intended use, it is essential that good general care be taken to maintain unit in good operating condition and to maximize unit’s operational life.

  • Page 31: Maintenance

    SECTION II. MAINTENANCE 6-3. MAINTENANCE OF UNIT - The Turbo Start 4100 is a maintenance- free unit, no repairs are authorized. Warranty will be void if unit is tampered with. If unit fails to operate contact Manufactures War- ranty Claim (see unit warranty). Warranty Void Sticker/Do not Remove Warranty Void Sticker/Do not Remove...

  • Page 32: Push To Test

    Chapter 7 Push To Test Modification General Information And Operation 7-1. General THIS MODIFICATION HAS BECOME STANDARD EQUIPMENT FOR EACH OF OUR UNITS. BOTH MILITARY AND CIVILIAN CLIENTS HAVE FOUND THIS MODIFICA- TION TO BE CRITICAL TO THEIR OPERATION. THE PUSH TO TEST BUTTON IS USED TO INDICATE THE CAPACITY OF THE POWER CELLS WITHOUT APPLYING AC INPUT POWER.
  • Page 33 Chapter 8 ON/OFF SWITCH General Information And Operation 7-1. General The TI4100GPU-24 comes equipped with an On/Off switch on the face plate, This switch controls AC power input only, It does not control the DC output power to the aircraft, Whenever the unit is plugged into an aircraft, it is supplying DC power, The ON/OFF switch located on the face plate does not have any control on the DC output power funtion...

  • Page 34: Dimensions

    PARAGRAPH INDEX 208-240 VAC Charger and AC to DC Converter Limits, 24 VDC Ground Power (NO 208-240 VAC Power Supply) Engine Starting or DC system Power, 24 VDC Ground Power (With 208-240 VAC Power) System High Power Demand (21-1500 Amps) or Engine Starting, 28.5 VDC Ground Power (with 208-240 VAC Power) System Low Power De- mand (100 Amps or less), Abbreviations,...
  • Page 35 PARAGRAPH INDEX Index, Maintenance of Unit, Maximum Output Current, Figure On/Off Switch General, 8-1 On/Off Switch Operation, 8-2 One (1) Hour Rate, 24 VDC Constant Output, Operating Limits and Restrictions, Operating Procedures, Operating Position, 3-12 Performance, Power Cell Recharge, Power Cell Recharge Limits, Purpose, Chapter 3, Purpose, Chapter 5, Rated Peak Output (Engine Starting),...
