Summary of Contents for Tesla TI3000 GPU-24 UAV

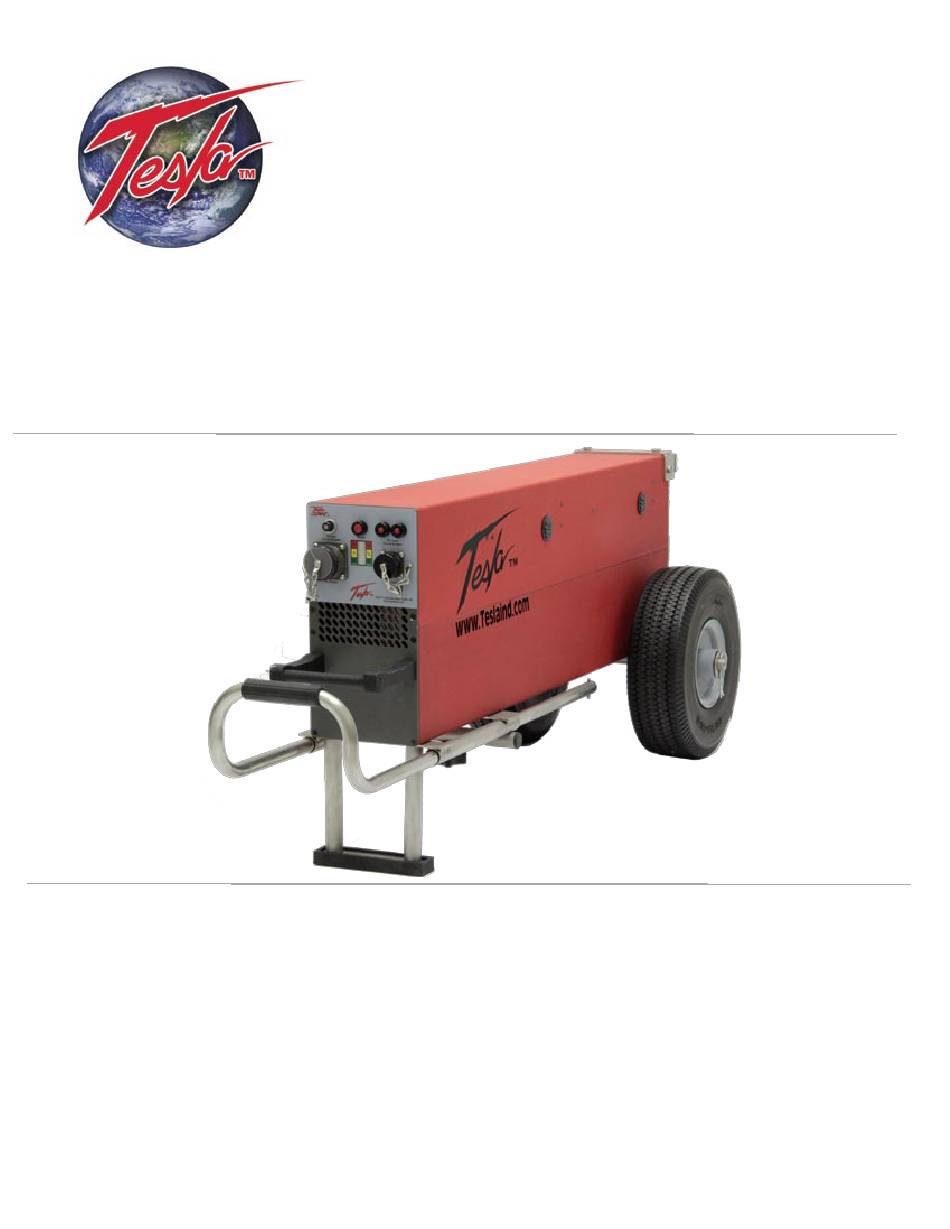

- Page 1 Power Anytime, Anywhere Tesla TI3000 GPU-24 UAV ™ User Manual Built Smart...Proven Tough Tesla Industries, Inc. 101 Centerpoint Blvd. New Castle, DE 19720 (302) 324-8910 Phone (302) 324-8912 Fax www.teslaind.com www.tesla1.com...
- Page 2 Conditioners, manufactured by Tesla™ Industries, Inc., are able to safely and effectively charge any AGM, Lead Acid battery. The Tesla™ GPU’s and chargers are voltage and current regulated to 0.01% (dual loop). The charging voltage is calibrated, by Tesla™, to 28.6 volts and is pure dc (no power line ripple).
- Page 3 Chemical Family/Classification: Tesla™ Industries, Inc. Sealed Lead Battery Synonyms: Telephone: Sealed Lead Acid Battery, VRLA Battery For information, contact Tesla™ Industries, Inc. Manufacturer's Name/Address: Customer Service Department at 302-324-8910 Tesla™ Industries, Inc 101 Centerpoint Blvd. 24-Hour Emergency Response Contact: New Castle, DE 19720-4180...
- Page 4 Supersedes: AF ECO #: 1002195 Inorganic lead and sulfuric acid electrolyte are the primary components of every battery manufactured by Tesla™ Products. There are no mercury or cadmium containing products present in batteries manufactured by Tesla™ Products. IV. FIRST AID MEASURES Inhalation: Sulfuric Acid: Remove to fresh air immediately.
-
Page 5: Table Of Contents
3.5 – Temperature Specifications 3.6 – Environmental 3.7 – Normal Functional Test Procedures 13-14 3.8 – Pre-Operation 3.9 – Transporting Unit 3.10 – Regulated 28.5 Vdc Ground Power 3.11 – Regulated AC Power 3.12 – Charging Unit TI3000 GPU-24 UAV... - Page 6 7.7 – Output Voltage 7.8 – Maximum Output Current Section 8 – Optional Accessories 8.1 – Shipping Case 8.2 – GPU Protective Covers 8.3 – Tesla™ AC Line Cords 8.4 – GPU Tires Appendix A 32-36 Repair Request Form TI3000 GPU-24 UAV...
- Page 7 MΩ megaohm Minimum Micro Power Unit NEMA National Electrical Manufacturers Association Ω power factor power factor correction root-mean-square Total Harmonic Distortion TMDE Test, Measurement, & Diagnostic Equipment Unmanned aerial vehicle Volts, Alternating Current Volts, Direct Current watts TI3000 GPU-24 UAV...
-
Page 8: Section 1 - Safety Review
The following symbols will appear within the warning triangles to alert the user to the specifi c type of danger or hazard. General Warning Electrical Hazard Explosion Hazard Fire Hazard Battery Warning Guard from Moisture Figure 1.2.1 – Different types of hazard and caution symbols TI3000 GPU-24 UAV... -
Page 9: Hazards
150°F (65°C). This protects the unit from overheating and damage. If the unit shuts down, move the unit into a cooler environment such as shade or air conditioning when possible. Perform a full function test, after the unit has been allowed to cool, prior to use. TI3000 GPU-24 UAV... -
Page 10: Section 2 - Product Overview
Section 2 – Product Overview 2.1 – Introduction Thank you and congratulations on the purchase of your new TI3000 GPU-24 UAV Ground Power Unit. The TI3000 GPU-24 UAV provides dc electrical ground power for aircraft flight line, maintenance, and ground support operations. -
Page 11: Front Panel Overview
24 Vdc Capacity Meter – Indicates the Phase 100-260 Vac line voltage. 24V battery charge state/power output Telescopic Handle – Allows for easy status. transport of unit. Air Intake Ports – Provide airflow for cooling internal electronics. TI3000 GPU-24 UAV... -
Page 12: General Specifications
-40°C to +55°C (-40°F to 131°F) with ac power Storage Temperature: • -65°C to +105°C (-85°F to 221°F) Cell Capacity: • +40°C 110% ± 05% • +25°C 100% ± 05% • +00°C ± 05% • -20°C ± 10% • -40°C ± 10% TI3000 GPU-24 UAV... -
Page 13: Physical Dimensions
Ensure that ports are clear at all times. When the TI3000 GPU-24 UAV is plugged into Single Phase 100-260, Vac 50/60 Hz ac power, the internal cooling system will efficiently regulate unit temperature regardless of load. At room temperature (+77°F) the exhaust air will not exceed the ambient temperature by more than 5°F. -
Page 14: Operating Position
Product Overview 2.7 – Operating Positions The TI3000 GPU-24 UAV can be operated in both the horizontal (Figure 2.7.1) and vertical (Figure 2.7.2) positions as shown. Make sure that the airflow is not obstructed from air intake (figure 2.7.3) and outlet (Figure 2.7.4). -
Page 15: Ac Input Circuit Breakers
3. Reset breaker by pressing red button. 4. Reconnect ac and dc connections to the unit. (Plug in ac line cord on military unit.) The unit should power up automatically. If the breaker continues to trip, return the unit to Tesla™ Industries for repair. -
Page 16: Push To Test" Button And Led Status Indicator
“Push to Test” function. (If this sensor is tripped, allow ten minutes for unit to cool before operating “Push to Test” button.) Figure 2.10.1 - Pushing to Test STATUS STATUS STATUS Full Charge Half Charge No Charge TI3000 GPU-24 UAV... -
Page 17: Section 3 - Operating Procedures
1200 - 1500 peak starting amps 40-50% charged 1500 - 1800 peak starting amps 50-60% charged 1800 - 2100 peak starting amps 60-70% charged TI3000 GPU-24 UAV 2100 - 2400 peak starting amps 70-80% charged 2400 - 3000 peak starting amps 80-100% charged... -
Page 18: Temperature Specifications
If the unit shuts down, move the unit into a cooler climate, such as shade or air conditioning when possible. Perform a full function test prior to use after the unit has been allowed to cool. TI3000 GPU-24 UAV... -
Page 19: Environmental
A. Prevent accumulation of moisture on ac and dc connectors/receptacles B. Minimize moisture entering forward inlet and outlet cooling fan vent ports When not in use, unit inlet and outlet vent ports shall be covered from exposure. Unit shall be kept horizontal. TI3000 GPU-24 UAV... -
Page 20: Normal Functional Test Procedures
Check Unit for Evidence of Damage Check for dents, punctures, case distortion or misalignment, and cracked or loose connec tors. If no damage is evident, proceed to the next step. If damage is evident, contact Tesla™ Industries, Inc. Figure 3.7.1 – Digital Multimeter AC Neutral Pin “M”... - Page 21 30.5 Vdc (± 0.5 Vdc) when power cells are fully charged and the unit is plugged into an appropriate ac power source. When the unit is not plugged into an ac power source, the multimeter display should read approximately 25.5 Vdc. Figure 3.7.5: Set multimeter to Volts. Figure 3.7.6: Testing DC Voltage Reading TI3000 GPU-24 UAV...
-
Page 22: Pre-Operation
3.9 – Transporting Unit The TI3000 GPU-24 UAV has a telescoping handle that makes rolling the unit easy. For transporting on uneven ground, axle extensions should be added to the unit. For use on sand, balloon tires should be installed on the unit (see Optional Accessories). -
Page 23: Regulated 28.5 Vdc Ground Power
(26.5 Vdc minimum). If aircraft power demand is less than 50 amps converter output will remain at 28.5 Vdc (only one GREEN LED status indicator bar will illuminate). If aircraft power demand exceeds 50 amps converter voltage output will decrease and two or more LED status indicator bars will illuminate. TI3000 GPU-24 UAV... -
Page 24: Regulated Ac Power
Until the unit is fully charged, the LED status will read half or no charge. Plug the TI3000 GPU-24 UAV into ac power to keep the cells charged whenever it is not in use, even if it is at Full Charge. -
Page 25: Section 4 - Post Operation
Section 4 – Post Operation 4.1 – General Although the TI3000 GPU-24 UAV has been ruggedized and made weather resistant within the scope of unit’s intended use, it is essential that good general care be taken to maintain unit in good operating condition and to maximize unit’s operational life. - Page 26 Guard From Incorrect Power Source The TI3000 GPU-24 UAV’s power cells may be damaged if recharged by NiCad or Lithium Ion battery chargers. Power cells should only be charged by either the TI3000 GPU-24 UAV’s internal charger and the ac power cord furnished with the equipment, or when connected to aircraft’s external dc power receptacle.
-
Page 27: Section 5 - Unit Care And Maintenance
Do not cut, crush, or drag the input or output power cables when handling the unit. Always inspect cables prior to use. If no damage is evident, proceed to the next step. If damage is evident, contact Tesla™ Customer Service. Do not attempt to use any other type of power cables other than the Tesla™ cables included with the unit. -
Page 28: Unit Servicing
Ensure proper packaging when returning the unit. Transport the unit only in a sturdy shipping crate or Tesla™ Shipping Case. It is important to enclose the Repair Request Form. Seal the crate on all sides and return it to Tesla™ at the address listed below. Please contact Tesla™ Customer Service at (302) 324-8910 with any questions or concerns. -
Page 29: Section 6 - Troubleshooting And Faq
5. Will a Tesla™ Turbo Start™ spool up a turbine engine? Nothing will start a turbine engine faster or safer than the right Tesla™ Turbo Start™. Not only will it eliminate hot starts, but it will extend the life of your starter, your engine and your battery while reducing maintenance. The Turbo Start™ senses the impedance from the starter/generator. - Page 30 Unit should never be allowed to discharge fully. In-fi eld use, it receives a dc back charge directly from a running engine. When not in use, unit should be plugged into ac power (outlet) all the time. Tesla™ systems will retain 80% of their capacity after one year of storage.
-
Page 31: Basic Usage/Operation Questions
Reset breaker by pressing red button. Reconnect ac and dc connections to the unit. (Plug in ac line cord on military unit.) The unit should power up automatically. If the breaker continues to trip, return the unit to Tesla™ Industries for repair. TI3000 GPU-24 UAV... -
Page 32: Basic Troubleshooting
If LEDs still do not illuminate, Please contact Tesla™ Customer Service at (302) 324-8910. 2. Unit has no output dc or ac Units cells completely dead. Do a function check with digital meter, input or both. - Page 33 Switch breaker to ON position. Reconnect unit to cables and run. If LEDs still do not illuminate, Please contact Tesla™ Customer Service at (302) 324-8910. 8. Unit does not put out 28.5 Unit is not plugged in. Plug unit into ac power source to volts dc power.
-
Page 34: Section 7 - Performance Data
These differences, however, are considered insignifi cant and are not individually accounted for. Ground Support and Aircraft Instrument Variations: The data shown in the performance charts do not account for instrument tolerance differences or inaccuracies. TI3000 GPU-24 UAV... -
Page 35: Temperature Conversion Chart
154.4 -30.0 -22.0 37.4 36.0 96.8 69.0 156.2 -29.0 -20.2 39.2 37.0 98.6 70.0 158.0 -28.0 -18.4 41.0 38.0 100.4 71.0 159.8 Figure 12.6.1 – Temperature conversion from Celsius to Fahrenheit. Figure 7.6.1 – Temperature Conversion Chart TI3000 GPU-24 UAV... -
Page 36: Output Voltage
* * * * * * * * * * * * * * * * * * * * (-29 C Temp) SECONDS Calculations based on actual test data at Pratt-Whitney Canada on 30 March 1992. TI3000 GPU-24 UAV... -
Page 37: Section 8 - Optional Accessories
Section 8 – Optional Accessories 8.1 – Shipping Case The optional Shipping Case is the safest way to transport the TI3000 GPU-24 UAV. This custom case weighs 23 lbs and comes equipped with side handles and locking latches. TI7000-025 NSN: 8145-01-445-3667 Length: 46.18”... -
Page 38: Gpu Tires
Optional Accessories 8.4 – GPU Tires Tesla™ offers several tires in order to meet various customer mobility needs. TI21000-400 TI21000-203 Anti-FOD Flat-Free Tire Flat-Free Tire Rugged, puncture-proof, foam-filled tire. A solid foam rubber tire. The stan- Foreign object damage free, specifically dard tire for ground power units. - Page 39 TI25000-005 United Kingdom Line Cord Czech, Republic of TI25000-003 Continental European Line Cord Denmark TI25000-300 Denmark Line Cord Djibouti, Republic of TI25000-003 Continental European Line Cord Dominica TI25000-005 United Kingdom Line Cord Dominican Republic TI25000-001 North American Line Cord TI3000 GPU-24 UAV...
- Page 40 TI25000-001 North American Line Cord Japan 50/60 TI25000-001 North American Line Cord Jordan TI25000-005 United Kingdom Line Cord Kenya TI25000-005 United Kingdom Line Cord Korea, South TI25000-003 Continental European Line Cord Kuwait TI25000-005 United Kingdom Line Cord TI3000 GPU-24 UAV...
- Page 41 TI25000-001 North American Line Cord Philippines TI25000-001 North American Line Cord Piccairn Islands (U.K.) TI25000-004 Old British Line Cord Poland TI25000-003 Continental European Line Cord Portugal TI25000-003 Continental European Line Cord Puerto Rico TI25000-001 North American Line Cord TI3000 GPU-24 UAV...
- Page 42 TI25000-005 United Kingdom Line Cord Yemen TI25000-005 United Kingdom Line Cord Yugoslavia TI25000-003 Continental European Line Cord Zaire, Republic of TI25000-003 Continental European Line Cord Zambia TI25000-005 United Kingdom Line Cord Zimbabwe TI25000-005 United Kingdom Line Cord TI3000 GPU-24 UAV...
- Page 43 APPENDIX A (Cont.) UNIVERSAL LINE CORD KIT FOR WORLDWIDE OPERATIONS NOTE: TESLA™ UNIVERSAL AC LINE CORD KIT, P/N: TI25000-U00, IS FOR UNITS ORIGINALLY BUILT WITH THE UNIVERSAL AC LINE CORD OPTION ONLY. THE AC ADAPTER OPTION IS TESLA™ P/N TI16000-19 AND MUST BE ORDERED WITH THE ORIGINAL PROCUREMENT OF UNIT(S).
-
Page 44: Repair Request Form
Email: _______________________________________________________________________________________ Purchase Order #: ______________________________________________________________________________ Model #: ____________________________________ Serial #: ________________________________________ Model #: ____________________________________ Serial #: ________________________________________ Shipping method to Tesla™: ______________________________________________________________________ Description of shipping package: ________________________________________________________________ Description of problem: _________________________________________________________________________ _________________________________________________________________________________________________ _________________________________________________________________________________________________ _________________________________________________________________________________________________ Return to Tesla™ 101 Centerpoint Boulevard, New Castle, DE 19720 Attention: Repair Department... - Page 45 Tesla™ 101 Centerpoint Blvd. New Castle, DE 19720 USA Tel: 302-324-8910 Fax: 302-324-8912 9475 Double R Blvd., Suite 2 Reno, NV 89521 Tel: 775-622-8801 Fax: 775-622-8810 www.teslaind.com ♦ www.tesla1.com...
