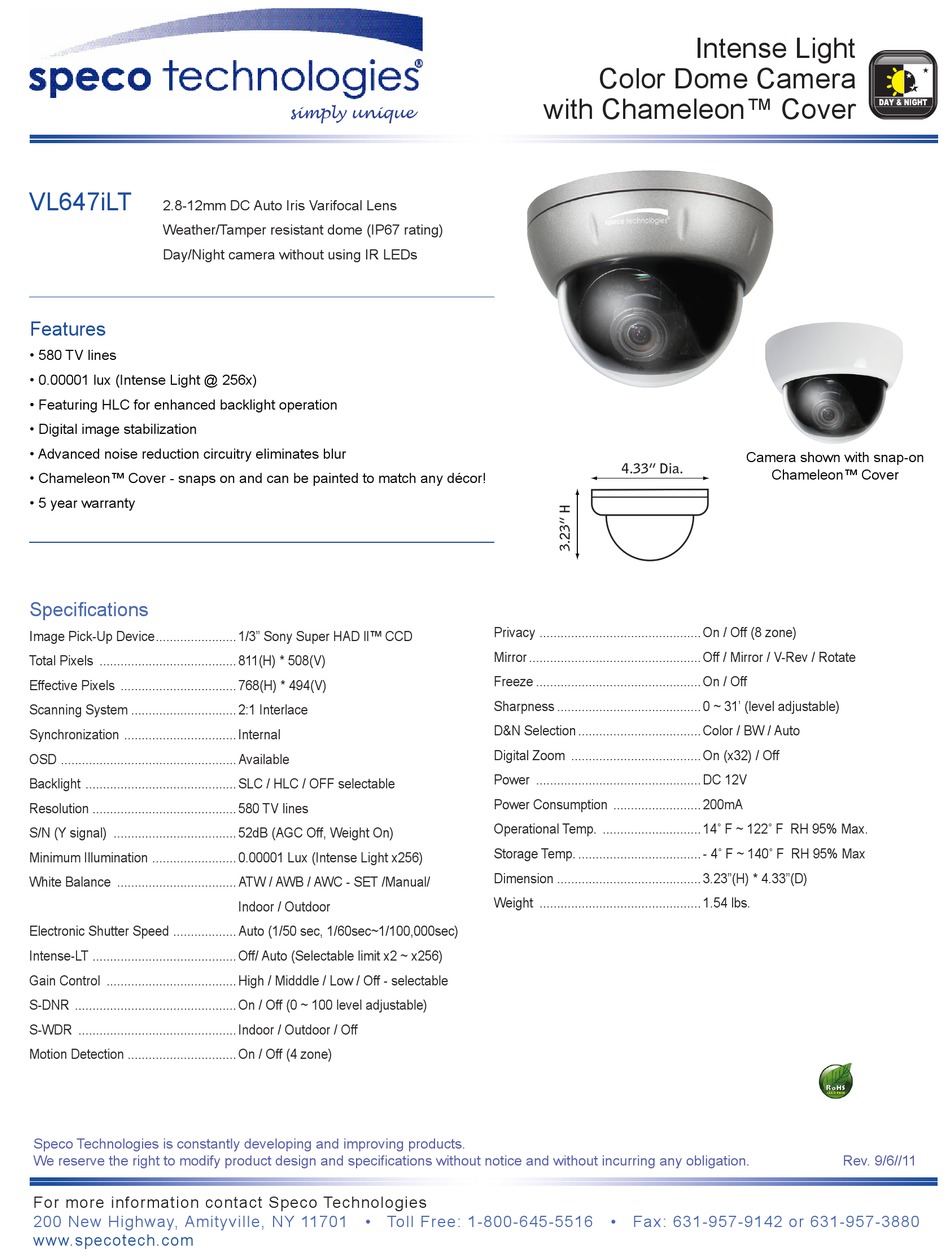

Speco INTENSE LIGHT VL647ILT Specifications

VL647iLT
2.8-12mm DC Auto Iris Varifocal Lens
Weather/Tamper resistant dome (IP67 rating)
Day/Night camera without using IR LEDs
Features
• 580 TV lines
• 0.00001 lux (Intense Light @ 256x)
• Featuring HLC for enhanced backlight operation
• Digital image stabilization
• Advanced noise reduction circuitry eliminates blur
• Chameleon™ Cover - snaps on and can be painted to match any décor!
• 5 year warranty

Specifications

Image Pick-Up Device ....................... 1/3" Sony Super HAD ll™ CCD
Total Pixels ....................................... 811(H) * 508(V)
Effective Pixels ................................. 768(H) * 494(V)
Scanning System .............................. 2:1 Interlace
Synchronization ................................ Internal
OSD .................................................. Available
Backlight ........................................... SLC / HLC / OFF selectable
Resolution ......................................... 580 TV lines
S/N (Y signal) ................................... 52dB (AGC Off, Weight On)
Minimum Illumination ........................ 0.00001 Lux (Intense Light x256)
White Balance .................................. ATW / AWB / AWC - SET /Manual/
Electronic Shutter Speed .................. Auto (1/50 sec, 1/60sec~1/100,000sec)
Intense-LT ......................................... Off/ Auto (Selectable limit x2 ~ x256)
Gain Control ..................................... High / Midddle / Low / Off - selectable
S-DNR .............................................. On / Off (0 ~ 100 level adjustable)
S-WDR ............................................. Indoor / Outdoor / Off
Motion Detection ............................... On / Off (4 zone)
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
For more information contact Speco Technologies
200 New Highway, Amityville, NY 11701
www.specotech.com
simply unique
Indoor / Outdoor
• Toll Free: 1-800-645-5516
Color Dome Camera
with Chameleon™ Cover
4.33" Dia.
Privacy .............................................. On / Off (8 zone)
Mirror ................................................. Off / Mirror / V-Rev / Rotate
Freeze ............................................... On / Off
Sharpness ......................................... 0 ~ 31' (level adjustable)
D&N Selection ................................... Color / BW / Auto
Digital Zoom ..................................... On (x32) / Off
Power ............................................... DC 12V
Power Consumption ......................... 200mA
Operational Temp. ............................ 14˚ F ~ 122˚ F RH 95% Max.
Storage Temp. ................................... - 4˚ F ~ 140˚ F RH 95% Max
Dimension ......................................... 3.23"(H) * 4.33"(D)
Weight .............................................. 1.54 lbs.
• Fax: 631-957-9142 or 631-957-3880
Intense Light
MP
Camera shown with snap-on
Chameleon™ Cover
Rev. 9/6//11
