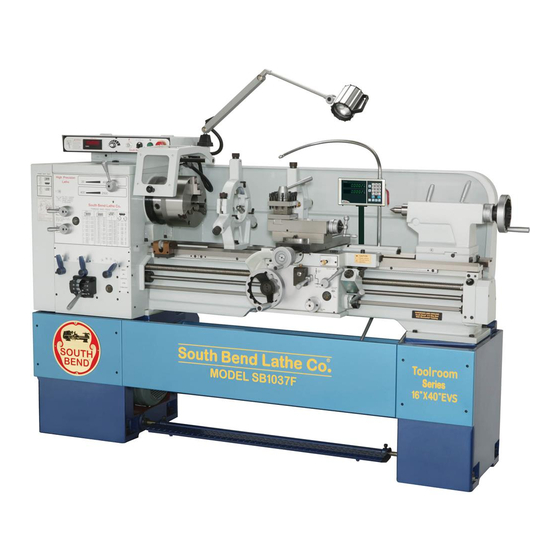

16" x 40" Lathe 220V with DRO
Product Dimensions
Weight........................................................................................................................................................... 3107 lbs.
Width (side-to-side) x Depth (front-to-back) x Height..................................................................... 86 x 33 x 60 in.
Footprint (Length x Width)................................................................................................................. 82 x 19-1/2 in.
Shipping Dimensions
Type.................................................................................................................................................. Wood Slat Crate
Content.......................................................................................................................................................... Machine
Weight........................................................................................................................................................... 3344 lbs.
Length x Width x Height................................................................................................................... 46 x 89 x 78 in.
Electrical
Power Requirement................................................................................................................. 220V, 3-Phase, 60 Hz
Prewired Voltage................................................................................................................................................ 220V
Full-Load Current Rating................................................................................................................................. 21.7A
Minimum Circuit Size.......................................................................................................................................... 30A
Connection Type..................................................................................................................................... Cord & Plug
Power Cord Included.............................................................................................................................................. No
Recommended Power Cord............................................................................... "S"-Type, 4-Wire, 8 AWG, 300 VAC
Plug Included.......................................................................................................................................................... No
Recommended Plug Type................................................................................................................................ L15-30
Switch Type....................................................................................... Control Panel w/Magnetic Switch Protection
Inverter Type............................................................................................................................... Yaskawa G7A25P5
Inverter Size..................................................................................................................................................... 7.5 HP
Recommended Phase Converter...................................................................................................................... H3741
Motors
Oil Pump
Type........................................................................................................................................ TEFC Induction
Horsepower............................................................................................................................................ 1/4 HP
Phase.................................................................................................................................................... 3-Phase
Amps.......................................................................................................................................................... 1.4A
Speed................................................................................................................................................ 1725 RPM
Power Transfer ............................................................................................................................ Direct Drive
Bearings................................................................................................ Shielded & Permanently Lubricated
Main
Type........................................................................................................................................ TEFC Induction
Horsepower............................................................................................................................................ 7.5 HP
Phase.................................................................................................................................................... 3-Phase
Amps........................................................................................................................................................... 20A
Speed.......................................................................................................................................... 0 – 4500 RPM
Power Transfer ............................................................................................................................ V-Belt Drive
Bearings................................................................................................ Shielded & Permanently Lubricated
Model SB1037F
Model SB1037F
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for South bend SB1037F
Summary of Contents for South bend SB1037F
- Page 1 Model SB1037F 16" x 40" Lathe 220V with DRO Product Dimensions Weight................................3107 lbs. Width (side-to-side) x Depth (front-to-back) x Height..............86 x 33 x 60 in. Footprint (Length x Width)......................... 82 x 19-1/2 in. Shipping Dimensions Type..............................Wood Slat Crate Content................................
- Page 2 Coolant Pump Type......................... TEFC Induction (Class F) Horsepower............................1/8 HP Phase..............................3-Phase Amps................................0.3A Speed..............................3450 RPM Power Transfer ..........................Direct Drive Bearings....................Shielded & Permanently Lubricated Main Specifications Operation Info Swing Over Bed..........................16.14 in. Distance Between Centers........................40 in. Max Weight Between Centers......................
- Page 3 Dimensions Bed Width............................10-1/4 in. Leadscrew Diameter..........................1-1/8 in. Leadscrew TPI............................4 TPI Leadscrew Length........................... 63-9/16 in. Steady Rest Capacity......................5/16 – 4-5/16 in. Follow Rest Capacity........................5/8 – 3-1/8 in. Faceplate Size............................12 in. Feed Rod Diameter..........................3/4 in. Floor to Center Height........................
- Page 4 Included Accessories 9 in. 3-Jaw Scroll Chuck Mounted to 9 in. D1-6 Back Plate 10 in. D1-6 Back Plate 10 in. 4-Jaw Independent Chuck D1-6 12 in. Faceplate D1-6 Follow Rest Steady Rest with Roller Bearing Tips #6 to #4 Morse Taper Spindle Sleeve Two Morse Taper #4 Dead Centers (1 Carbon Steel and 1 Carbide-Tipped) Eight Leveling Pads Service Tools...
