Installation Instructions

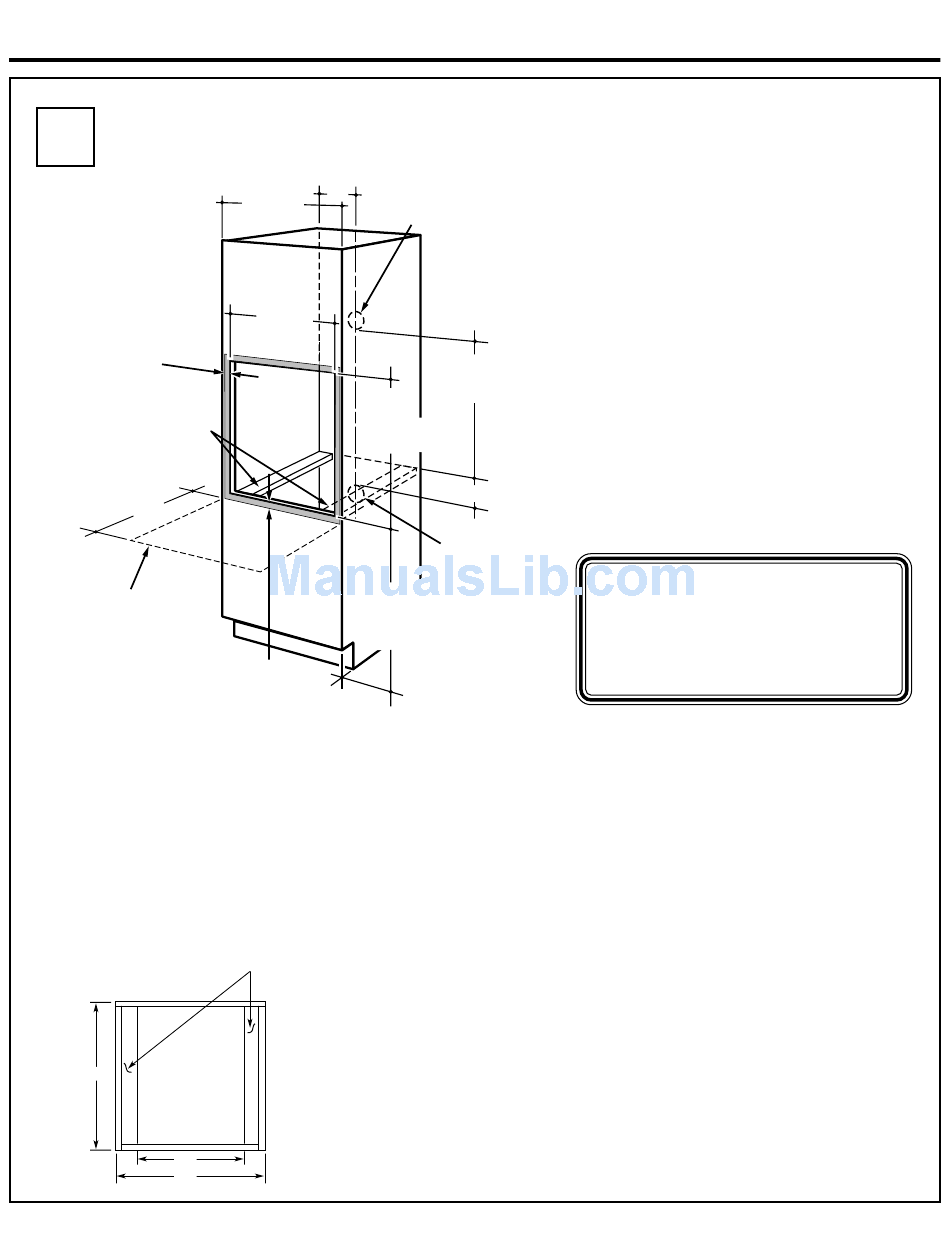

Cutouts for Single Built-In-Oven
A1
Allow 7/8"
for overlap of
oven over side
edges of cutout
2" x 4" or
equivalent
runners
20"
Allow a minimum of 20"
for clearance to adjacent
corners, drawers, walls, etc.
when door is open
If the cabinets do not have a solid
bottom, then two braces or runners
must be installed to support the
weight of the oven. For single
ovens the runners and braces must
support 150 pounds.
24"
18"
27"
Cabinet
10"
Junction Box
Width
27"
Cutout
Width
25" MIN.
25 1/4" MAX.
Cutout
Height
27 5/8" MIN.
28 1/8" MAX.
Recommended
cutout location
from floor
32 1/2"
Allow 1" for
overlap of oven
top and bottom
of cutout
2" x 4" or
Equivalent
Runners
Location
22" Min.
above base
rail
5"
Alternate
junction box
location
This Oven is not approved for stackable
or side by side installation
5
Cabinet Width
Recommended
Cutout Location
from Floor
Cutout Depth
Cutout Width
Cutout Height
NOTE: If the cabinet does not
have a front frame and the
sides are less than 3/4" thick,
shim both sides equally to
establish the cutout width.
27
32 1/2"
23 1/2"
25" Min.
25 1/4" Max.
27 5/8" Min.
28 1/8" Max.
