Installation
Instructions
"If you have questions, call 800-GE-CARES
www.GEAppliances.com"
Before you begin
Read these instructions carefully and completely
IMPORTANT
•
-Save these instructions for
local inspector's use.
IMPORTANT
•
-Observe all governing
codes and ordinances.
• Note to Installer- Be sure to leave these
instructions with the consumer.
• OWNER- Keep these instructions for future
reference.

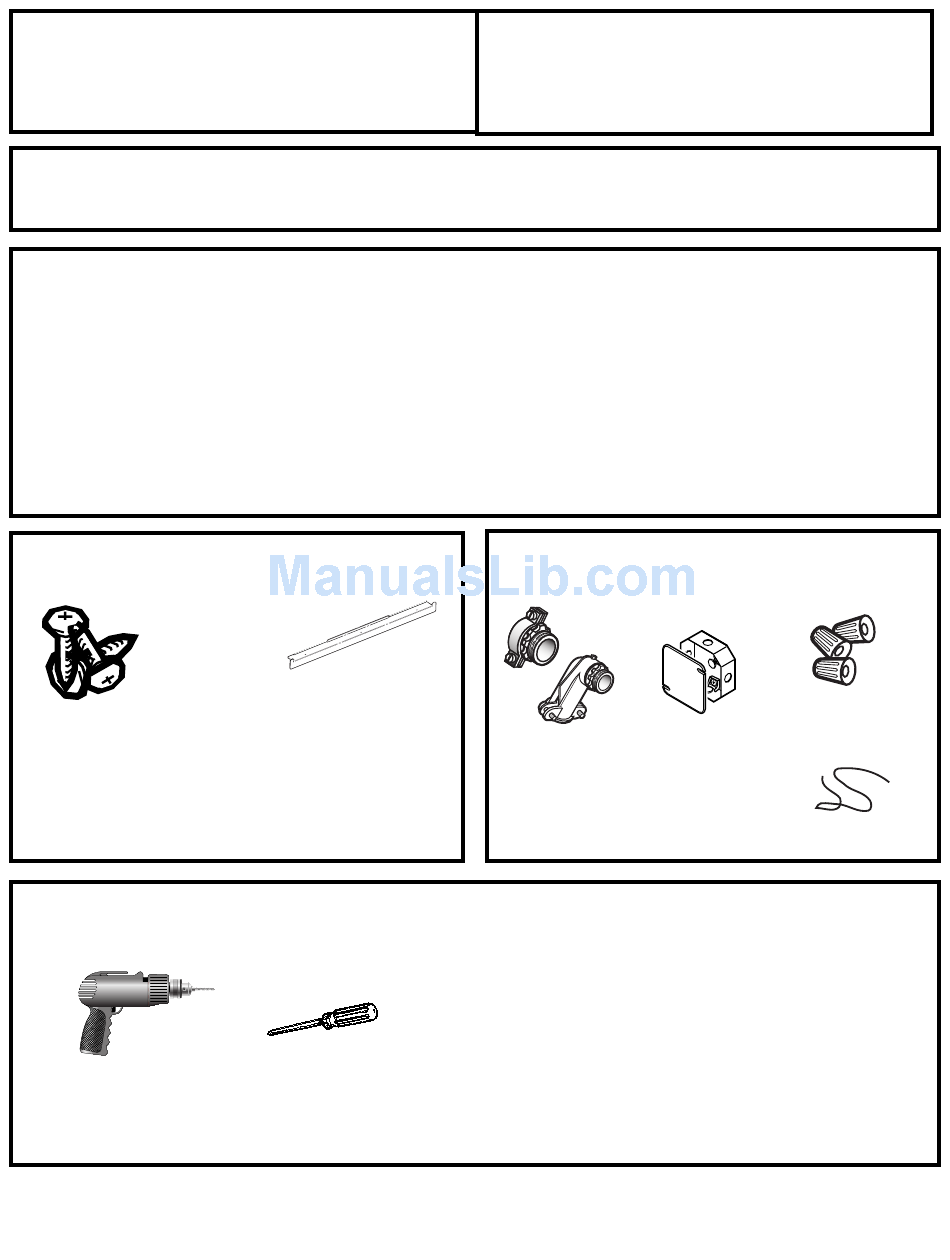

Parts Included
Single Ovens
4 flat head screws (side trim)
3 pan head screws (bottom trim)
Double Ovens
8 flat head screws (side trim)
3 Pan head screws (bottom trim)
Tools You Will Need
1/8" Drill Bit &
Electric or
Hand Drill
Pub. No. 31-10473
4053P452
229C
Bottom Trim
Phillips
Screwdriver
27" Built In Wall Oven
JKP15, JKP18, JKP27, JKP45, JKP56 JKS05,
ZEK937, ZEK957
• ATTENTION INSTALLER!!
All electric wall ovens must be hard wired
(direct wired) into an approved junction
box. A "plug and receptacle" is NOT permit-
ted on these products
• NOTE- This appliance must be properly
grounded.
Materials Needed
Strain Relief
Clamp for
1/2" conduit
1
or visit our website at:
Wire Nuts
Junction
Box
36" of String
Advertisement
Table of Contents
Related Manuals for GE JKP15
Summary of Contents for GE JKP15
-
Page 1: Before You Begin
Installation 27” Built In Wall Oven JKP15, JKP18, JKP27, JKP45, JKP56 JKS05, Instructions ZEK937, ZEK957 “If you have questions, call 800-GE-CARES or visit our website at: www.GEAppliances.com” Before you begin • ATTENTION INSTALLER!! Read these instructions carefully and completely All electric wall ovens must be hard wired IMPORTANT •... -
Page 2: Important Safety Instructions
Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Electrical For Your Safety Requirements This appliance must be supplied with the • Be sure your oven is installed properly by proper voltage and frequency, and connected a qualified installer or service technician. to an individual properly grounded branch •... -
Page 3: Pre-Installation Checklist
Installation Instructions Pre- Installation Checklist Door Removal is not a requirement for ALL INSTALLATION INFORMATION ON installation of the product, but is an added THE FOLLOWING PAGES IS TO BE convenience. USED FOR SINGLE AND DOUBLE OVEN INSTALLATION! Open the oven door as far as it will go. Remove packaging materials. - Page 4 Installation Instructions Pre- Installation Checklist cont. Remove the bottom trim from the Place the oven on a table or platform top of the oven. It will be installed at even with the cutout opening. the end of installation. The trim is (Platform must support 150 lbs.
- Page 5 Installation Instructions Cutouts for Single Built-In-Oven Cabinet 10" Cabinet Width Junction Box Width Location 27" Recommended Cutout Location from Floor 32 1/2” Cutout Width Allow 7/8" 25" MIN. Cutout Depth 23 1/2” for overlap of 25 1/4" MAX. oven over side 22"...
- Page 6 Installation Instructions Cutouts for Double Built-In-Oven Junction Box Location Cabinet 10" Width 27" Cutout Width Cabinet Width 27” 25" MIN. 25 1/4" MAX. Recommended Allow 7/8" for overlap of Cutout Location oven over side from Floor 13 1/4” edges of cutout 44"...
- Page 7 Installation Instructions Cutouts for Single Oven Under Counter Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for cutout size. See label on top of oven for Gas or electric connections approved cooktop models. for gas cooktop must be 240V / 208V located in an adjacent Junction Box...
-
Page 8: Installation Instructions
Installation Instructions Electrical Connections ATTENTION INSTALLER!!! Turn off the circuit breaker or remove fuses All electric wall ovens must be hard wired to the oven branch circuit. (direct wired) into an approved junction With the oven in front of the cabinet box. - Page 9 Installation Instructions Electrial Connections cont. NEW CONSTRUCTION AND FOUR-CONDUCTOR BRANCH Three-Conductor Branch CIRCUIT CONNECTION Circuit Connection • When installing in a new construction, • When installing oven in a mobile When connecting to a 3-conductor branch home, or circuit, if local codes permit: •...
- Page 10 Installation Instructions Placing the Oven in the Opening Sliding the Oven Into the Drilling the Pilot Holes Opening. a. Loop (do not tie) a 36” string around the Note: Before drilling the pilot holes conduit before the oven is slid into place. make sure the oven is pushed as far This will keep the conduit from falling behind back into the opening as it will go...
-
Page 11: Replacing The Oven Door
Installation Instructions Replacing the Oven Preparing for the bottom Door Trim Installation a. With oven installed, take the bottom trim The oven door is heavy. You may need and center it on the bottom front edge of help lifting the door high enough to the cabinet opening. -
Page 12: Pre-Test Check List
Installation Instructions PRE-TEST CHECK LIST Check that the bottom trim is installed Remove all protective film if present, properly (see page 10). and any stickers. Check to be sure that all wiring is Check to be sure the mounting screws secure and not pinched or in contact are installed and flush with the side with moving parts.
