2340359003

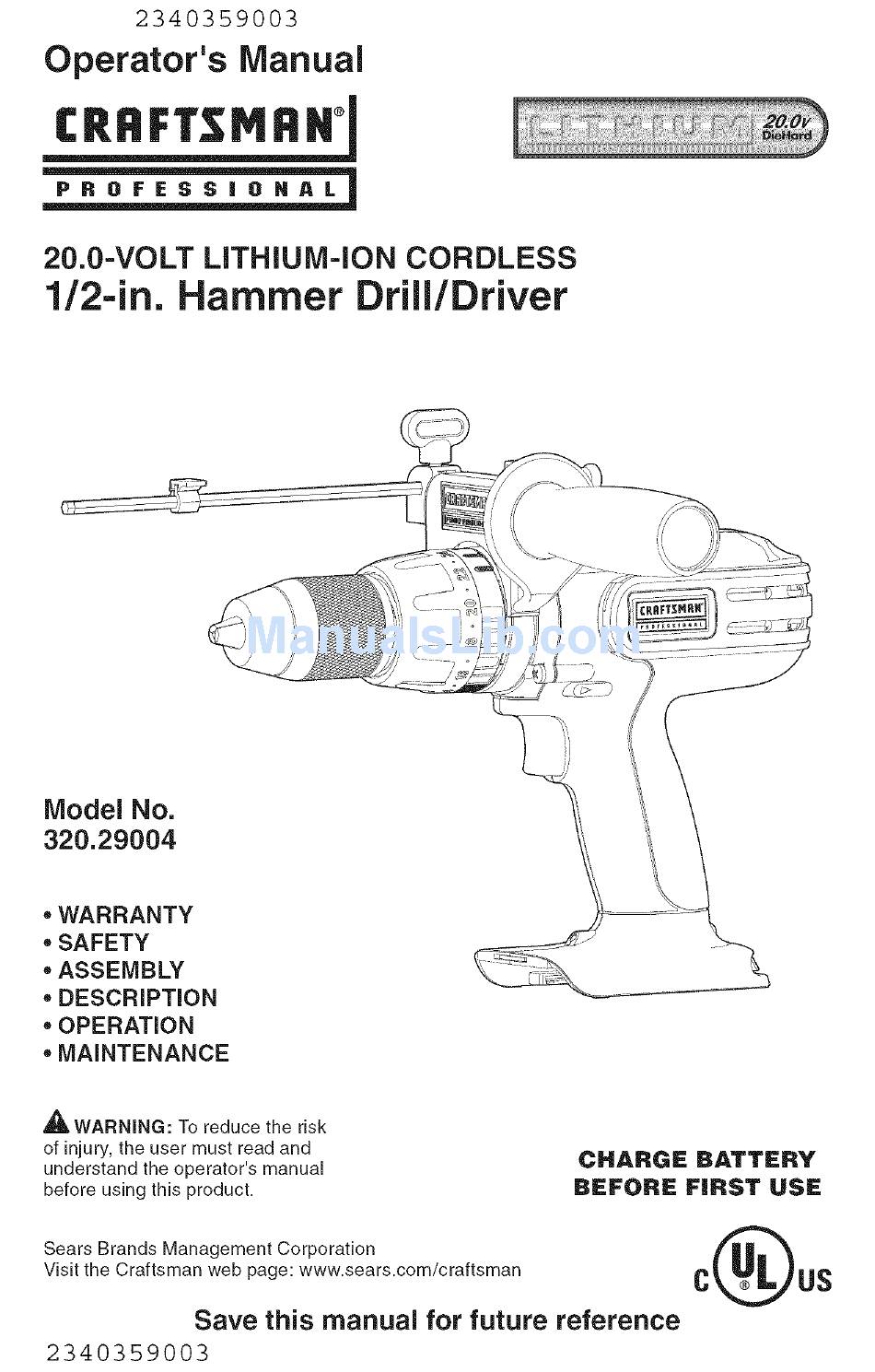

Operator's Manual
20.0=VOLT LITHIUM=ION CORDLESS
1/2-in. Hammer Drill/Driver
Model No.
320.29004
• WARRANTY
• SAFETY
• ASSEMBLY
• DESCRiPTiON
• OPERATION
• MAINTENANCE
_IL WARNING:
To reduce the risk
of injury, the user must read and
understand
the operator's manual
before using this product.
CHARGE
BATTERY
BEFORE
FIRST
USE
Sears Brands Management
Corporation
Visit the Craftsman
web page: www.sears.com/craftsman
Save this manual
for future
reference
2340359003

Advertisement

loading

Related Manuals for Craftsman 320.29004

Summary of Contents for Craftsman 320.29004

  • Page 1 To reduce the risk of injury, the user must read and CHARGE BATTERY understand the operator's manual BEFORE FIRST before using this product. Sears Brands Management Corporation Visit the Craftsman web page: www.sears.com/craftsman Save this manual for future reference 2340359003...
  • Page 2: Two Year Limited Warranty

    Professional tool fails due to a defect in material or workmanship, RETURN IT TO THE NEAREST SEARS STORE OR OTHER CRAFTSMAN OUTLET IN THE UNITED STATES for free replacement during the first year from the date of purchase, and for free repair during the second year from the date of purchase.
  • Page 3 The purpose ofsafety symbols istoattract your attention topossible dangers. The safety symbols and the explanations with them deserve your c areful attention and understanding. symbol warnings DO NOT b ythemselves eliminate any danger. The instructions and warnings they g ive are nosubstitutes forproper accident prevention measures.
  • Page 4 Some of these following symbols may be used on this tool, Please study them and learn their meaning, Proper interpretation of these symbols will allow you to operate the tool better and safer, SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) Watt...
  • Page 5: Personal Safety

    _WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. The term "power tool" in all of the warnings listed below refer to mains-operated (corded) power tools or battery-operated (cordless) power tools.
  • Page 6 • Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts, • If devices are provided for the connection of dust extraction and collection facilities,...
  • Page 7 [_ _ _I _ ;_;1a![.,,.']';I ;I :a/L'4I-'t_ SERVICE • Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained, • When servicing a power tool, use only identical replacement parts.
  • Page 8: Read And Understand

    _WARNING: READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. • Before using battery charger, read all instructions and cautionary markings in this manual, on battery charger, battery and product using battery to prevent misuse of the products and possible injury or damage.
  • Page 9: Safety Instructions

    • Disconnect charger from the power supply when not in use. This will reduce the risk of electric shock or damage to the charger if metal items should fall into the opening, It will also help prevent damage to the charger during a power surge, •...
  • Page 10 Im]::(..__o] Fig. Two-Speed Auxiliary GearBox Handle Locking Knob Depth rod of Auxiliary Handle Vents Torque Adjustment Ring Direction of Rotation Selector FORWARD/CENTEF LOCK/REVERSE) Jaws Keyless Chuck Hammer Function Selection Ring Trigger Switch Integrated LED Worklight I ".l : [e] mlU[_ iI-'] "J =[_] I ;I [e?.,_l i[e] #6"] Chuck 1/2-in.
  • Page 11 Im]::(.,.__o] KNOW YOUR HAMMER DRILL/DRIVER (Fig. 1) the tool and in this operator's manual as well as a knowledge of the project you are attempting. _,WAR N I N G" The safe use of this product requires an understanding of the information on Before use of this product, familiarize yourself with all operating features and safety rules.
  • Page 12: Power Bar

    POWER BAR • This Lithium-Ion battery pack is equipped with a POWER BAR which is used to display the battery pack's remaining run time. Press the POWER BAR button to display the LED lights. The LED lights will stay lit for approximately 4 seconds.
  • Page 13: Cold Weather Operation

    NOTE: A significantly reduced run time after fully charging the battery pack indicates that the batteries are near the end of their usable life and must be replaced. COLD WEATHER OPERATION • This Lithium-Ion battery pack will provide optimal performance in temperatures between 32°F (O°C) and 104°F (40°C), When the battery pack is very cold, it may "pulse"...
  • Page 14: How To Charge

    HOW TO CHARGE BATTERY PACK NOTE: This Lithium-Ion battery pack is shipped partially charged. Before using it the first time, fully charge the battery pack. A fully discharged battery pack with a Fig. 3 temperature between 32°F (O°C) and 104°F (40°C) will charge in about 50 minutes.
  • Page 15 LED FUNCTIONS OF CHARGER (Fig. 4) Fig. 4 BATTERY GREEN LED INDICATOR ACTION PACK Charging will begin when Hot/Cold battery returns to (SEE MANUAL) battery HI/LO TEMP. 32°F (0°C)-104°F (40°C) Defective Flashing Battery pack or charger is defective BATTERY DEFECTIVE Charging Flashing Charges in 50 minutes...
  • Page 16 WALL-MOUNT CAPABLE (Fig. 5) Fig. 5 The charger has a key-hole hanging feature for convenient storage. Screws should © 4-1/8-in. © be installed so that the center distance is 4-1/8-in. Use appropriate wall fasteners to accommodate the combined weight of the charger and battery pack.
  • Page 17 TRIGGER SWITCH (Fig. 7) Fig. 7 To turn the drill O N, d epress the switch trigger. To turn itOFF, release the trigger. Direction of rotation VARIABLE SPEED (Fig, 7) selector The variable speed t rigger switch delivers higher speed w ith increased trigger pressure and lower speed with decreased trigger...
  • Page 18 TWO-SPEED GEAR BOX (Fig. 9) Fig. 9 Two-speed The drill has a two-speed gear box designed gearbox for drilling or driving at LO or HI speeds. A switch slide switch is located on the top of the drill to select either LO or HI speed. When using drill in the LO speed range, speed will decrease and the drill will have more power and torque.
  • Page 19: Led Worklight

    HAMMER MODE (Fig. 11a) Fig, 11a Hammer Icon Torque indicator To select hammer mode, rotate the torque adjustment ring until the hammer icon_ aligned with the torque indicator, and clicks into position. LED WORKLIGHT (Fig, 12) Fig. The LED worklight located on the base of the drill will come on when the trigger switch is depressed.
  • Page 20 INSTALLING BITS (Fig. 14) Fig. Ratcheting • Lock the trigger switch by placing the keyless direction of rotation selector in the OFF chuck OPEN (center) position. Chuck (release) Drill bit jaws • Open or close the chuck jaws to a point where the opening is slightly larger than the bit size you intend to use.
  • Page 21 USING THE AUXILIARY HANDLE To tighten ASSEMBLY (Fig. 16) I Fig. An auxiliary handle assembly is packed with 360 ° the drill for ease of operation and to help prevent loss of control. The handle can be rotated 360 ° and it can also be mounted on the opposite side for left hand use.
  • Page 22: Wood Drilling

    _WARNING: Be prepared for binding at bit breakthrough. When these situations occur, the drill has a tendency to grab and kick opposite to the direction of rotation and could cause loss of control when breaking through material. If not prepared, this loss of control can result in possible serious injury.
  • Page 23: Maintenance

    GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc. _WARNING: Do not at any time let brake fluids, gasoline, petroleum-based products,...
  • Page 24: Chuck Removal

    CHUCK REMOVAL (Fig. 18-20) Fig. The chuck can beremoved and replace by a new one. Mallet • Lock the trigger switch byplacing the direction ofrotation selector incenter position. • Open t he chuck jaws. • Insert a5/16-in. orlarger hex key into the chuck ofthe drill a nd tighten the chuck jaws securely.
  • Page 25 © 20.0 VOLT LITHIUM-ION CORDLESS 1/2-in. HAMMER DRILL / DRIVER MODEL NUMBER 320.29004...
  • Page 26: Part Description

    i#,__I.-tl _...][_,..._ g 20.0 VOLT LITHIUM-ION CORDLESS 1/2-in. HAMMER DRILL/DRIVER MODEL NUMBER 320.29004 The Model Number will be found on the Nameplate attached to the right side of the drill, Always mention the Model Number in all correspondence regarding your tool, ITEM PARTS PART DESCRIPTION...
  • Page 27 i#,__I =tl_...][_,..._ g 20.0 VOLT LITHIUM-ION CORDLESS 1/2-in. HAMMER DRILL/DRIVER MODEL NUMBER 320.29004 The Model Number will be found on the Nameplate attached to the right side of the drill, Always mention the Model Number in all correspondence regarding your tool, ITEM PARTS PART...
