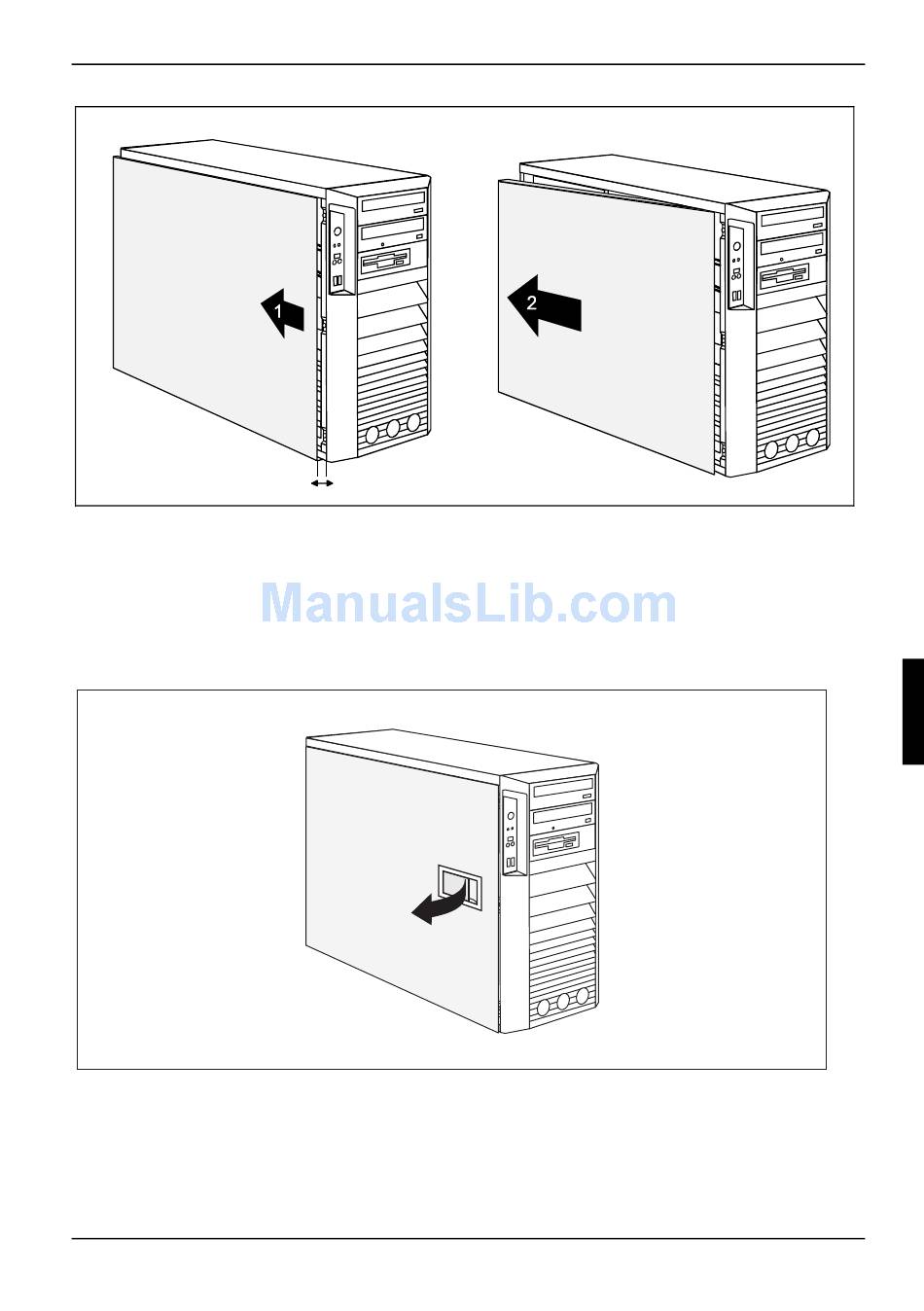

Slide the side cover approximately 2 cm (a) in the direction of the arrow (1), until the stop.
Pull the side cover in the direction of the arrow (2) of the casing.
Variant B (version with a locking lever)
Unscrew the locking bolt for the side cover on the rear panel of the casing.
Pull the locking lever (1).
The side panel is now free and can be detached.
A26361-K990-Z120-1-7619, Edition 6
a
1
System upgrades
33
