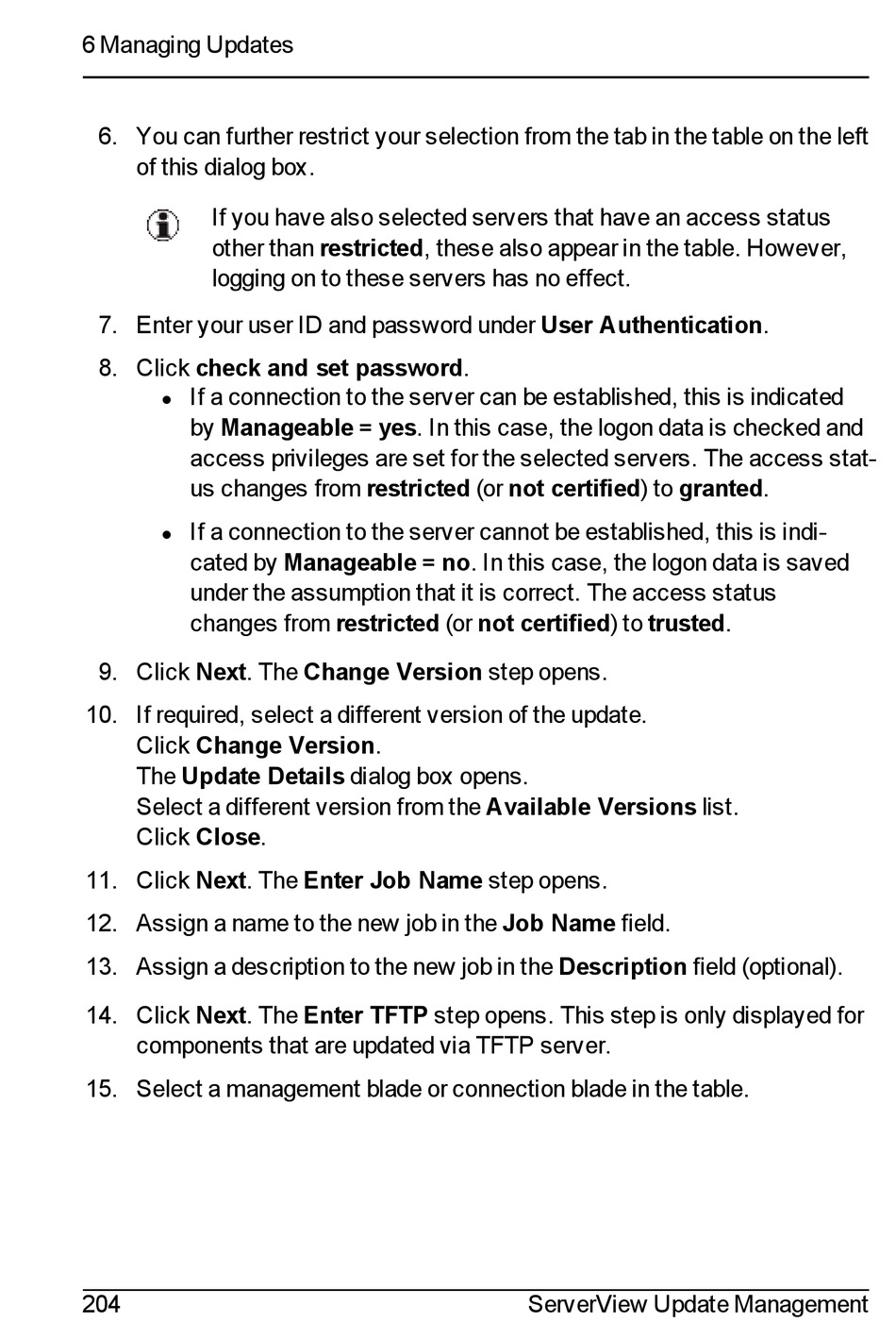

Fujitsu ServerView Operations Manager V6.12 User Manual page 204

6 Managing Updates
6. You can further restrict your selection from the tab in the table on the left
of this dialog box.
If you have also selected servers that have an access status
other than restricted, these also appear in the table. However,
logging on to these servers has no effect.
7. Enter your user ID and password under User Authentication.
8. Click check and set password.
If a connection to the server can be established, this is indicated
l
by Manageable = yes. In this case, the logon data is checked and
access privileges are set for the selected servers. The access stat-
us changes from restricted (or not certified) to granted.
If a connection to the server cannot be established, this is indi-
l
cated by Manageable = no. In this case, the logon data is saved
under the assumption that it is correct. The access status
changes from restricted (or not certified) to trusted.
9. Click Next. The Change Version step opens.
10. If required, select a different version of the update.
Click Change Version.
The Update Details dialog box opens.
Select a different version from the Available Versions list.
Click Close.
11. Click Next. The Enter Job Name step opens.
12. Assign a name to the new job in the Job Name field.
13. Assign a description to the new job in the Description field (optional).
14. Click Next. The Enter TFTP step opens. This step is only displayed for
components that are updated via TFTP server.
15. Select a management blade or connection blade in the table.
204 ServerView Update Management
