FujiFilm Mount Adapter Use Manual

Using a Mount Adapter
MOUNT ADAPTER SETTING Options
Pressing the function button on the mount adapter displays l MOUNT ADAPTER SETTINGS options.
Choosing a Focal Length g
If the lens has a focal length of 21, 24, 28, or 35 mm, choose a matching option in the
menu at right. For other lenses, select option 5 or 6 to display the menu shown below
at left, press the selector right to display focal length settings, and use the selector to
enter the focal length.
MOUNT ADAPTOR SETTING
LENS 1
LENS 2
LENS 3
LENS 4
LENS 5
LENS 6
R The camera adjusts the size of the bright frame in the optical viewfi nder according to lens focal length.
17 mm or less 17 mm or less
P 2000 F5.6
Bright frame not displayed.

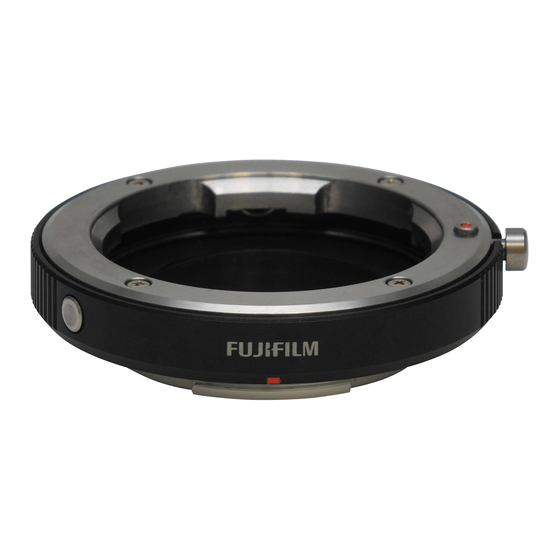

Thank you for buying a FUJIFILM product. The FUJIFILM M MOUNT ADAPTER
allows M-mount lenses to be mounted on the X-Pro1, which in turn can process
images taken with M-mount lenses as required to maintain image quality and
correct for a variety of eff ects. Note that using the M-mount adapter requires
camera fi rmware version 1.10 or later; check the fi rmware version before pro-
ceeding.
g
FOCAL LENGTH SETTING
DISTORTION CORRECTION
COLOR SHADING CORRECTION
PERIPHERAL ILLUMINATION CORRECTION
Both white and blue frames are dis-
played, the former for infi nity and
the latter for distances of about
2 m/6.6 ft.
R The camera does not automati-
cally correct for parallax.
LENS 5
INPUT FOCAL LENGTH
2
1
0 5 0 mm
9
8
SET CANCEL
18 mm–60 mm 18 mm–60 mm
P 2000 F5.6
MOUNT ADAPTOR SETTING
LENS 1
LENS 2
LENS 3
LENS 4
LENS 5
LENS 6
SET
61 mm or more 61 mm or more
P 2000 F5.6
Both red and blue frames are dis-
played. The frames are not adjusted
for focal length, making the elec-
tronic viewfi nder the recommend-
ed choice for framing pictures.
BL01765-200
21mm
24mm
28mm
35mm
50mm
75mm
