Chapter 6: Connect to External AV Device

6.1 Connect Video Cable

Freecom MediaPlayer supports 4 types of video output; "Composite, S-video, Component,
DVI". Use the video connection that your TV supports. Normally, TV supports composite
video connection, and this package includes composite video cable.
When you can not see normal screen after connecting video cable, check
following:
1. "TV "– Switch to Video Input Mode: Turn on TV, and switch to video input mode same
as video connection. See TV user manual.
2. "Freecom MediaPlayer" – Switch to Video Output Mode: Press "TV OUT" button
repeatedly. Whenever "TV OUT" is pressed, the video output signal changes.
3. When a normal screen appears, save the configurations of the Freecom MediaPlayer.
See "6.3.1 Video Setup".

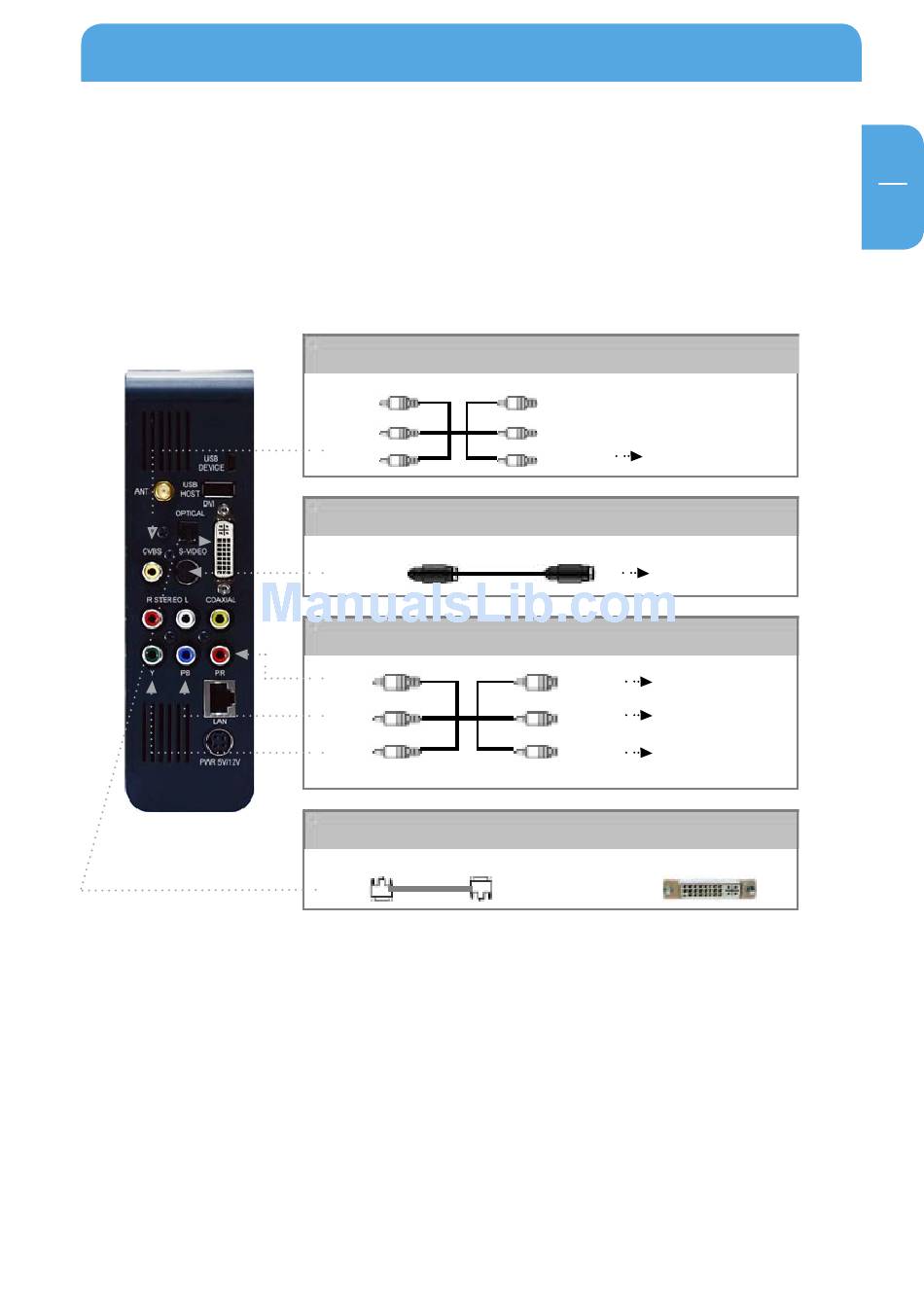

1. Composite: Yellow RCA cable. (Supplied)
Yellow
•
(CVBS)
2. S-Video: Black rounded cable (not supplied)
•
S-VIDEO
3. Component: Y, Pb, Pr component cable (not supplied)
Red
•
(Pr)
Blue
•
(Pb)
Green
•
(Y)
4, DVI : DVI Cable (not supplied)
•
DVI

Connect to External AV Device

Yellow Connect to Composite
•
(CVBS) (CVBS) Jack of TV
Connect S-Video Jack of TV
•
Red
•
Connect Pr Jack of TV
(Pr)
Blue
•
Connect Pb Jack of TV
(Pb)
Green
•
Connect Y Jack of TV
(Y)
Connect DVI Jack of TV
