5.1 Connect to External AV Device

5
5.1.1 Connect Video Cable
The player supports 3 types of video output; "Composite, S-video and Component". Use
the video connection that your TV supports. Normally, TV supports composite video
connection; a composite video cable is supplied with the player.
When you do not see a normal screen after connecting the video cable,
check the following:
1. "TV "– Switch to Video Input Mode: Turn on TV, and switch to video input
mode same as video connection. See TV user manual.
2. "player" – Switch to Video Output Mode: Press "VIDEO" button repeatedly.
Whenever press "VIDEO", video output signal is changed.
3. After you see normal screen, you have to save video configuration of
the player. See "5.2.1 Video Setup".
5

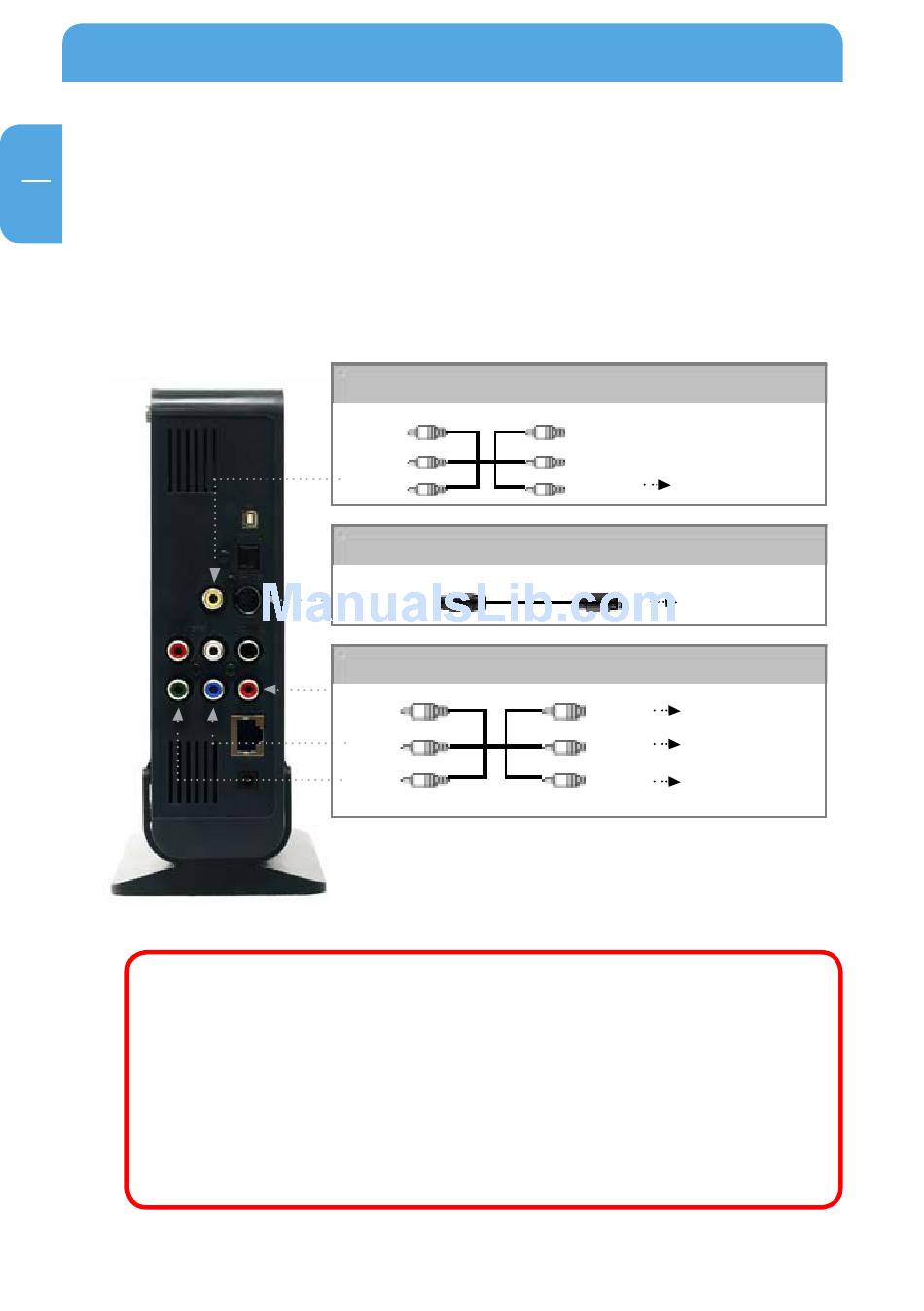

1. Composite: Yellow RCA cable. (Supplied)
• Yellow
(CVBS)
2. S-Video: Black rounded cable (not supplied)
•
S-VIDEO
3. Component: Y, Pb, Pr component cable (not supplied)
Red
•
(Pr)
Blue
•
(Pb)
Green
•
(Y)
Yellow Connect to Composite
•
(CVBS) (CVBS) Jack of TV
Connect S-Video Jack of TV
•
Red
•
Connect Pr Jack of TV
(Pr)
Blue
•
Connect Pb Jack of TV
(Pb)
Green
•
Connect Y Jack of TV
(Y)
