- Page 1 Operation Manual BDN 14x50 Day / Night Binoculars 105 Sparks Ave., Toronto ON, M2H 2S5...
- Page 2 This unit is a sophisticated electronic device. To operate it properly, please read this manual carefully. Ignoring operation procedures described in this manual will void your warranty. • NEVER disassemble the unit. This device contains a source of high voltage, which may be hazardous to your health. •...
-
Page 3: Specifications
FEATURES This optical instrument utilizes unique optical scheme to that enables observer to use the high magnification binoculars 24 hours a day, eliminating the need for separate day and night optics. • Day / Night round the clock model • High magnification with large objective lens •... -
Page 4: Design And Appearance

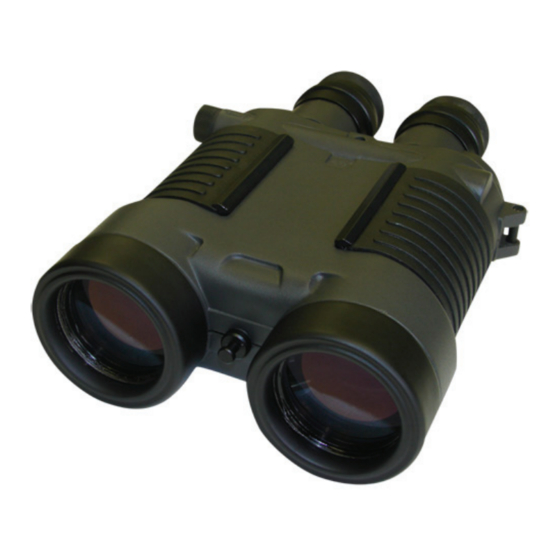

DESIGN AND APPEARANCE 1 – Body 2 – Day / night switch 3 – Eyepieces 4 – Eyepiece dioptric adjustment knobs 5 – Battery compartment with cap 6 – Rubber grip 7 – Objective lens caps OPERATION DURING DAY • Unpack the unit from the soft case, trying to keep the lenses closed by caps. - Page 5 • Adjust the distance between the eyes by turning both eyepiece assemblies (3) until two images converge into one. This adjustment is made tough intentionally to provide for a water resistance. • Adjust the focus individually for each eye using the focus adjustment knobs (4).
-
Page 6: Customer Support
Postage, insurance, and shipping costs incurred while presenting your NEWCON product for warranty service are your responsibility. If shipping from North America, please, include a cheque or money order payable to NEWCON OPTIK for the amount of $15.00 to cover handling and return shipping. CUSTOMER SUPPORT Should you experience any difficulties with your Newcon Optik product, consult this manual first. - Page 7 QUALITY ACCEPTANCE CERTIFICATE Image Intensifier Tube Serial Number: _______________________ Measured Resolution, lp/mm Photocathode sensitivity, integral, μA/ lm Light amplification 25,000 BDN 14x50 serial number _____________________________ This Day / Night Binoculars BDN 14x50 meet all technical specifications and have passed the inspection. Date of production: ___________ Quality Inspector signature: __________________________ Quality Assurance Seal...
- Page 8 NEWCON OPTIK ™ 2010 Printed in Canada...
