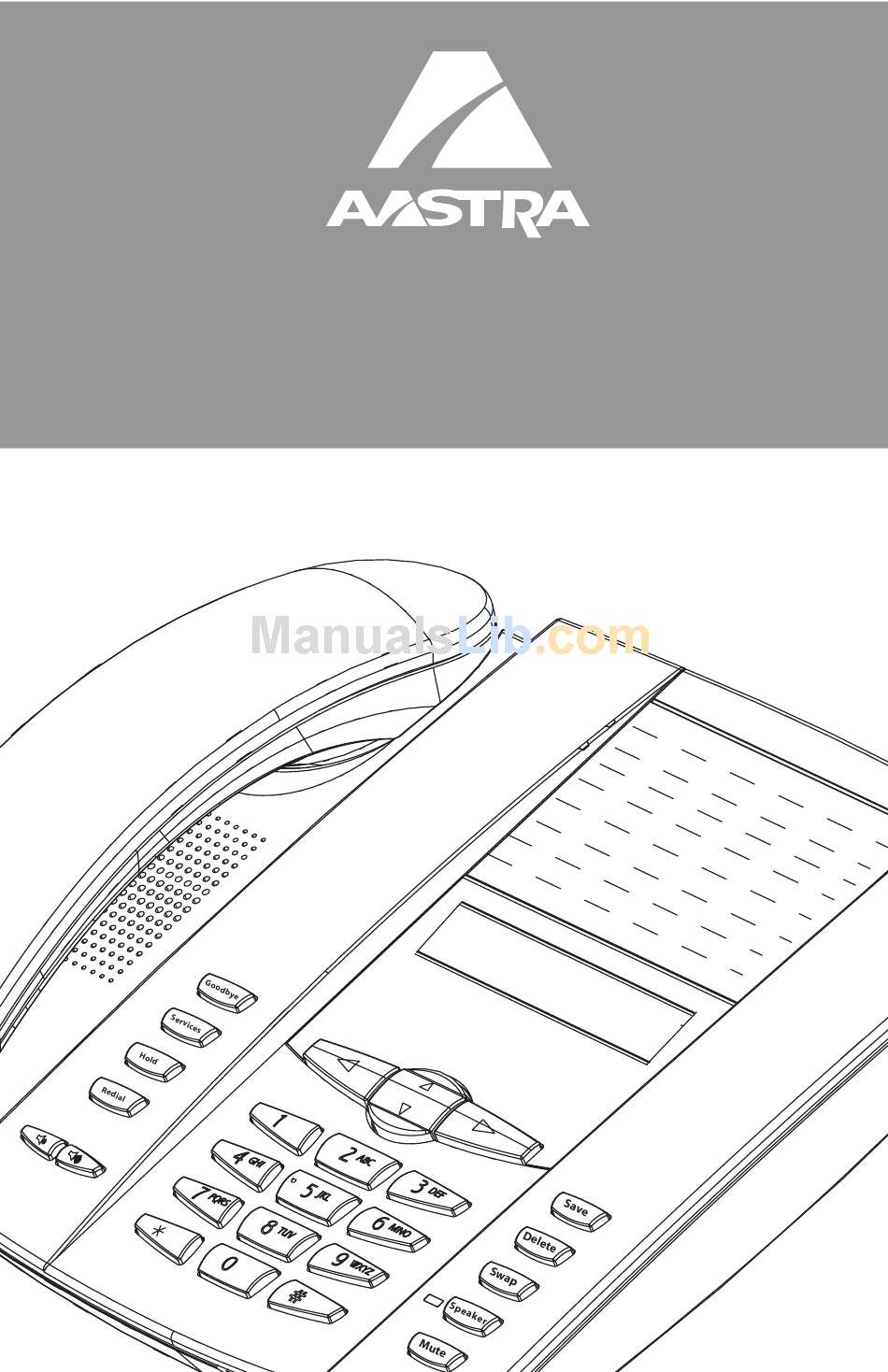

- Page 1 51i IP Phone Installation Guide 41-001211-00 Rev 00...
-
Page 3: Software License Agreement
Software License Agreement Aastra Telecom Inc., hereinafter known as "Seller", grants to Customer a personal, worldwide, non-transferable, non-sublicenseable and non-exclu- sive, restricted use license to use Software in object form solely with the Equipment for which the Software was intended. This Product may inte- grate programs, licensed to Aastra by third party Suppliers, for distribution under the terms of this agreement. -
Page 5: Table Of Contents
Table of Contents Software License Agreement... iii Introduction ...1 Phone Features ... 1 Requirements ... 1 About This Guide ... 2 Phone Parts ... 3 Key Panel ...4 Key Description...5 Installation and Setup ...7 Direct or Shared Network Connection ... 7 Connecting to the Network and to Power ... -
Page 7: Introduction
Congratulations on your purchase of the Model 51i IP Phone! The 51i communicates over an IP Network, allowing you to receive and place calls in the same manner as a regular business telephone. The 51i is capable of supporting the SIP protocol. -
Page 8: About This Guide
53i, 55i, 57i, 57i CT Administrator Guide and the Aastra Model 51i User Guide. SIP IP Phone Aastra 51i, 53i, 55i, 57i, 57i CT Administrator Guide – is designed for network administrators, system administrators, developers and partners who need information on installing this product on an IP network. -
Page 9: Phone Parts
Inline Power Injector A PoE (Power over Ethernet) inline power injector supplies 48v power to the 51i through the Ethernet Cable on pins 4 & 5 and 7 & 8. Warning: Do not use this PoE inline power injector to power other devices. -
Page 10: Key Panel
High quality speakerphone HAC handset Goodbye key Services key Hold key Redial Key Volume control Navigational keys 3-line LCD screen Message waiting lamp Keypad Model 51i IP Phone Installation Guide Goodbye Services Hold Redial Speakerphone Mute key Save/Delete/Swap Keys Save Delete Swap... -
Page 11: Key Description
Can be used on Speaker Speaker active calls to switch from the handset to handsfree. Mute key - Mutes the microphone so that your caller cannot hear you. Mute Mute Key Description page 20 Model 51i IP Phone Installation Guide for more... - Page 12 LEFT arrow key erases the character on the left; pressing the RIGHT arrow key sets the option. *See the Aastra 51i User Guide for more information about each of these keys. Model 51i IP Phone Installation Guide...
-
Page 13: Installation And Setup
Installation and Setup The 51i can be setup to share a network connection with another network device. Power can be provided by the supplied power adapter or by an 802.3af compliant network power source or with a PoE inline power injector (optional accessory). -
Page 14: Shared Network Connection
. Plug the other end of the Ethernet cable into the network jack on the network device you are sharing the network connection with. Network Jack (if Inline power provided, do not install the power adapter) Other Network Devices Model 51i IP Phone Installation Guide To Other Network Device Ethernet Cables Power Adapter... -
Page 15: Connecting To The Network And To Power
Note: The jack on the 51i does not supply inline power onto other network devices. All Ethernet cables used must be minimum category 5/5e straight- through cables, such as the cable provided with your phone. - Page 16 Note: You should connect the power supply to a surge protector or power bar. All Ethernet cables used must be minimum category 5/5e straight-through cables, such as the cable provided with your phone. 10 Model 51i IP Phone Installation Guide Ethernet Cables...
-
Page 17: Connecting A Handset
Then route the handset cord through the groove as shown in the illustration below. Attach the handset to the other end of the handset cord. Handset Model 51i IP Phone Installation Guide... -
Page 18: Desk Or Wall Installation
Desk or Wall Installation Install on the Desk The desk installation for the 51i IP phone consists of two legs that attach to the back of the phone near the top corners. A total of four different viewing angles allows users to personalize their phone viewing preference. - Page 19 Also, if 802.3af compliant in-line power is not provided on your network, and you are installing the 51i on a wall using a PoE in-line power injector, you may also wish to use an equivalent flat Ethernet cable rather than the one provided.
-
Page 20: Customizing Your Phone
6. Press the Done softkey at any time to exit the option and save the change. 7. Press the Cancel softkey, the time to exit without saving changes. 14 Model 51i IP Phone Installation Guide Access from Phone UI on the phone. -
Page 21: Accessing Your Options Via The Aastra Web Ui
3. At the prompt, enter your username and password and click The Network Status window displays for the IP phone you are access- ing. Note: For a user, the default user name is “user” and the password field is left blank. Model 51i IP Phone Installation Guide... - Page 22 Status, Operation, Basic Settings. Reference For more information about changing your options using the Aastra Web UI, see the Aastra Model 51i IP Phone User Guide. Language Select a language that you would like your phone to use for displaying prompts and menus.
- Page 23 Use these options to set the preference of contrast level and backlight for your phone. • Contrast Level Use the Change softkey to cycle through eight contrast settings, which brighten or darken the display. Model 51i IP Phone Installation Guide...
-
Page 24: Live Dialpad
Availability of feature dependant on your phone system or service provider. Set Audio The 51i allows you to use a handset to handle incoming or outgoing calls, and handsfree to handle incoming calls. The audio mode option allows you to set the audio on the IP phone. - Page 25 911, 999, 112, and 110; this is con- figurable via the WebUI or configuration file. Hint: To quickly lock your phone, press the key. button and enter either Servi vices es button followed by the Servi vices es Model 51i IP Phone Installation Guide...
-
Page 26: Other Phone Features
Call Timer • When you make or answer a call, the Timer shows the elapsed time of the call. 20 Model 51i IP Phone Installation Guide adjusts the receiver, speaker, and while there is no active call. There are 10... -
Page 27: Troubleshooting Solutions
"Connecting a Handset" page 18 for instructions on how to change page 9 for details. "Connecting a Handset" Model 51i IP Phone Installation Guide page 11 Speaker Speaker "Connecting to the page 11. Check that... -
Page 29: Limited Warranty
(1) year period from the date of original purchase. If there is a defect or malfunction, Aastra Telecom shall, at its option, and as the exclusive remedy, either repair or replace the telephone set at no charge, if returned within the warranty period. - Page 31 17 setting time 17 setting time server 16 setting time zone 17 tone set, setting 17 user password 19 volume, adjusting 20 wall installation 13 warranty, limited 23 Web UI, using 15 Model 51i IP Phone Installation Guide Index-1...
- Page 36 If you’ve read this owner’s manual and consulted the Troubleshooting section and still have problems, please visit our Web site at www.aastratelecom.com, or call 1-800-574-1611 for technical assistance. © Aastra Telecom Inc. 2007 41-001211-00 Rev 00...
