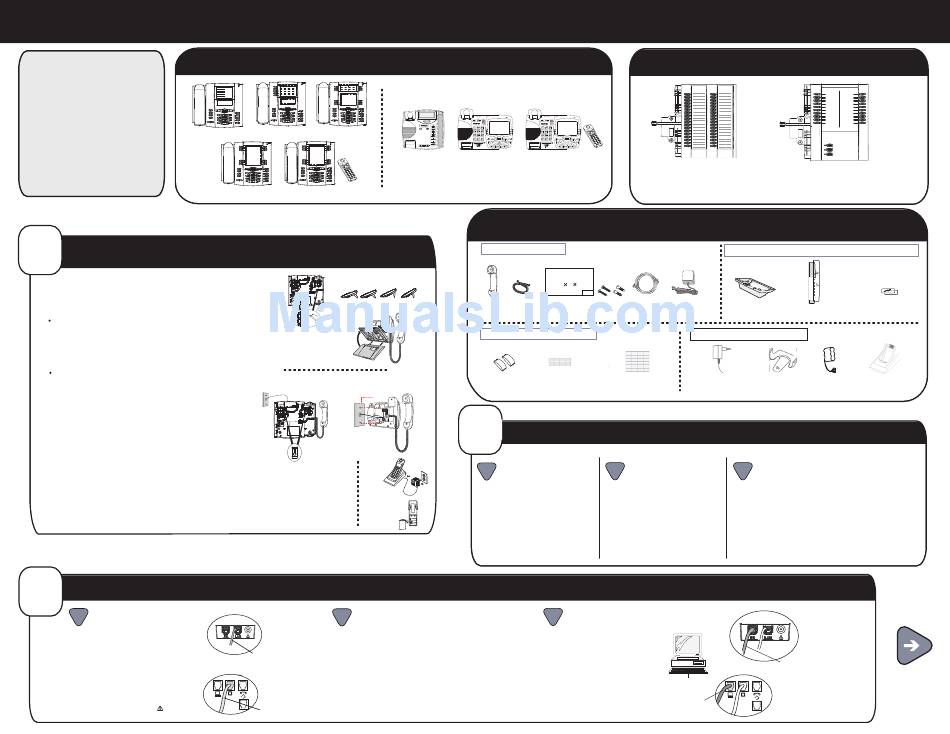

Aastra 51i User's Quick Start Manual

AastraLink Pro 160 User's Quick Start Guide -
This quick start guide is designed to
help you quickly set up and use your
IP phone in an AastraLink Pro 160
network. The complete documentation
set is available online at:
http://www.aastratelecom.com/support
1
Install Your Phone on a Desktop or a Wall
To install the phone on a desk:
NOTE: Before installing the phone on the desk, connect the handset cord to the handset;
connect the other end of the cord into the handset jack on the back of the phone.
5i Series Phones
Attach each leg to the back of the phone by inserting the tabs on the leg into the
slots on the bottom of the phone. There are three pairs of leg slots on each corner
of the phone; each leg uses two pairs of slots when attached. (See Figure A)
There are a total of 4 viewing angles (by reversing the legs, the incline on the phone
can be changed). (See Figure B).
9143i, 9480i, 9480i CT Phones
1. Attach the stand by inserting the tabs on the stand (marked with
on the bottom of the phone. For a higher viewing angle, use the slots marked
m
For a lower viewing angle, use the slots marked .
2. Push the stand towards the phone until it snaps into place. (See Figure C).
To install the phone on a wall:
NOTE: Before installing the phone on the wall, connect the handset cord to the handset;
connect the other end of the cord into the handset jack on the back of the phone. Use
steps 3 and 4 to connect all other cables to the phone. If you have a phone wall plate with
pegs already installed on your wall, skip steps 1 and 2. Refer to Figures D and E.
1. Use the wall mount drilling template to locate and mark the position
for the mounting screws on the wall.
2. Drill the holes and insert the mounting screws (insert the wall anchors
before inserting the mounting screws if required).
3. Coil the cables into the spaces provided on the back of the phone.
4. Connect the Ethernet cable to the wall network jack.
5. Place the wall mount holes on the back of the phone over the screw
heads on the wall and pull down to lock the phone in.
3
Connect Your Phone to the AastraLink Pro 160 Network
A
5i Series Phones
1. Connect the supplied Ethernet cable
l
to the port (on 9143i, 9480i, and
9480i CT phones) the LAN port (on 5i phones).
2.
Connect the other end of the
Ethernet cable to the Ethernet
hub/switch or the network jack.
NOTE: If your Ethernet network DOES NOT
provide power to the phone (either from the
switch, or using an inline power injector),
you must use the supplied 48v AC adapter
to power the phone. Connect the 48v adapter
cable into the phone's power connector and
plug the adapter into an AC power source.
41-001134-04 REV 00
Supported Aastra SIP IP Phone Models
Services Save
Del
Swap
51i 53i 55i
57i 57i CT
Figure A
Figure C
Figure D
o
) into the slots
(5i Series Phones)
(9143i, 9480i, 9480i CT Phones)
n
.
To install the cordless handset:
Figure F
1. Attach the charging cradle power adapter to the
charging cradle and plug the other end into a
non-switched AC outlet. (Figure F)
2. Turn the cordless handset face down, remove the
back cover, and install the battery. (Figure G)
Replace cover.
3. (optional) Clip the belt clip onto the back of the phone.
B
If you already have a network device, such as your computer,
1.
connected to the Network Jack where you are installing the
phone, you will need to temporarily disconnect it from the
To Network Network Jack.
k
WARNING: This will disconnect your network connection.
9143i, 9480i, 9480i CT Phones
2. Connect the Ethernet cable from the phone to the Network Jack.
NOTE: The phone begins the startup process when power is first connected.
To Network
35i
Hold Redial Goodbye Hold Redial
Options
1 2 ABC 3 DEF 1 2
Conf ABC
Xfer 4 GHI 5 JKL 6 MNO 4 GHI 5 JKL
7 PQRS 8 TUV 9 WXYZ 7 PQRS 8 TUV
L3
L2
* 0 # Xfer Icom * 0
L1
Conf Services
L1 L2 L3 L4
9143i 9480i
9480i CT
SIP IP Phone Piece Parts
All models have these:
Figure B
Handset Handset
Cord
The 5i Models also have these:
Base Legs
Small Programmable
Figure E
Key Card (53i)
2
Identify Your Network Installation Option
A
Phone Powered by Inline
Power from the Network
For Ethernet networks
that supply in-line power to
the phone (IEEE 802.3af):
Figure G
- Use the Ethernet cable (supplied)
to connect from the phone
directly to the network.
- No 48v AC power adapter
required.
Reconnect the cable previously removed
in step "B" to the back of the phone
marked with ; (9143i, 9480i, 9480i CT phones)
or PC (5i Series phones).
Phone Setup
Optional Aastra IP Phone Expansion Modules
35i
Goodbye
Options
3
DEF
6 MNO
9 WXYZ
#
Xfer Icom
Conf Services
L1 L2 L3 L4
536M
Provides up to 36 additional softkeys
to the 53i, 55i, 57i, and 57i CT
The 9143i, 9480i, and 9480i CT Models also have these:
Wall Mount
Drilling Template
asdassa
asdadsda
Mounting Template Ethernet Power Adapter
and Hardware Cable
The CT Models also have these:
Large Programmable Power Adapter
(for charging cradle)
Key Card (55i)
B
Phone Powered by
48V AC Power Adapter
For Ethernet networks that
DO NOT supply power to the phone:
- Use the 48V AC Power Adapter
to connect from the DC power port
on the phone to a power source.
- Use the Ethernet cable (supplied)
to connect from the phone to a
network jack.
C
Other Network Devices
To Other
Network Device
560M
Provides up to 60 additional softkeys
to the 55i, 57i, and 57i CT
Base Stand Number Card
Programmable Key Card
and Lens
and Plastic Lens (33i only)
Belt Clip Battery Charging Cradle
(for cordless
(for handset) (for cordless
handset) handset)
C
(Optional) Phone Powered
by PoE Power Injector
For Ethernet networks that DO NOT
supply power to the phone:
- Use a Power over Ethernet (PoE)
NOTE: The optional PoE and Ethernet
cable are available from your Aastra
power injector.
dealer as optional accessories
- Use the Ethernet cable (supplied)
(p/n D0023-0031-00-00 and
to connect from the phone to the p/n D0061-0065-00-00, respectively).
PoE power injector.
- Use an additional Ethernet cable
from the PoE to the Network jack (not supplied).
5i Series Phones
To Other
Network Device
9143i, 9480i, 9480i CT Phones
