Monarch 9825 Reference Manual
  1. Manuals
  2. Brands
  3. Monarch Manuals
  4. Printer
  5. 9825
  6. Reference manual

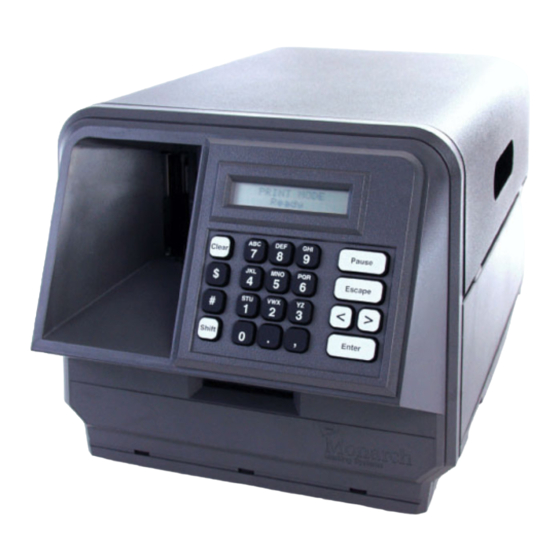

Monarch 9825 Reference Manual

Hide thumbs Also See for 9825:

Advertisement

Quick Links

Download this manual See also: User Manual

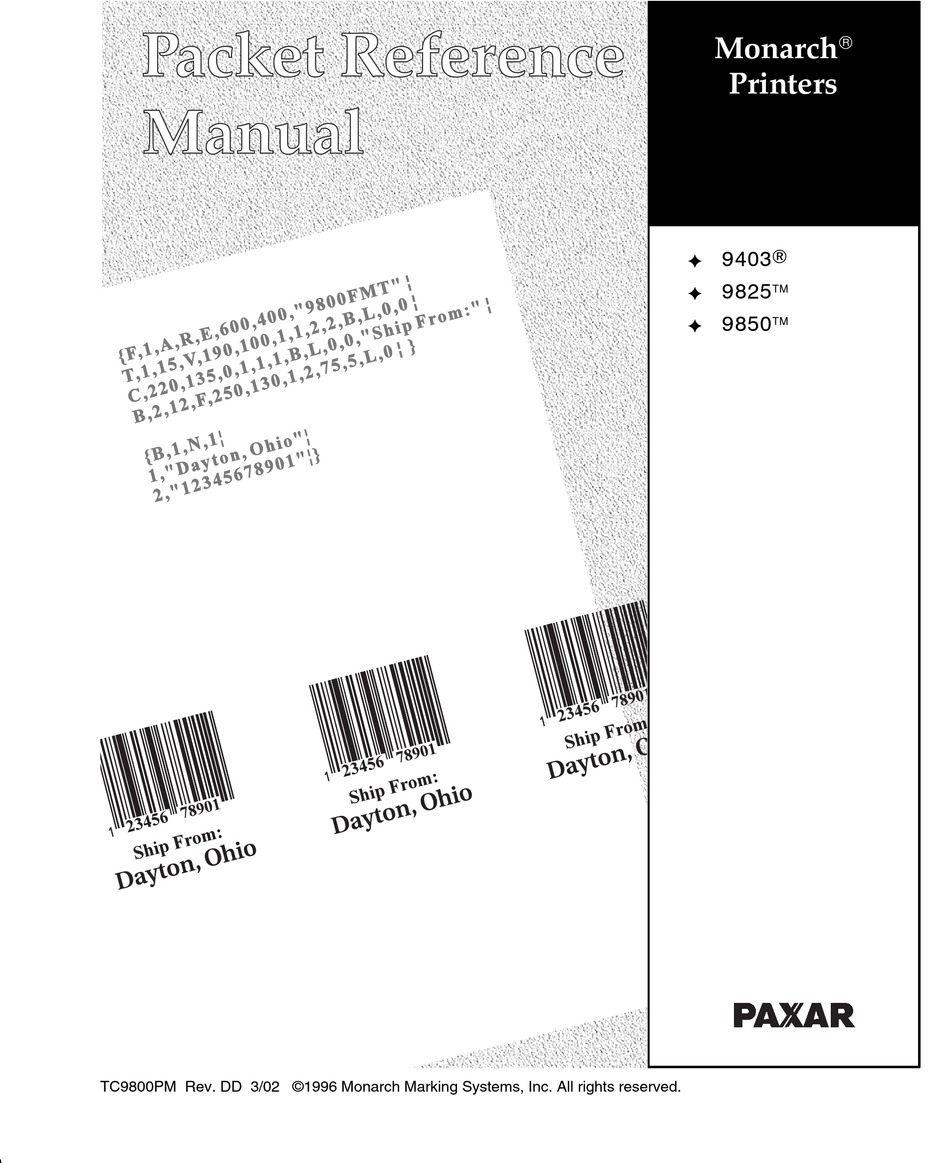

TC9800PM Rev. DD 3/02 ©1996 Monarch Marking Systems, Inc. All rights reserved.
