Monarch 9876 Specification Sheet

®
Monarch
(Mobile Work Station)

Product Specification

STANDARD FEATURES
Dimensions (MWS as shown above)
Height – 39" (991 mm)
Width – 24" (610 mm)
Length – 34" (864 mm)
Weight - 180 lbs. (82 kg)
(w/2 batteries, charger, steel top w push /
pull handles, wheels)

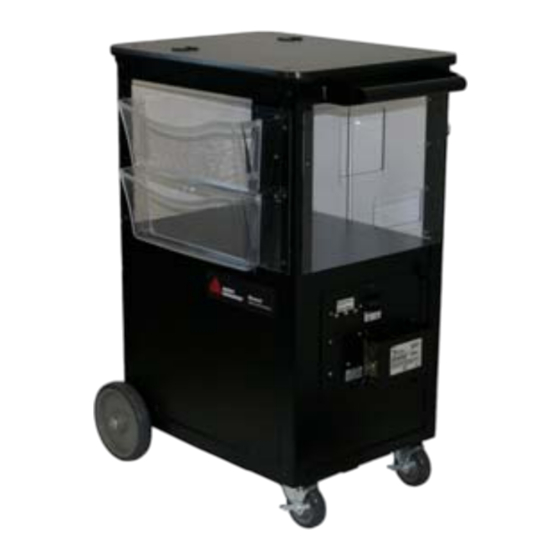

Weight (w/options shown in Options photo) 210 lbs
(95 kg) (Table Top, 300W AC Inverter, full mid shelf
enclosure w/ file pockets)
Height - 40" (1016 mm) with Table Top
Batteries:
24 V Standard: (2) 12-volt, 55 amp-hours, deep cycle
batteries, sealed lead-acid, non-venting, and no
transportation restrictions
Battery Status Panel:
Lights - Red, Yellow, and Green
Tone - Battery Low Alert
ENVIRONMENT RANGES
Operating Temperature:
40° to 104° F (5° to 40° C)
Storage:
40° to 140° F (5° to 60° C)
Humidity/Operating and Storage:
5% to 90% non-condensing
Electrostatic Discharge and Air Quality:
Some problems with electronic equipment may occur in environments prone to static discharge or extreme dust
conditions. Paxar suggests that you take precautions to minimize these problems.
™
9876 MWS
™
Power:
24 VDC
Charger Input: (Voltage Select)
115 VAC +/- 10% (60Hz)
230 VAC +/- 10% (50Hz)
IEC Connection
Charger Output:
5 hours "typical" charge time
Reverse polarity and short circuit-proof
Temperature compensated
Smart charging
10-amp peak charging current
Product Warranty:
60 days parts and labor - 1 year parts only
Full written warranty statement available on request.
• Heavy Duty Welded Steel
Frame / 8" Wheels / 5/8"
Axel / 4" Swivel Locking
Wheels
• Ideal for Tabletop Printers
• Power Management
System
• Battery Status Panel
• Black Powder Coated
