Monarch 9403 Reference Manual
  1. Manuals
  2. Brands
  3. Monarch Manuals
  4. Printer
  5. 9403
  6. Reference manual

Monarch 9403 Reference Manual

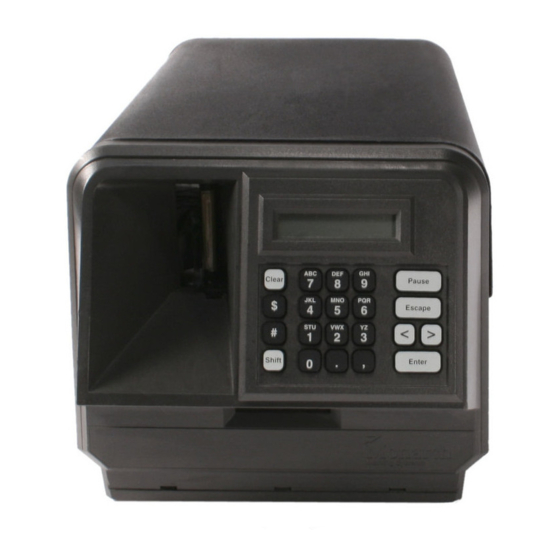

Monarch 9403 printer user manual
Hide thumbs Also See for 9403:

Advertisement

Quick Links

Download this manual
TC9800PM Rev. DB 2/01 ©1996 Monarch Marking Systems, Inc. All rights reserved.
Monarch
Printers
✦
✦
✦
✦
✦
✦
✦

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9403 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Monarch 9403

Summary of Contents for Monarch 9403

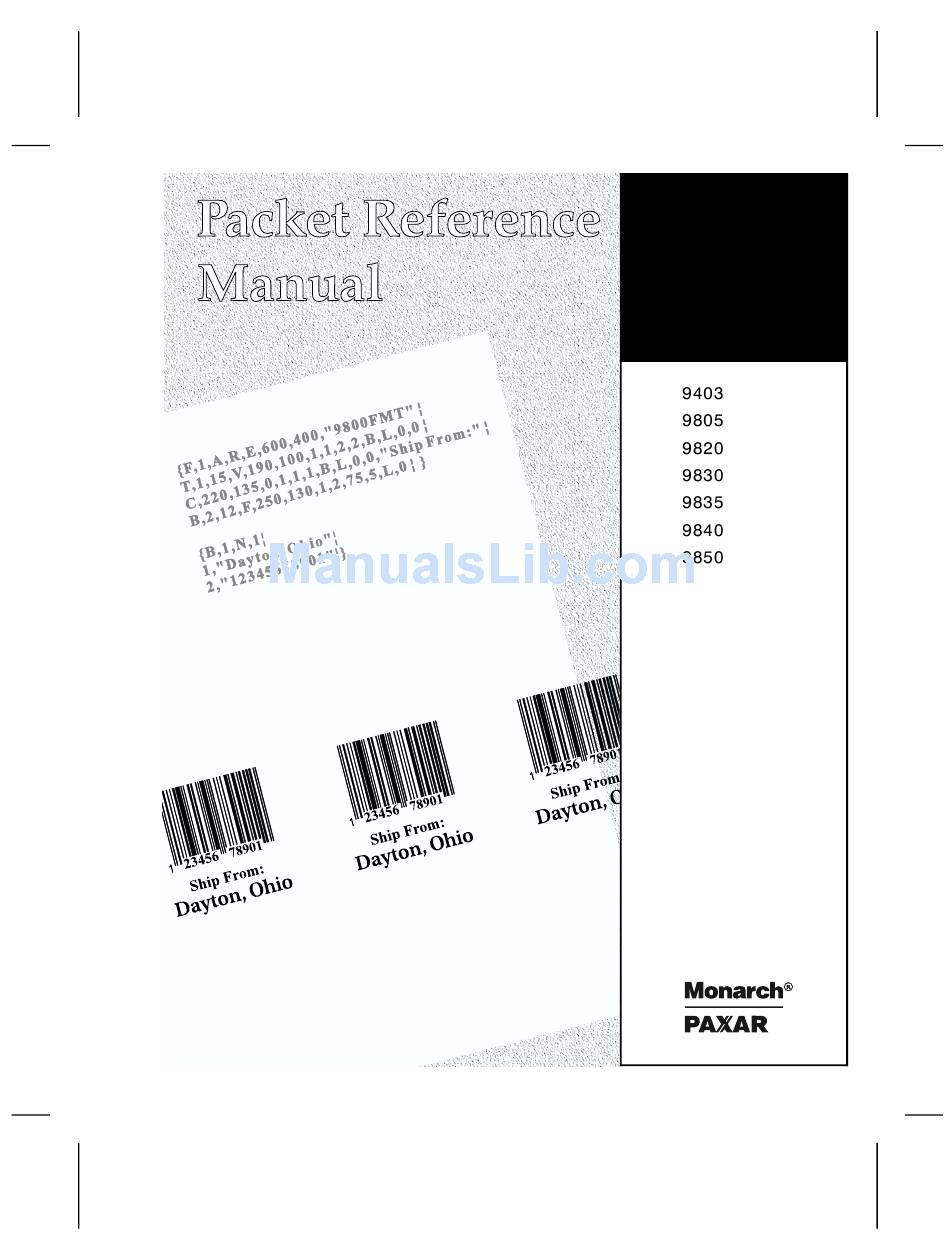

  • Page 1 TC9800PM Rev. DB 2/01 ©1996 Monarch Marking Systems, Inc. All rights reserved.  Monarch Printers  ✦  ✦  ✦  ✦  ✦  ✦  ✦...
