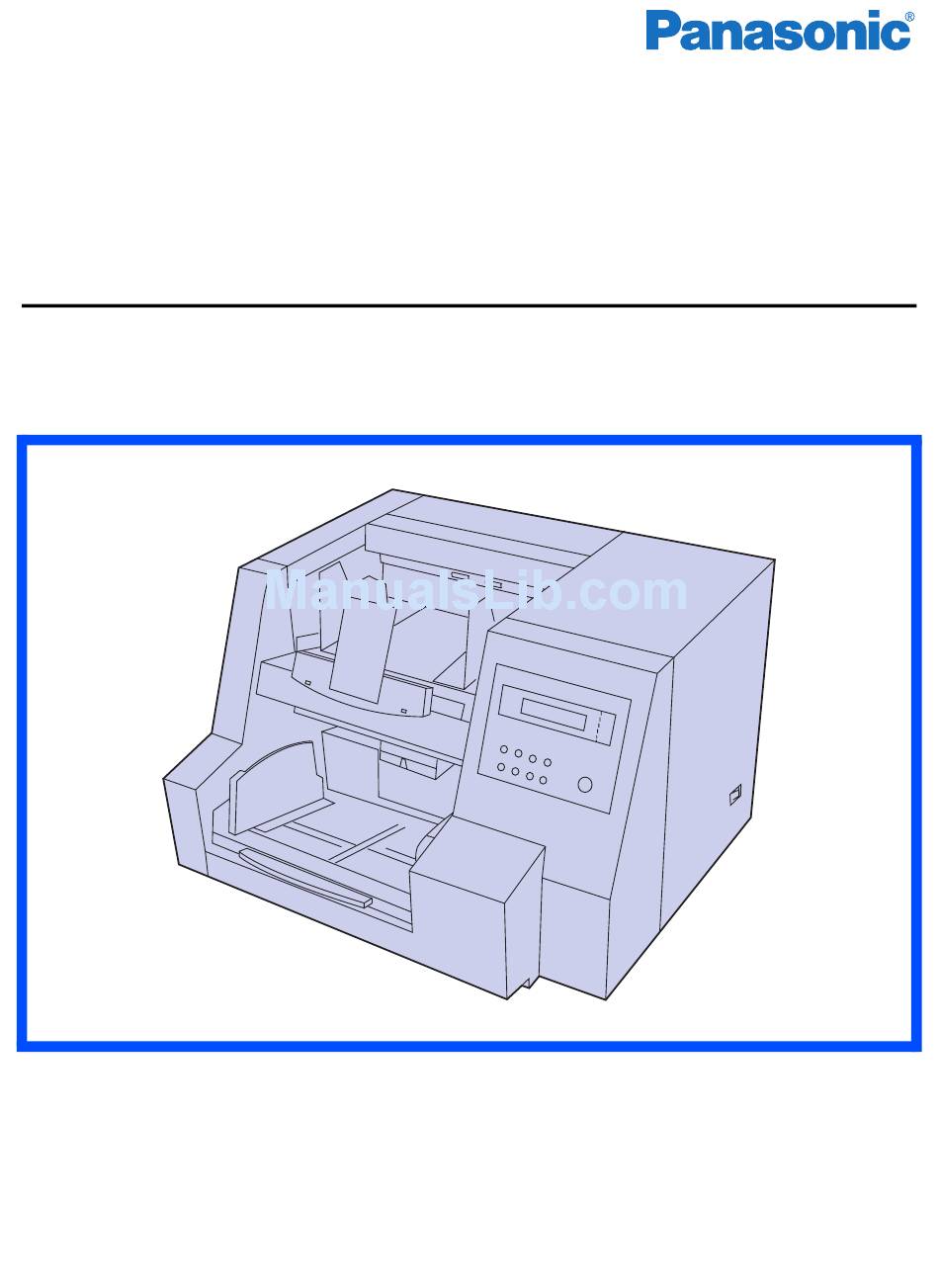

Installation Manual

High Speed Color Scanner
Model No. KV-S3105C
High speed Scanner
Model No. KV-S3085
This manual contains information on installing the scanner. Please read this manual before
operating unit.
For information on operating the scanner, please read the operating instructions recorded on the
CD-ROM enclosed with this unit.
For information on maintaining the scanner, please read the maintenance manual enclosed with
this unit.
Please carefully read this manual, the operating instructions and maintenance manual.
Keep these documents in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KV-S3085 and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic KV-S3085

  • Page 1: Installation Manual

    High Speed Color Scanner Model No. KV-S3105C High speed Scanner Model No. KV-S3085 This manual contains information on installing the scanner. Please read this manual before operating unit. For information on operating the scanner, please read the operating instructions recorded on the CD-ROM enclosed with this unit.
  • Page 2 ≥ A versatile solution for your imaging needs, Panasonic developed Panasonic Image Enhancement Technology to improve the quality of your originals. ≥ With our easy to use functions, reliable paper handling, easy maintenance and more, Panasonic is ready to contribute to your imaging needs.
  • Page 3: Table Of Contents

    Table of Contents Before Using Notice ............Precautions.
  • Page 4: Notice

    • If you need more information about the roller cleaning paper, please refer to the Material Safety Data Sheet (MSDS). • Please ask your Panasonic sales company about obtaining the Material Safety Data Sheet. KEEP AWAY FROM FIRE. Federal Communications Commission Requirements...
  • Page 5 A replacement fuse cover can be purchased from your local Panasonic Dealer. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safely.
  • Page 6 Notice Caution Labels...
  • Page 7: Precautions

    Precautions The following precautions are recommended to extend the life of the unit: Prior to scanning, remove all sta- Do not place any liquids near the Do not place books, paper, or other ples and paper clips from pages. unit. items on the unit.
  • Page 8: Operating Environment

    Precautions Operating Environment Do not place the unit in direct sunlight or in a cold draft. Do not operate or place the unit in a vertical position. Cold Do not place the unit near a heating appliance or an air Do not place the unit near other appliances which gen- conditioning vent.
  • Page 9 Precautions ∫ CD-ROM To prevent the CD-ROMs from accidental damages: Do not touch or write on the surface Do not leave the disc out of its Do not leave the disc in direct of the disc. protective case. sunlight or near heat sources. Do not place heavy objects on the To clean the disc, hold the disc by disc case or drop the case.
  • Page 10: Installing The Unit

    Installing the Unit ∫ Unpacking and Accessories Please check that all parts are included before installing the scanner. ≥ Blower ≥ CD-ROM (1 piece) Operating Instructions Driver Software ≥ Installation manual ≥ Exit tray stopper ≥ Maintenance manual ≥ Roller cleaning paper (3 pieces) ≥...
  • Page 11: Installing The Exit Tray Stopper And Exit Stopper

    Installing the Unit ∫ Installing the Exit tray stopper and Exit stopper Squeeze the end of the exit tray stopper metal guides slightly together, and insert them into the stopper slots of the exit tray. Then pull up the plastic part of exit tray stopper. (Install the exit tray stopper in the sequence of 1 through 3.) Stopper slots...
  • Page 12: Connecting Cables

    Installing the Unit ∫ Connecting cables ≥ Connect either the USB or SCSI interface cable. Do not connect USB and SCSI cables at the same time. ≥ Windows NT 4.0 supports only the SCSI interface. SCSI Connection You will need to purchase a SCSI cable from your local computer store or dealer. SCSI connector To computer Household AC outlet...
  • Page 13: System Requirements

    Installing the Unit ∫ System Requirements SCSI Connection USB Connection Minimum Pentium III, 1 GHz ® Pentium 4, 2 GHz or higher Recommended Minimum 256 MB Memory Recommended 512 MB or higher ® Windows Windows 98 SE Windows NT 4.0 Windows 2000 SP4 Windows 2000* Windows Me...
  • Page 14: Power Turn-On Sequence

    Installing the Unit ∫ Power turn-on sequence Turn on the power of the scanner. ≥ Set the power switch to the “|” position. (The LED and LCD will now light.) When “Ready” appears on the LCD display, turn on the power of the host computer.
  • Page 15: About Led

    Installing the Unit ∫ About LED LED indicates the status of the scanner as follows: LED light Status Green Ready to scan or scanning Green (flashing) Sleep mode Orange Initializing or warning Orange (flashing) Sleeping with warning *1 An error occurred *1: The rollers need to be cleaned or replaced.
  • Page 16: Drivers And Utilities Cd-Rom

    *Color upgrade kit option is required for KV-S3085. Note: ≥ RTIV (Reliable Throughput Imaging Viewer) is a Panasonic original application software, and does not require either TWAIN driver or ISIS driver. ≥ PIE is an acronym for Panasonic Image Enhancement Technology.
  • Page 17: Install Device Driver (Except Windows Nt 4.0)

    Drivers and Utilities CD-ROM ∫ Install device driver (Except Windows NT 4.0) Turn off the power of the scanner, if it is connected to your computer. Insert CD-ROM to your computer. Quick menu-software runs automatically. Select your scanner. Select Device Driver. Follow the instructions on the screen.
  • Page 18: Install The Multi-Color Dropout Utility

    Use [Control Panel]–[Add/Remove Programs]. (In Windows XP, select [Add or Remove Programs].) Select Panasonic High Speed Scanner Device Driver and click Change/Remove. Follow the instructions on the screen. ≥ In case of uninstalling TWAIN/ISIS/RTIV/Multi-Color Dropout Utility, use [Control Panel]–[Add/Remove Pro-...
  • Page 19: Increasing The Memory

    ∫ DIMM module extension KV-S3105C is equipped with 256 MB memory on the interface board. KV-S3085 in equipped with 64MB memory on the interface board. However, additional memory is required for scanning A3, color, double side images with 600 dpi, for example.
  • Page 20: Installing The Dimm Module

    Increasing the Memory Remove the four screws. ≥ These screws are used in step 2 of the “Installing the interface board.” Remove the interface board by pulling on the handle. ≥ Be sure not to insert your hand into the unit when removing the interface board.
  • Page 21 Increasing the Memory ¥ Installing the interface board Insert the interface board into the unit along the rails and push it in firmly. ≥ Confirm that the interface board plate is fully inserted until it firmly locks in place. Rail Rail Secure the interface board with the four screws.
  • Page 22: Repacking Instructions

    Repacking Instructions It is highly recommended that you keep the original carton and ALL packing materials. If you need to transport or ship your scanner, please follow these instructions: ≥ Use the original carton and all of the original packing materials. ≥...
  • Page 23 Unit of Panasonic Corporation of North America Two Panasonic Way, Secaucus, New Jersey 07094 Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Matsushita Electric Industrial Co., Ltd. http://www.panasonic.co.jp/global/ © 2005 Panasonic Communications Co., Ltd. All Rights Reserved. E-050222...
