Dacor RR30NFS Planning Manual

RR30NS, RR30NFS, RR30NIS, RR30NIFS
Document # PG05-009
Model Versions
Model Configuration
Freestanding,
RR30NS
(full size side panels)
Freestanding,
RR30NS-C*
(full size side panels)
Freestanding,
RR30NFS
(full size side panels)
Freestanding,
RR30NFS-C*
(full size side panels)
Built-in/Slide-in
RR30NIS
(3 1/4" removable side panels)
Built-in/Slide-in
RR30NIFS
(3 1/4" removable side panels)
* -C indicates corded wiring configuration, see page 2/5 for details.
Product Dimensions
All tolerances ±1/16" (±1.6 mm) unless otherwise noted.
External handle
shown, some models
have integral handle
(see inside cover)
Product width:
29 15/16" (76.0 cm)
All specifications subject to change without notice.
Renaissance
Electric Inductive Range
Handle Type
Mounted on
outside of door
Mounted on
outside of door
Flush handle,
integrated in door
Flush handle,
integrated in door
Mounted on
outside of door
Mounted on
outside of door
A
B
C
D
1" (2.5 cm)
9" (22.9 cm)
Backguard*
RR30NI[F]S:
3/8" (9.5 mm)
RR30N[F]S:
Full stainless
steel side panels
RR30NI[F]S:
3" (7.6 cm)
partial stainless
steel side panels
(removable)
*
See table for compatibility

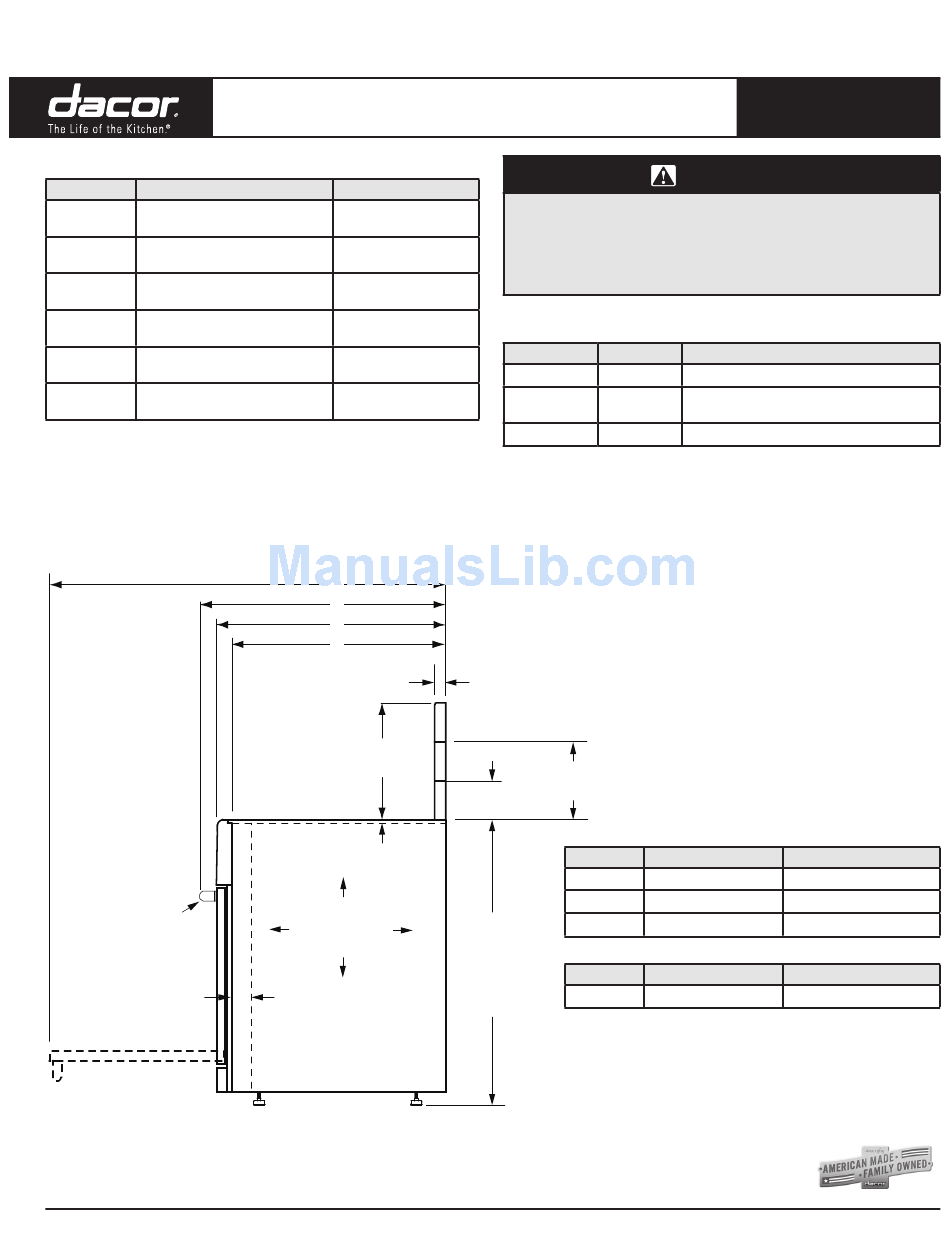

OvERALL DEPth DImENSIONS - SIDE vIEW
® 30" Wide
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
available Backguards
Part number Description
ADRB30E03 3 Inch
ADRB30E06 6 Inch
ADRB30E09 9 Inch
Models RR30NIS and RR30NIFS come equipped from the factory with
flat stainless trim piece in place of a backguard. A backguard may be
purchased as an optional accessory. Add an additional 1/16 inch to depth
dimensions below when installing a backguard on models RR30NIS and
RR30NIFS.
Front of open door
Front of handle
Front panel
Rear of front panel
Backguard thickness
6" (15.2 cm)
backguard*
3" (7.6 cm)
backguard*
Dimension
A
C
D
35"
(88.9 cm)
to
Dimension
37"
B
(94.0 cm)
The trim on models RR30NS and RR30NFS are not compatible
with a raised vent.
Models RR30NIS and RR30NIFS are compatible with Dacor
raised vent models ERV30 and ERV3015. Use only these
specified raised vent models.
www.dacor.com
Revised 03/21/13 Page 1/5
PLANNING
GUIDE
warning
Compatibility
Optional on all models
Standard on models RR30NS, RR30NFS
Optional on models RR30NIS, RR30NIFS
Optional on all models
rr30nS, rr30nFS rr30niS, rr30niFS
46 1/4" (117.5 cm) 46 1/16" (117.0 cm)
25 1/2" (64.8 cm) 25 5/16" (64.3 cm)
23 3/8" (59.4 cm) 23 3/16" (58.9 cm)
rr30nS rr30niS
27 7/8" (70.8 cm) 27 11/16" (70.3 cm)
Phone: (800) 793-0093
