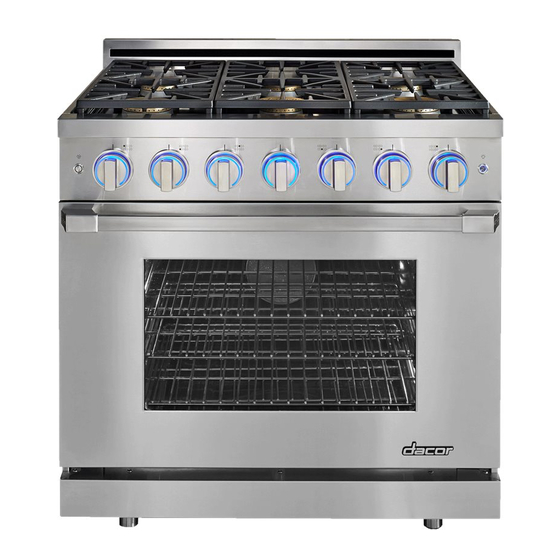

Installation Instructions ® Renaissance Gas Range Models: RNRP36GS, RNRP48GS THIS APPLIANCE HAS BEEN TESTED IN ACCORDANCE WITH THE LATEST EDITIONS OF ANSI Z21.1, UL858 AND UL60730-1, STANDARDS FOR HOUSEHOLD APPLIANCES. Part No. 108531 Rev. B... -
Page 2: Table Of Contents
Customer Service Information Model Identification If you have questions or problems with installation, contact your Dacor dealer or the Dacor Customer Service Team. For repairs to Dacor appliances under warranty call the Dacor Distinctive RNRP36GS/NG/H Service line. Whenever you call, have the model and serial number of the appliance ready. -
Page 3: Important Safety Instructions
Use common sense and caution when installing, maintaining or operating this or any other appliance. WARNING Always contact the Dacor Customer Service Team about problems NEVER cover any slots, holes or passages on the inside or and conditions that you do not understand. - Page 4 Important Safety Instructions WARNING WARNING • Read the accompanying use and care manual before • Clean the cooktop thoroughly before operating it for the first operating this appliance. time. • Keep packaging materials away from children. Plastic • Keep flammable items, such as paper, cardboard, plastic sheets and bags can cause suffocation.
-
Page 5: Planning The Installation
Planning the Installation Gas Supply Requirements WARNING • The installation of this appliance must conform with local • IMPORTANT: Observe all governing codes and ordinances codes or, in the absence of local codes, with the National during planning and installation. Contact your local building Fuel Gas Code, ANSI Z223.1/NFPA 54. -
Page 6: Product Dimensions
Planning the Installation Product Dimensions Product tolerances: ±1/16” (±1.6 mm) 48” (121.9 cm) Front of open door 28 1/2” (72.4 cm) Front of handle 26 7/8” (68.3 cm) Front edge of bull nose 26” (66.0 cm) Front panel 24” (61.0 cm) Rear of front panel/oven door 1 1/4”... -
Page 7: Cabinet Layout
• Access to the gas shut-off valve when the unit is installed. • The range may be installed flush to the rear wall. Dacor • Access to the electrical outlet, when the range is in place. strongly recommends installing a non-combustible material •... -
Page 8: Installation Instructions
Installation Instructions Preparing for Installation Install the Anti-Tip Bracket and Foot Locate the anti-tip bracket included in the parts box. WARNING There are two ways to mount the anti-tip bracket: • If the gas or electric service provided does not meet the •... - Page 9 Installation Instructions Installing the Anti-Tip Bracket on the Floor (cont.) #8 x 1” Determine the location of the range center line and front #8 x 1 1/4” or panel for the range’s final position based on the Product #12 x 1 3/4 Dimensions on page 5 and the actual cabinet/cutout screw, dimensions used for the installation.
- Page 10 Installation Instructions Installing the Anti-Tip Bracket on the Wall To install the bracket, place it against the wall in the mounting location. Using a drill with a 1/8” diameter drill bit, drill four Determine the suitability of wall mounting the anti-tip bracket. (4) 1 5/8”...
-
Page 11: Gas Connection
Installation Instructions Removing the Oven Door Gas Connection WARNING WARNING • Do not attempt to disengage the hinge catches with the • Make sure the gas supply valve is off and that the power door(s) removed from the range. The hinge springs could cord to the range is disconnected prior to connecting the release causing personal injury. -
Page 12: Final Installation
Installation Instructions Final Installation Re-installing the Oven Door(s) Peel the protective plastic coating off of the range, including WARNING the door. To avoid personal injury or damage to the door from it falling off Measure from the floor to the countertop. Adjust the leveling its hinges: legs as required to position the trim around the cooktop even with or above the countertop. -
Page 13: Installing The Burner Knobs
Installation Instructions Installing the Burner Knobs WARNING Installing the range knobs in the wrong position may result in damage to the griddle included with the range. The knobs for the center burners are marked with the maximum griddle settings. NOTE: When installing the knobs, align the “D” shaped opening on the back of the knob with the end of the valve shaft. -
Page 14: Cooktop Assembly
Installation Instructions Cooktop Assembly WARNING Never attempt to operate the range’s cooktop with any of the burner rings, burner caps or grates removed. Spill tray • Remove the burner rings, burner caps and grates from their shipping packages. SimmerSear burner •... -
Page 15: Verifying Proper Operation
Verifying Proper Operation Repeat the burner ignition test and/or oven test. If the appliance still does not work, contact Dacor Distinctive Before operating the range, read the accompanying use and Service at (800) 793-0093 ex. 2822. Do not attempt to repair care manual completely. - Page 16 Dacor ● 14425 Clark Avenue, City of Industry, CA 91745 ● Phone: (800) 793-0093 ● Fax: (626) 403-3130 ● www.dacor.com...
