Use and C are Manual
Renaissance
Electric Range
®
with induction cooktop
Models: RR30NS, RR30NS-C, RR30NFS, RR30NFS-C, RR30NIS and RR30NIFS

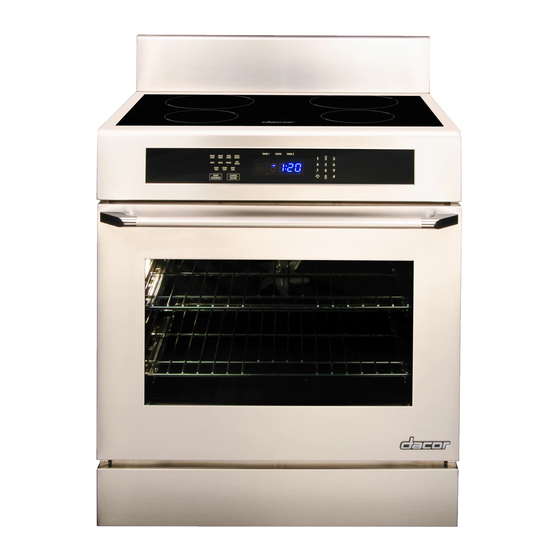

Style varies, model RR30NFS shown
T a b l e o f C o n t e n t s
Important Safety Instructions ................................................ 1
Getting to Know Your Range ............................................... 4
Operating the Cooktop ....................................................... 7
Operating the Oven ........................................................... 9
Care and Cleaning .......................................................... 20
Before You Call for Service ................................................ 25
Parts and Accessories ....................................................... 27
Warranty and Service ...................................................... 27
Warranty Card .................................................... Back Cover
Part No. 105911 Rev A
Advertisement
Table of Contents
Related Manuals for Dacor Renaissance RR30NFS
Summary of Contents for Dacor Renaissance RR30NFS
-
Page 1: Table Of Contents
Renaissance Electric Range ® with induction cooktop Models: RR30NS, RR30NS-C, RR30NFS, RR30NFS-C, RR30NIS and RR30NIFS Style varies, model RR30NFS shown T a b l e o f C o n t e n t s Important Safety Instructions ..........1 Getting to Know Your Range .......... - Page 2 © 2013 Dacor, all rights reserved...
-
Page 3: Important Safety Instructions
Always contact the Dacor Customer Service Team about • Do not operate the range without the rear leg problems or situations that you do not understand. -
Page 4: General Safety Precautions
Important Safety Instructions General Safety Precautions To reduce the risk of fire, electric shock, serious injury or death when using your range, follow basic safety precautions, including the following: danger warning IMPORTANT: To avoid the possibility of explosion • Do not hang flammable or heat sensitive objects or fire, do not store or use combustible, flammable over the range. - Page 5 • Clean and maintain the range regularly as instructed in this manual. Keep the entire range, At Dacor, we continuously improve the quality and per- ventilation filters and range hoods free of grease formance of all our products. As a result, we may need to that could catch fire.
-
Page 6: Getting To Know Your Range
Getting to Know Your Range Parts of the Oven d e F (below oven floor) (at bottom of door) Control panel The control panel consists of keys and a display. Use the control panel to control all the oven’s features (sometimes called modes). Self clean latch The self clean latch automatically locks the oven door during the self clean cycle. -
Page 7: Control Panel Layout
Getting to Know Your Range Control Panel Layout Cooking mode keypad Select the type of cooking you want to perform by pressing one of the cook- ing mode keys. Also includes the SELF CLEAN and PROBE keys. TIMER keys Use the TIMER 1 and TIMER 2 keys to time an event. The two timers operate separately from each other. -
Page 8: About The Cooktop
HIGH power setting, power to both elements will be reduced slightly and cooking times will be slightly longer. When cooking on two elements at the control Layout HIGH setting, Dacor recommends using one element on the left side and one on the right. -
Page 9: Operating The Cooktop
Wipe the cooktop with a clean, damp sponge and dry. • Do not leave metallic utensils or lids on the cooking • Apply Dacor Cooktop Cleaning Crème, according to surface since they can become hot. the Care and Cleaning section. -
Page 10: Operating The Oven
• Dacor recommends turning the oven on for one hour at 500°F to burn off any residual oils used during the Setting the Temperature Scale manufacturing process. Any of these oils left on the... -
Page 11: Operating The Oven
Your oven comes with Dacor’s deluxe GlideRack oven 3. Push the rack all the way in. racks. You can pull them out further than other types of 4. - Page 12 Operating the Oven Starting Your Oven Changing the Temperature 1. Adjust the racks to the appropriate level. (after you press START · CONTINUE) 2. Determine the best cooking mode for the type of food 1. Press the key for the current cooking mode. The cur- to be cooked.
-
Page 13: Cooking Modes
(such as cooking tion when using bake mode. For cooking on multiple racks, Dacor recommends using one of the convection time, rack position, or temperature) and repeat the con- vection test. If necessary, continue adjusting one recipe modes. -
Page 14: Convection Roast
Operating the Oven Convection Roast Understanding the Various Oven Your range’s convection roast mode uses a combination of Cooking Modes (cont.) the convection fan and heat sources above and below the food. It is best for rib roasts, turkeys, chickens, etc. Pure Convection roasting tips The uniform air circulation provided by Pure Convection... -
Page 15: Convection Broil
Operating the Oven Your range offers two broil modes: Timers • Broil • Convection Broil warning Broiling is a quick and flavorful way to prepare many The timers on your range do not turn the oven on foods, including steaks, chicken, chops, hamburgers and or off. - Page 16 Operating the Oven How to Use Delay Timed Cooking Delay Timed Cooking Features note If you want to set the oven to automatically turn itself on or off at a later time, you can use the delay timed fea- Delay-timed cooking cannot be used in Sabbath mode. tures.
-
Page 17: Sabbath Mode
Operating the Oven Other Things to Know About Delayed Timed Things to Know About Sabbath Mode Cooking • The CANCEL · SECURE key on your oven remains active so that you can turn off the Sabbath feature or when the oven is in delay timed mode: turn off the oven. - Page 18 Operating the Oven 4. Allow the oven to preheat. Excessive browning may Using the Meat Probe occur if the meat is placed in the oven during preheat mode (when “PRE-” appears on the display). When you cook foods like roasts and poultry, the internal 5.
-
Page 19: Dehydrating Tips
FreSH beeF, VeaL, and LaMb Vegetables 125°F Medium rare 145°F Meat 150°F Medium 165°F Dacor recommends that you use one of the timers to time Well Done 170°F the process. pouLtry Dehydrating Tips Chicken/turkey, whole (temp taken in thigh) 180°F equipment recommended Poultry breasts, roast 170°F... -
Page 20: Adjusting The Oven Temperature
Operating the Oven • Thick, frozen casseroles such as lasagna will not Dehydrating/Defrosting (cont.) defrost well in your oven. Instead, defrost accord- ing to the food manufacturer’s suggestions. You may Solving Discoloration Problems also defrost casseroles in the refrigerator overnight. You should leave the food in its original container and To prevent darkening during dehydration and storage, you keep it covered. -
Page 21: Cooking Tips
Turn pans on the racks so that the long sides run left to right, as you face them. • Your Dacor GliderRack oven racks are good for cook- ing heavy food items. You can pull them out further than standard racks, making it easier to check the food, stir or add ingredients. -
Page 22: Care And Cleaning
Care and Cleaning Your Oven’s Self Clean Feature warning • Clean only the parts of the range listed in this About the Self Clean Cycle manual. Clean them only in the manner specified. • The oven will run better and produce better baked • To avoid dangerous fumes or damage to your goods when it is clean. - Page 23 The oven will still be hot • Burned on food (about 400 °F). 1. Soften using a moist cloth or paper towel over the soil for 20 to 30 minutes. 2. Wipe clean, dry and apply Dacor Cooktop Cleaning Crème (see following page). continued...
- Page 24 1. Apply undiluted white vinegar, rinse and dry. detergent and warm water. Rinse and dry with a soft, lint-free cloth. You may also use Dacor Stainless Steel 2. Apply Dacor Cooktop Cleaning Crème. Cleaner. Use it according to the directions on the package.
-
Page 25: Meat Probe
Care and Cleaning Convection Filter Meat Probe warning For your safety and proper oven performance, re-install the filter before using the oven to cook. If you don’t, the spinning fan blades inside will be exposed. The convection filter is located in the back of the oven chamber. - Page 26 Problem Solu- tion Guide on page 25. • Replace the light bulb only with Dacor part number 107112. See page 27 for ordering information. iMportant Do not touch the replacement halogen light bulb with your fingers.
-
Page 27: Before You Call For Service
Before You Call for Service Problem Solution Guide - Cooktop Problem May Be Caused By What to Do Nothing works. Range not connected to electrical Have an electrician connect range to properly power. wired electrical connection. Power is off. Turn power on at circuit breaker panel or fuse box. - Page 28 Before You Call for Service Problem Solution Guide - Oven (cont.) Problem May Be Caused By What to Do Oven will not heat. Oven setting not correct. Press CANCEL · SECURE. Follow instructions in Operating the Oven section. Oven set for delay timed cooking. Oven will turn on automatically at preset time.
-
Page 29: Parts And Accessories
ABS16 Cookie sheets* (three per carton) ACS303 * Dacor full sized cookie sheets maximize oven rack baking capabilities by utilizing the total usable rack space. To order parts and accessories, contact your Dacor dealer or visit www.everythingdacor.com. Warranty and Service... -
Page 30: What Is Not Covered
Failure of the product when used for commercial, business, rental or any application other than for resi- If your Dacor product fails to function within one year of dential consumer use. the original date of purchase, due to a defect in material or workmanship, Dacor will remedy it without charge to •... - Page 31 NO POSTAGE NECESSARY IF MAILED IN THE BUSINESS REPLY MAIL FIRST-CLASS MAIL PERMIT NO 1600 CITY OF INDUSTRY CA POSTAGE WILL BE PAID BY ADDRESSEE DACOR ATTN WARRANTY PROCESSING DEPT PO BOX 90070 CITY OF INDUSTRY CA 91715-9907...
-
Page 32: Warranty Information
Please rest assured that under no conditions will Dacor sell your name or any of the information on this form for mailing list purposes. We are very grateful that you have chosen Dacor products for your home and do not consider the sale of such information to be a proper way of expressing our gratitude! Owner’s Name:...
