Dacor RR30NFS Planning Manual

Document # PGCI-029
■ All tolerances +1/16" (+1.6 mm), -0 unless otherwise noted.
■ Countertop height: 34 3/4" (88.3 cm) min., 36 7/8" (93.7 cm) max.
Countertop thickness: 1 5/8" (4.1 cm) max.
■ Trim kit PN ATKR30SR is required for proper installation of a raised
vent with this range.
■ The self-rimming installation of the RR30NI[F]S range and ERV30[15]
raised vent create a "built-in" look where the range trim overlaps
the countertop on both sides and the raised vent trim overlaps the
countertop in back.
■ IMPORTANT: When installing the range in this configuration,
ventilation must be provided to allow for cooling of the ranges internal
components. See diagram, left.
1" min. (2.6 cm)
to any combustibles
above counter both sides
raised vent opening
25"
(63.5 cm)
countertop opening
max.
to width of cabinets
Countertop front

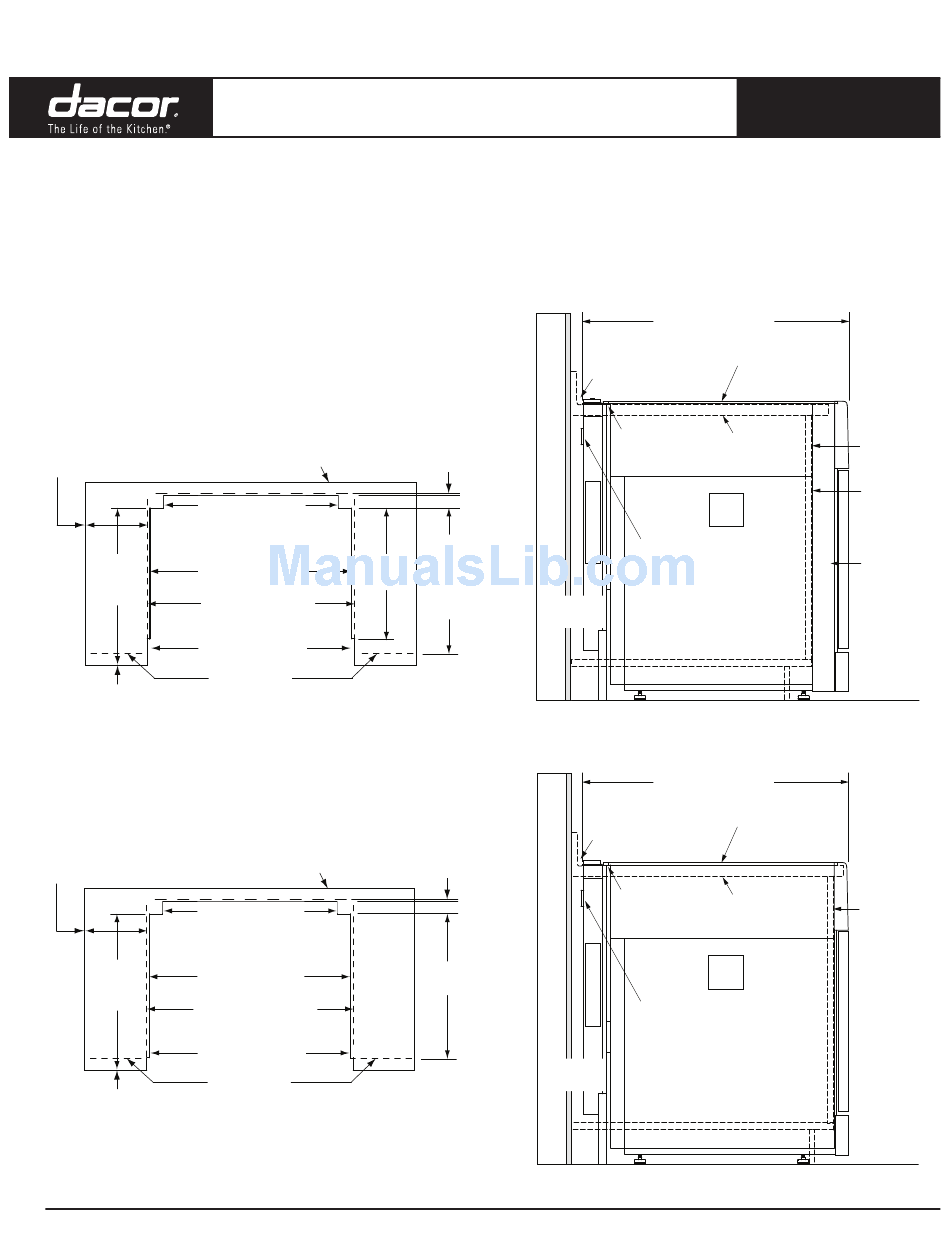

DOwNDRAFT ERV30[15] wITh SLIDE-IN, SELF-RIMMING INSTALLATION, 3" SIDE PANELS INSTALLED
1" min. (2.6 cm)
to any combustibles
above counter both sides
raised vent opening
25"
(63.5 cm)
countertop opening
max.
to width of cabinets
Countertop front
DOwNDRAFT ERV30[15] wITh SLIDE-IN, SELF-RIMMING INSTALLATION, 3" SIDE PANELS REMOVED
All specifications subject to change without notice.

COMBINATION INSTALLATIONS

RR30NI[F]S Range with ERV3015
Rear wall or
3/8" min. (1.0 cm)
countertop edge
countertop overhang
27 1/2" (69.9 cm)
20 3/8"
29 1/4" (74.3 cm)
(51.8 cm)
30 1/16" (76.2 cm)
cabinet opening
below countertop
Notch countertop
Cabinet face
below countertop
Rear wall or
3/8" min. (1.0 cm)
countertop edge
countertop overhang
27 1/2" (69.9 cm)
29 1/4" (74.3 cm)
30 1/16" (76.2 cm)*
cabinet opening
below countertop
Notch countertop
Cabinet face
below countertop
Raised Vent
■ Observe all vertical cabinet clearances on specified on the RR30NI
Planning Guide sheet..
■ A self-rimming countertop configuration is required for raised vent
installation. On installations with a raised vent, when sliding the range
into position, it will stop when the rear of the control panel or side
panels contact the notches toward the front of the countertop.
2 5/8" (6.7 cm)
20 3/8"
(51.8 cm)
to
23 3/8"
ERV30[15]
(59.4 cm)
raised vent
TOP
VIEw
2 5/8" (6.7 cm)
23 3/8"
(59.4 cm)
ERV30[15]
raised vent
TOP
VIEw
www.dacor.com
PLANNING
27 9/16" (70.0 cm)
3/8" min. (1.0 cm)
flat countertop
Range trim resting
overhang
on countertop
ATKR30SR
Countertop
trim kit
installed
3/8" min. (1.0 cm) space
required behind ERV30[15]
chassis to clear stiffener
RR30NI[F]S range
27 9/16" (70.0 cm)
3/8" min. (1.0 cm)
flat countertop
Range trim resting
overhang
on countertop
ATKR30SR
Countertop
trim kit
installed
3/8" min. (1.0 cm) space
required behind ERV30[15]
chassis to clear stiffener
RR30NI[F]S range
Phone: (800) 793-0093
Revised 03/21/13 Page 1/1
GUIDE
Cabinet face
Back of
side panel
rests against
cabinet face
3 inch
side panel
SIDE
VIEw
Cabinet face
SIDE
VIEw
