Kenmore 119.162310 Operator's Manual

Liquid propane gas (lpg) grill.
Hide thumbs

Advertisement

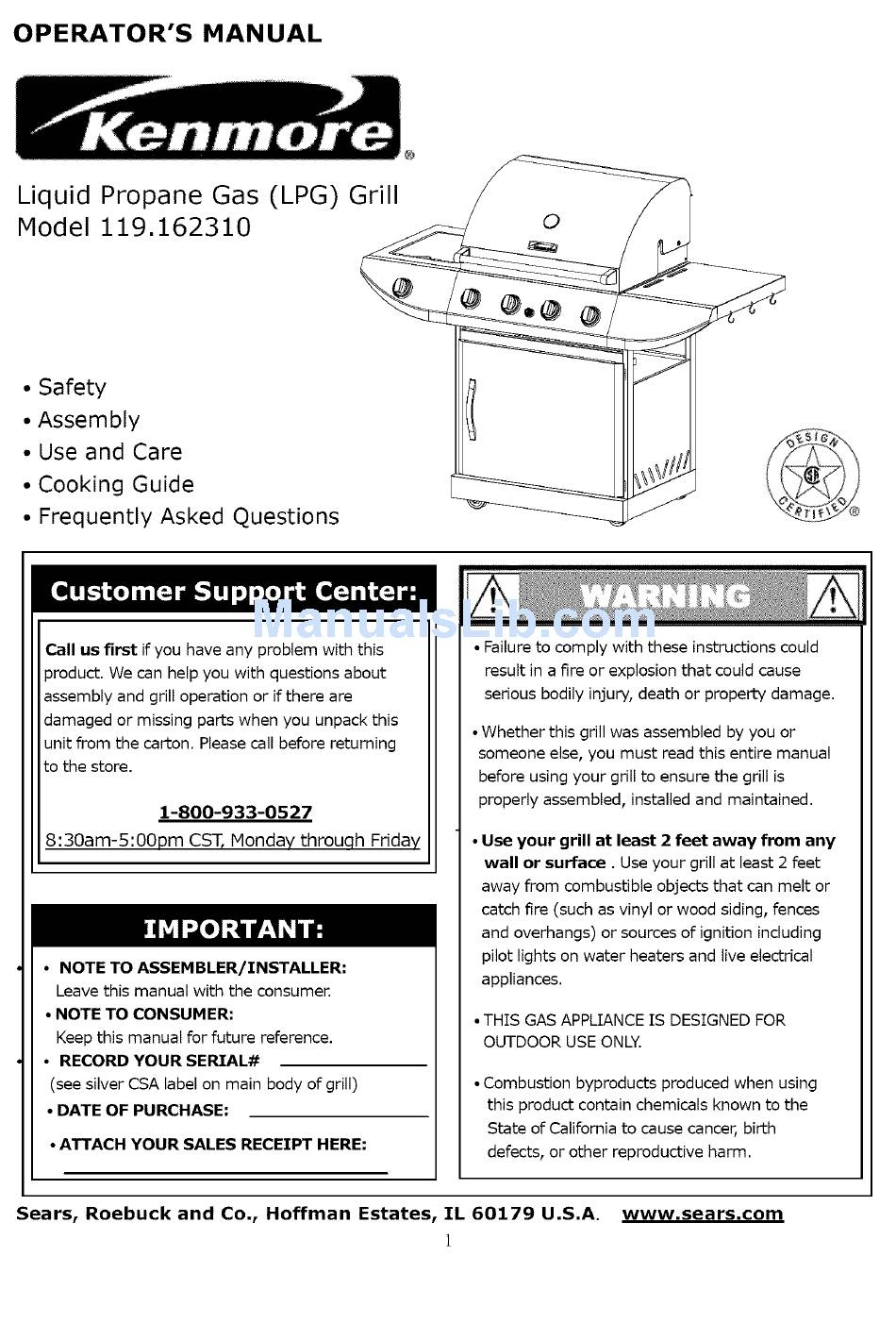

OPERATOR'S
MANUAL
Liquid
Propane
Gas (LPG) Grill
Model
119.162310
@
• Safety
• Assembly
• Use and Care
• Cooking
Guide
• Frequently
Asked Questions
Call us first if you have any problem with this
product. We can help you with questions about
assembly and grill operation or if there are
damaged or missing parts when you unpack this
unit from the carton. Please call before returning
to the store.
1-800-933-0527
8:30am-5:OOpm
CST, Monday throuqh Friday
• NOTE TO ASSEHBLER/INSTALLER:
Leave this manual with the consumer.
• NOTE TO CONSUHER:
Keep this manual for future reference.
• RECORD YOUR SERIAL#
(see silver CSA label on main body of grill)
• DATE OF PURCHASE:
• ATTACH YOUR SALES RECEIPT HERE:
• Failure to comply with these instructions
could
result in a fire or explosion that could cause
serious bodily injury, death or property damage.
• Whether this grill was assembled by you or
someone else, you must read this entire manual
before using your grill to ensure the grill is
properly assembled,
installed and maintained.
• Use your grill at least 2 feet away
from any
wall or surface.
Use your grill at least 2 feet
away from combustible
objects that can melt or
catch fire (such as vinyl or wood siding, fences
and overhangs)
or sources of ignition including
pilot lights on water heaters and live electrical
appliances.
• THIS GAS APPLIANCE IS DESIGNED FOR
OUTDOOR USE ONLY.
• Combustion
byproducts
produced when using
this product contain chemicals known to the
State of California to cause cancer, birth
defects, or other reproductive
harm.
Sears,
Roebuck
and Co., Hoffman
Estates,
IL 60179
U.S.A.
www.sears.com
1

Advertisement

Table of Contents

   Related Manuals for Kenmore 119.162310

   Summary of Contents for Kenmore 119.162310

  • Page 1 OPERATOR'S MANUAL Liquid Propane Gas (LPG) Grill Model 119.162310 • Safety • Assembly • Use and Care • Cooking Guide • Frequently Asked Questions • Failure to comply with these instructions could Call us first if you have any problem with this result in a fire or explosion that could cause product.
  • Page 2 LP cylinder within 10 feet (3m) of this appliance. Do not store or use gasoline One-Year Full Warranty on Kenmore Grill other flammable liquids If this grill fails due to a defect in material or vapors within 25 feet (8m)
  • Page 3 Call Sears at 1-800-4-MY-HOME_ gas valve orifice. (1-800-469-4663) for a Kenmore replacement 3.Check and clean the burner tubes for insects and gas hose assembly. insect nests. A clogged tube can lead to a fire beneath the grill.
  • Page 4 PART-#: PART DESCRIPTION PURPOSE OF PART Install Casters, Attaches Firebox and Cabinet 5B0027 Phillips Head Bolt M6x5/8" Assembly. Attaches Firebox Support, Side Burner Assembly, SB0004 Phillips Head Bolt M6x3/8" and Side Shelf Assembly. There are 44 Washers used with each Phillips heac Washer SB0005...
  • Page 5 Graphic Item Description Part 06WIB-A, Firebox Assembly 06WIB-B SA0389, SA0396, Side Burner Frame SA0390 SA0398 Side Shelf Frame SA0371 Warming Rack Cooking Grate CI0009 (Large) (Large -9.5" CI0008 (Small) Small-7.5" 2pcs) SA0376 Heat Diffusers SA0402 Side Shelf Front Bracket...
  • Page 6 Item Description Part # Graphic Grease Pan Support SE0077 Grease SA0375 Cabinet Assembly 06WIB-C Cabinet Door SA0383-2,SA0384 Cabinet Front Crossbar SA0386 SE9027 Condiment Basket Side Shelf Control Panel SA0399-2 Caster SE0056...
  • Page 7 Item Description Part Graphic Locking Caster SE0057 Swivel Caster SE0081 Locking Swivel Caster SE0055 Side Burner Control Panel SA0364-2 Side Burner Front Bracket SA0394 Cylinder Support Ring SE0085 Grease Tray SA0328-3...
  • Page 9 DESCRIPTION PART# Thermometer SE0076 Name Plate ZA0015 Hood Bolt SB0001-1,SB0002-1,SB0003-1 Lid Handle Connector ZA0010 Heat Insulator for Lid Handle FE0010 Silicon Stopper for Lid FE0001 06WIB-A Lid Handle RSA0004,SA0150-1 Firebox Panel-Rear/Upper SA0370 Firebox Panel-Rear SA0369 Warming Rack SA0371 Cooking Grate- Small CI0008 12-1...
  • Page 10 DESCRIPTION PART# Side Burner CI0010,SE0082 Side Burner Front Bracket SA0394 Side Burner Valve SC0013 Side Burner Control Panel SA0391-2 Side Shelf Rear Bracket SA0403 Side Shelf Frame SA0398 Side Shelf Front Bracket SA0402 Side Shelf Front Control Panel SA0399-2 "S" Hook SE9008 Cabinet Rear Panel...
  • Page 11 Please refer to pages 5 through 7 for item graphics. Install Casters Place the Cabinet Assembly (J) upside down and attach 4 Casters to the Caster Seats. Use care to install each Caster into the correct position. Phillips Head Bolt: N6xS/8"...
  • Page 12 Attach Door, Door Stopper, Condiment Basket to Cabinet. Attach Cabinet Door to the Cabinet Assembly (J) using 4 Flat Head Bolts (M4x3/8"). Attach Magnetic Door Stopper to the Cabinet Assembly (J) left front frame using 2 Phillips Head Bolts (M4x3/8"). Hang Condiment Basket...
  • Page 13 Install Grease Tray and Grease Pan and Grease Pan Support Slide the Grease Tray (S) along two sides of Firebox Assembly from the back of the Firebox Assembly and stopped by two screws on the two sides of the cabinet. Attach Grease Pan Support...
  • Page 14 Install Side Burner Assembly to Firebox Assembly. Loosely screw 2 Phillips Head Bolts (M6x3/8") and 2 Washers into the upper left and right corner holes in the left side of the firebox as shown in Inset 1. Leave 1/4" of the bolts extending out of the firebox sides to attach the side burner...
  • Page 15 Secure Side Burner Valve to Side Burner Control Panel Insert the side burner valve stem up through the hole in the Side Burner Control Panel (P). See Inset Insert side burner valve stem into the side burner tube. See Inset Secure the side burner valve to the Side Burner...
  • Page 16 Secure Side Burner Control Knob to Side Burner Valve Stem and attach Side Burner Ignition Wire, Push the Control Knob onto the valve stem. Slide the side burner ignition wire over the side burner igniter connector. Control Knob Qty: Part # FE0015 Install Side...
  • Page 17 Install Side Shelf Assembly to Firebox Assembly. Loosely screw 2 Phillips Head Bolts (MBx3/8") and 2 Washers into the upper left and right corner holes in the right side of the firebox as shown in Inset 1. Leave 1/4" of the bolts extending out of the firebox sides to attach...
  • Page 18 Place Heat Diffusers, Cooking Grates, and Warming Rack into the Firebox Assembly Place the Heat Diffusers (F) into the Firebox Assembly (A). Ensure the fronts of the Heat Diffusers, marked "FRONT", are at the front of the firebox. Place the Grates (E) into the Firebox Assembly (A).
  • Page 19 Install Battery and Utensil Hooks Unscrew the electronic igniter cap. Place the "AA" Battery into the igniter with the positive (+) end up. Screw the electronic igniter cap back into place. See Inset Insert the small end of the "S" Hooks into the holes on the end of the Side Shelf Frame ( C ).
  • Page 20 CORRECT LP GAS TANK Use of alcohol or drugs may impair the ability to assemble and operate the appliance. LP gas grill models are designed for use with a Keep a fire extinguisher readily accessible. standard 20 lb. (9.1kg)Liquid Propane Gas (LP the event of an oil or grease...
  • Page 21 Notes about LP Gas Tank Exchange Programs Regulator and LP Cylinder Connections • Many retailers that sell grills offer you the option of replacing your empty LP gas tank through an exchange service. Use only those reputable exchange companies that inspect, precision fill, test and certify their tanks.
  • Page 22 Check all connections for LP Gas Leaks Flow Limiting Valves on LP Gas Tanks Never test for leaks with a flame. Prior to Your LP gas tank is equipped with a flow limiting first use, at the beginning of each season valve that will restrict the flow of gas due to a...
  • Page 23 Grill Lighting Instructions Before each use, check all hoses for cracks, nicks, cuts, or abrasions. If a hose is damaged in any way, do not use your grill before replacing the hose with an authorized part from the Parts List. Also make sure all gas supply connections...
  • Page 24 MANUALLY LIGHTING THE BURNERS WITH MANUALLY LIGHTING THE SIDE BURNER THE MATCH HOLDER Open the side burner cover, I. Open the lid. Ensure the side burner control knob is in Ensure all burners are in the "OFF" the "OFF" position as well as any main burner not in use.
  • Page 25 Troubleshooting If the grill fails to light: If the grill still does not light you may need to reset the flow limiting valve in your LP tank. Note: This procedure should be done every Turn gas off at source and turn control knobs time a new LP gas tank is connected...
  • Page 26 9. Check and clean each electrode tip. Adjust the spacing between the tips and the burner as necessary. The space between the electrode tip and burner should be approximately 3/16". Proper care and maintenance will keep your grill 10. Replace the heat diffusers, grates, good operating...
  • Page 27 To reduce the chance of FLASHBACK FIRE Regardless of the burner cleaning procedure must clean the burner tubes as follows use, we recommend you also complete periodically in summer and fall, wherever following steps to help prolong burner life. spiders are active in your area, and if your...
  • Page 28 Burn-Off Indirect Cooking The indirect cooking method is used for most Some of the new parts of your grill could have foods. Do not place the food directly over a residual oils. We recommend you ignite burner to use this method. Instead, burners, turn to "HI", and lower the lid for 3 to 5...
  • Page 29 Question: If you hear a clicking sound, then: Can I convert my gas grill from one fuel 1.Inspect the electrodes to be sure they type to another, such as LP to NG (natural are not coated with grease and dirt. gas) or vice versa? Answer:...
  • Page 30 LP Gas Tank Congratulations on making a smart purchase. I've used for years. not? Your new Kenmore (_ product is designed Answer: manufactured for years of dependable The U.S. Government regulates gas appliances operation.
  • Page 31 Your Home iiiiiiiiiiiiiiii iiiiiiiiiiiiiiiii For I =parer-mn your home-d all m_dor brand apphances lawn and garden equipment or heath'lg and cooling systems, no matter who made it, no rnai'ter w'ho soid it:! For the replacement _parts. accessories and owners rnari, uals that you need to do-it-yourself Fo_r"Sears profes_onal installation of home appliances and terns...
