60" (diag.) r550 series led internet tv
Hide thumbs


Advertisement

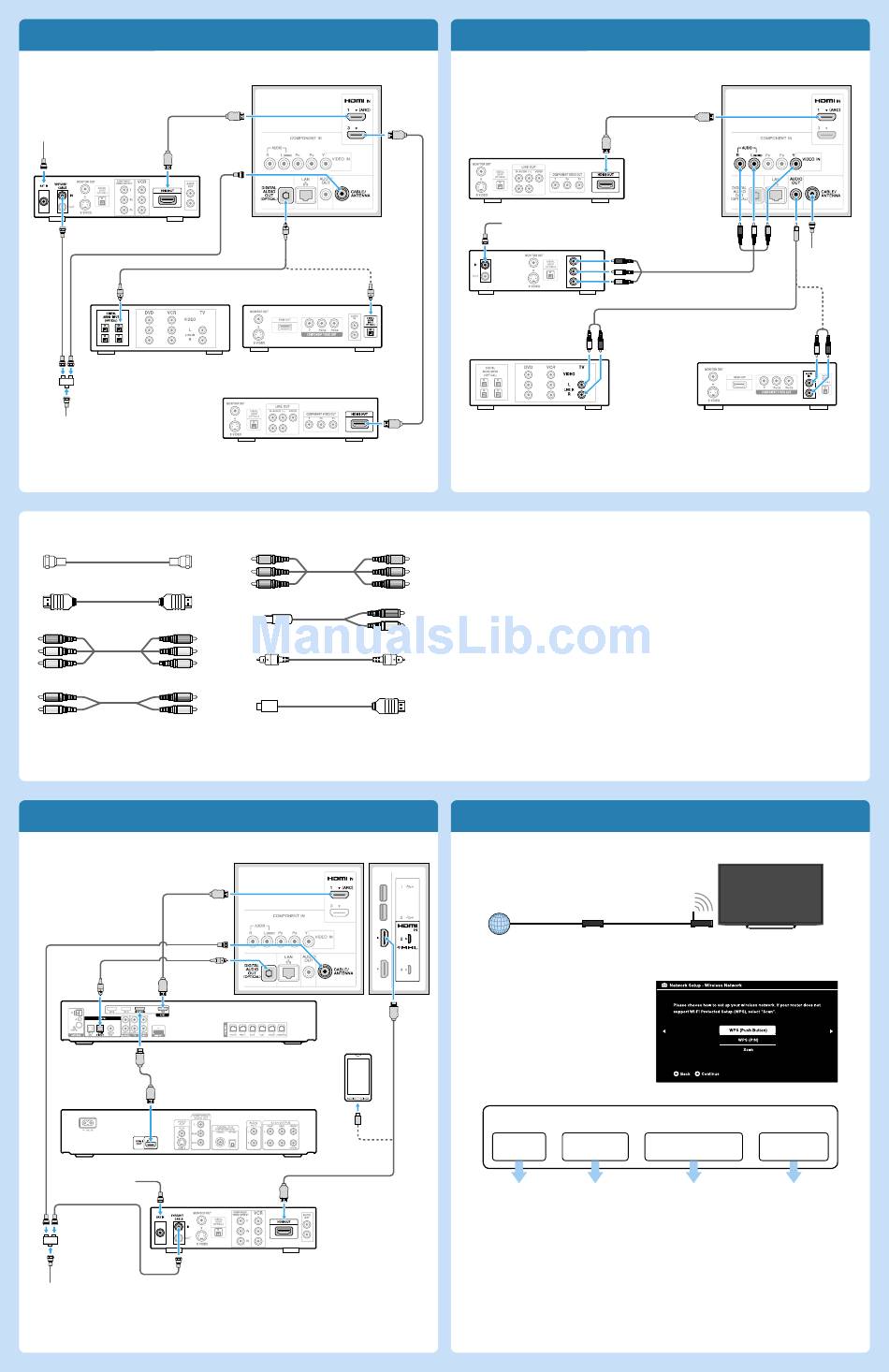

Basic Connection with HD Cable Box
SAT (dish)
HD Cable Box
or HD Satellite Receiver
A/V Receiver
Splitter
Cable/
Antenna
Required Cable Types for Connection
Coaxial
HDMI
Composite
Audio (L/R)
HD BRAVIA® Sync™ Basic Connection
*
2
*
1
A/V Receiver
*
1
Blu-ray Disc
SAT (dish)
Splitter
Cable/Antenna
*
1
Signifies a BRAVIA Sync capable device.
*
The optical connection is only needed for A/V receivers that do not support ARC
2
(Audio Return Channel).
Rear of TV
Home Theater System
Blu-ray Disc/DVD
Component
Mini-Pin-to-Audio (L/R)
Digital Optical Audio
MHL
Rear of TV
Side Panel
*
1
MHL Device
HD Cable Box or
HD Satellite Receiver
Basic Connection with SD Cable Box
Blu-ray Disc/DVD
Cable/SAT (dish)
SD Cable Box or
SD Satellite Receiver
A/V Receiver
Notes on Connection:
Your TV is equipped with multiple HDMI inputs; connect your incoming signal
source (HD Cable Box, HD Satellite Box, or DVD) with HDMI/MHL or
component video for the best possible picture quality.
Connecting a PC to Your BRAVIA® TV
Press PC's FUNCTION Key + Select Output to transmit to TV.
Refer to your BRAVIA® Operating Instructions Manual for more information.
Built-in Wireless LAN Connection and Setup
Internet
Modem
Wireless Network can be set during
initial setup.
Wireless Setup security type differs
depending on the wireless router
(access point) used.
Follow the chart below and select
the appropriate menu.
Security type of your Wireless router (access point)
WPS (*
)
WPS (*
)
1
1
PIN Code
Push Button
Select
Select
WPS (PIN)
WPS (Push
Button)
*
Wi-Fi Protected Setup ™ (WPS) is a mark of the Wi-Fi Alliance.
1
*
Wi-Fi Protected Access ™ (WPA) is a mark of the Wi-Fi Alliance.
2
*
Before scanning, be sure to make the wireless router (access point) settings
3
(SSID/Key).
Rear of TV
HD Antenna
yellow
plug to
VIDEO IN
Home Theater System
Wireless router
(access point)
SSID with Security
SSID without
Key (WEP/WPA (*
))
Security Key
2
Select
Select
Scan, then select
Scan, then select
a network from
a network from
the list (*
)
the list (*
)
3
3
TV
