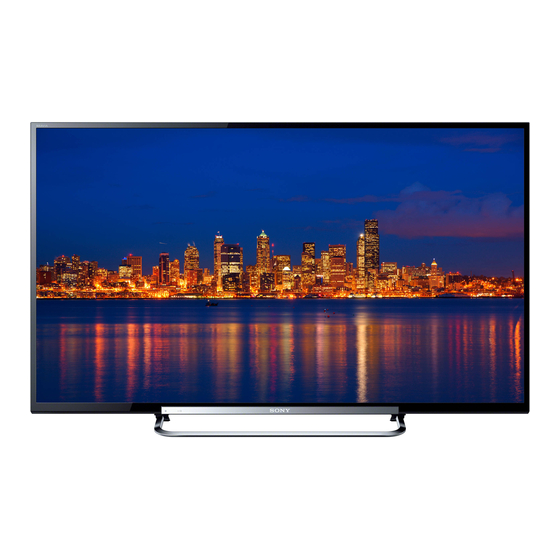

Sony KDL-60R550A Quick Setup Manual

60" (diag.) r550 series led internet tv.
Hide thumbs


Advertisement

LCD TV

Quick Setup Guide

For Your Convenience
Be sure to register your TV.
Online
United States
Registration:
Canada
2
Running Initial Setup
Initial Setup instructions are displayed on the screen when your BRAVIA is powered
on for the first time.
1
Select the language for the OSD (on screen display).
2
Choose your viewing country.
3
Select the type of use.
4
Connect either cable or antenna to your TV. You can
connect both using an A-B RF switch (not supplied).
 If you are not using the CABLE/ANTENNA connection to TV (for
example, if using a cable or satellite box), you can cancel the Auto
Program by selecting Cancel.
5
Channels of the signal source (cable or antenna)
connected in step 4 are automatically scanned and
detected.
6
Set the current date and time.
7
If your BRAVIA is connected to a wired LAN or
wireless LAN, make the network setting.
8
Select Automatic Software Download. If your
BRAVIA is connected to a network, it is recommended
to set to automatically download future available
services.
If you did not follow the Initial Setup screen the first time
you turned on your TV, refer to your Operating
Instructions Manual. To change the signal source setting
(cable to antenna or vice versa), press HOME and select
Settings, Channel, Signal Type to select signal source type, and then perform Auto
Program.
To Do List
To Do List
When the Initial Setup is completed, consider carrying out these items:
When the Initial Setup is completed, consider carrying out these items:
Set Closed Captions (CC)
Set Closed Captions (CC)
Set Parental Lock
Set Parental Lock
Manage Inputs (AV Setup)
Manage Inputs (AV Setup)
Set Speakers
Set Speakers
For details, refer to your BRAVIA Operating Instructions Manual.
For details, refer to your BRAVIA Operating Instructions Manual.
4-460-668-11(1)
Sony Customer Support
U.S.A.: http://www.sony.com/tvsupport
Canada: http://www.sony.ca/support
1.800.222.SONY
United States
1.877.899.SONY
Canada
Please Do Not Return
the Product to the Store
http://productregistration.sony.com
http://www.sony.ca/registration
© 2013 Sony Corporation
Printed in Mexico
Show/Hide Channels
Show/Hide Channels
1
BRAVIA®
Your New
Congratulations! Your new BRAVIA® TV opens the door to the "Stunning HD Experience".
This guide will explain how to get the most from your new High Definition TV.
Please take these steps before you power up your BRAVIA:
Register online at: http://productregistration.sony.com (from U.S.A.)
http://www.sony.ca/registration (from Canada)
Make sure you've removed all accessory contents from packaging.
Install 2 AAA batteries (supplied separately) in your remote control.
Determine whether you will mount your TV on a wall or place it on the Table-Top
Stand.
Give your TV 2
/
inches (6 cm) of space behind it to properly ventilate.
3
8
You must get HD programming to experience the stunning
detail of HDTV.
The quality of the image you see on your BRAVIA can only be as high as the quality of
the signal it is receiving.
Contact your cable, satellite or HD Service provider to upgrade your service to HD.
Receive over-the-air HD broadcasts with an HD-quality antenna (www.antennaweb.org)
and discover the wealth of entertainment now available on super-high-resolution
Blu-ray Disc™.
To learn more about HDTV, visit: U.S.A.: http://www.sony.com/HDTV

Connecting to Your TV

Your BRAVIA TV must be properly connected to components such as sound system and
cable or satellite box.
Turn off and unplug all components before making connections.
Do not turn on the TV until connection setup is completed.
See reverse side of this poster for sample connection diagrams.
VIDEO
INPUT
Connector
Connection
High
HDMI 1
HDMI/MHL cable carries
HDMI 2/MHL
both video and audio
HDMI 3
HDMI/MHL
signals.
HDMI 4
connection
COMPONENT
Component
connection
Composite
VIDEO
video
connection
Standard
*
1
For supported PC formats refer to the operating instruction manual.
3
Watching Your TV
Select Your Content Source
Whether you are watching cable, satellite or broadcast TV; playing a VCR, DVD or Blu-ray
Disc; or connecting to your PC or other equipment, you need to choose the correct input
using your remote control:
Press the INPUT button repeatedly until your selection is highlighted on-screen.
Adjust Screen Shape and Aspect Ratio
High Definition and Standard Definition signals are transmitted with different aspect
ratios (the width-to-height ratio of the image).
The 16:9 aspect ratio (common to most HD signals) looks perfect on your BRAVIA.
The boxy 4:3 aspect ratio (common to most SD signals) must be adjusted to fill the screen.
Press the WIDE button on your remote control to display the Wide Mode setting of
your preference.
Customize Sound and Picture Quality
You can choose optimum sound and picture settings to match the content you are
displaying on your TV:
Press the remote control's HOME button, select Settings, then select the Picture and
Sound settings to adjust the picture and sound quality of your content.
Refer to your Operating Instructions Manual for more information on adjusting or
customizing your settings.
LCD HDTV
Canada: http://www.sony.ca/hdtv
AUDIO
High or Standard Definition Quality
1080/
1080p
1080i
720p
24p
HD
HD
HD
HD
HD
HD
HD
Audio L/R
Audio L/R
480p
480i
PC
SD
SD
*
1
SD
SD
SD
