2. IDE connector (40-1 pin PRI_EIDE)
The onboard IDE connector is for the Ultra DMA 133/100/66 signal cable.
There are three connectors on each Ultra DMA 133/100/66 signal cable:
blue, black, and gray. Connect the blue connector to the motherboard's IDE
connector, then select one of the following modes to configure your device.
Single device
Two devices
• Pin 20 on the IDE connector is removed to match the covered hole on the
Ultra DMA cable connector. This prevents incorrect insertion when you
connect the IDE cable.
• Use the 80-conductor IDE cable for Ultra DMA 133/100/66 IDE devices.
If any device jumper is set as "Cable-Select," make sure all other device
jumpers have the same setting.
®

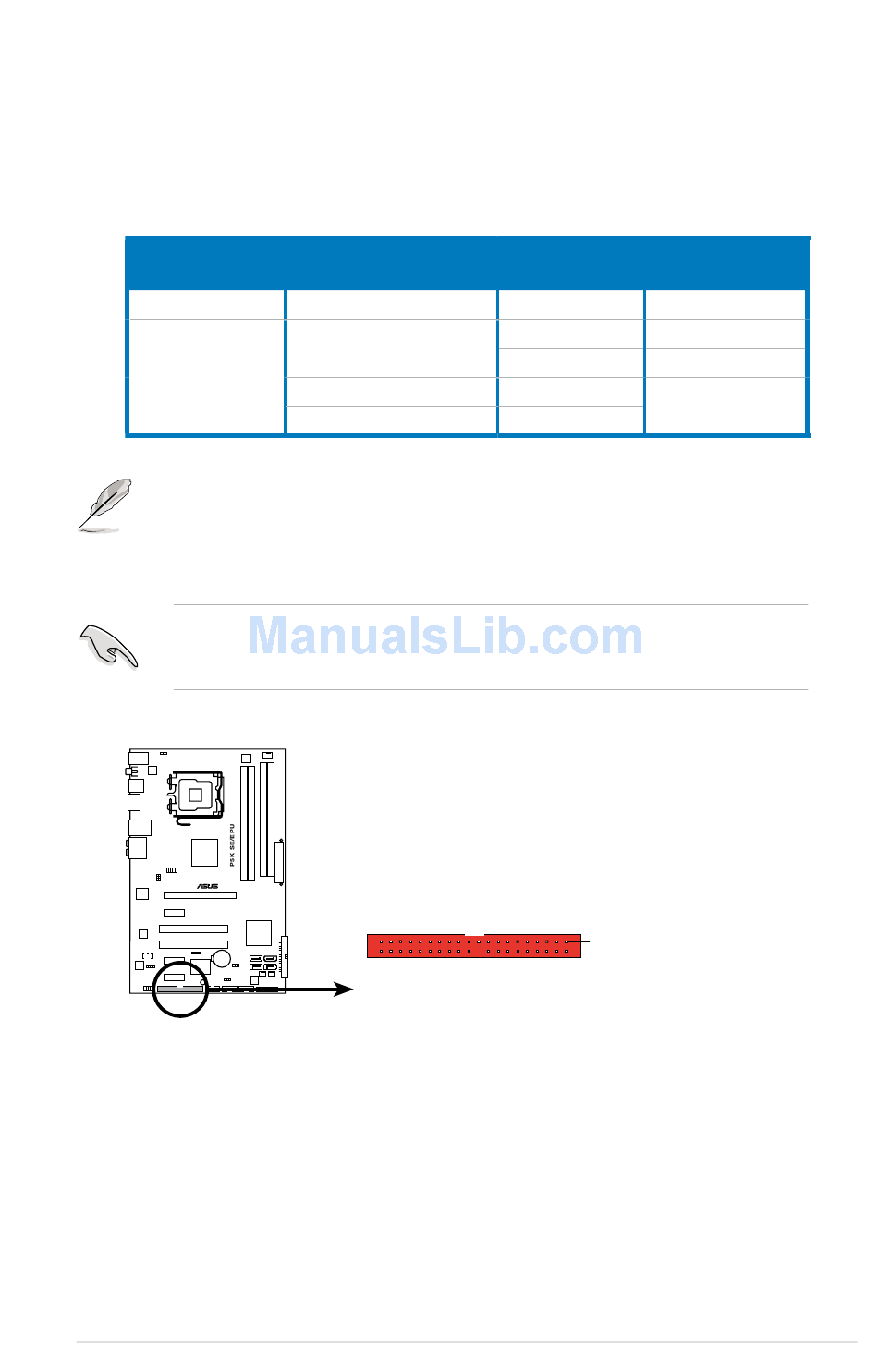

P5K SE/EPU IDE connector
ASUS P5K SE/EPU
Drive jumper setting
Cable-Select or Master
Cable-Select
Master
Slave
PRI_EIDE
NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.
Mode of Cable connector
device(s)
- Black
Black
Master
Slave Gray
Master Black or gray
Slave
PIN 1
2-27
