Asus P5K SE EPU User Manual page 47

Audio 2, 4, 6, or 8-channel configuration
Headset
Port
2-channel
Light Blue Line In
Lime Line Out
Pink Mic In
Orange –
Black –
Gray –

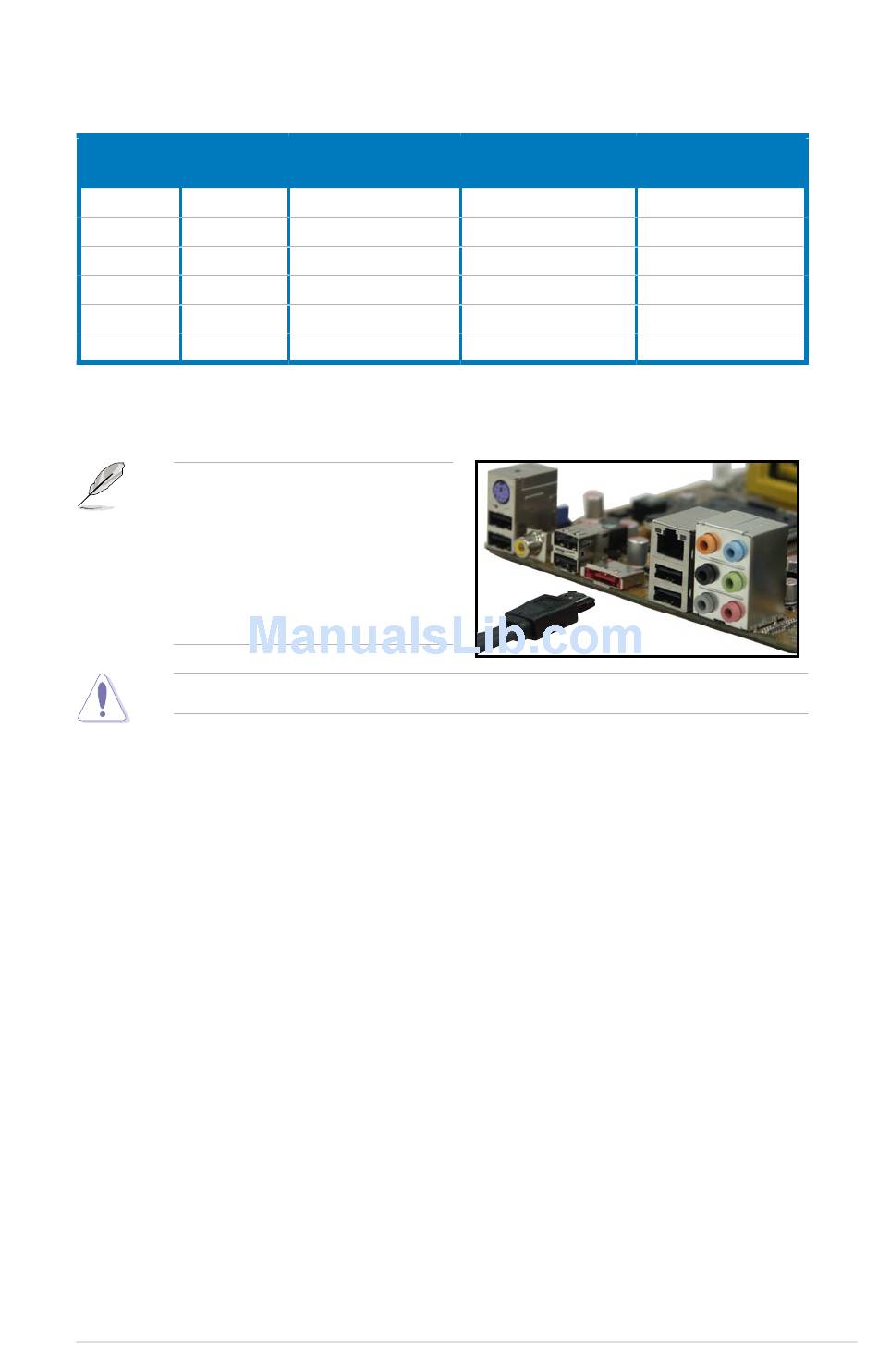

10 External SATA port. This port connects an external Serial ATA hard disk
drive.
The external SATA port supports
external Serial ATA 3.0 Gb/s
devices. Longer cables support
higher power requirements to
deliver signal up to two meters
away, and enables improved hot-
swap function.
DO NOT insert a different connector to this port.
11. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
12. Coaxial S/PDIF Out port. This port connects an external audio output device
via a coaxial S/PDIF cable.
13. USB 2.0 ports 5 and 6. These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
ASUS P5K SE/EPU
4-channel
Line In
Front Speaker Out
Mic In
–
Rear Speaker Out
–
6-channel
Line In
Front Speaker Out
Mic In
Center/Subwoofer
Rear Speaker Ou
–
8-channel
Line In
Front Speaker Out
Mic In
Center/Subwoofer
Rear Speaker Out
Side Speaker Out
2-25
