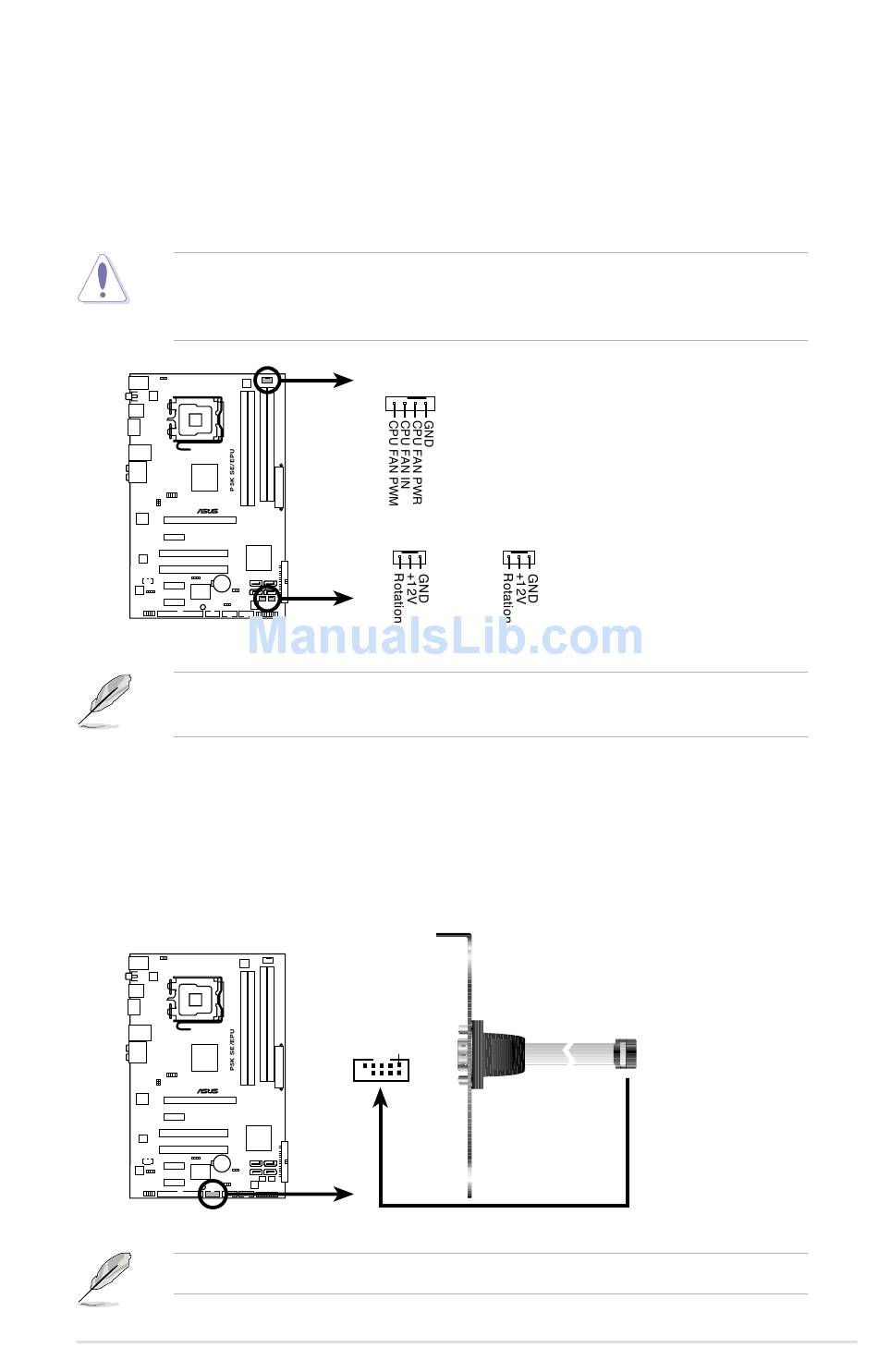

7. CPU, chassis, and power fan connectors
(4-pin CPU_FAN, 3-pin CHA_FAN, 3-pin PWR_FAN)
The fan connectors support cooling fans of 350 mA~2000 mA (24 W max.)
or a total of 1 A~7 A (84 W max.) at +12V. Connect the fan cables to the fan
connectors on the motherboard, making sure that the black wire of each
cable matches the ground pin of the connector.
Do not forget to connect the fan cables to the fan connectors. Insufficient air
flow inside the system may damage the motherboard components. These are
not jumpers! Do not place jumper caps on the fan connectors!
®
P5K SE/EPU Fan connectors
Only the CPU_FAN and CHA_FAN connector support the ASUS Q-FAN 2
feature.
8. Serial port connector (10-1 pin COM1)
This connector is for a serial (COM) port. Connect the serial port module
cable to this connector, then install the module to a slot opening at the back
of the system chassis.
®
P5K SE/EPU COM port connector
The serial port module is purchased separately.
ASUS P5K SE/EPU
CPU_FAN
PWR_FAN CHA_FAN
COM1
PIN 1
2-31
